Vivitek DW832-EDU

High Brightness Projector - 5000 Lumens

• Description
• Specifications
• Downloads

• Versatility meets performance
  The Vivitek DW832 delivers exceptional digital images with a high degree of vibrancy thanks to 5,000 ANSI lumens of brightness and a contrast ratio of 15,000:1. Featuring native WXGA resolution the DW832 is designed for a wide variety of applications. Their compact size at just 3,2 kg and flexible 1.5x zoom ratio allows for easy transportation between different meeting rooms or classrooms. The DW832 features HDMI/MHL and various connectivity options to fully enjoy multimedia applications of any kind.Vivitek DX831 DW832 Left Hero

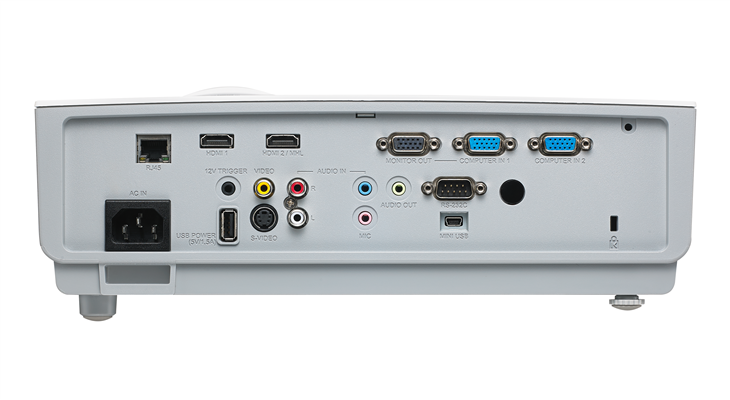

  Vivitek DX831 DW832 IO Rear

  Key features
  DLP® technology with BrilliantColor™ for vibrant and rich picture quality
  5,000 ANSI lumens of brightness and 15,000:1 contrast ratio for clear, crisp and bright projection
  Great flexibility with 1.5x zoom
  2x HDMI input for high definition content with the same high quality
  MHL device compatibility for streaming of video and audio content from a compatible mobile device
  10W speaker and microphone input ensure you are clearly heard
  6 Segment (RYGCWB) color wheel for accurate and detailed images
  Quick auto search filtering to quickly locate input signal source
  3D compatibility with DLP® Link™ and HDMI 1.4b Blu-Ray support for dazzling and realistic life-like images
  Enhanced environmentally friendly power functions (Eco mode, Auto power off, stand-by mode) to increase lamp life and power savings







  DLP® Technology
  DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from

  BrilliantColor™
  BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.

  3D Ready
  A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.

  HDMI
  HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP.

• Feature	Specification
  Native Resolution	WXGA (1280 x 800)
  Brightness	5000 ANSI Lumens
  Contrast Ratio	15000:1
  Max. Supported Resolution	WUXGA (1920x1200) @60Hz
  Native Aspect Ratio	16:10
  Lamp Life and Type	2,500 / 3,000 / 3,500 Hours (Normal / Eco / Dynamic Eco Mode), 310W / 245W
  Display Type	Single chip DLP® Technology by Texas Instruments
  Chip Size	0.65” DMD
  Throw Ratio	1.46 - 2.20
  Image Size (Diagonal)	25.3" - 317.99"
  Projection Distance	1.2 - 10m
  Projection Lens	F = 2.42 - 2.97, f = 20.70 - 31.05 mm
  Zoom Ratio	1.5
  Offset	112%
  Keystone Correction	Vertical +/- 40°
  Speakers	10W x 1
  Video Compatibility	SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
  I/O Connection Ports	VGA-In (15pin D-Sub) (2), HDMI (x2 (with MHL x1)), S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, 12v Trigger, RS-232, USB A (for 5V/1.5A power only), USB miniB (Service), Microphone (Mini-Jack)
  Dimensions (W x D x H)	314 x 216 x 126 mm
  Weight	3.2 kg
  Noise Level	38dB / 34dB (Normal / Eco Mode)
  Power	Supply: AC 100-240V, 50/60Hz Consumption: 320W (Eco. Mode), 410W (Normal Mode), <0.5W (Standby)
  3D Ready (DLP link, PC+Video)	Yes
  Standard Accessories	VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
  Optional Accessories	Spare Lamp P/N: 5811120589-S, Remote Control P/N: 5041846401
  Warranty	Standard Warranty: 3 years projector / 1 year on lamp or 1,000 hours whichever comes first, Education Warranty: 5 years projector / 3 years on lamp or 2,000 hours whichever comes first
  UPC Code	813097 021540

• Item	Type
  Vivitek DataSheet	Download
  Vivitek User Manuals	Download
