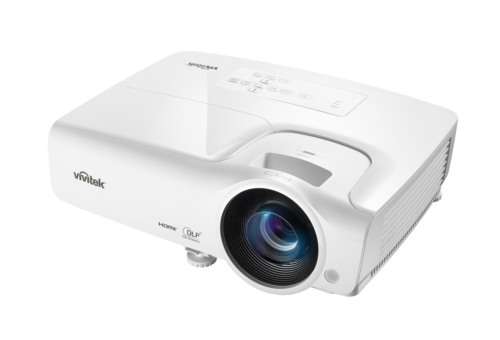

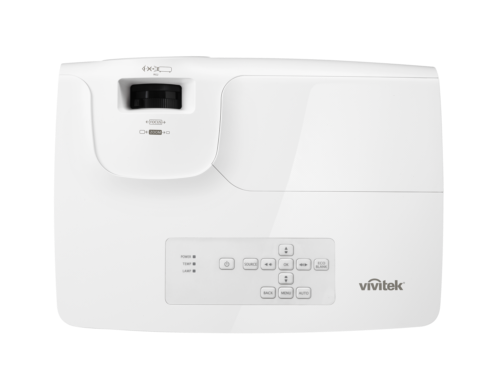

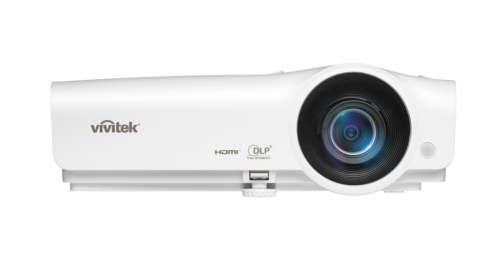

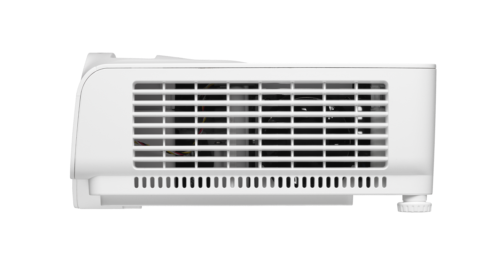

Vivitek DX273-EDU

Versatile Portable Projector - 4000 Lumens

• Description
• Specifications
• Downloads

• From meeting room to presentations anywhere on the road
  The DX273 is a native XGA digital projector from Vivitek. It features DLP® and BrilliantColor™ technologies to display distinct, vibrant images in a widescreen format. The Vivitek DX273 features numerous connectivity options including two HDMI v1.4, a brightness level of 4000 Lumens and a 20,000:1 contrast ratio. With its light weight and compact form, the DX273 projector is easy to install and will fit into any budget.

  Key features
  DLP® technology with BrilliantColor™ for vibrant and rich picture quality
  4000 Lumens of brightness and 20,000:1 contrast ratio for clear, crisp and bright presentations
  XGA (1024 x 768) native resolution scalable up to a maximum WUXGA (1920 x 1200) resolution
  Dual-HDMI inputs for high definition content with the same high quality
  Compact and lightweight at 2.6kg for easy portability
  A long lamp life up to 10,000 hours for low Total Cost of Ownership (TCO)
  Audio ready with built-in 2 watt audio speaker, audio-in and audio-out ports



• Native Resolution	XGA (1024 x 768)
  Brightness	4000 ANSI Lumens
  Contrast Ratio	20,000:1
  Max. Supported Resolution	WUXGA (1920 x1200) @60Hz
  Native Aspect Ratio	4:3
  Lamp Life and Type	5,500 / 7,000 / 10,000 Hours (Normal / Eco. / Dynamic Eco. Mode), 210W
  Display Type	Single chip DLP® Technology by Texas Instruments
  Chip Size	0.55” DMD
  Throw Ratio	1.94 - 2.33 : 1
  Image Size (Diagonal)	40" - 300"
  Projection Distance	1.6 - 12.2 m
  Projection Lens	F = 2.42 - 2.62, f = 22.5 - 25.79 mm
  Zoom Ratio	1.2x
  Offset	106%
  Keystone Correction	Vertical: +/-40°
  Speakers	2W

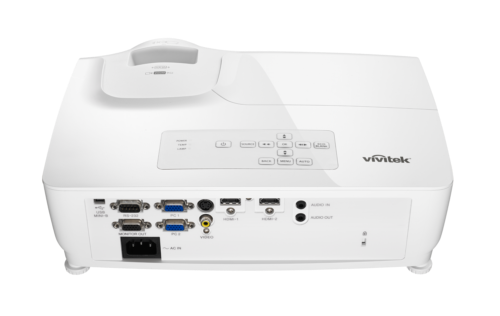

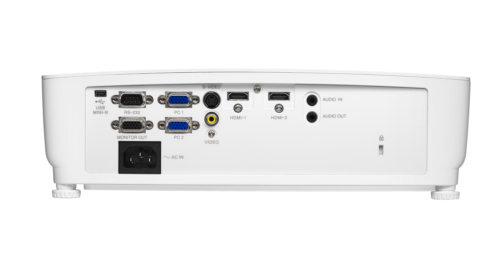

  I/O Connection Ports	VGA-In (15pin D-Sub) (x2), HDMI (x2), S-Video, Composite Video, Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RS-232, USB miniB (Service)
  Dimensions (W x D x H)	331 x 244 x 105 mm
  Weight	2.6 kg
  Noise Level	32dB / 29dB (Normal / Eco. Mode)
  Power	Supply: AC 100-240V, 50/60Hz Consumption: 210W (Eco. Mode), 250W (Normal Mode), <0.5W (Standby)
  3D Ready(DLP link, PC+Video)	Yes
  Standard Accessories	VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
  Optional Accessories	Spare Lamp P/N: XX5810005600, Remote Control P/N: XX5040005400, Carrying Case P/N
  Warranty	Entry Warranty: 2 years projector / 1 year on lamp or 1.000 hours whichever comes first, Education Warranty: 5 years projector / 3 years on lamp or 2.000 hours whichever comes first

• Item	Type
  Vivitek DataSheet	Download
  Vivitek User Manuals	Download
