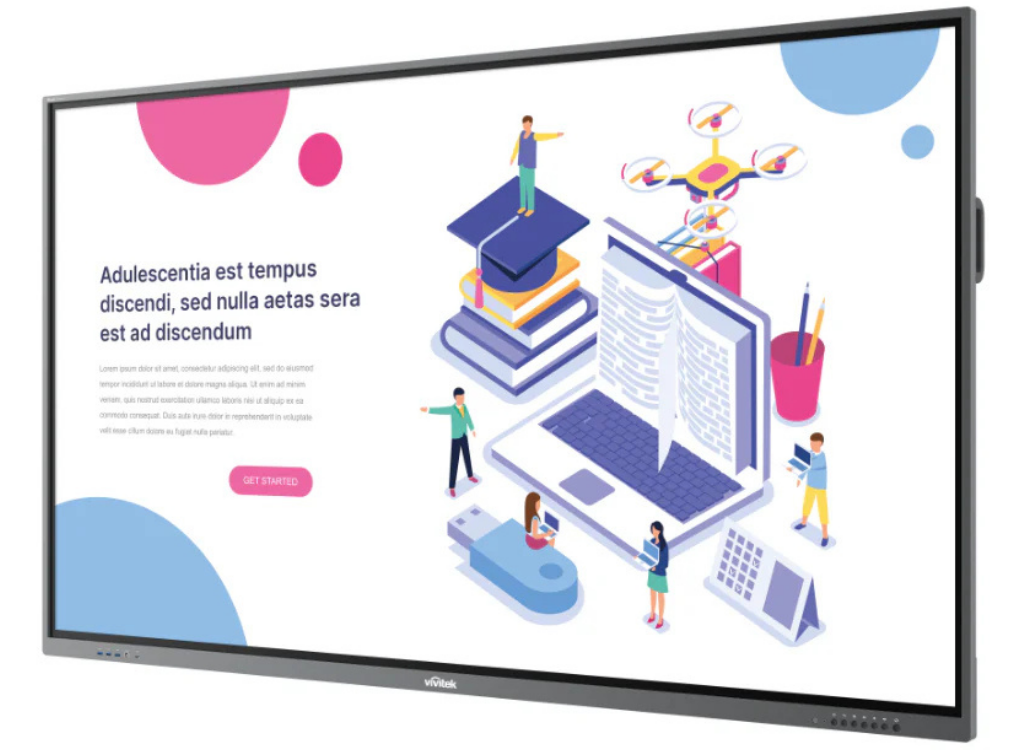

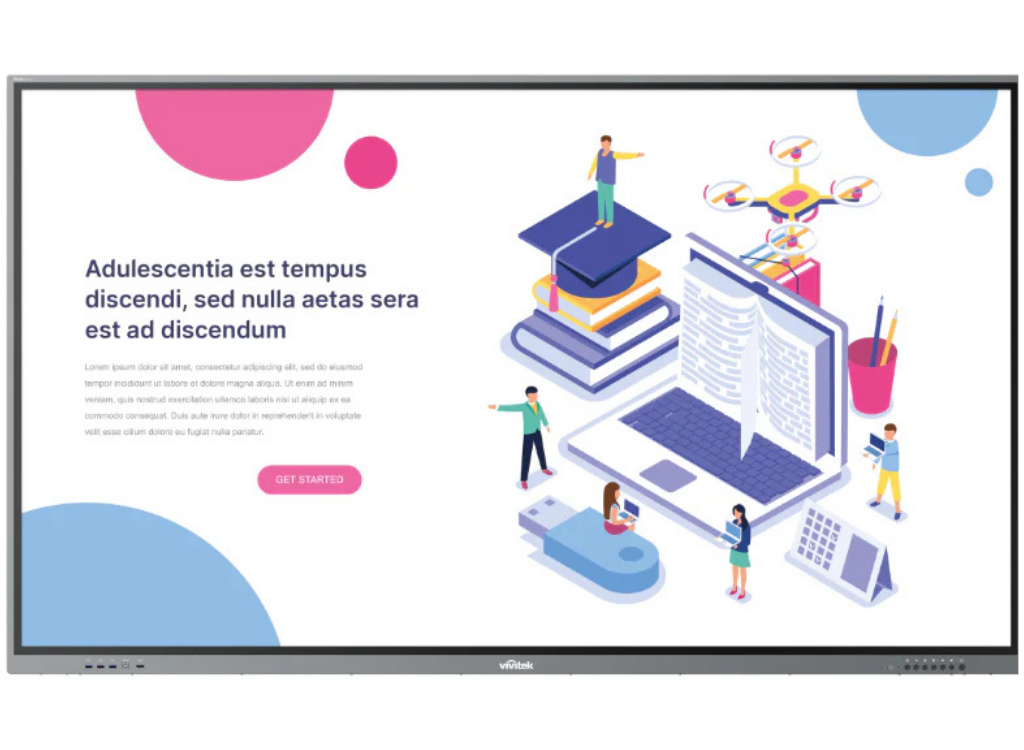

Vivitek NovoTouch BK860i 86" 4K Android Interactive Display
SKU: BK860i
£1,099.85 (Excl. VAT)
- Display Size86"
- Touch Capabilities40pt multi-touch
- Net Weight45 kg
- Operating SystemAndroid 9
- VESA Patterns600x400
- Panel TypeIPS Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Response Time8ms
- Screen Ratio16:9
- Brightness450 cd/m2
- Operating Hours16/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Vivitek NovoTouch BK860i 86" 4K Android Interactive Display

NovoTouch BK
4K-UHD collaborative Touch Panel is perfect for education and business meetings.
The NovoTouch BK series offers 4K displays with embedded NovoConnect Wireless Collaboration to make it easy for any participant to share their device screen. The included digital whiteboard function completes the classroom experience with a flawless touch annotation for a truly interactive session.
4K Ultra-HD resolution for outstanding details and stunning visuals.
In-Plane Switching (IPS-ADS) panel technology offers outstanding details and stunning visuals with Hyper-Viewing Angle.
The NovoTouch has an Optically Bonded screen that offers better readability, visibility and a larger viewing angle than non-bonded screens.Front bezel USB ports for quick connection to USB keyboards mouse, memory drives and data
Eye Protection Technology. The NovoTouch BK series is TÜV Rheinland Certified to ensure the best eye projection with low Blue Light & Flicker Free feature for the best viewing experience.
40-point finger touch capability with 10-point writing to give best accuracy while zooming, rotating, swiping around the screen.
Wireless Collaboration
Wireless content sharing from any laptop, tablet or smartphone to the central screen (BYOD).
Supports connections from 8 participants.

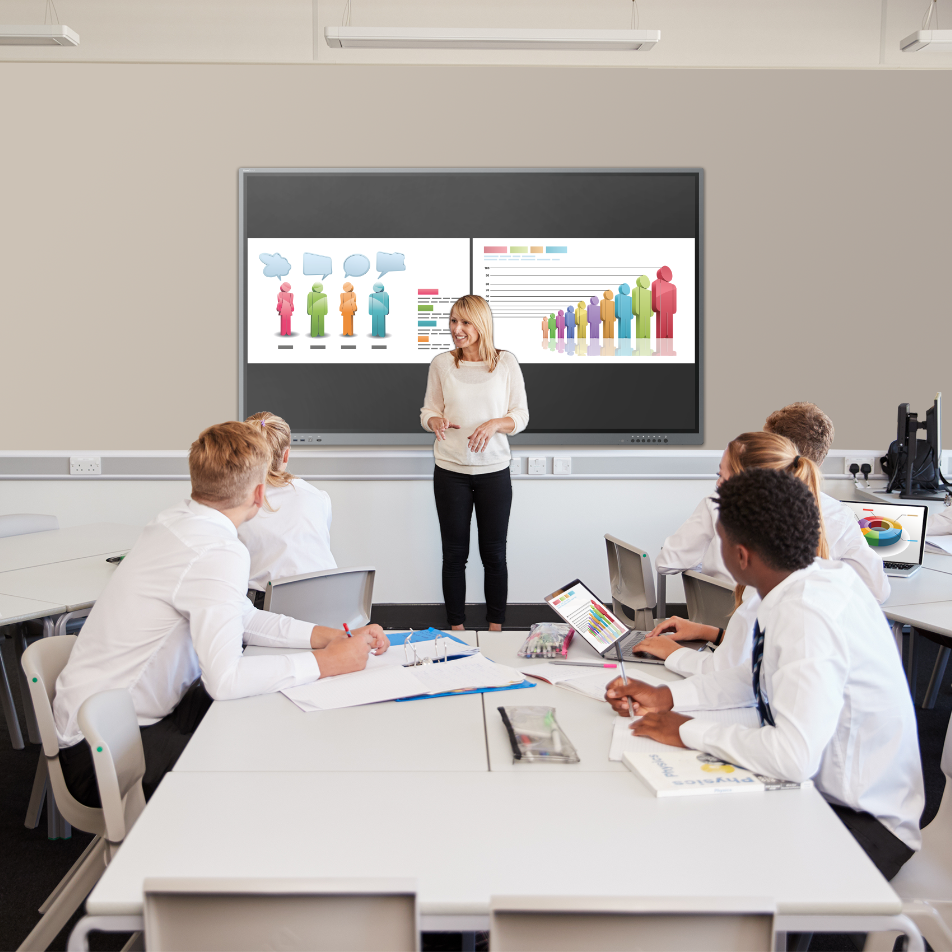

Split screen allows for 2 participants to present simultaneously.
Digital Whiteboard application enables flawless annotation, highlighting and screen capture for easy sharing.
Google Play enabled for easy access to any app on the playstore.
NovoConnect Wireless Collaboration
The BK series has built-in NovoConnect Lite wireless presentation and collaborative tools for cable-free and hassle-free presenting in the classroom or in the office.Up to 8 participants can be connected and 2 can share their screen, each in 1080p resolution.

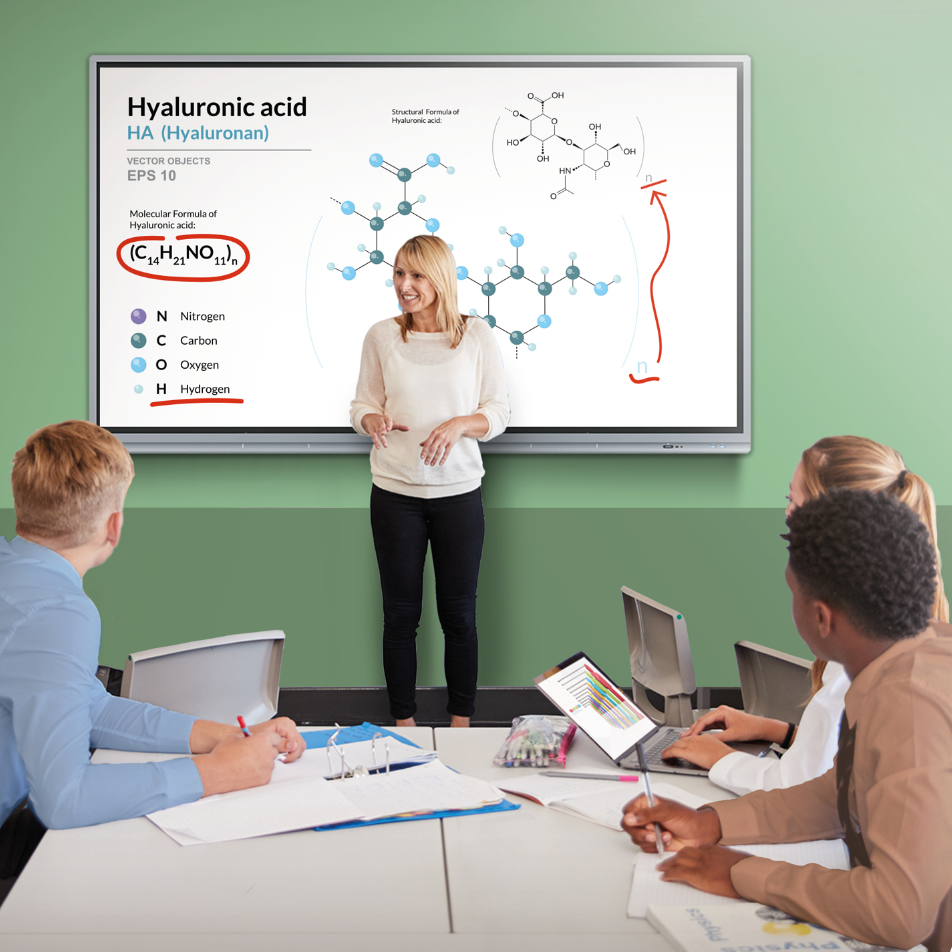

Digital Whiteboard
The BK series supports 40-point interactive touch capability. The digital whiteboard enables flawless annotation, highlighting and screen capture for easy sharing.
Google Play enabled Easy access to any Google Play app allows for even more flexible use and optimized working and teaching in any session.
4K UHD Resolution and rich connectivity

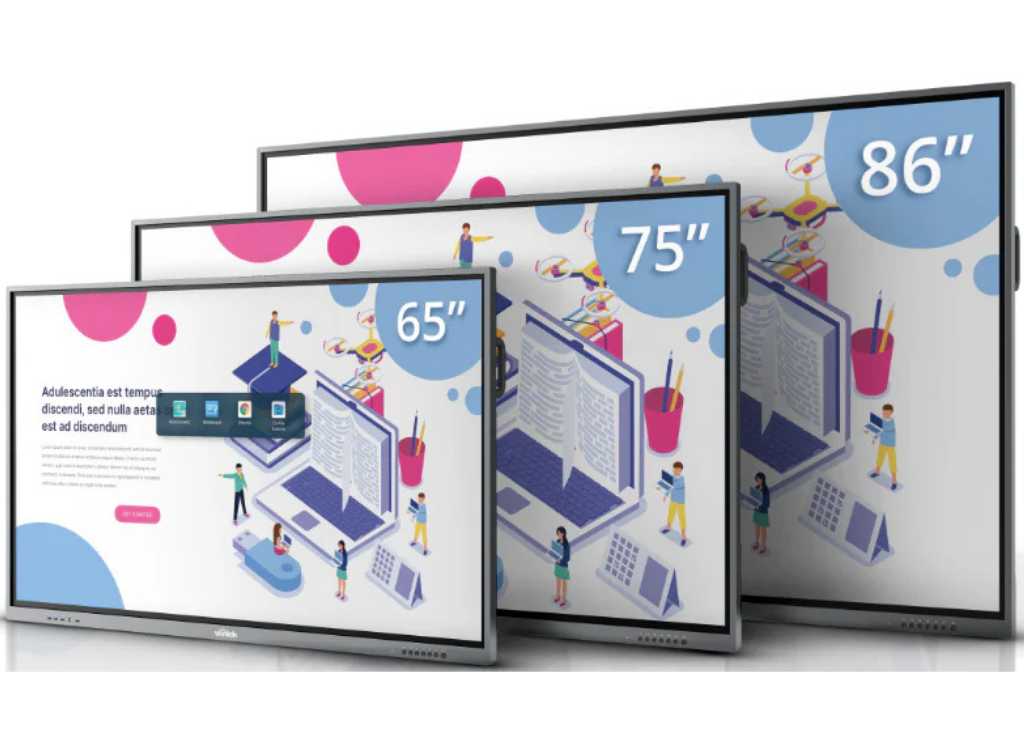

The BK series 65” / 75” / 86”display size with 4K Ultra-HD (3,840 x 2,160) resolution to deliver outstanding details and stunning visuals. The multiple interfaces, such as USB Type-C, HDMI and USB2.0/3.0 allow easy connection to various devices.
Backlit D-LED Technology
Backlit D-LED (IPS panel) with Optical Bonding technology delivers brighter pictures, flawless colors, richer textures, and extra wide viewing angles (178˚/178˚). The result is incredibly sharp and crisp images.
Eye Protection Technology
The BK series is TÜV Rheinland Certified to ensure the best eye projection with low Blue Light & Flicker Free feature for the best viewing experience. -
Model Name BK860i Display Panel Size 86” Type/Tech Backlit D-LED (IPS- Panel) Brightness 450 cd/m² Contrast Ratio 5000:1 Native Resolution 4K Ultra-HD (3840 x 2160) Viewing Angle (H/V) 178° / 178° Aspect Ratio 16:9 Refresh Rate (Hz) 60 Hz Estimated Life Time 50,000 Hours (Min) Display Color (Bit) 1.07 Billion (10-bit) Installation Orientation Landscape Daily Operation (Hours/Days) 16/7 Touch Technology Infrared Touch Touch Points Annotation 10 Points Touch 40 Points Accuracy Passive Pen ±2mm (Over 90% area) Touch ±2mm (Over 90% area) Touch Resolution 32,768 x 32,768 Surface Protection 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness) Operating System Android™ v9.0 Internal Storage 32GB (eMMC Flash) (About 25GB User Availability) Connectivity Input Display HDMI v2.0 x3, VGA-In x1, Display Port 1.2 x1, AV(3.5mm) x1, YPbPr(3.5mm) x1 Audio Audio-In (3.5mm) x1, Mic(3.5mm) x1 Output Display HDMI-Out v2.0 x1 Audio Audio-Out (3.5mm) x1, SPDIF-Out x1 Internet LAN (RJ45) x2 Control RS232-In x1 Wireless (USB Dongle) WiFi 5, IEEE802.11a/b/g/n/ac (2.4GHz/5GHz) WiFi 6, IEEE802.11ax (2.4GHz/5GHz) (optional) USB Front: USB-A 3.0 x3, Side:USB-A 3.0 x1, USB-A 2.0 x1, USB-B x5 (For Touch Port) USB-C 3.1 (15W power) x1 Default Apps Collaboration Screen mirroring (NovoConnect Lite version), Education or Corporate mode, Digital Whiteboard, WPS Office, Finder Expansion Windows (OPS ) Intel Standard 80 Pin OPS- Optional Audio Speakers 16W x2 (Stereo) Device Management Software Free Software- Remote Manager Power Power Supply (Internal) AC 100 - 240V, 50/60Hz (3.0A) Consumption ≤220W Standby Mode <0.5W (Standby) Physical Characteristics Dimension (L x H x D)mm 1523 x 945 x 107 Weight 45kg VESA Mounting (FPMPMI) 4 – M8 × 25mm, 600 x 400mm (23.6" x 15.7") Color Silver Accessories Standard AC Power Cord, Stylus (x2), Remote Control (W/Batteries), Wi-Fi 5 (802.11ac) Dongle, Documentation Kit Optional Accessories Wi-Fi 6 ( 802.11ax) Dongle, LauncherPlus, LauncherOne, HDMI Cable, USB Cable(Touch), VGA Cable, Audio Cable, Wall Mount Kit Warranty Standard 3-Year warranty on the panel Education Warranty 5-Year warranty on the panel, where end customer is a school, university or training center. Education product registration required within 180 days of purchase for extended warranty to be valid. -
Description Downloads Vivitek NovoTouch BK datasheet Downloads Vivitek Full Line 2023 EN Downloads
