Ultra short throw lens can make 100 inch projection screen from as little as 44cm away
The DW771USTie is the ultimate interactive ultra-short-throw projector for the education with 3500 lumen of brightness and WXGA resolution . The projector offers a 100 inch diagonal 2.15 metre wide projection image from as little as 44cm away from the screen surface. As well as delivering an optimal viewing experience, the DW771USTie ensures a high sound quality thanks to in-built 2x10W speakers. The DW771USTie supports multi-users with dual pen functionality and an optional Finger Touch Unit with 10 points. It is HID driver-free and, for further convenience, the interactive pen can be used like a computer mouse without the complications of installing a driver. This projectors it a robust alternative to flat panels when a 100 inch size screen is required.
Key features
Ultra short throw lens to make 100 inch screen at only 44cm away
3,500 ANSI lumens of brightness, WXGA resolution, and 14,000:1 contrast ratio for clear, crisp and bright projection
Built-in interactivity for multi users with 2 pens or optional finger touch
2x 10W speakers and microphone input ensure you are clearly heard
Long lasting life with up to 12,000 hours lamp-life
Eco Friendly and Energy Saving with sleep timer and also auto-power-off when there is no signal input
Integrated network monitoring and management solutions including Crestron® RoomView™, and etc.
5 year education warranty
Compatible with NovoConnect wireless collaboration solution
| Specification | Description |
|---|---|
| Native Resolution | WXGA (1280 x 800) |
| Brightness | 3500 ANSI Lumens |
| Contrast Ratio | 14,000:1 |
| Max. Supported Resolution | UHD (3840 x 2160) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | 6,000 / 12,000 Hours (Normal / Eco. Mode) |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.65” DMD |
| Throw Ratio | 0.35:1 |
| Image Size (Diagonal) | 80"- 100" |
| Projection Distance | 283 - 446 mm |
| Projection Lens | F = 2.5, f = 5.1 mm |
| Zoom Ratio | Fixed 1x |
| Lens Shift Range | Limited Lens Shift Vertical ±1.7% |
| Offset | 120% |
| Keystone Correction | Vertical: +/- 40° |
| Speakers | 10W x 2 |

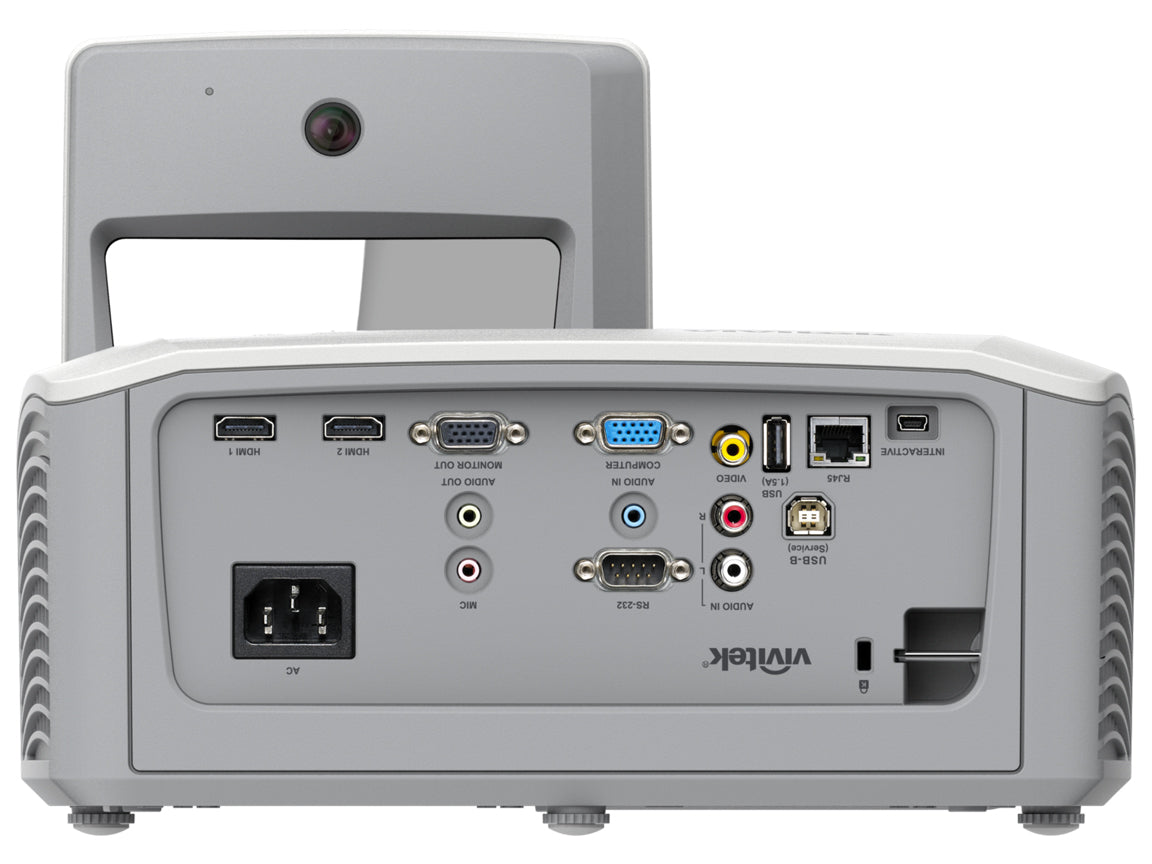

| I/O Connection Ports | VGA-In (15pin D-Sub) (x1), HDMI (x2), Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, RS-232, 3D-Sync, USB A (Power Only), USB miniB (Interactivity), USB B (Service), Microphone (Mini-Jack) |
| Dimensions (W x D x H) | 287.7 x 374.5 x 122.6 mm (not including height of mirror) |
| Weight | 5 kg |
| Noise Level | 33dB / 29dB (Normal / Eco. Mode) |
| 3D Ready (DLP link, PC+Video) | Yes |
| Universal Wall Mount (T/R 0.35) | %WM-3 |
| Standard Accessories | VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), IR interactive Pen / nbr, AC Power Cord |
| Optional Accessories | Spare Lamp P/N: 5811123650-SVV, Universal Wall Mount (T/R 0.35), Remote Control P/N: 5041841300, Interactive Pen P/N: 5811126241 |
| Warranty | Education Warranty: 5 years projector / 3 years on lamp or 2,000 hours whichever comes first |
| UPC Code | 813097025456 |
