HDBaseT Extender kit 100m
Transmitter/Receiver HDMI Two way PoC Bi-directional IR, RS232 and CEC, one PSU and HDCP2.2 compliant

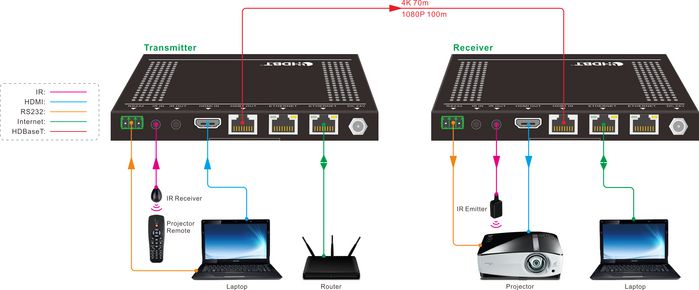

Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI extender
Point to point Tx to Rx for 100m@1080P,70m@4K
Ultra-thin design
Support up to 4K@60Hz 4:2:0 video signal transmission
HDCP2.2 compliant.
Maximum transmission distance is up to 70m for 4Kx2K
Maximum transmission distance is up to 100m for 1080p
Maximum extension distance is up to 100m for Ethernet
Two way PoE
High bandwidth:10.2Gbps
Support IR/RS232 passthrough
Use HDBaseT technology
| Category | Detail |
|---|---|
| Features | |
| Bandwidth | 10.2 Gbit/s |
| Cable types supported | Cat5e/Cat6 |
| CEC pass-through | Yes |
| HDBaseT certified | Yes |
| HDCP & EDID bypass | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum resolution | 4096x2160 Pixels |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Remote control type | IR + RS232 |
| RS-232 pass-through | Yes |
| Supported video modes | 3840p |
| Type | AV transmitter & receiver |
| Wall mountable | Yes |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | 5A992 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Package dimensions (verified) | |
| Depth Verified | 15.9 cm |
| Gross Weight Verified | 0.938 kg |
| Height Verified | 15.2 cm |
| Width Verified | 18.4 cm |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | EU/GB |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Video in | 1 |
| Video out | 1 |
| Power | |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Power consumption (receiver) (max) | 10 Watt |
| Power consumption (transmitter) (max) | 10 Watt |
| Power over Ethernet (PoE) | Yes |
| Product dimensions | |
| Net Weight (Product, kg) | 0.48 kg |
| Product Depth | 15.9 cm |
| Product Height | 15.2 cm |
| Product Width | 18.4 cm |
| Technical details | |
| Audio support | Yes |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
