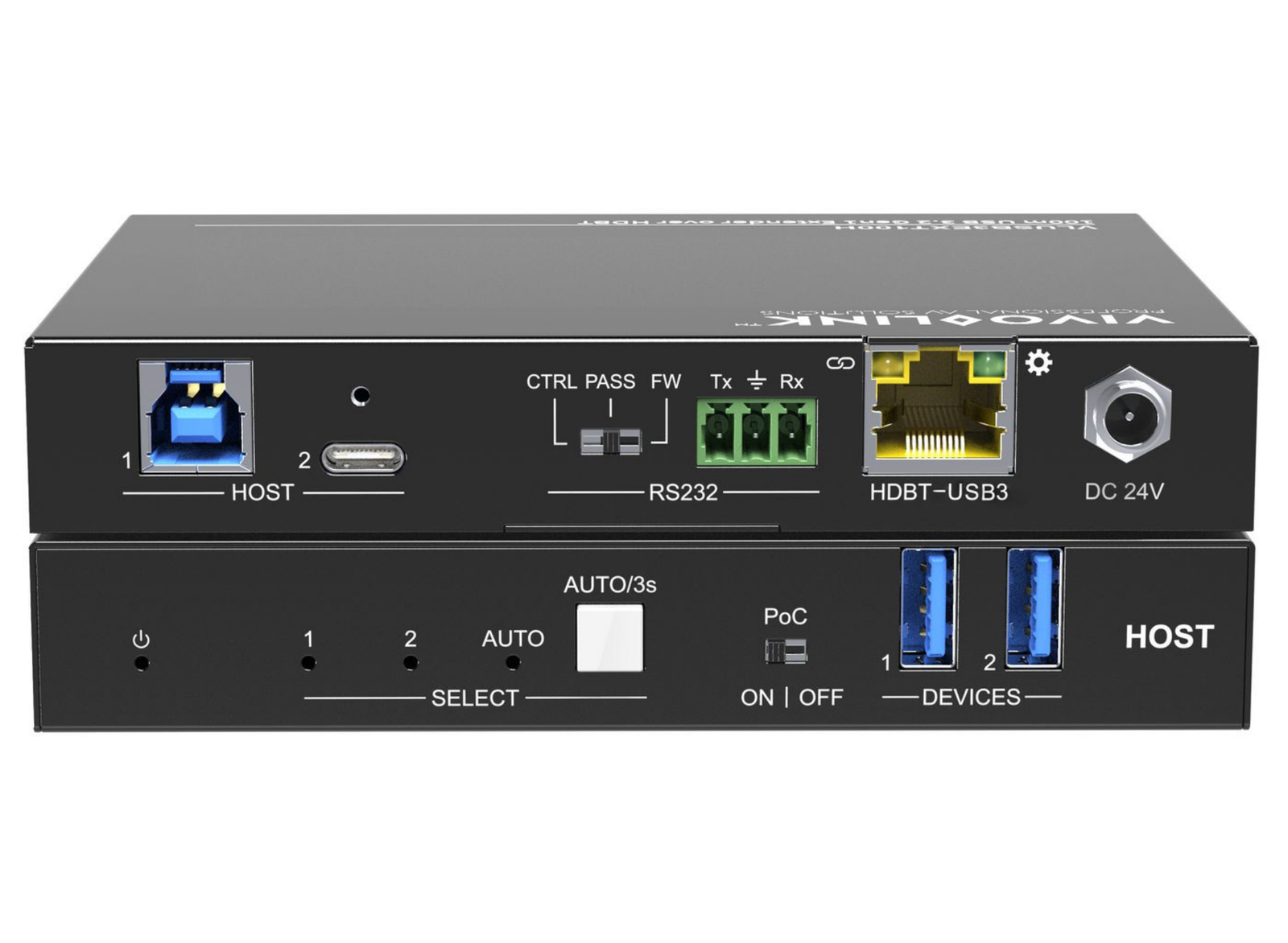

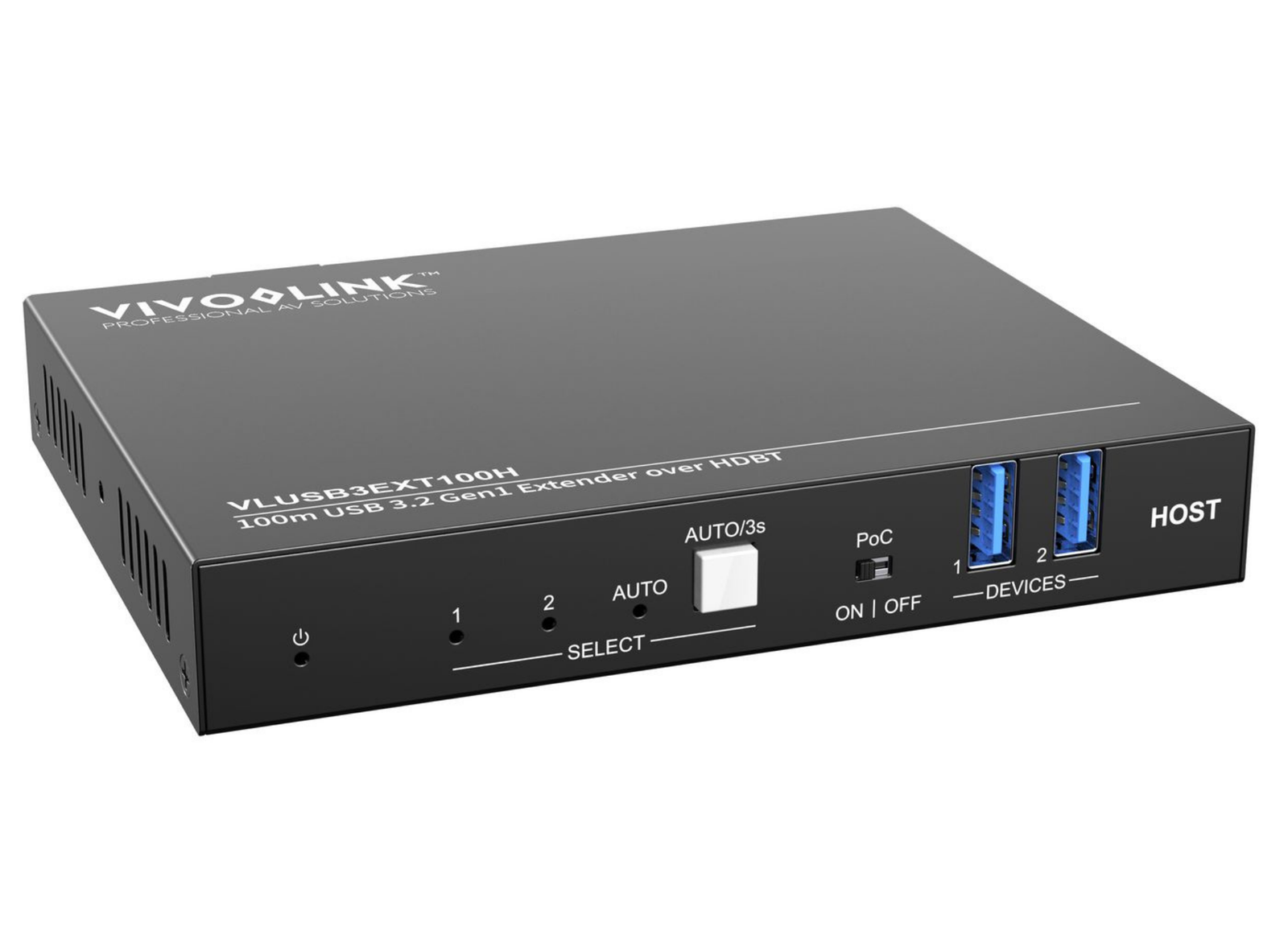

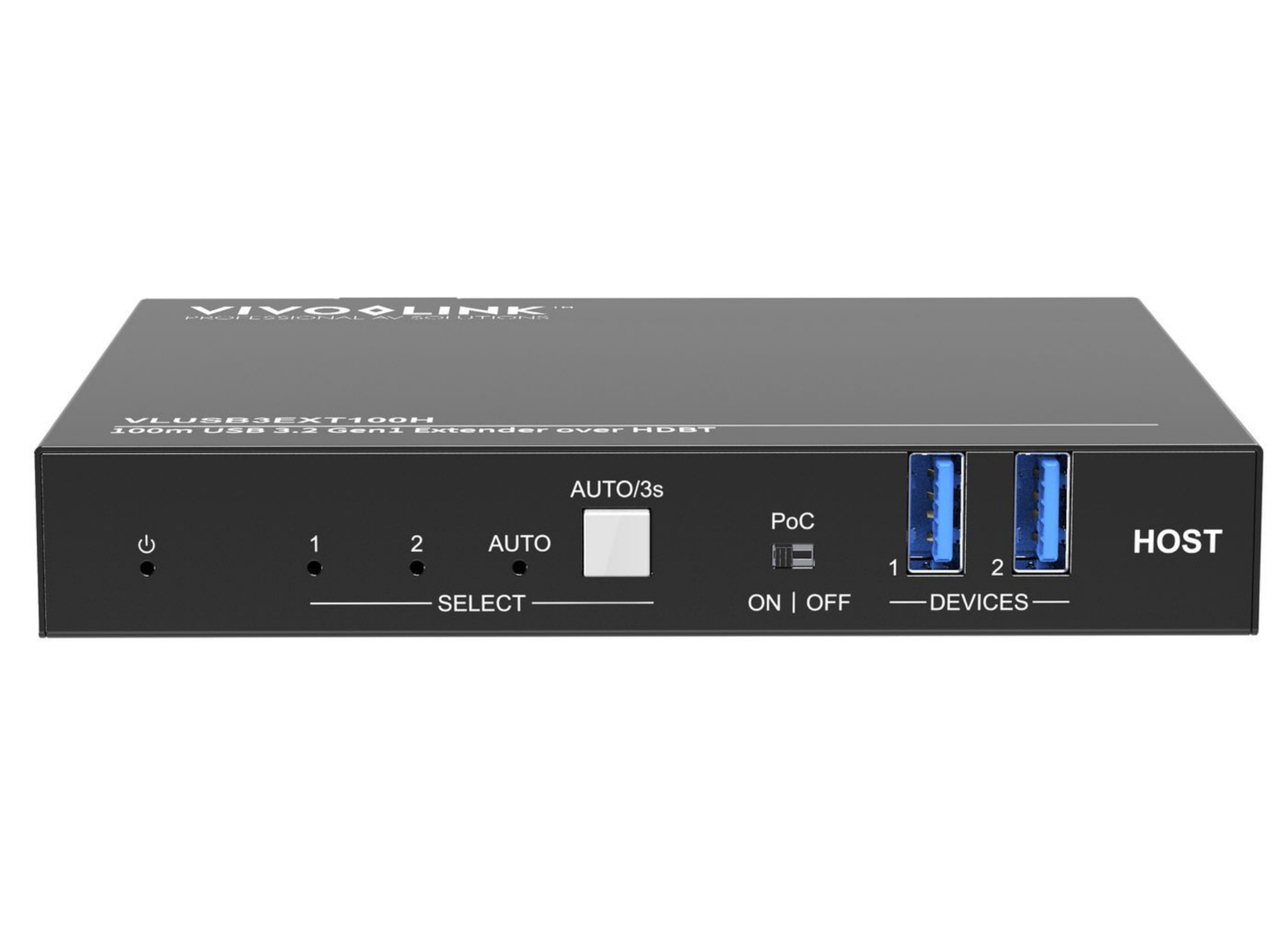

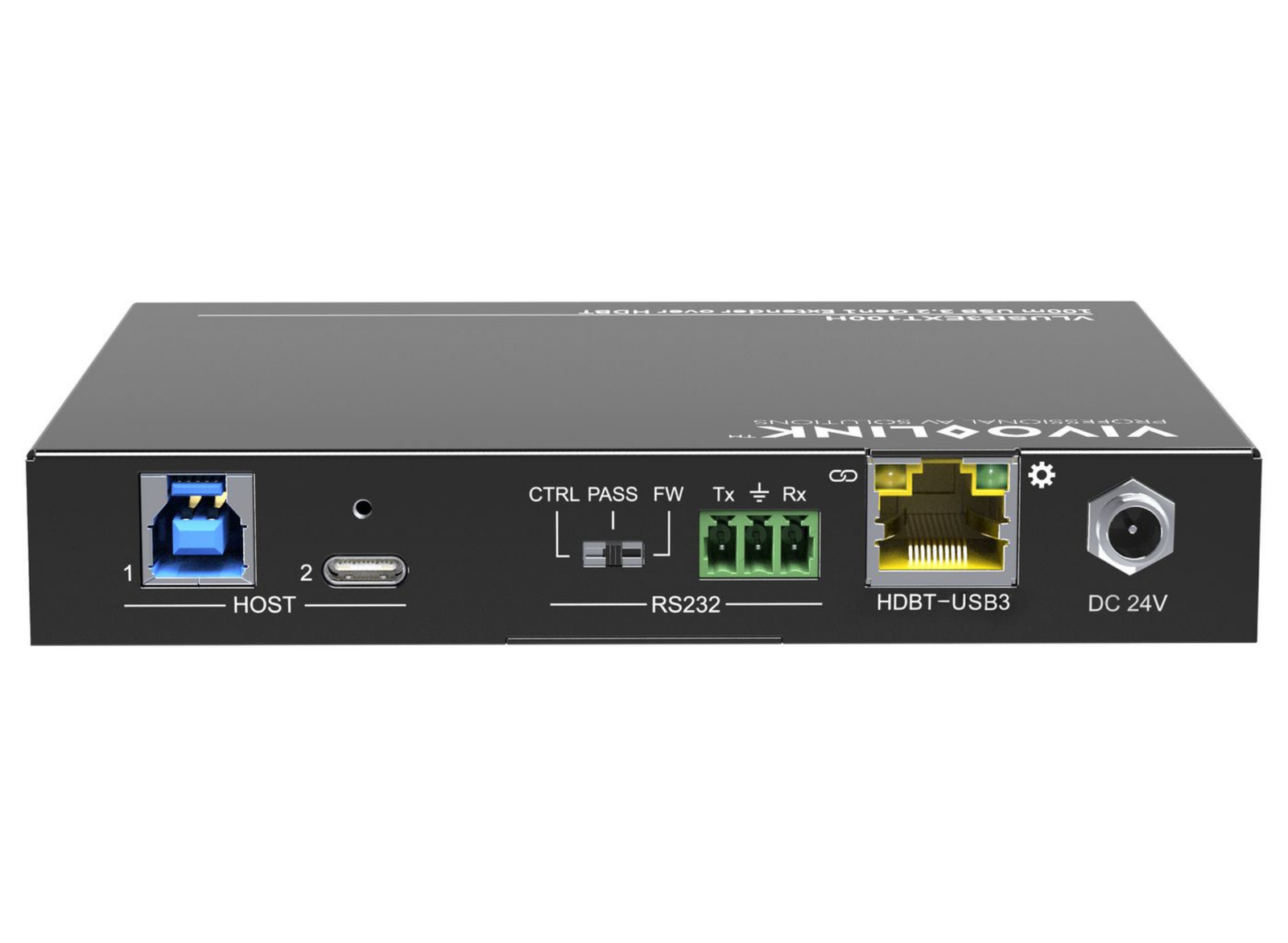

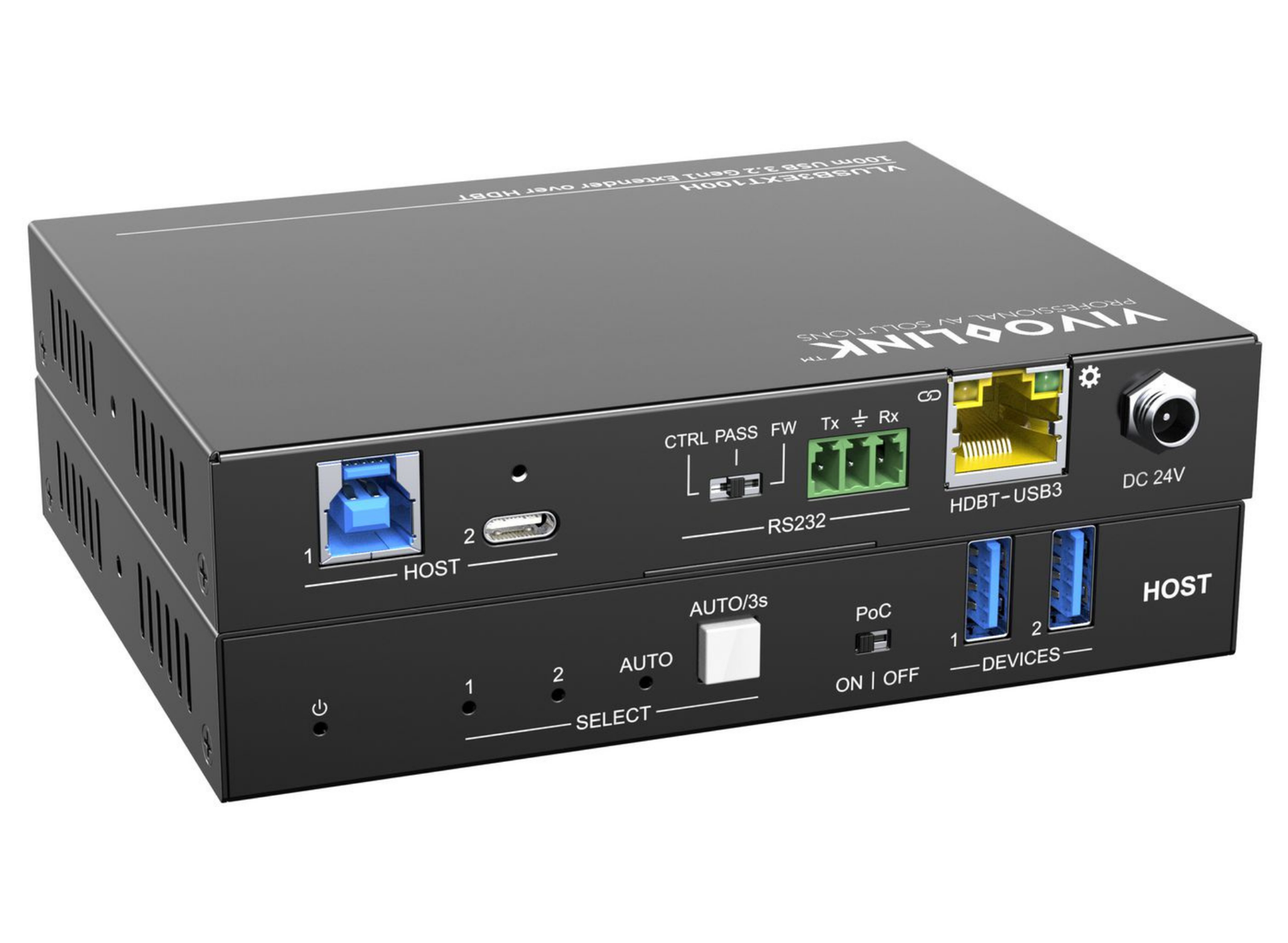

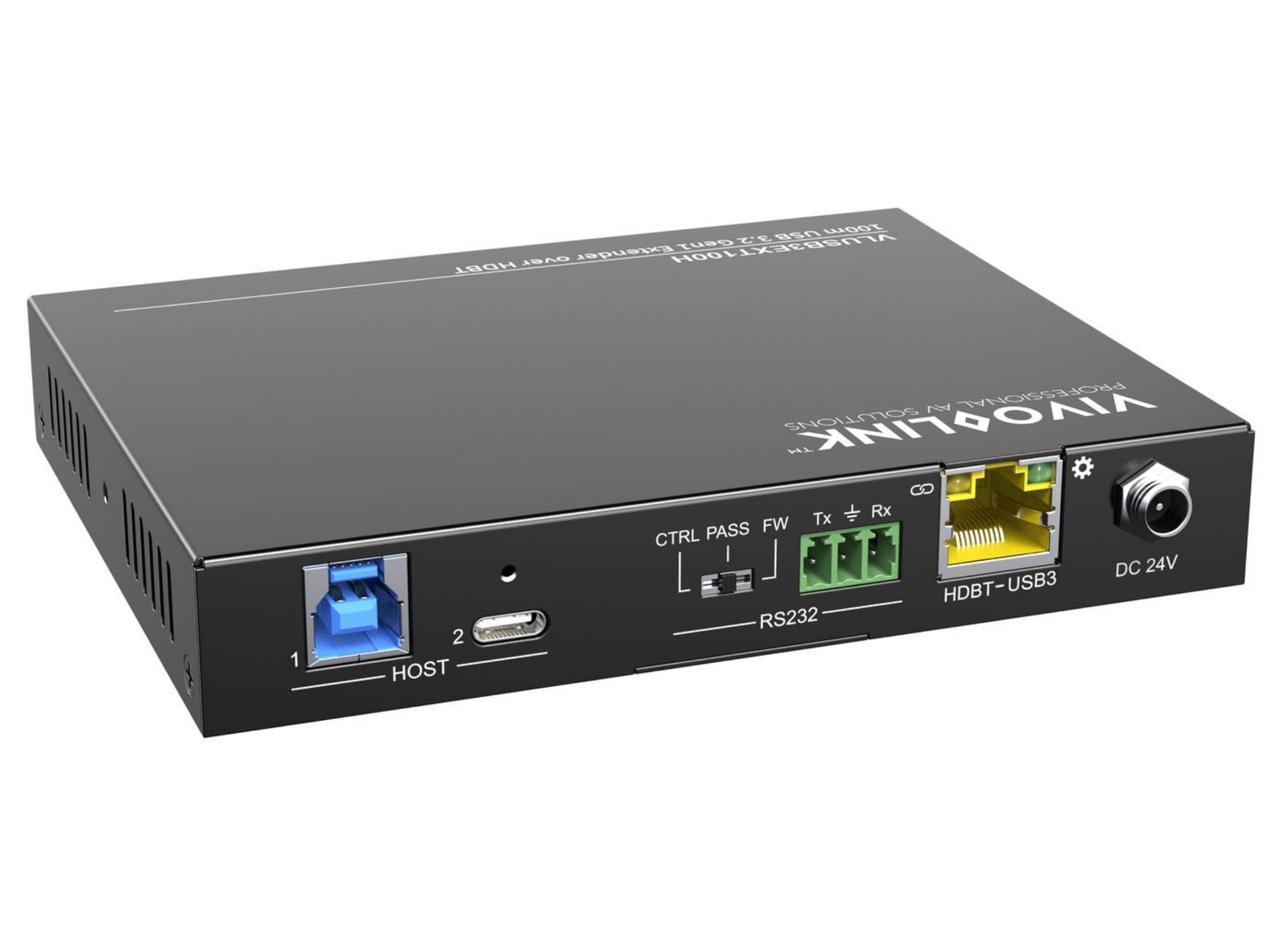

The VLUSB3EXT100D is a Host that can be used to connect up to 4 USB devices like: camera, speaker, touch screen or other USB3.0 device and signal is transfered via network cable to computer. System builts on HDBaseT 3.0 and supports data speed up to 5Gbit.
Typical installation:
Meeting rooms
It has four USB ports that can extend USB 3.0 signal up to 100 meters over a Cat5e/6/7 cable.
The transmitter is powered by the computer and the power supply is at the remote receiver that’s helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mouses, cameras, or printers, etc.
Extender is build in a durable metal housing and the compact size enables space-saving installation.
| Cable types supported | Cat6a/Cat7 | Connectivity technology | Wired |
| Easy to install | Yes | LED indicators | Power |
| Material | Metal | Maximum transfer distance | 100 m |
| Plug and Play | Yes | Product colour | Black |
| Type | USB3.0 | Country of Origin | China |
| EU ECCN Code | N/A | Tariff No. | 8517620000 |
| UNSPSC Code | 43211601 | US ECCN Code | 5A992 |
| Operating temperature | -10 - +55 °C | Storage temperature | -25 - +70 °C |
| Gross Weight (Package, kg) | 0.438 kg | AC adapter included | Yes |
| Manual | Yes | RJ-45 ports quantity | 1 |
| RS-232 ports | 1 | AC adapter output current | 1.5 A |
| AC adapter output voltage | 24 V | AC input frequency | 50 Hz |
| Net Weight (Product, kg) | 0.227 kg | RJ-45 ports (receiver) | 1 |
| RJ-45 ports (transmitter) | 1 | Brand Name | Vivolink |
| Warranty | 3 Year(s) | Transmitter depth | 10.5 cm |
| Transmitter height | 2.15 cm | Transmitter width | 13.3 cm |
| Description | Downloads |
|---|---|
| Datasheet | Download |
