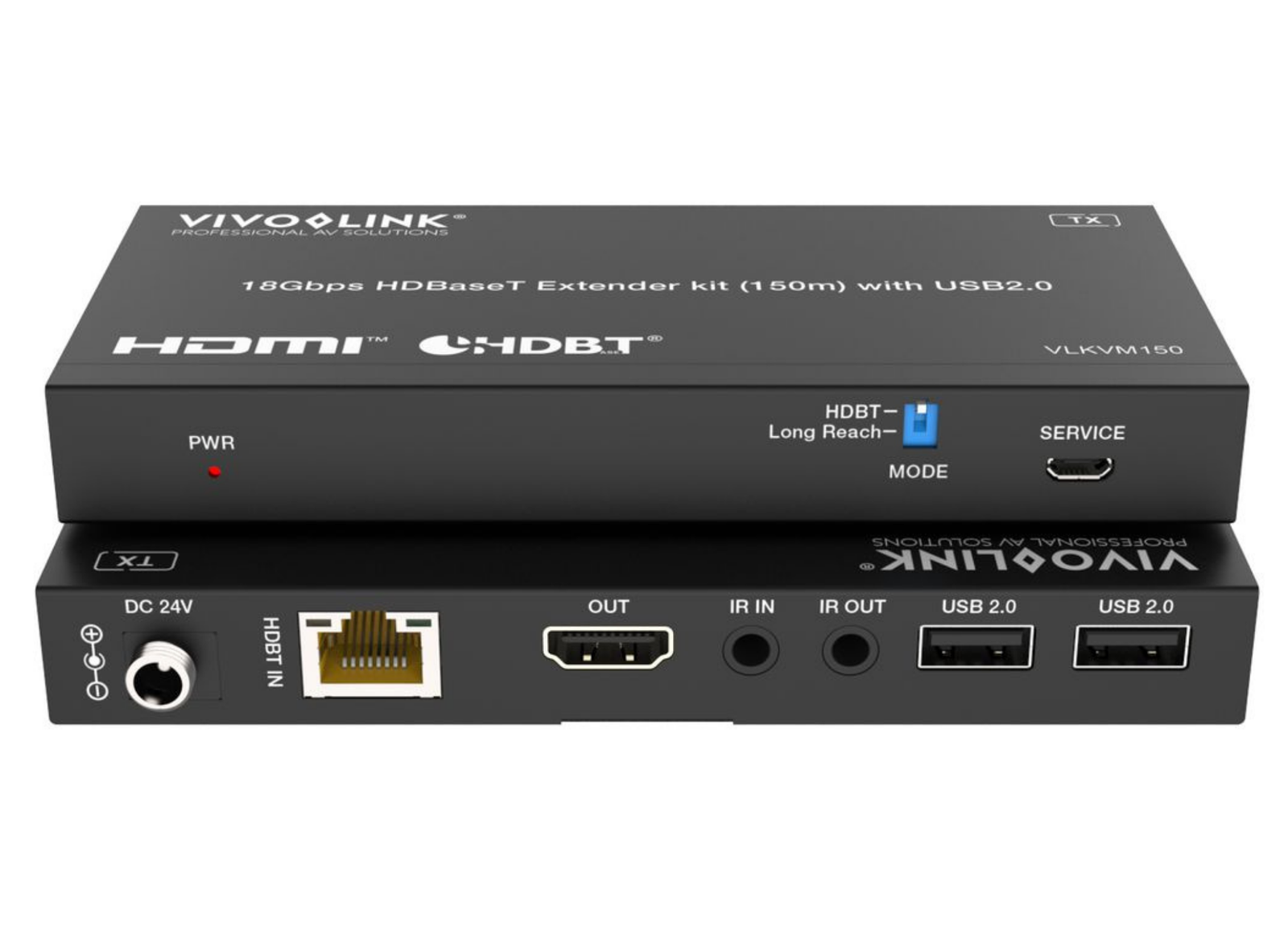

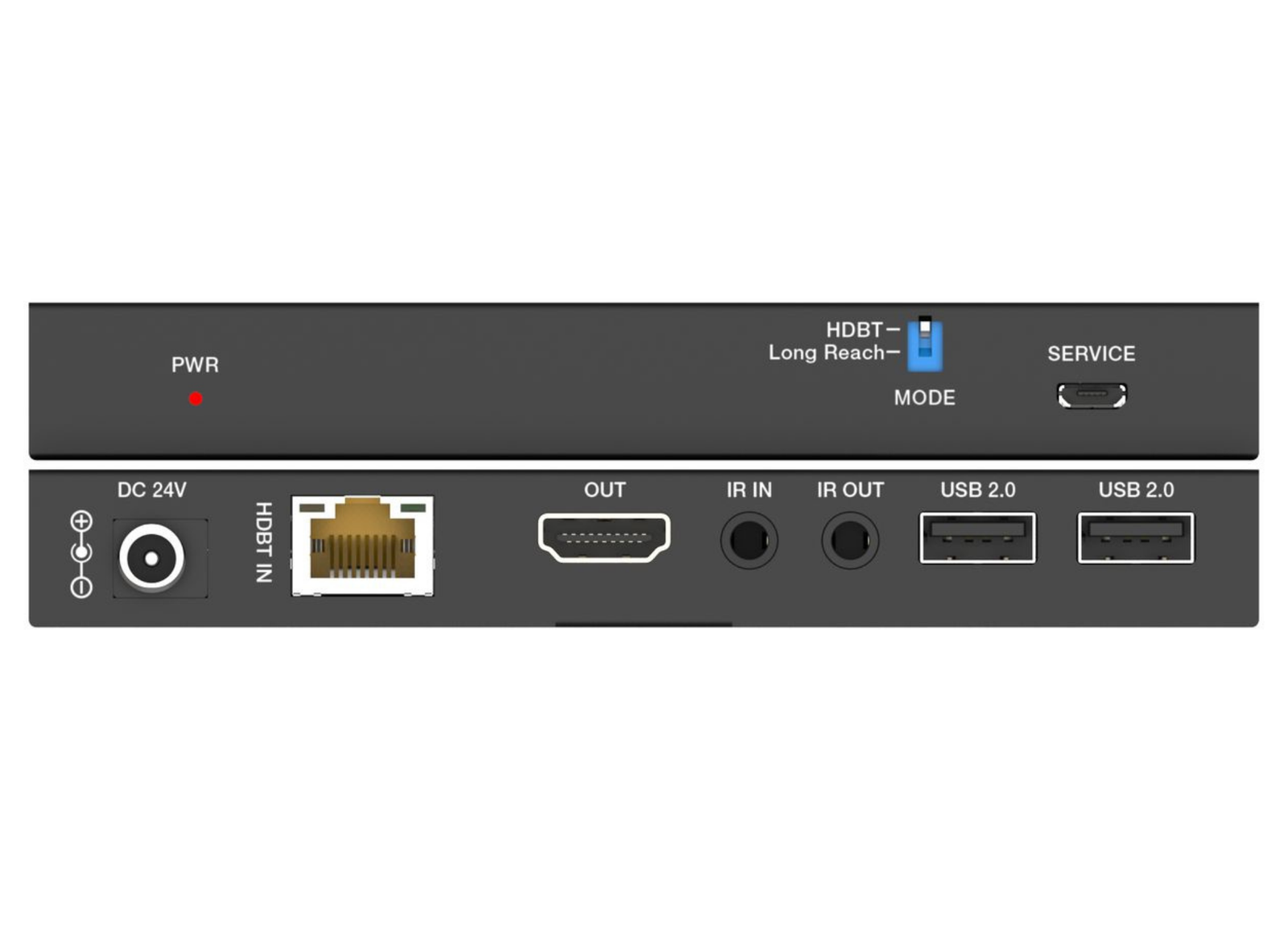

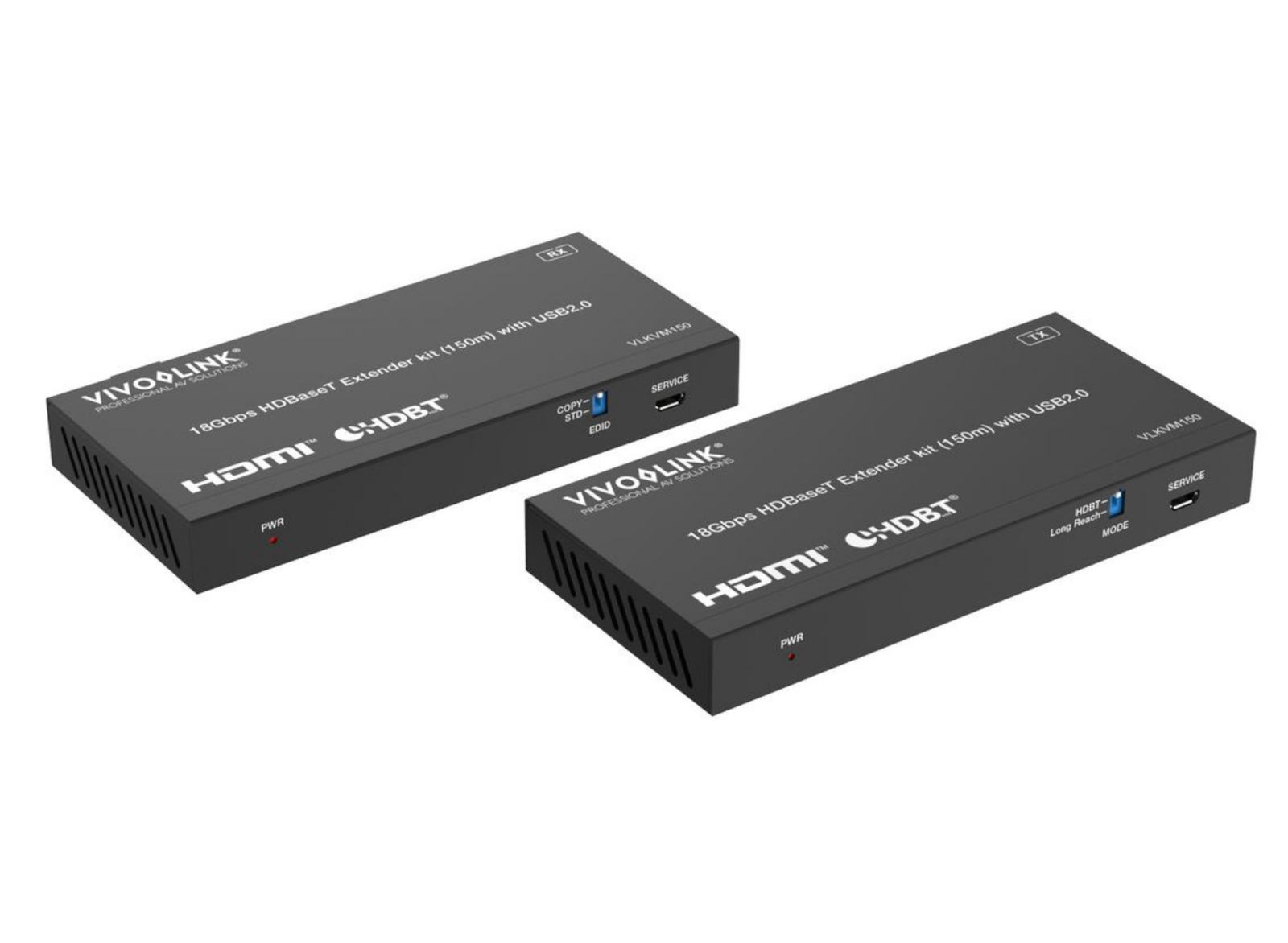

Vivolink VLKVM150 HDBaseT KVM Extender Kit
Experience seamless connectivity and superior performance with the Vivolink VLKVM150 HDBaseT KVM Extender Kit. Designed to meet the demands of modern AV setups, this kit ensures high-quality video and USB transmission over long distances, making it the perfect solution for professional environments.
Key Features:Ultra HD 4K60 Resolution: Enjoy crystal-clear visuals with support for 4K resolution at 60Hz, ensuring every detail is captured with stunning clarity.
Extended Range: Transmit video, audio, USB 2.0, and control signals up to 150 meters (492 feet) over a single Cat6a/7 cable, providing flexibility in your setup.
High Bandwidth: With a bandwidth of 18Gbps, the VLKVM150 delivers smooth and uninterrupted performance, even with high-resolution content.
Power over Cable (PoC): Simplify your installation with PoC technology, allowing both the transmitter and receiver to be powered through a single cable.
Versatile Connectivity: Equipped with multiple input and output options, including HDMI and USB, to accommodate various devices and peripherals.Reliable Performance: Built with robust components to ensure long-lasting reliability and consistent performance in demanding environments.
Upgrade your AV infrastructure with the Vivolink VLKVM150 and experience the ultimate in connectivity and performance. Perfect for conference rooms, control roomss, and other professional settings, this extender kit is your go-to solution for high-quality, long-distance signal transmission.

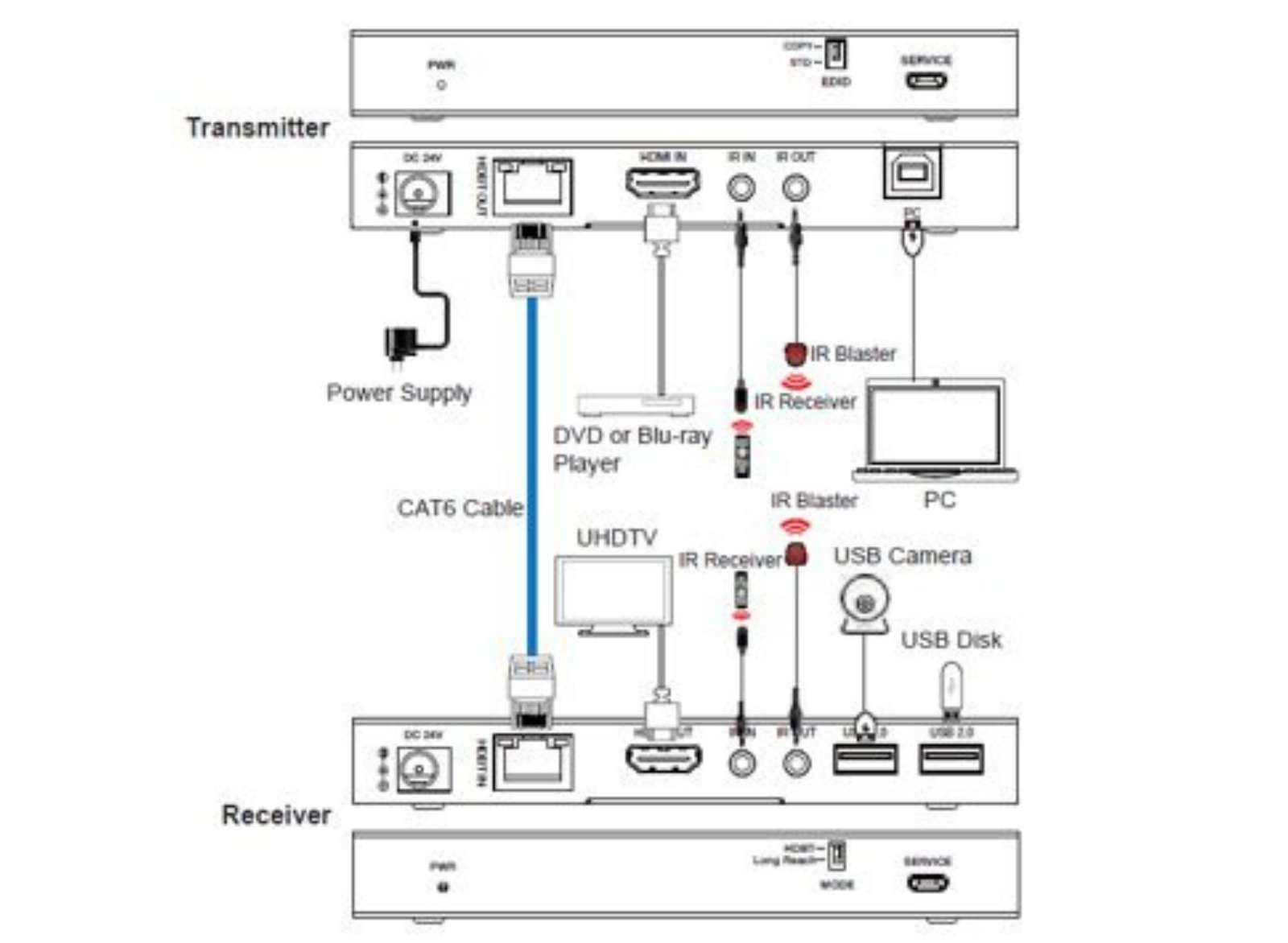

Typical installations:
• Meeting rooms with one display and camera
• Interactive touch screens
• Control rooms or production facilities where computes is places in a central server room
Function:
• HDMI 2.0b and HDCP 2.2 compliant
• Support 18Gbps video bandwidth & video resolution up to 4K2K@60Hz YUV 4:4:4
• With Mode DIP switch to select HDBaseT Mode & Long Reach Mode
• USB 2.0 transmission (support connecting with USB camera, USB flash drive and otherer devices)
• Long Reach Mode: video signal transmission distance can be extended up to 150m for 1080P or120m for 4K60
• Bi-directional IR signal and USB KVM signal pass-through are supported•Support bi-directional POC (Power over Cable) function
• Advanced EDID management
• Compact design for easy and flexible installationLong reach150m Extender HDMI + USB (with CAT6A/7 cable)
• Supports 4K x 2K @ 60Hz 4:4:4
| Cable types supported | Cat6a/Cat7 | Connectivity technology | Wired |
| Easy to install | Yes | HDCP | Yes |
| HDCP version | 2.2 | LED indicators | Link/Power |
| Maximum digital resolution | 4096x2160@60Hz | Maximum transfer distance | 150 m |
| Plug and Play | Yes | Product colour | Black |
| Type | HDBaseT | USB 2.0 ports quantity | 2 |
| Country of Origin | China | EU ECCN Code | N/A |
| Tariff No. | 8543709099 | UNSPSC Code | 43211601 |
| US ECCN Code | 5A992 | Operating temperature | -10 - 55 °C |
| Depth (package, cm) | 16.1 cm | Gross Weight (Package, kg) | 0.82 kg |
| Height (package, cm) | 12.8 cm | Width (package, cm) | 18.3 cm |
| AC adapter included | Yes | Power plug types | EU/GB |
| Manual | Yes | Mounting bracket included | Yes |
| HDMI version | 2.0b | RJ-45 ports quantity | 1 |
| RS-232 ports | 1 | USB port type | USB Type-A |
| AC adapter output current | 1 A | AC adapter output voltage | 24 V |
| AC input voltage | 100 - 240 V | Power consumption | 13.2 W |
| Net Weight (Product, kg) | 0.5 kg | Product Depth | 16.1 cm |
| Product Height | 12.8 cm | Product Width | 18.3 cm |
| Dimensions (WxDxH) | 140×65×18 mm | Video in | HDMI |
| Displays supported | 1 | RJ-45 ports (Tx) | 1 |
| Local keyboard/mouse | USB | Local video port | Yes (HDMI) |
| Video port type (Tx) | HDMI | Brand Name | Vivolink |
| Warranty | 5 Year(s) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
