Vivolink 1x2 4K@60Hz HDMI Splitter | VLHDMISP1X2
SKU: VLHDMISP1X2
£75.30 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Vivolink 1x2 4K@60Hz HDMI Splitter
HDMI switcher 4x1 4K@60Hz with RS232 control, ARC and analogue audio de-embedder function
Vivolink HDMI switcher 4x1 4K@60Hz ARCUltra slim 12mm, with autoswitching

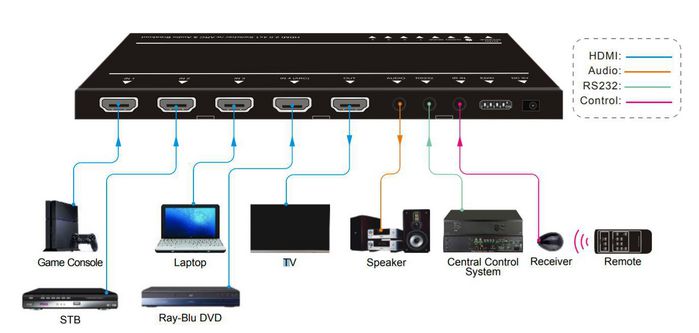

Typical installations:
Meeting rooms with four cables at the desk and one monitor
Fully compliant with HDMI 2.0Upgrade FW Version: V1.0.2 New features:
RS232 feedback on source input
Autoswitch based on active videosignal
Improovement of HDCP compatabilityAdvanced EDID management: multiple preset and user defined allowed..
Controllable via RS232 and IR.
Supports CEC.
Seven LEDs to indicate the current operating status and to assist troubleshooting an installation.
RS232 control and audio line out to active speakers.
Firmware upgrade by Micro-USB port.
HDMI switcher with 4 HDMI inputs and one HDMI out
Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
18Gbps high bandwidth
Fully compliant with the HDMI 2.0 and HDCP2.2 specifications
Supports audio return channel (ARC).
Advanced EDID management: multiple preset and user defined allowed.
Controllable via RS232 and IR
Supports CEC
Seven LEDs to indicate the current operating status and to assist troubleshooting an installation
RS232 control and audio line out to active speakers
-
Category Specification Features Audio formats supported PCM Audio output channels 2.0 channels Bandwidth 18 Gbit/s Consumer Electronics Control (CEC) support Yes Extended display identification data (EDID) Yes HD type 4K Ultra HD HDCP Yes HDCP version 2.2 LED indicators Yes Maximum frame rate 60 fps Maximum resolution 3840 x 2160 Pixels Plug and Play Yes Product colour Black Remote control type IR + RS232 Legal Information EU ECCN Code N/A UNSPSC Code 52161540 US ECCN Code EAR99 Operational conditions Operating temperature (T-T) -10 - 55 °C Package dimensions (verified) Depth Verified 13.4 cm Gross Weight Verified 0.564 kg Height Verified 12.4 cm Width Verified 23.9 cm Packaging content AC adapter included Yes Mounting brackets included Yes Remote control included Yes Ports & interfaces 3.5 mm (1/8-inch) out Yes Audio (L/R) out 1 HDMI in 4 HDMI ports quantity 5 HDMI version 2.0 Number of HDMI outputs 1 RS-232 ports 1 S/PDIF out port No Video port type HDMI Power AC input voltage 100 - 240 V Product dimensions Net Weight (Product, kg) 0.18 kg Product Depth 8.1 cm Product Height 1.2 cm Product Width 19.4 cm Technical details Audio support Yes Vendor information Brand Name Vivolink Warranty 3 Year(s) Weight & dimensions Dimensions (WxDxH) 194mm x 81mm x 12mm - VLHDMISP1X2 : Product Sheet
