Vivolink 1x4 4K@60Hz HDMI Splitter | VLHDMISP1X4
SKU: VLHDMISP1X4
£104.93 (Excl. VAT)
- Description
- Specifications
- Downloads
-

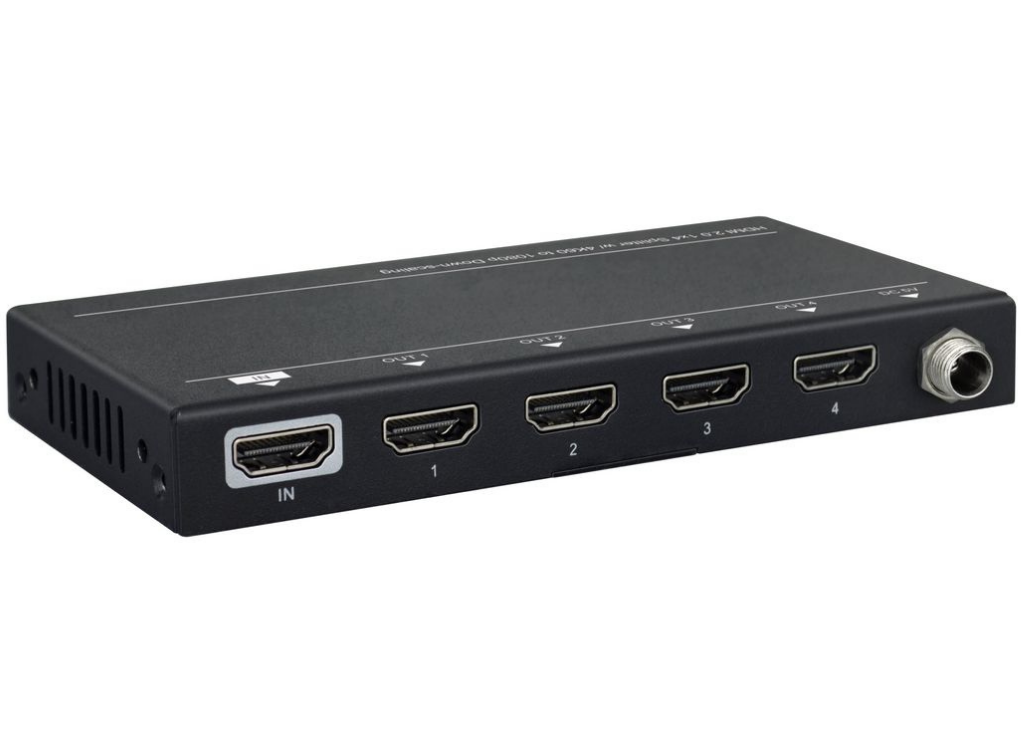

Vivolink 1x4 4K@60Hz HDMI Splitter
The VLHDMISP1X4 is a high-performance 1x4 HDMI splitter designed to distribute a single HDMI input to four outputs simultaneously. It supports video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR10, and Dolby Vision, ensuring exceptional video quality.

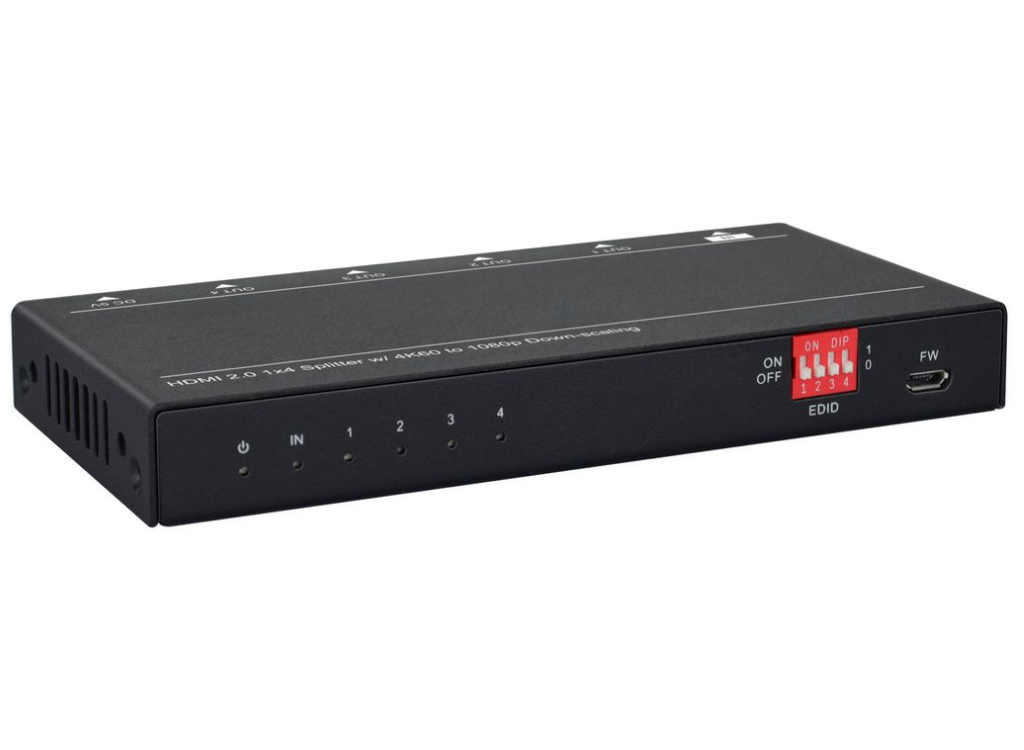

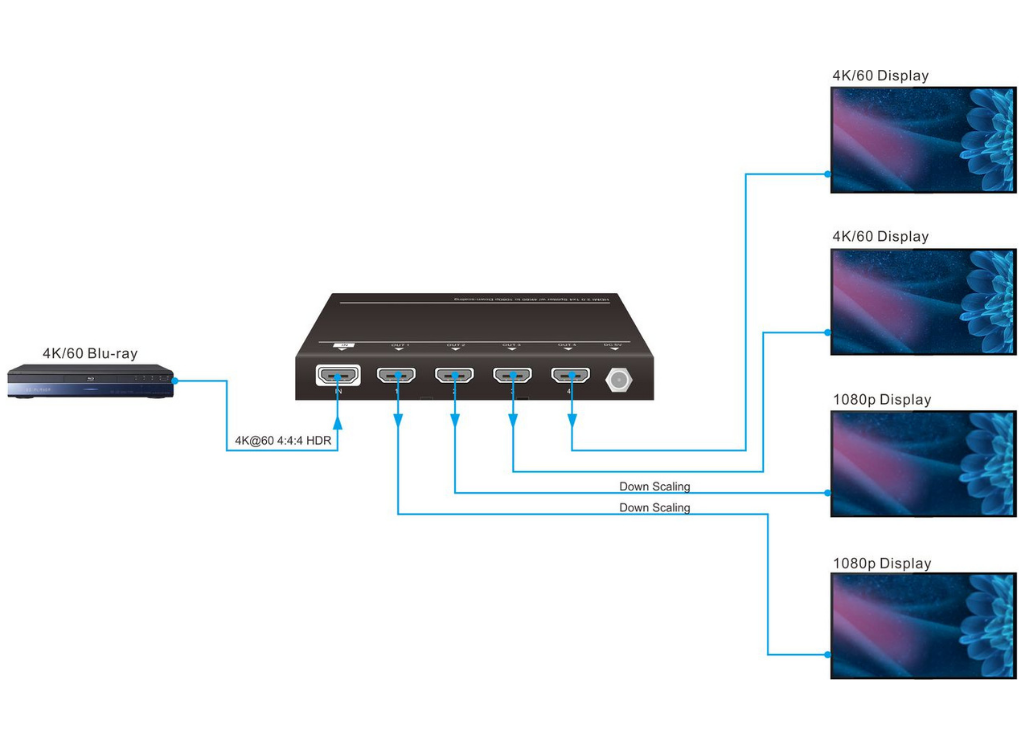

Key features include advanced EDID management with multiple built-in settings selectable via a 4-pin DIP switch, video resolution down-scaling allowing 4K input to be automatically degraded to 1080p output for compatibility with 1080p displays, and support for CEC pass-through. The splitter also provides LEDs to indicate the current operating status and supports convenient firmware upgrades through a Micro-USB port.Typical Applications:
Perfect for distributing HDMI signals in retail stores or at trade shows. -
Category Details Features 3D Yes Easy to Install Yes HD Type 4K Ultra HD HDCP Yes Housing Material Metal LED Indicators Yes Maximum Refresh Rate 60 Hz Maximum Resolution 3840 x 2160 Pixels Number of Displays Supported 4 Plug and Play Yes Power LED Yes Product Colour Black Supported Video Modes 3840p Legal Information UNSPSC Code 52161556 Operational Conditions Operating Temperature 0 - 50 °C Package Dimensions Depth 12.1 cm Gross Weight 0.464 kg Height 11.4 cm Width 18 cm Packaging Content AC Adapter Included Yes User Guide Yes Packaging Data Quantity per Box 1 pc(s) Ports & Interfaces DC-in Jack Yes Ethernet LAN No HDMI Version 1.4/2.0 Video Out 4x HDMI Video Port Type HDMI Video Ports Quantity 4 Power Input Voltage 110v - 230v Power Consumption 2.5 Watt Product Dimensions Net Weight 0.36 kg Depth 7.04 cm Height 1.76 cm Width 14.2 cm Technical Details Cascadable Yes Connector Type HDMI Maximum Cable Length 100 m -
Description Downloads Datasheet Download
