Official Partner
True 4K Fiber Extender dongle 300m
HDMI over fiber dongle kit

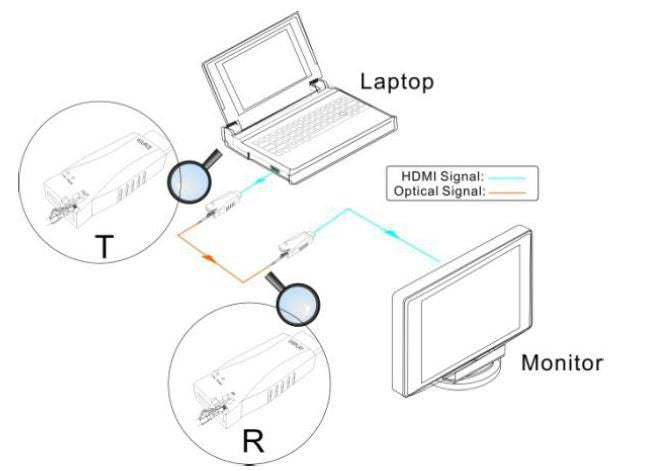

Typical installation:
4K fiber extender dongles HDMI 1:1 extention 300m (2km with out HDCP)
It can be installed in building with existing fibernetwork
Long distance 4K transmission to e.g. outdoor digital signage
Function:
4K@60Hz signal expention
HDCP1.4
In box:
2 x HDMI fiber dongles
2 x USB power cables
1 x 0,5m fiber cable for test
4K HDCP1.4 10.2G 4K@60Hz 4:2:0
Multimode fiber up to 300m
Multimode fiber up to 300m (2km without HDCP)
| Category | Detail |
|---|---|
| Features | |
| Cable types supported | Fiber |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| HDCP pass-through | Yes |
| HDCP version | 1.4 |
| Maximum resolution | 3840 x 2160 Pixels |
| Maximum transfer distance | 300 m |
| Plug and Play | Yes |
| Product colour | Black |
| Supported video modes | 2160p |
| Type | HDMI fiber transmitter & receiver |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | 5A992 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 0.2 kg |
| Packaging content | |
| AC adapter included | No |
| Cables included | DC/Micro-USB |
| Manual | Yes |
| Packaging content | 1 x transmitter, 1 x receiver, 2 x USB-A power cable, 1 x Instruction manual |
| Ports & interfaces | |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| HDMI in | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 1 |
| Video in | 1 |
| Video out | 1 |
| Product dimensions | |
| Net Weight (Product, kg) | 0.026 kg |
| Product Depth | 8.4 cm |
| Product Height | 0.2 cm |
| Product Width | 13 cm |
| Technical details | |
| Audio support | Yes |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
| Weight & dimensions | |
| Dimensions (WxDxH) | 120x80x55 mm |
| Receiver dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Receiver weight | 10 g |
| Transmitter dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Transmitter weight | 10 g |
