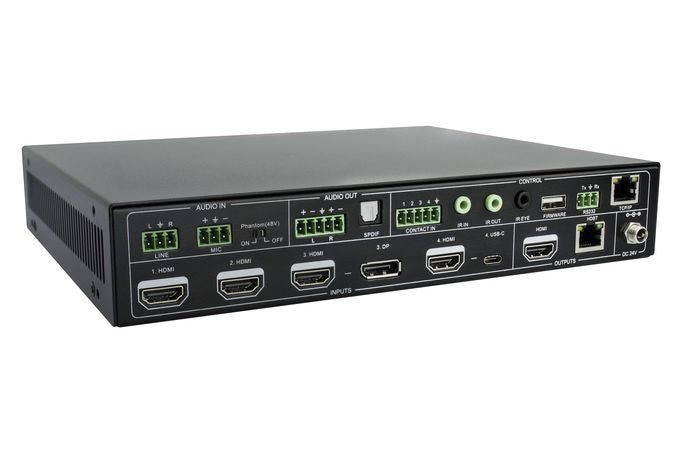

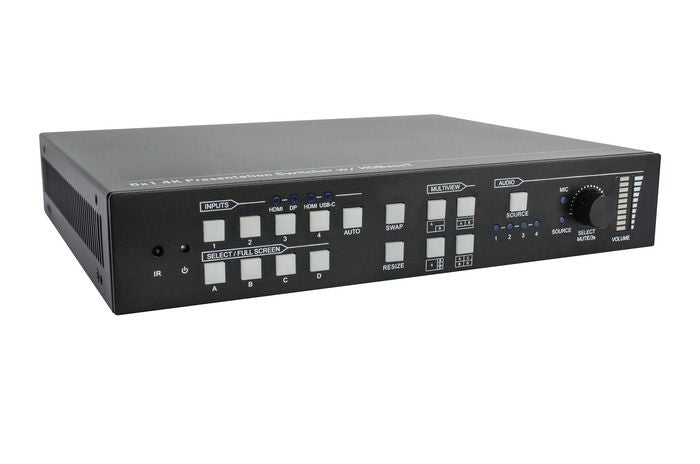

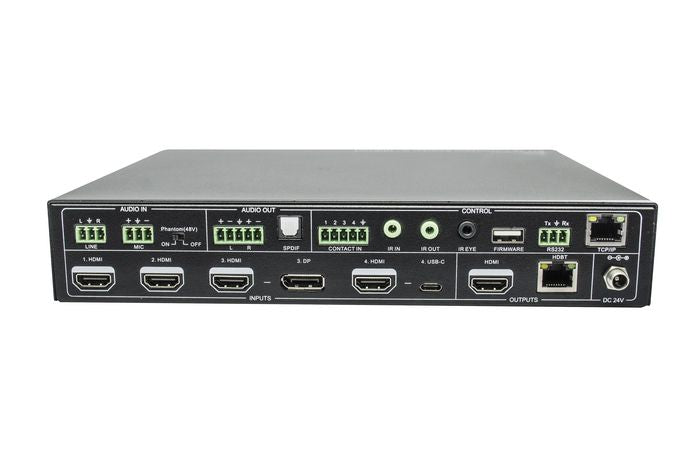

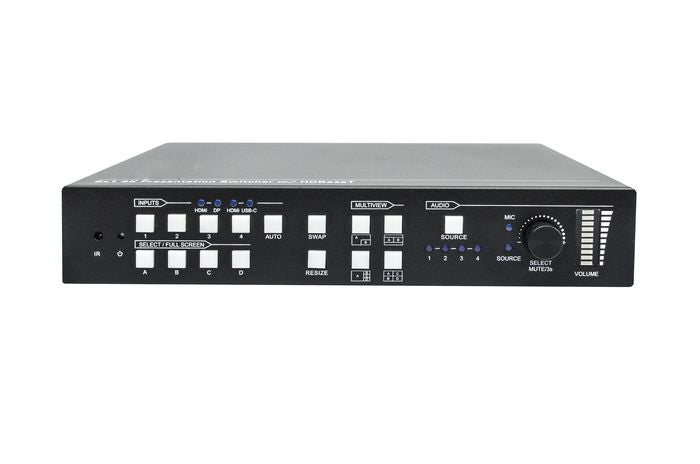

Vivolink 4K 6x1 Presentation Switcher | VLSC262
4K 6x1 Presentation Switcher
4x HDMI 1x DisplayPort 1xUSB-C Out HDBaseT + HDMI and Audio out for active speakers

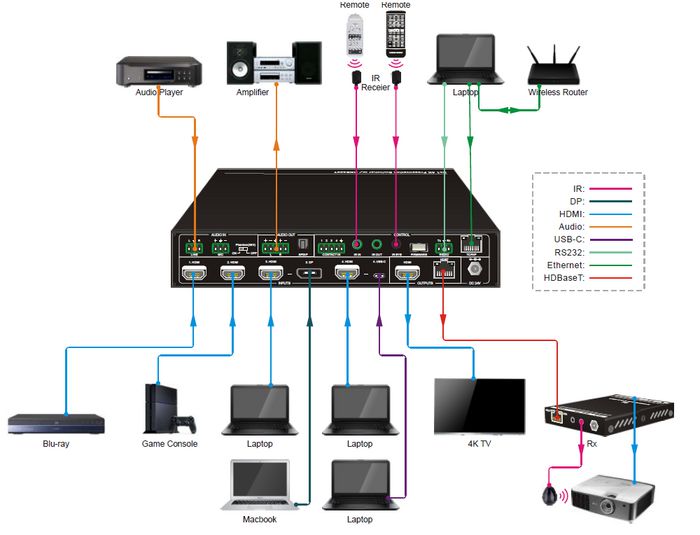

Typical installation:
4K Seamless presentation switcher
Ideal for meeting rooms where different signal sources should be supported
Function:
True seamless switching
6 input 2 output HDBaseT and HDMI mirror
HDBT output transmission up to 40m@4K and 70m@1080p
Inputs includes 4 HDMI, 1 DP, 1 USB-C (USB-C and DP is optional with 2 HDMI)
USB-C can provide 60W power charging
Supports HDMI1.4, HDCP2.2
Resolution up to 4Kx2k/30Hz/4:4:4 with seamless switching
Mic/Line input and balance/digital audio breakout
Audio delay function via front panel
Manual/auto display control
IR, RS232 and GUI control.
| Category | Detail |
|---|---|
| Certificates | |
| Certification | HDBaseT |
| Features | |
| Control type | Buttons/Rotary |
| Housing material | Metal |
| LED indicators | Power/Status/Switch |
| Product colour | Black |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | EAR99 |
| Package dimensions (verified) | |
| Depth Verified | 26.9 cm |
| Gross Weight Verified | 2.864 kg |
| Height Verified | 14.2 cm |
| Width Verified | 29.7 cm |
| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| Remote control interface | Yes |
| RJ-45 ports quantity | 2 |
| RS-232 input ports | 1 |
| Power | |
| AC adapter input voltage | 110 - 230v V |
| Product dimensions | |
| Net Weight (Product, kg) | 1.6 kg |
| Product Depth | 20 cm |
| Product Height | 4.4 cm |
| Product Width | 25 cm |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
| Video | |
| HDCP version | 1.4/2.2 |
