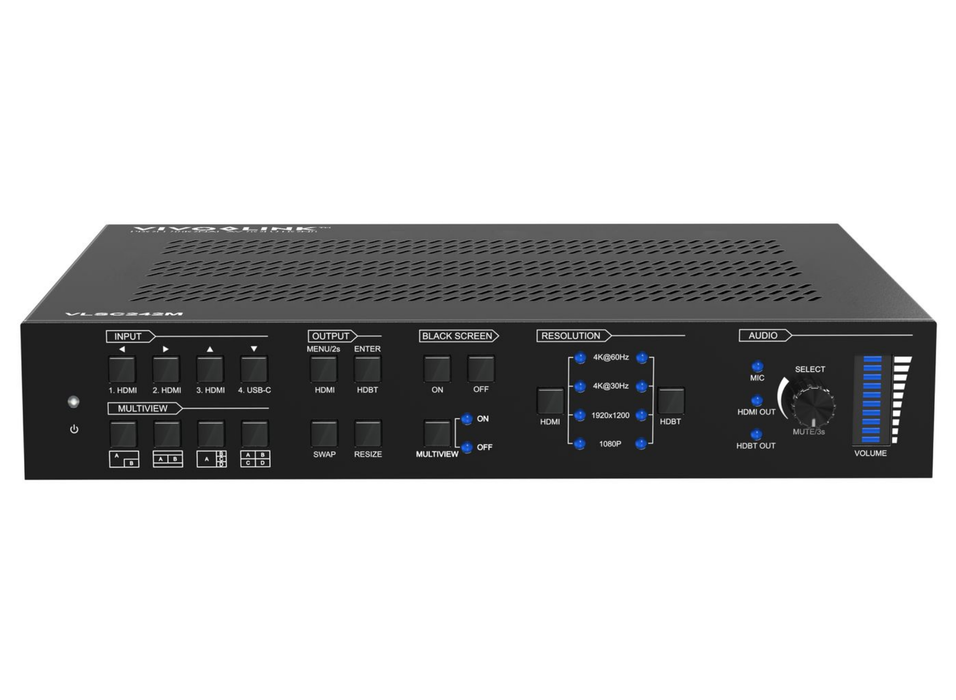

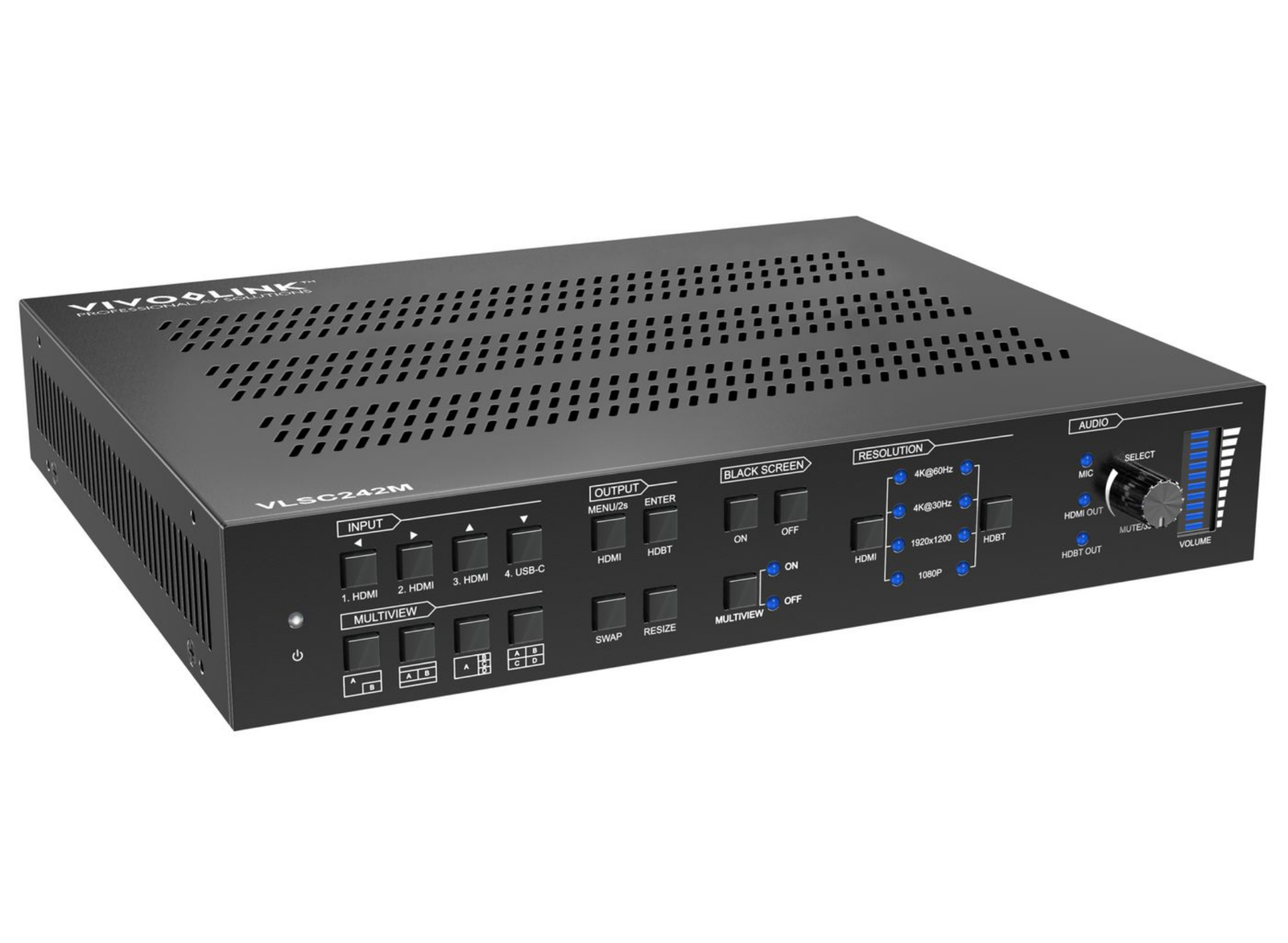

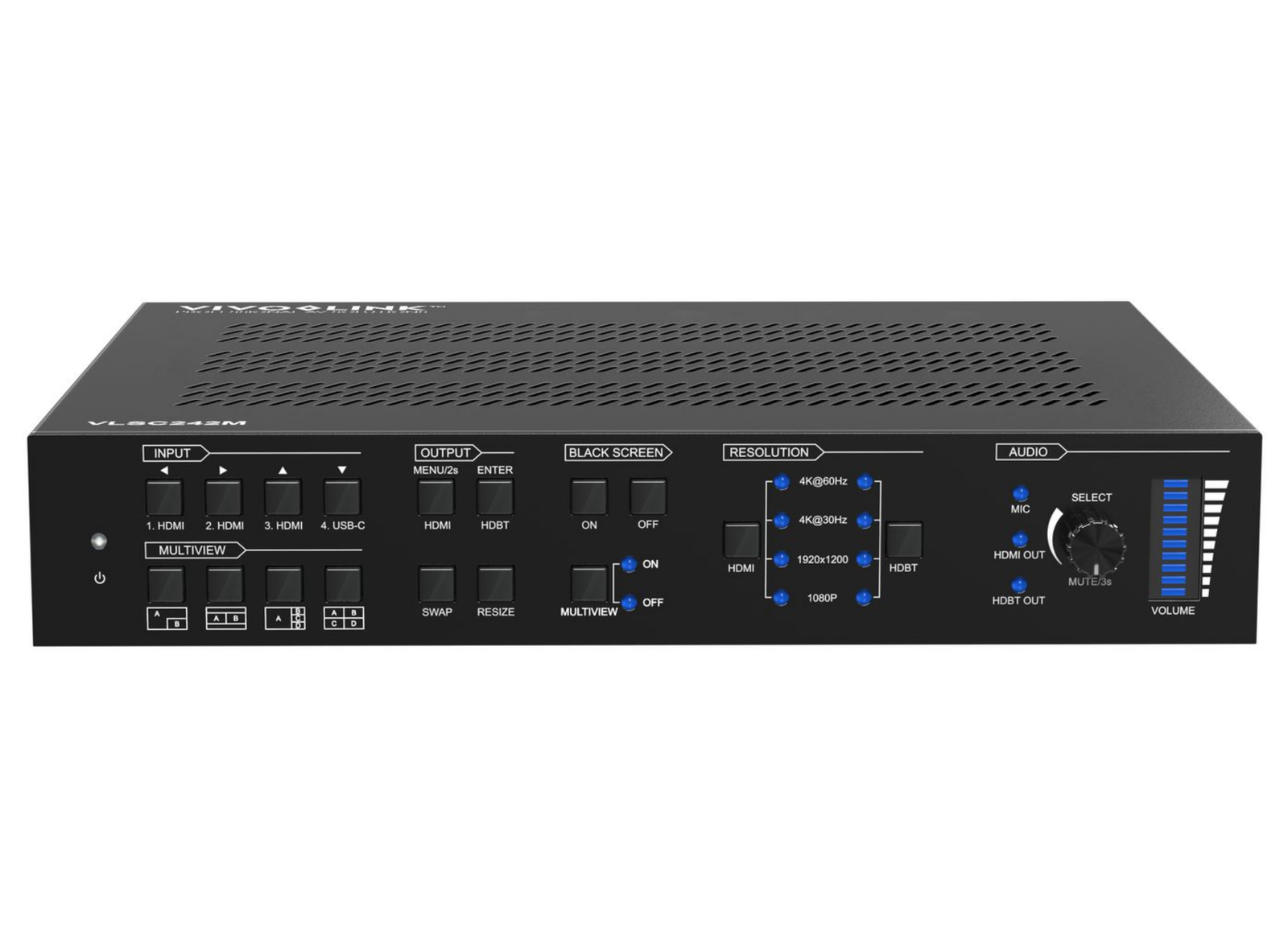

VLSC242M is a 4X2 seamless KVM switcher w/ Multiview, HDBaseT receiver included in the package.
It is build on HDBaseT 3.0 an supports 4K@60Hz 4:4:4 video

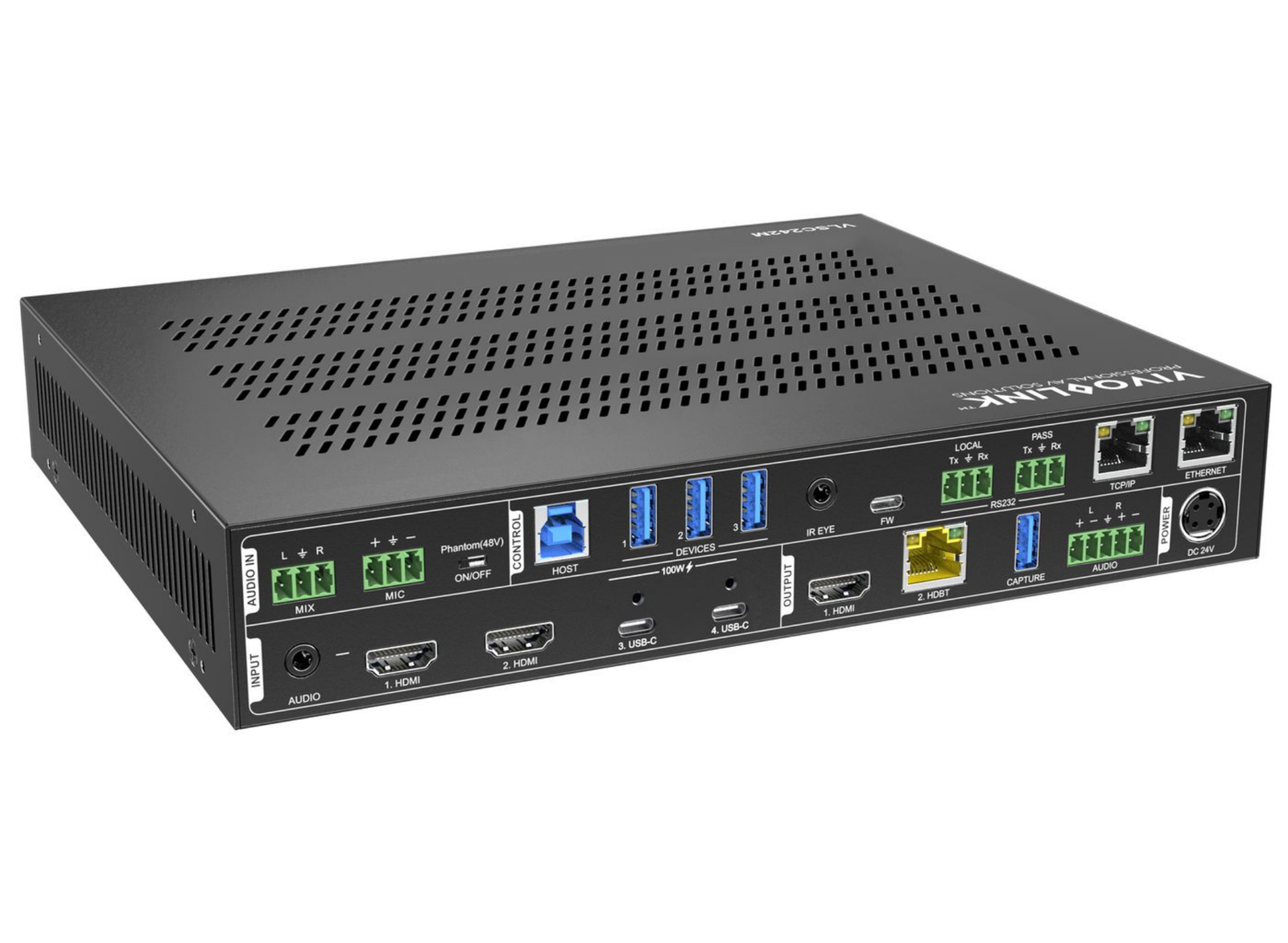

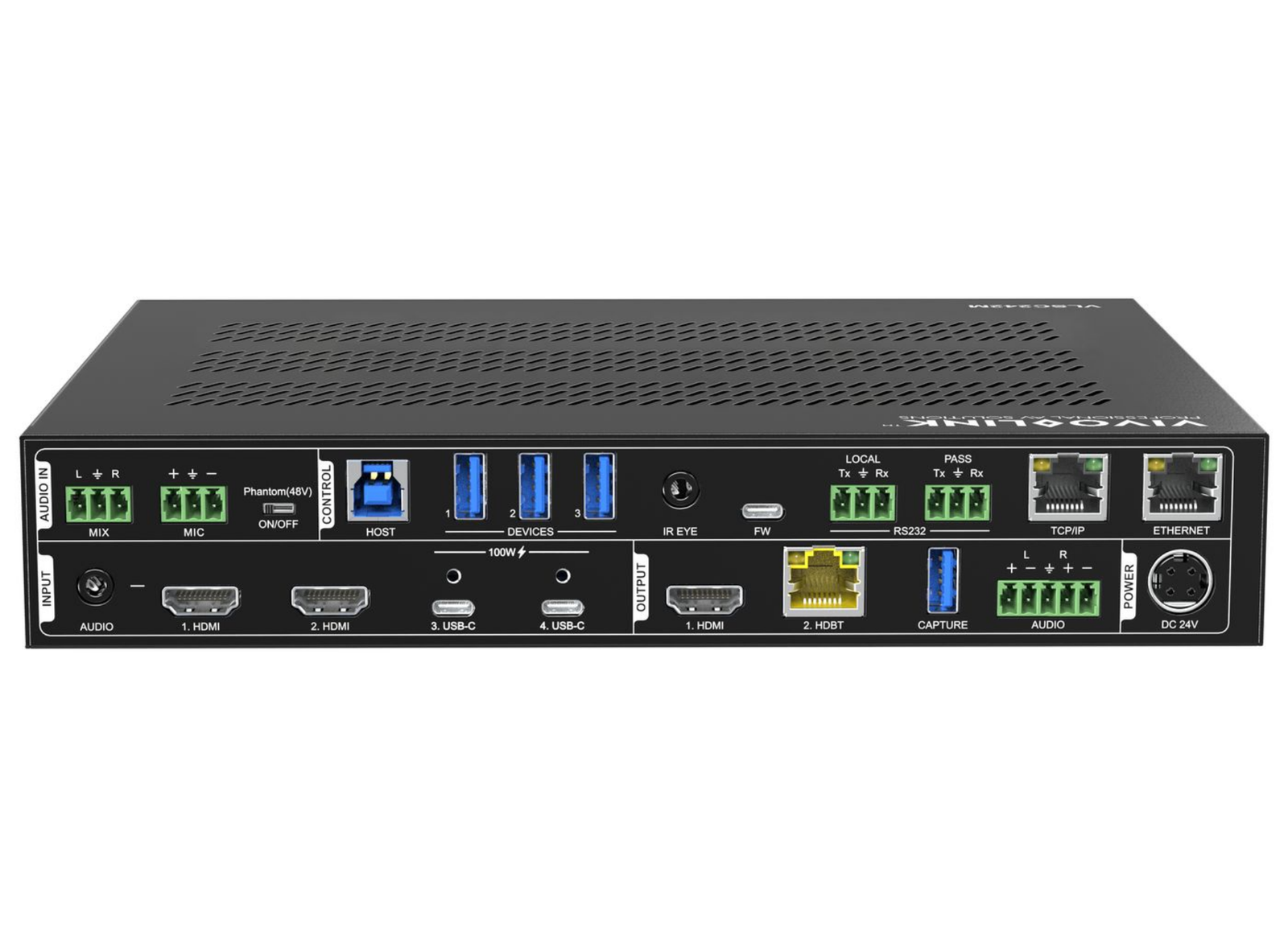

Local device:
Inputs: 2x USB-C + 2x HDMI, analouge audio and microphone
Outputs: HDMI + HDBaseT outputs + USB3.0 video stream for Teams/Zoom etc...
3 x local USB3.0 inputs + 1 x HOST

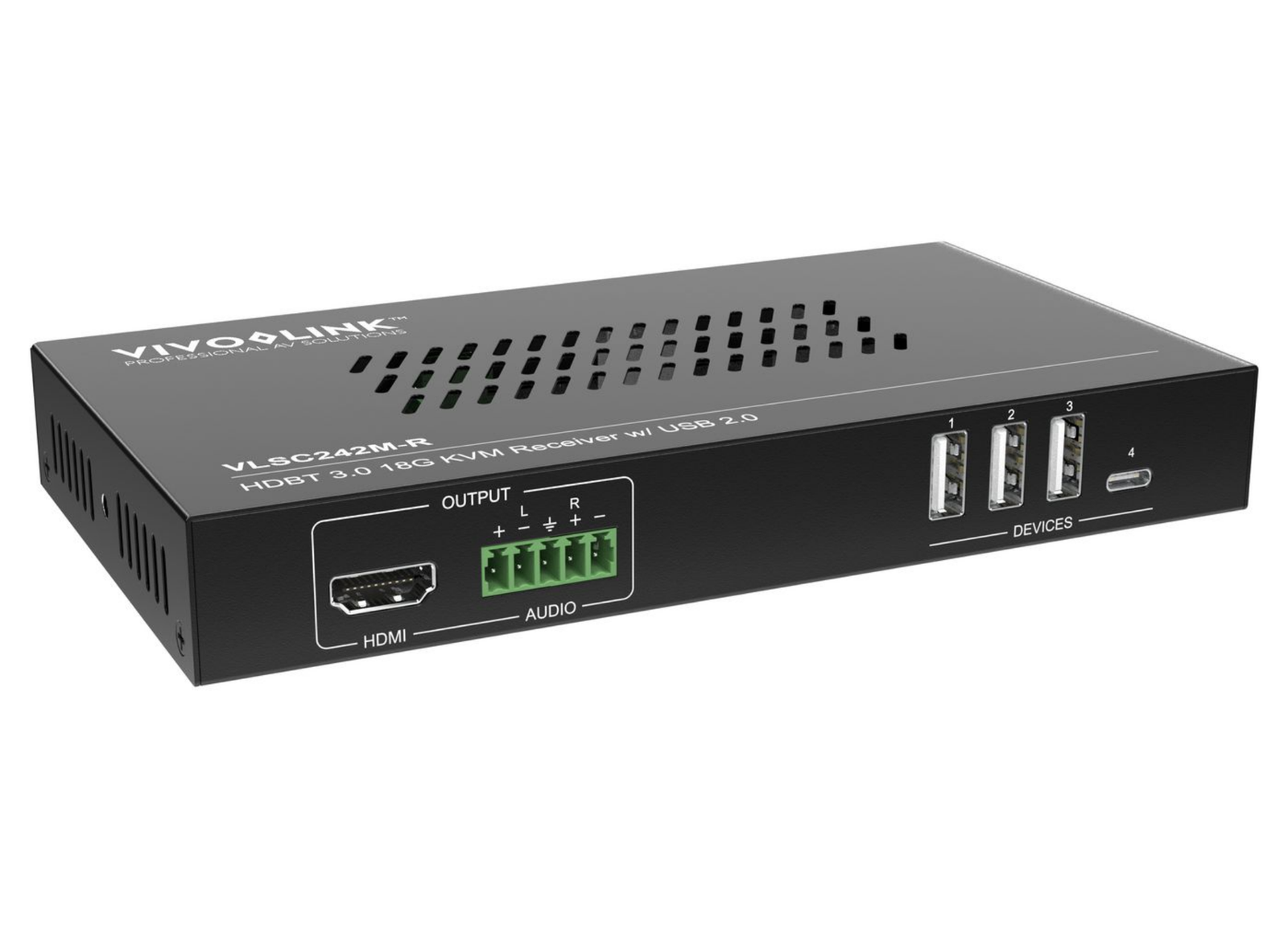

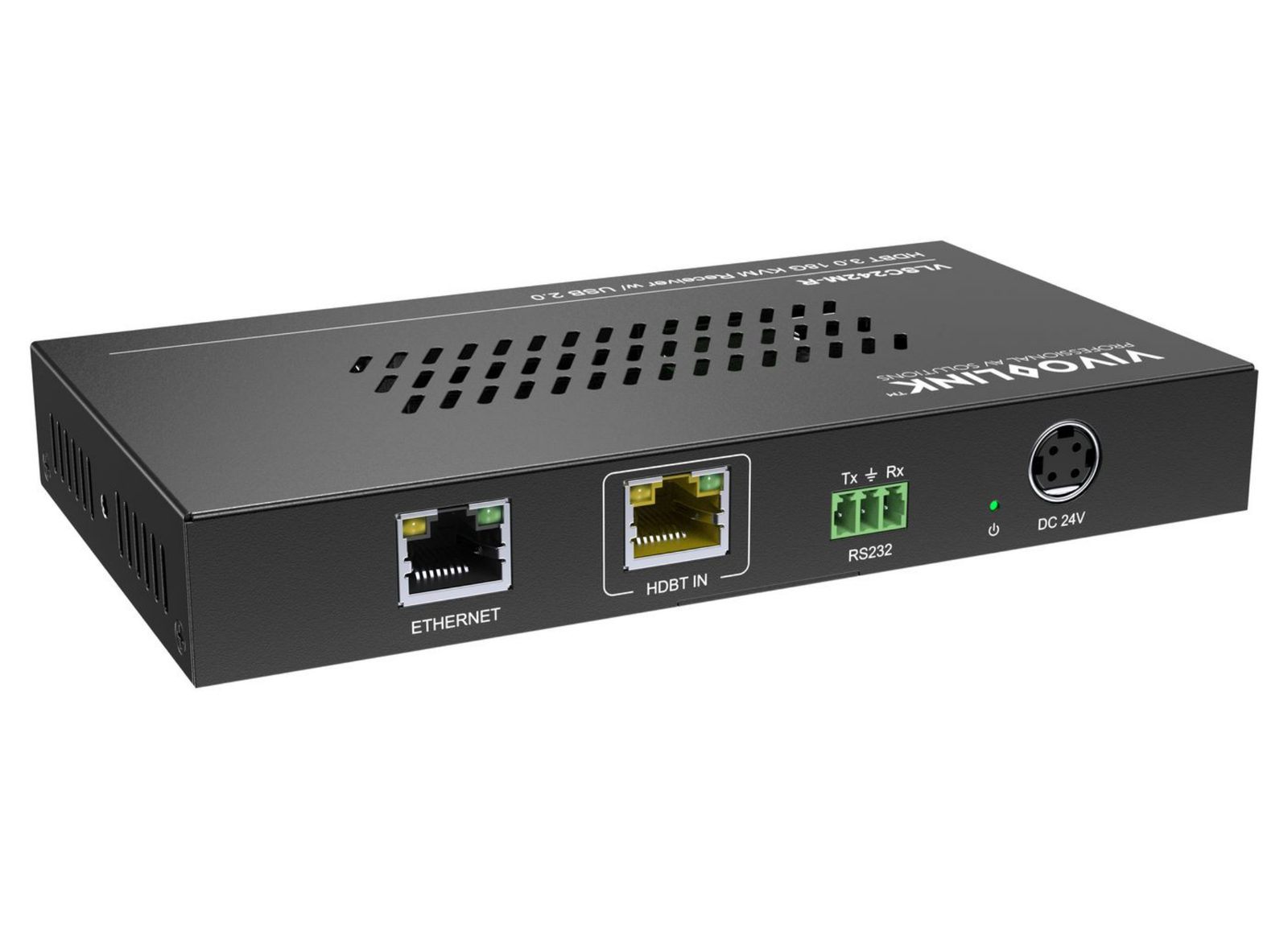

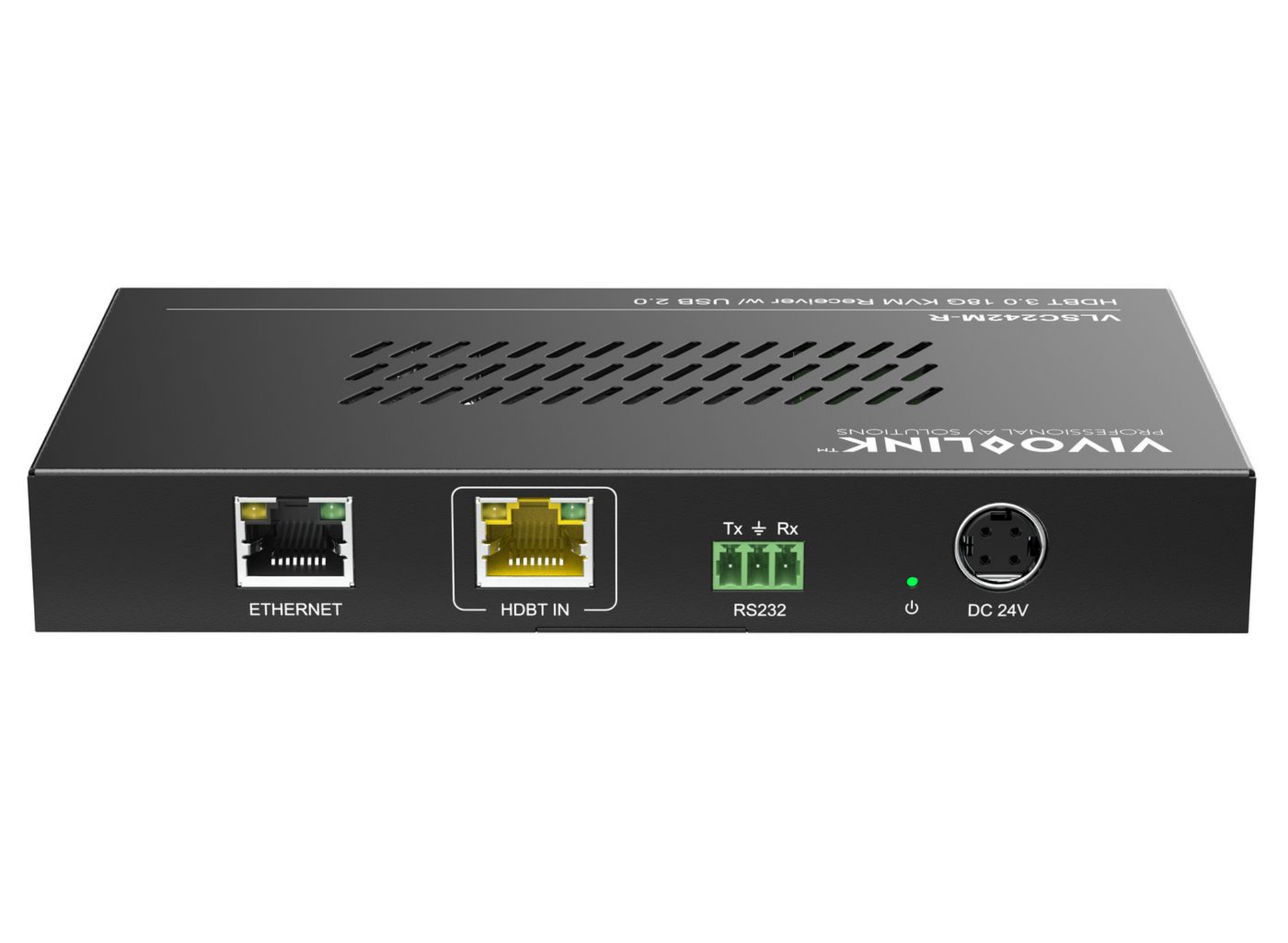

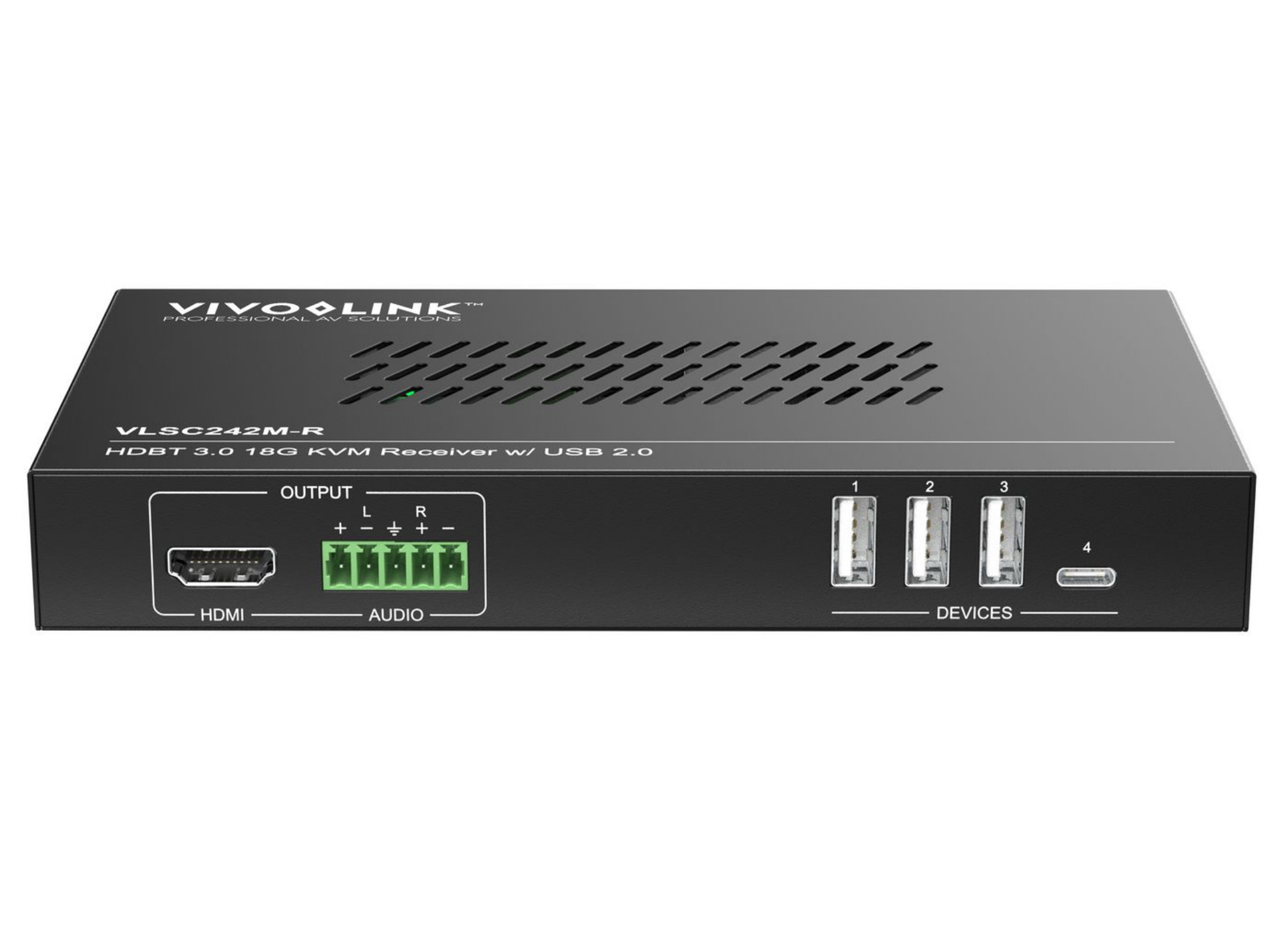

Receiver:
Outputs:
HDMI and Analouge Audio out for active speakers + RS232
Inputs: 4 USB inputs (3x USB-A and 1 x USB-C)

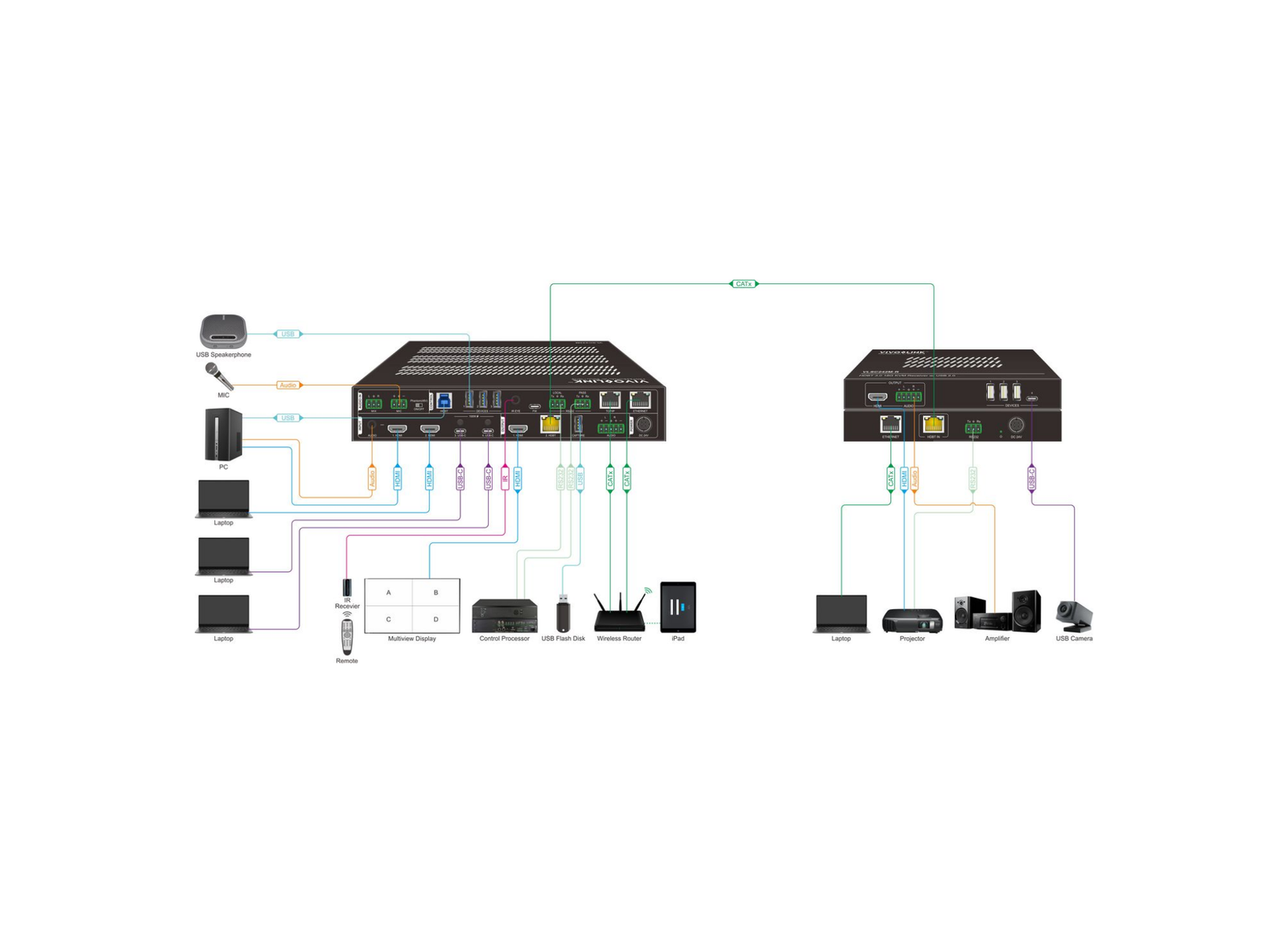

Typical installation:
4K Seamless presentation switcher
Ideal for conference rooms where both HDMI and USB-C hosts can connect.
Function:
True seamless switching
4 input / 2 x HDMI 2x USB-C
USB-C inputs supports 100W power charging
Supports HDMI2.0 4K@60Hz 4:4:4, HDCP2.2
Mic/Line input and balance/digital local audio breakout + remote audio at receiver
Ethernet port
TCP/IP + RS232 control
| Certification | HDBaseT | Control Type | Buttons, Rotary |
| Housing Material | Metal | LED Indicators | Power, Status, Switch |
| Product Colour | Black | AC (Power) In | No |
| Audio Input | Yes | Audio Output | Yes |
| HDMI In | 2 | HDMI Version | 2.0 |
| Number of HDMI Outputs | 1 | Remote Control Interface | Yes |
| RJ-45 Ports Quantity | 2 | RS-232 Input Ports | 1 |
| RS-232 Output Ports | 1 | AC Adapter Input Voltage | 110 - 230v V |
| Brand Name | Vivolink | Warranty | 3 Year(s) |
| HDCP Version | 1.4/2.2 |
| Description | Downloads |
|---|---|
| Datasheet | Download |
