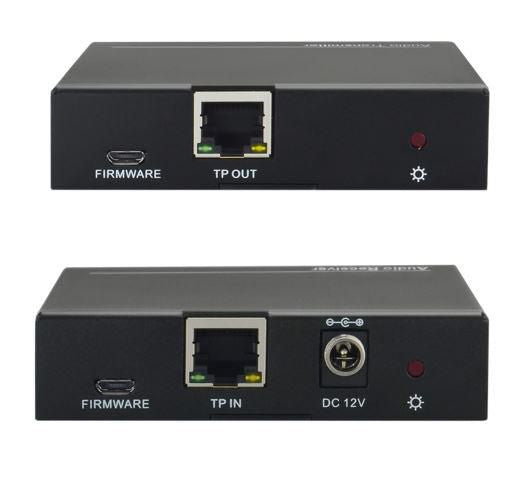

VLEXTA170 is an audio extender, including transmitter & receiver. It distributes audio signal via CATx cable at 100m with PoC function from Rx to Tx.

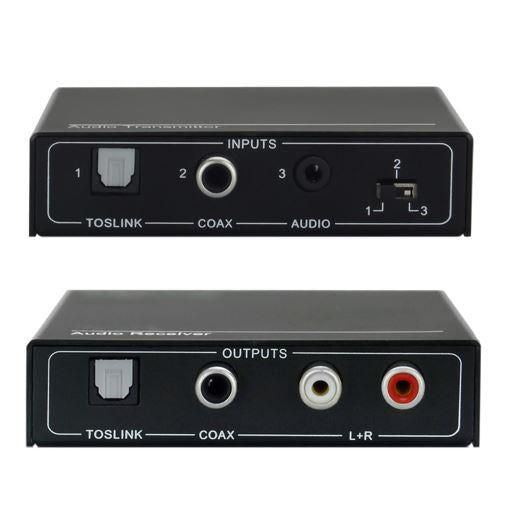

It provides TOSLINK/COAX/STEREO audio inputs.
3 selectable audio inputs
Power over Cable (PoC), from Rx to Tx
100m audio transmission
3 audio synchronized outputs
| Category | Detail |
|---|---|
| Features | |
| Audio formats supported | DTS/PCM |
| Audio output channels | 2.0 channels |
| Cable types supported | Cat5e/Cat6 |
| HDCP & EDID bypass | Yes |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Type | AV transmitter & receiver |
| Wall mountable | Yes |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | 5A992 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Package dimensions (verified) | |
| Depth Verified | 15.5 cm |
| Gross Weight Verified | 0.484 kg |
| Height Verified | 12 cm |
| Width Verified | 15.6 cm |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | EU/GB |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Audio (L/R) out | 1 |
| Audio input | 3 |
| Audio output | 3 |
| Audio RCA outputs | 1 |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Digital audio coaxial out | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Video in | 1 |
| Video out | 1 |
| Power | |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Operating voltage (receiver) | 12 V |
| Operating voltage (transmitter) | 12 V |
| Output current | 1 A |
| Power consumption (receiver) (max) | 2.5 Watt |
| Power consumption (transmitter) (max) | 2.5 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0.24 kg |
| Product Depth | 8 cm |
| Product Height | 2.15 cm |
| Product Width | 8 cm |
| Technical details | |
| Audio support | Yes |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 88 x 80 x 21.5 mm |
| Transmitter dimensions (WxDxH) | 88 x 80 x 21.5 mm |
