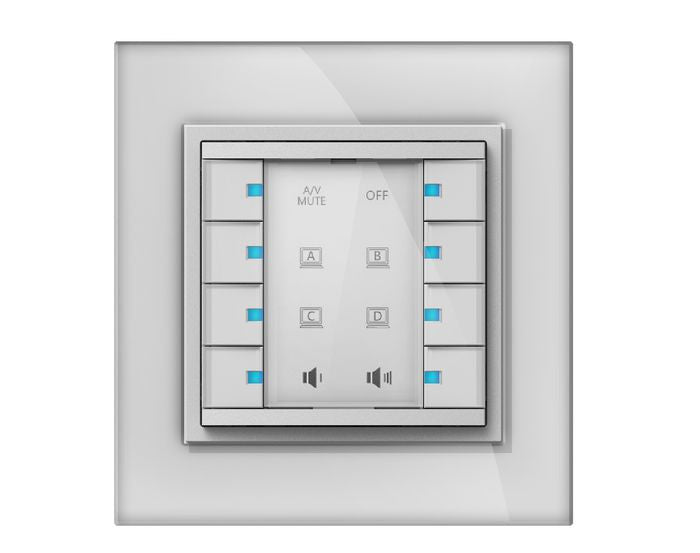

Control Panel 8 Button
Vivolink control panel can be used to control all products supporting RS232 or RS485 protocol.
With the supplied IR blaster it is also possible to control products with IR commands.
The built in 12v relay can be used to control products like a projector sceen or curtains.
Typical installations:
Ideal for meeting rooms
Can control switching, projectors, curtains, canvas, etc.

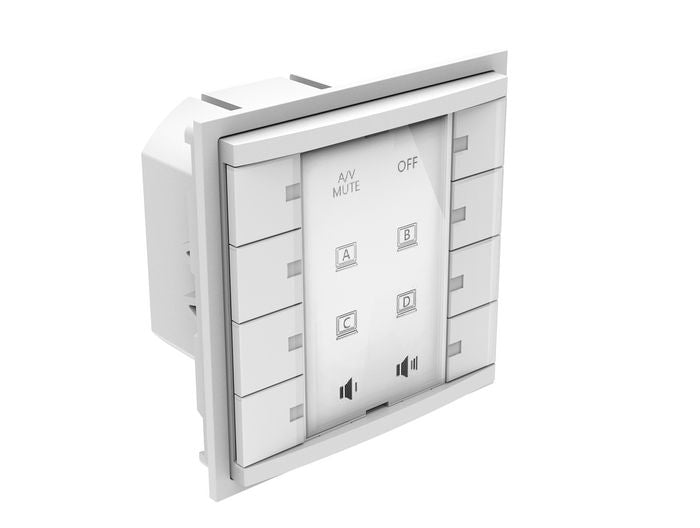

8 function keys with indication lights

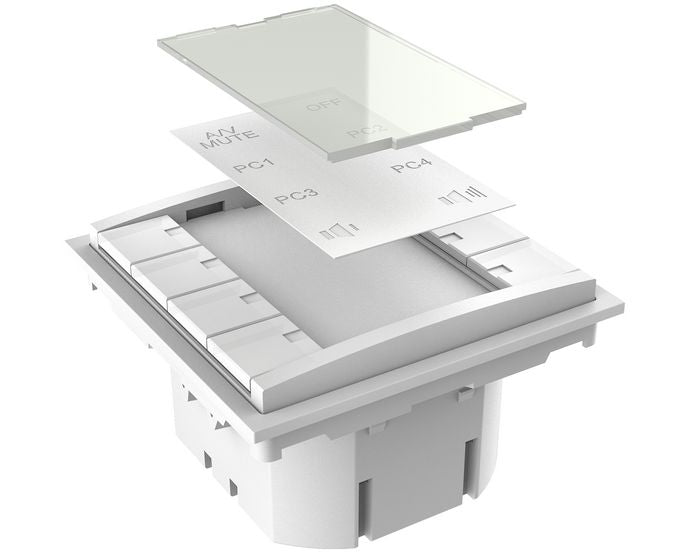

Customized label print
Any button can be configured to execute multiple actions through the serial, IR control and Relay ports
Start the projector (RS232)
Screen down (Relay)
Switch on input 1(RS232 parallel connection)
Mounts in a single size European junction box with 60 mm mounting centers
| Category | Specification |
|---|---|
| Design | |
| Product colour | White |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 39122216 |
| US ECCN Code | EAR99 |
| Package dimensions (verified) | |
| Depth Verified | 17.2 cm |
| Gross Weight Verified | 1.012 kg |
| Height Verified | 9.9 cm |
| Width Verified | 27.1 cm |
| Power | |
| Input voltage | 12 V |
| Power source type | DC |
| Product dimensions | |
| Net Weight (Product, kg) | 1.01 kg |
| Product Depth | 17.2 cm |
| Product Height | 9.9 cm |
| Product Width | 27.1 cm |
| Technical details | |

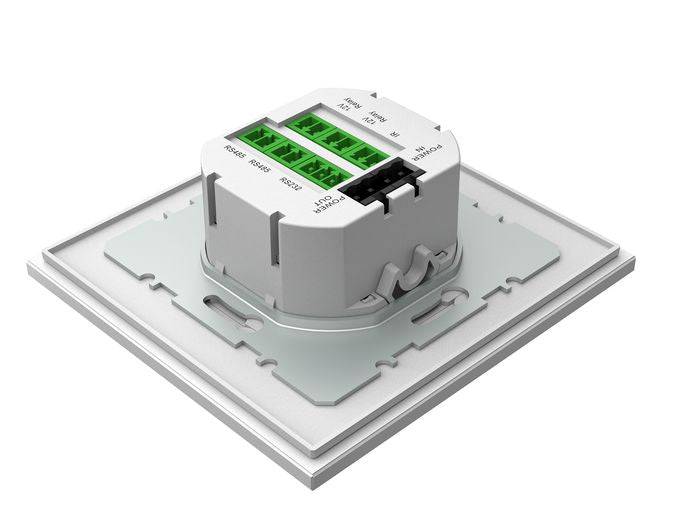

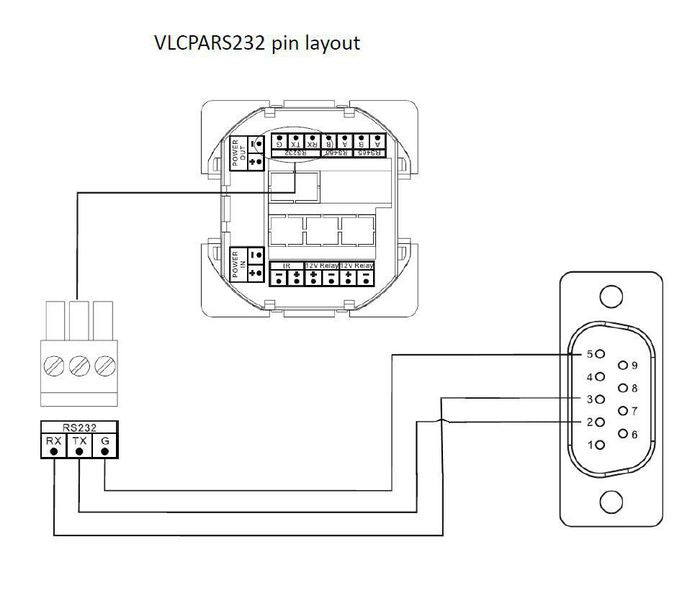

| Connector(s) | DC in, DC out, RS-232, RS-485, IR Out, Relay 12V output |
| Illuminable | Yes |
| Number of buttons | 8 buttons |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
