Official Partner

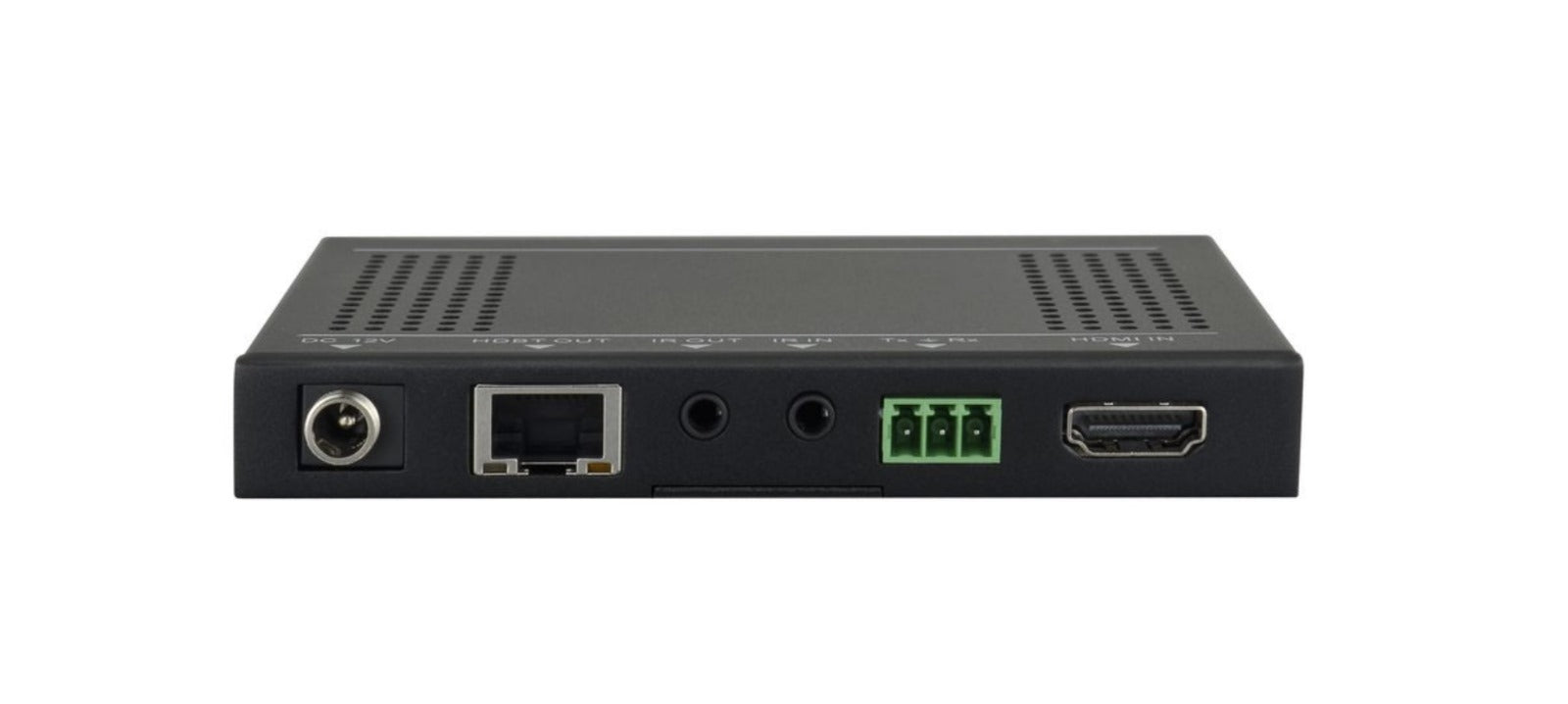

HDBaseT Extender kit HDMI 2.0 18Gbps
Transmitter/Receiver HDMI 2.0 18Gbps,Bi-directional IR, RS232 and CEC, one PSU, HDMI 1.4 and HDCP2.2 compliant
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI 2.0 extender
Point to point,Tx to Rx for 70m@1080P,40m 4K@60Hz 4:4:4
Key features:
Full HDMI 2.0 compliant
18 Gbps bandwidth
Slim 4K HDBT extender.
Two way POC
Support Bi-directional IR and RS232
HDCP2.2 compliant
| Category | Detail |
|---|---|
| Features | |
| Bandwidth | 18 Gbit/s |
| Cable types supported | Cat5e/Cat6 |
| CEC pass-through | Yes |
| HDBaseT certified | Yes |
| HDCP & EDID bypass | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum resolution | 4096x2160 Pixels |
| Maximum transfer distance | 70 m |
| Product colour | Black |
| Remote control type | IR + RS232 |
| RS-232 pass-through | Yes |
| Supported video modes | 3840p |
| Type | AV transmitter & receiver |
| Wall mountable | Yes |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | 5A992 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Package dimensions (verified) | |
| Depth Verified | 16.1 cm |
| Gross Weight Verified | 0.662 kg |
| Height Verified | 12.6 cm |
| Width Verified | 18.4 cm |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | EU/GB |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Video in | 1 |
| Video out | 1 |
| Power | |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Power consumption (receiver) (max) | 14 Watt |
| Power consumption (transmitter) (max) | 14 Watt |
| Power over Ethernet (PoE) | Yes |
| Product dimensions | |
| Net Weight (Product, kg) | 0.5 kg |
| Product Depth | 16.1 cm |
| Product Height | 12.6 cm |
| Product Width | 18.4 cm |
| Technical details | |
| Audio support | Yes |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
