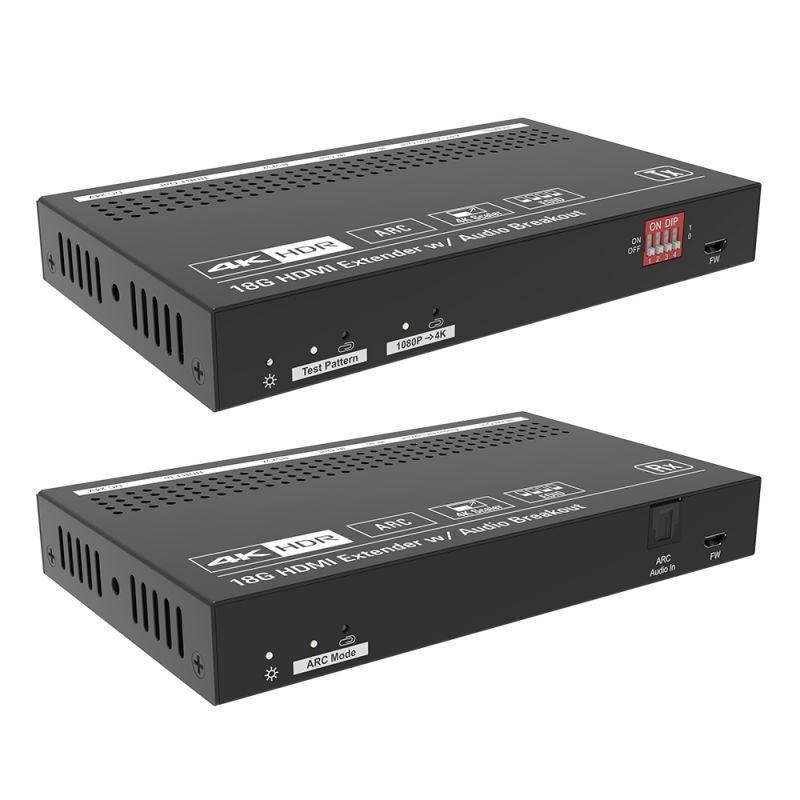

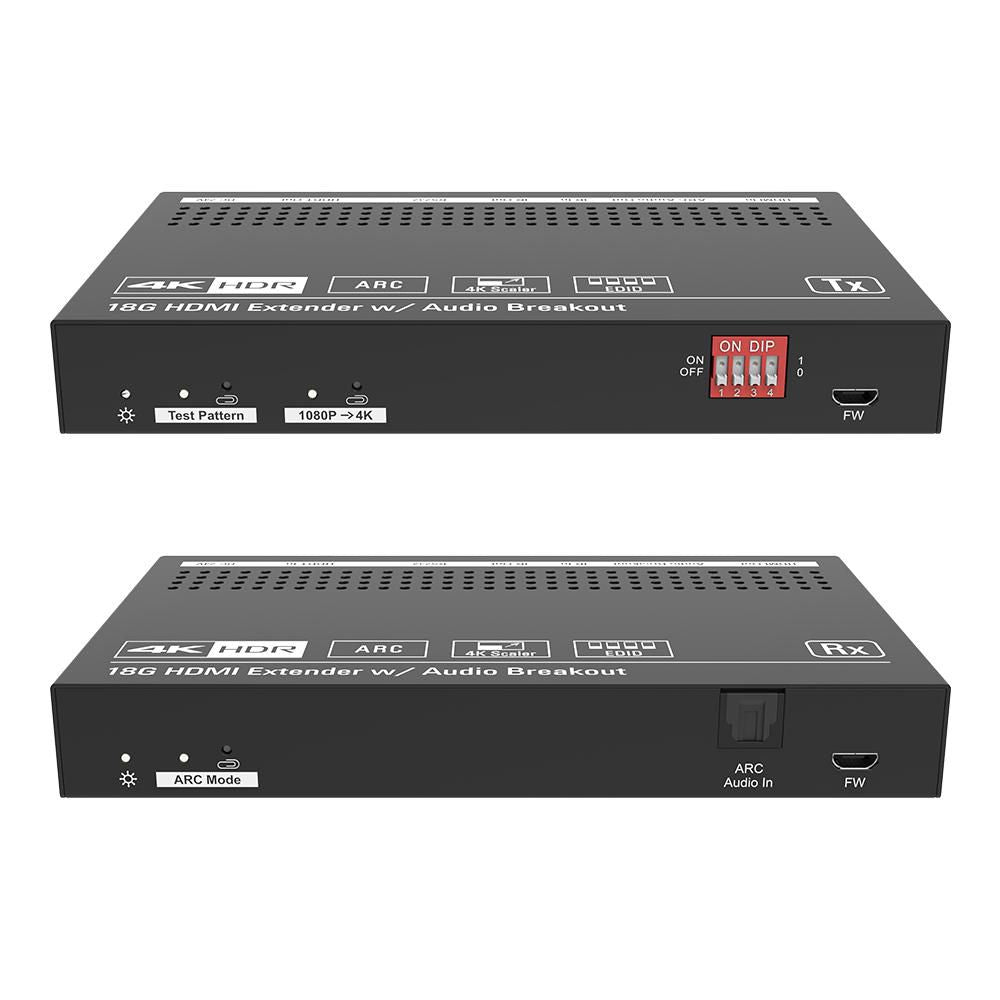

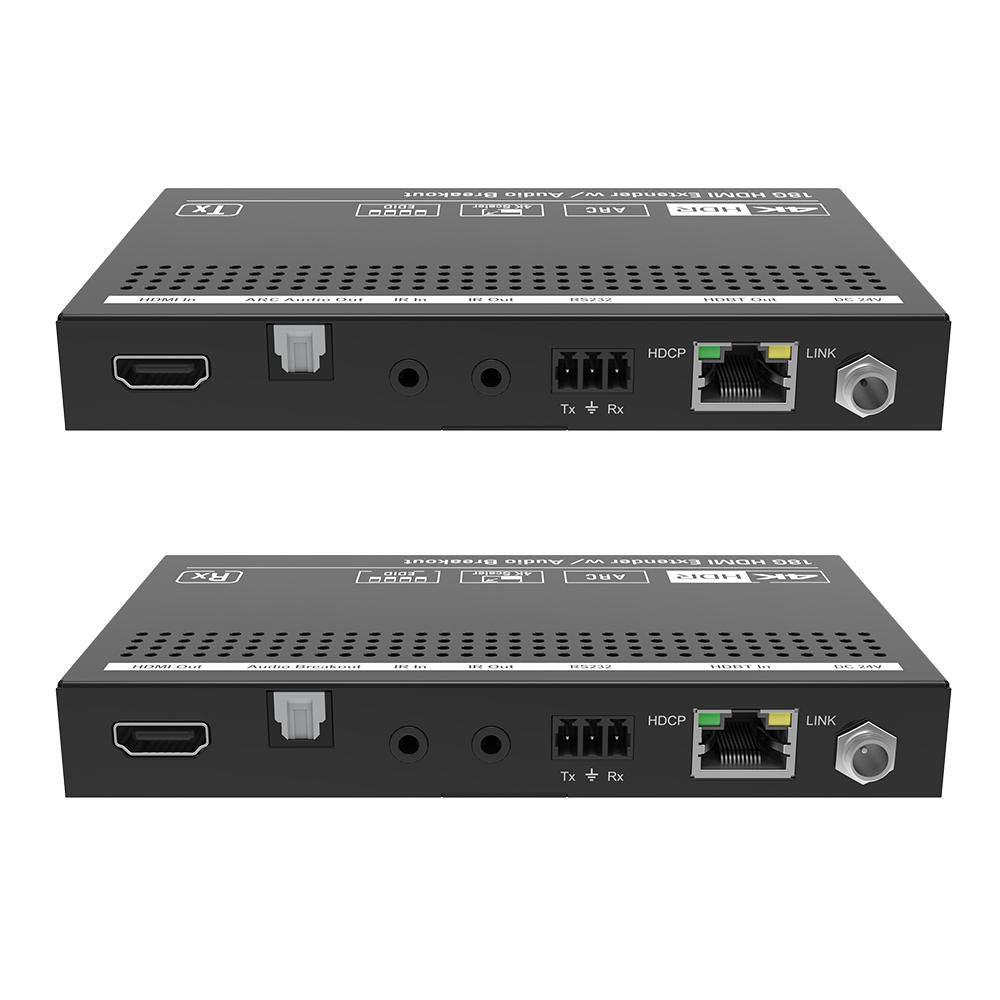

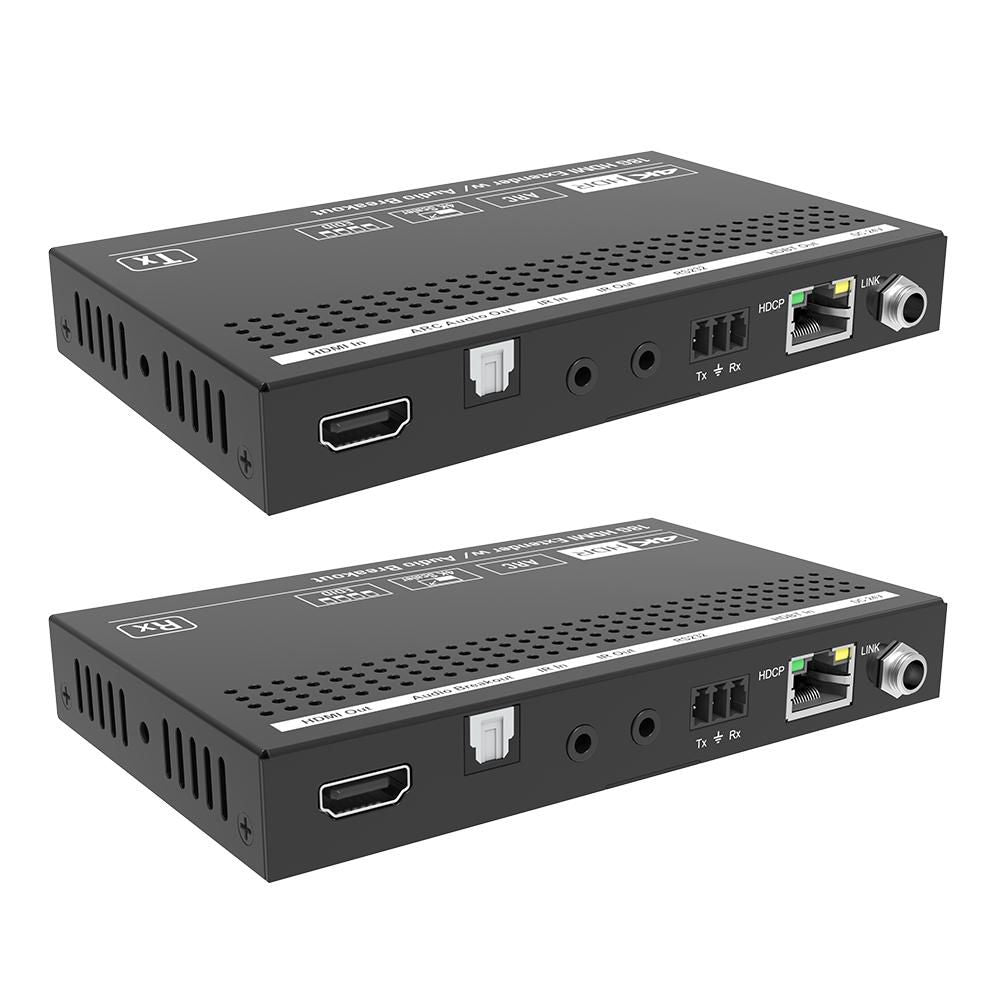

HDBaseT Extender kit HDMI 2.0 18Gbps /w Audio Breakout
Transmitter/Receiver HDMI 2.0 18Gbps /w Audio Breakout
Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI 2.0 extender
Point to point,Tx to Rx for 70m@1080P,40m 4K@60Hz 4:4:4
| Category | Attribute | Value |
|---|---|---|
| Bandwidth | 18 Gbit/s | |
| Cable Types Supported | Cat5e/Cat6 | |
| CEC Pass-Through | Yes | |
| HDBaseT Certified | Yes | |
| HDCP | Yes | |
| HDCP & EDID Bypass | Yes | |
| IR Pass-Through | Yes | |
| LED Indicators | Yes | |
| Maximum Resolution | 4096x2160 pixels | |
| Maximum Transfer Distance | 70 m | |
| Product Colour | Black | |
| Remote Control Type | IR + RS232 | |
| RoHS Compliance | Yes | |
| RS-232 Pass-Through | Yes | |
| Supported Video Modes | 3840p | |
| Type | AV Transmitter & Receiver | |
| Wall Mountable | Yes | |
| Operating Temperature | -10°C to 50°C | |
| Package Dimensions | Depth | 16.1 cm |
| Gross Weight | 0.66 kg | |
| Height | 12.6 cm | |
| Width | 18.4 cm | |
| Packaging Content | AC Adapter Included | Yes |
| IR Blaster Included | No | |
| Mounting Brackets Included | Yes | |
| Ports & Interfaces | 3.5mm (1/8-inch) Input/Output | Yes |
| HDMI Version | 2.0 | |
| HDMI In/Out | 1 Input, 1 Output | |
| RJ-45 Ports | 1 Input, 1 Output | |
| RS-232 Ports | 1 Input, 1 Output | |
| Power Requirements | Operating Voltage | 24 V |
| Power Consumption (Receiver/Transmitter) | 14 W | |
| Power Source Type | PoC (Power over Cable) | |
| Product Dimensions | Net Weight | 0.5 kg |
| Depth | 16.1 cm | |
| Height | 12.6 cm | |
| Width | 18.4 cm | |
| Warranty | 5 Years | |
| Vendor | Brand Name | Vivolink |
| Description | Downloads |
|---|---|
| Vivolink HDBaseT Extender Kit HDMI 2.0 18Gbps /w Audio Breakout | VLHDMIEXTHDB2.0S DataSheet | Downloads |
