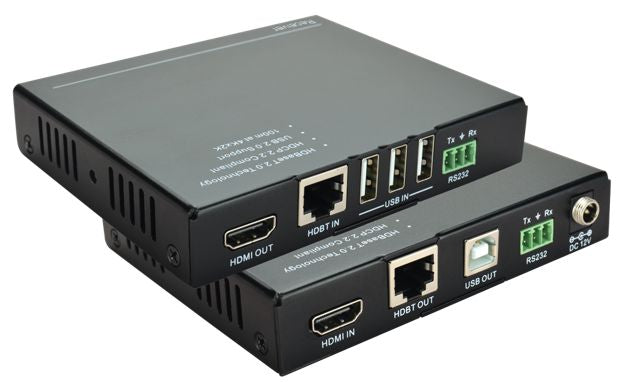

HDBaseT KVM Extender
Transmitter/Receiver HDMI USB PoH48,Bi-directional IR, RS232, 3 x USB 2.0 and CEC, one PSU, HDMI 2.0 , HDCP2.2
Typical installations:
• Interactive touch screens, control of a remote
• Ideally designed for smart displays and fitting digital signage markets
Function:
• 100m Extender HDMI + USB + RS232 (with CAT6 cable)
• Supports 4K x 2K @ 60Hz 4:2:0
4K 100m transmission
HDCP 2.2 compatible
3 x USB KVM function supporting USB 2.0 transfer speed up to 200Mbps
RS232 pass-through
| Category | Detail |
|---|---|
| Features | |
| Cable types supported | Cat6a |
| Connectivity technology | Wired |
| Easy to install | Yes |
| LED indicators | Link/Power |
| Maximum digital resolution | 4096x2160@30Hz Pixels |
| Maximum transfer distance | 100 m |
| Plug and Play | Yes |
| Supported resolutions | 1280x800 4:4:4 |
| USB 2.0 ports quantity | 3 |
| USB data transfer rates | 200 Mbit/s |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 43211601 |
| US ECCN Code | 5A992 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Package dimensions (verified) | |
| Depth Verified | 16.1 cm |
| Gross Weight Verified | 0.818 kg |
| Height Verified | 12.8 cm |
| Width Verified | 18.3 cm |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | EU/GB |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Ports & interfaces | |
| RJ-45 ports quantity | 1 |
| RS-232 ports | 1 |
| USB port type | USB Type-A |
| Power | |
| AC adapter output current | 2 A |
| AC adapter output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Power consumption (receiver) (max) | 18 Watt |
| Power consumption (transmitter) (max) | 18 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0.5 kg |
| Product Depth | 16.1 cm |
| Product Height | 12.8 cm |
| Product Width | 18.3 cm |
| Technical details | |
| Dimensions (WxDxH) | 116 x 95 x 22 mm |
| Video in | HDMI |
| Transmitter | |
| Number of displays supported | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Transmitter local video port | Yes |
| Transmitter video port type | HDMI |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
