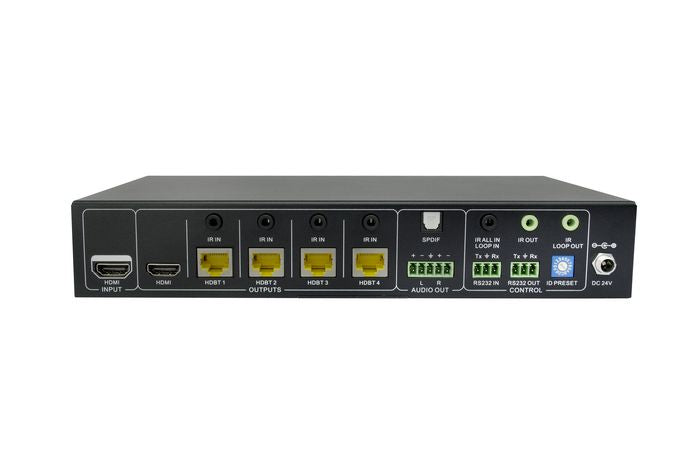

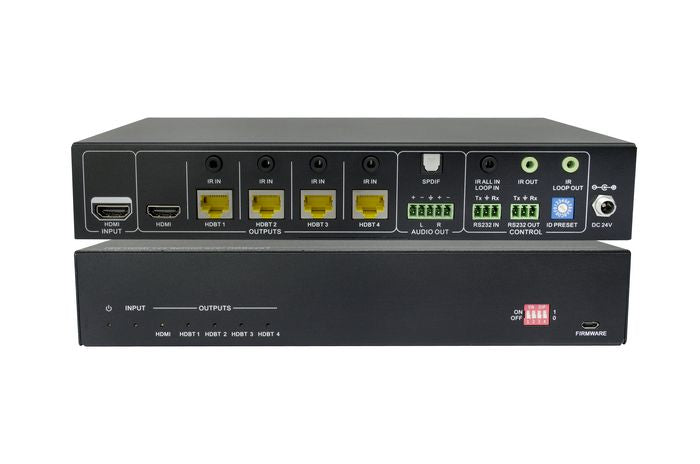

Vivolink HDBT 2.0 Splitter 1x4 With Loop
VLHDBSP1X4V2 is a 4K HDBaseT splitter with 4 HDBaseT plus 1 HDMI outputs. It distributes HDMI signal via CAT cable at 230ft (70m) with PoC, and enables IR and RS232 pass-through to control the remote displays. Build in audio de-embedder.
Reveiver unit to this model is: VLHDMIMAT4X444-R
Integrated with HDBaseT technology, 4K@60Hz 4:4:4 supported
4 HDBaseT outputs with PoH at 230ft (70m)
Analog balanced/unbalanced + digital audio output
One HDMI output for local monitor or loop to next box
RS232 & Bi-directional IR to control display
Smart EDID management to avoid the display issue
LEDs for status checking
4 x 3.5mm IR input jacks for connecting the four IR receivers
| Category | Detail |
|---|---|
| Features | |
| 3D | Yes |
| Easy to install | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| Housing material | Metal |
| Maximum operating distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 Pixels |
| Plug and Play | Yes |
| Power LED | Yes |
| Product colour | Black |
| Rack mounting | No |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 52161556 |
| US ECCN Code | 5A992 |
| Package dimensions | |
| Gross Weight (Package, kg) | 1.59 kg |
| Packaging content | |
| AC adapter included | Yes |
| User guide | Yes |
| Packaging data | |
| Quantity per box | 1 pc(s) |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN | No |
| HDMI version | 1.4 |
| Video in | 1 x HDMI |
| Video out | 1 x HDMI + 4x HDBaseT |
| Video port type | HDMI |
| Video ports quantity | 5 |
| Power | |
| Input voltage | 110 - 240 V |
| Output voltage | 24 V |
| Product dimensions | |
| Net Weight (Product, kg) | 0.5 kg |
| Product Depth | 14.8 cm |
| Product Height | 4.4 cm |
| Product Width | 22 cm |
| Technical details | |
| Cascadable | Yes |
| Connection to PC | Yes |
| Connector type | HDMI + RJ45 |
| Maximum cable length | 70 m |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
| Weight & dimensions | |
| Dimensions (WxDxH) | 220mm x 148mm x 44 mm |
