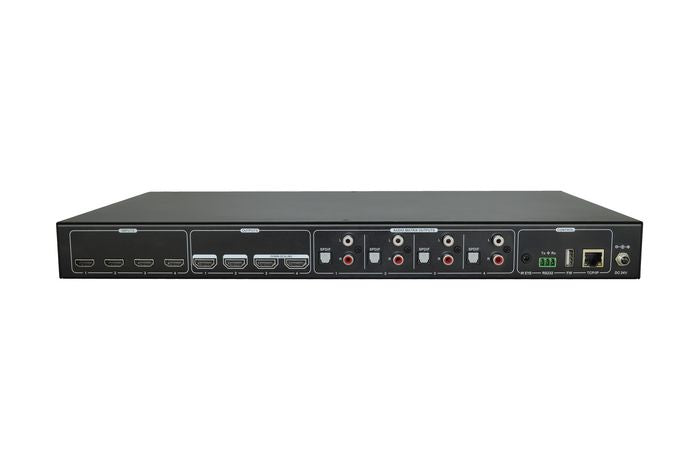

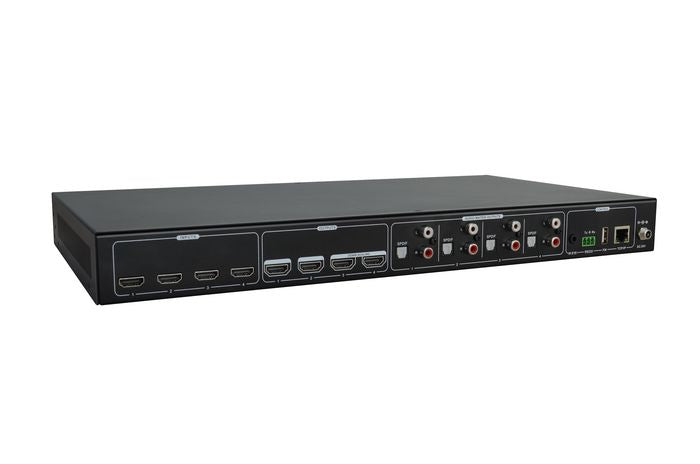

Vivolink HDMI 2.0 4x4 Matrix Switcher | VLHDMIMAT4X4
HDMI 2.0 4x4, Matrix switcher w/GUI and RS232 control
HDCP2.2, audio de-embedder HD Audio support, build-in GUI + LAN control
Typical installations:
Professional signal distribution with selectable in and outputs
Function:
4 HDMI inputs
4 HDMI outputs + Audio SPDIF (coax)
Control: IR + RS232 + TCP/IP
Smart EDID management, automatically adopt the resolution of the first detected display from port 1 or 2
Intuitive indicator for connection status & input HDCP compliance status
HDMI 2.0 matrix HDCP 2.2
Support 18Gbps bandwidth for 4K@60Hz 4:4:4 8bit
Deep color formats and HDR capability
HD Audio support up to DTS:X and Dolby Atmos
Build-in GUI for matrix set-up and control over LAN
Smart EDID management, automatically adopt the resolution of the first detected display from port 1 or 2
Intuitive indicator for connection status& input HDCP compliance status
| Category | Detail |
|---|---|
| Features | |
| Audio formats supported | PCM |
| Audio output channels | 2.0 channels |
| Bandwidth | 18 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Maximum frame rate | 60 fps |
| Maximum resolution | 3840 x 2160 Pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Remote control type | IR + RS232 |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | 5A992 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 55 °C |
| Package dimensions (verified) | |
| Depth Verified | 54 cm |
| Gross Weight Verified | 3.1 kg |
| Height Verified | 14 cm |
| Width Verified | 35 cm |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | IR sensor |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| Ports & interfaces | |
| Audio (L/R) out | 1 |
| Digital audio coaxial out | 1 |
| HDMI in | 4 |
| HDMI ports quantity | 8 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 4 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| S/PDIF out port | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Product dimensions | |
| Net Weight (Product, kg) | 0.5 kg |
| Product Depth | 54 cm |
| Product Height | 14 cm |
| Product Width | 35 cm |
| Technical details | |
| Audio support | Yes |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
