Vivolink HDMI Extender Kit Over IP 120m + IR Receiver | VLHDMIEXT1-KIT
SKU: VLHDMIEXT1-KIT
£138.62 (Excl. VAT)
- Description
- Specifications
- Downloads
-

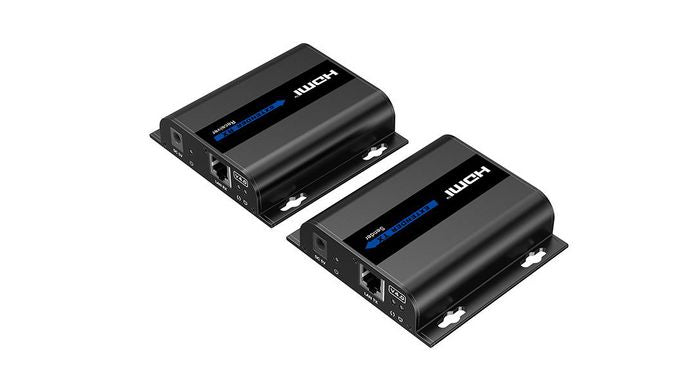

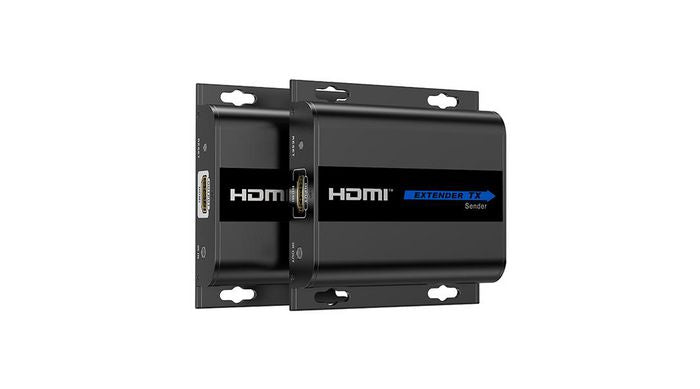

Vivolink HDMI Extender Kit Over IP 120m + IR Receiver
HDMI Extender kit over IP 120m + IR, Receiver
Extender Kit with IR receiver Max resolution 1080P@60hz
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 120 meters via single network cable (Cat 5e/6)Up to 253 receivers can be connected to one transmitter using Gbit switch. One receiver will occupy 18Mbit bandwith.
Note that this product is not compatible with HDBaseT receivers
Typical installation:
It can be installed anywhere to extend HDMI signal up to 120m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 120m 1080P@60Hz

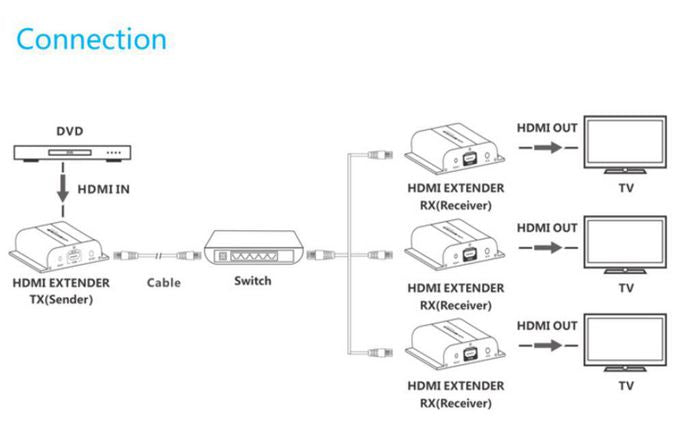

Signal can be spitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network
TX: 192.168.1.210
RX: 192.168.1.220
-
Category Detail Features Cable types supported Cat5e/Cat6 HDCP Yes HDCP & EDID bypass Yes HDCP pass-through Yes HDCP version 1.4 IR pass-through Yes LED indicators Yes Maximum resolution 1920x1080 Pixels Maximum transfer distance 120 m Product colour Black Remote control type IR Supported video modes 1080p Type AV Receiver Wall mountable Yes Legal Information EU ECCN Code N/A US ECCN Code 5A992 Operational conditions Operating relative humidity (H-H) 10 - 90 % Operating temperature (T-T) 0 - 60 °C Package dimensions Depth (package, cm) 11.9 cm Gross Weight (Package, kg) 0.64 kg Height (package, cm) 8 cm Width (package, cm) 15.3 cm Packaging content AC adapter included Yes Included power plug types EU IR blaster included Yes IR receiver included Yes Ports & interfaces 3.5 mm (1/8-inch) in Yes 3.5 mm (1/8-inch) out Yes Connectivity technology Wired DC-in jack Yes HDMI in 1 HDMI version 1.4 Number of HDMI outputs 1 Remote (IR) input 1 Remote (IR) output 1 RJ-45 input ports 1 Video in 1 Video out 1 Power AC input frequency 50 / 60 HZ AC input voltage 100 - 240 V External power adapter Yes Operating voltage (receiver) 5 V Operating voltage (transmitter) 5 V Output current 1 A Power consumption (receiver) (max) 3 Watt Power consumption (transmitter) (max) 3 Watt Product dimensions Net Weight (Product, kg) 0.636 kg Product Depth 9.4 cm Product Height 2.37 cm Product Width 9.68 cm Technical details Audio support Yes Vendor information Brand Name Vivolink Warranty 3 Year(s) - VLHDMIEXT1-KIT : Product Sheet
