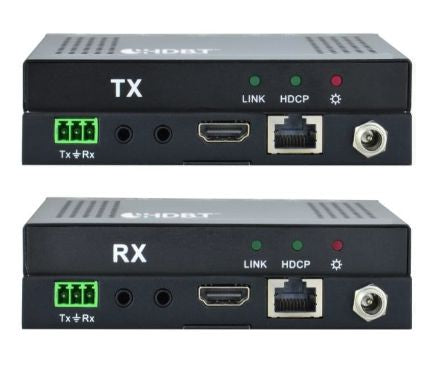

VL120016 is a mini-size HDBaseT Extender set that consists of transmitter (VL120016T) and receiver (VL120016R), supporting 1080P/ 4K signal transmission up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC, bidirectional RS232 & IR control, and one way-directional PoH function.
Support up to 4K@60Hz 4:2:0 video signal transmission
Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
High Bandwidth: 10.2Gbps Compliant with HDMI1.4 & HDCP2.2
Use HDBaseT technology for extended capability and reliability
Support ARC
Bi-directional IR pass-through
| Category | Specification |
|---|---|
| Features | |
| Bandwidth | 10.2 Gbit/s |
| Cable types supported | Cat5e/Cat6 |
| CEC pass-through | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDBaseT certified | Yes |
| HDCP & EDID bypass | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum resolution | 4096x2160 Pixels |
| Maximum transfer distance | 70 m |
| Product colour | Black |
| Remote control type | IR + RS232 |
| RS-232 pass-through | Yes |
| Supported video modes | 3840p |
| Type | AV transmitter & receiver |
| Wall mountable | Yes |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | 5A992 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -20 - 70 °C |
| Package dimensions (verified) | |
| Depth Verified | 16 cm |
| Gross Weight Verified | 0.758 kg |
| Height Verified | 12.9 cm |
| Width Verified | 18.4 cm |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | EU/GB |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Video in | 1 |
| Video out | 1 |
| Power | |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Operating voltage (receiver) | 24 V |
| Operating voltage (transmitter) | 24 V |
| Output current | 1.5 A |
| Power consumption (receiver) (max) | 11 Watt |
| Power consumption (transmitter) (max) | 11 Watt |
| Power over Ethernet (PoE) | Yes |
| Product dimensions | |
| Net Weight (Product, kg) | 0.658 kg |
| Product Depth | 16 cm |
| Product Height | 12.9 cm |
| Product Width | 18.4 cm |
| Technical details | |
| Audio support | Yes |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 115 x 84 x 16.2 mm |
| Receiver weight | 150 g |
| Transmitter dimensions (WxDxH) | 115 x 84 x 16.2 mm |
| Transmitter weight | 150 g |
