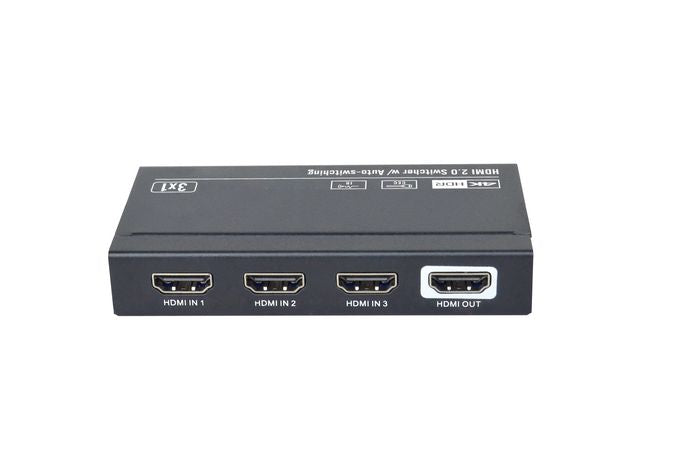

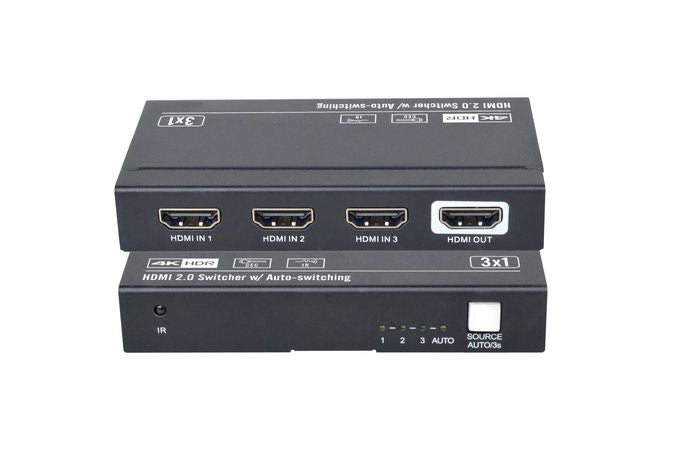

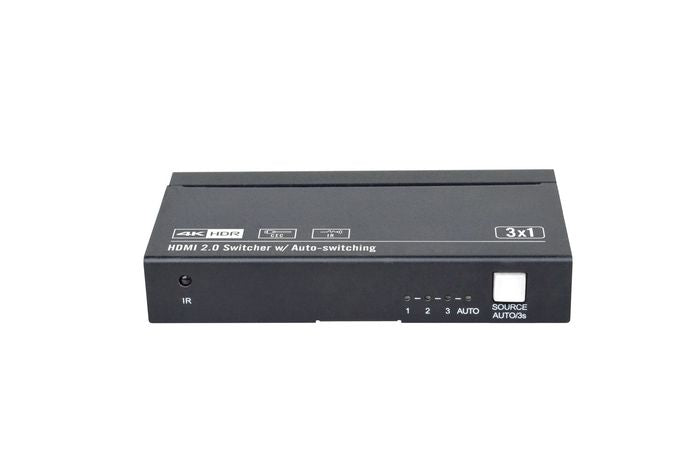

Vivolink HDMI Switcher 3x1 4K@60Hz | VLSW131
HDMI switcher 3x1 4K@60Hz
Vivolink HDMI switcher 3x1 4K@60Hz
with autoswitching, CEC and IR
No power supply needed, it is powered via HDMI 5 volt.
Easy "plug and play" switcher.
Typical installations:
Can be mounted behind a screen to extend one HDMI input to 3 inputs
Fully compliant with HDMI 2.0
Supports CEC pass-through
Remote included
HDMI switcher with 3 HDMI inputs and one HDMI out
Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
18Gbps high bandwidth
Fully compliant with the HDMI 2.0 and HDCP2.2 specifications
Supports CEC pass-through
IR, Remote included
| Category | Detail |
|---|---|
| Features | |
| Consumer Electronics Control (CEC) support | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Maximum frame rate | 60 fps |
| Maximum resolution | 3840 x 2160 Pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 52161540 |
| US ECCN Code | EAR99 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Package dimensions | |
| Depth (package, cm) | 8.8 cm |
| Gross Weight (Package, kg) | 0.56 kg |
| Height (package, cm) | 6 cm |
| Width (package, cm) | 15.5 cm |
| Packaging content | |
| Cables included | IR sensor |
| Ports & interfaces | |
| HDMI in | 3 |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| Video port type | HDMI |
| Product dimensions | |
| Net Weight (Product, kg) | 0.18 kg |
| Product Depth | 5.5 cm |
| Product Height | 1.8 cm |
| Product Width | 10.5 cm |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
