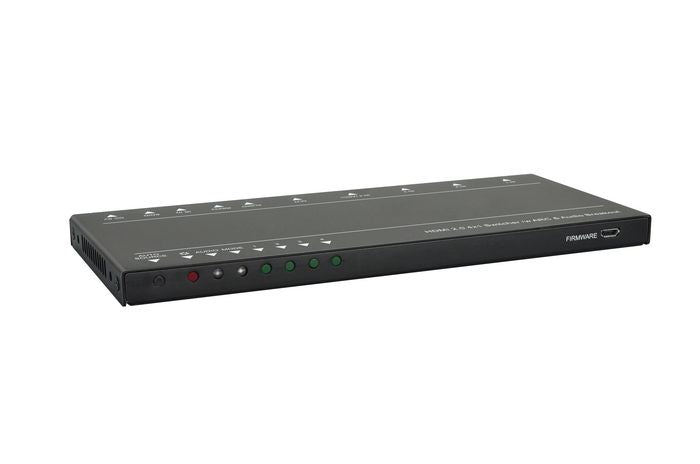

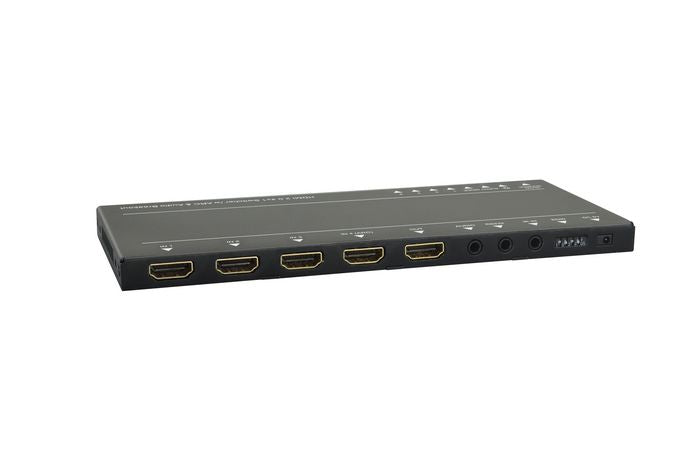

Vivolink HDMI Switcher 4x1 4K@60Hz With RS232 Control - VLSW141H

SKU: VLSW141H
Vivolink HDMI Switcher 4x1 4K@60Hz With RS232 Control - VLSW141H Vivolink HDMI Switcher Vivolink
Availability:
75 in stock
Save £100.47 Save £100.47

£161.42 (Excl. VAT)

- £193.70 (Inc. VAT)
£161.42 - £161.42
- - £193.70
Availability:
75 in stock
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Paypal
  • Shop Pay
  • Klarna
  • Bank Transfer (BACS)
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Description
  • Specifications
  • Downloads

  • Vivolink HDMI Switcher 4x1 4K@60Hz With RS232 Control - VLSW141H


    HDMI switcher 4x1 4K@60Hz with RS232 control, ARC and analogue audio de-embedder function
    Vivolink HDMI switcher 4x1 4K@60Hz ARC

    Ultra slim 12mm, with autoswitching

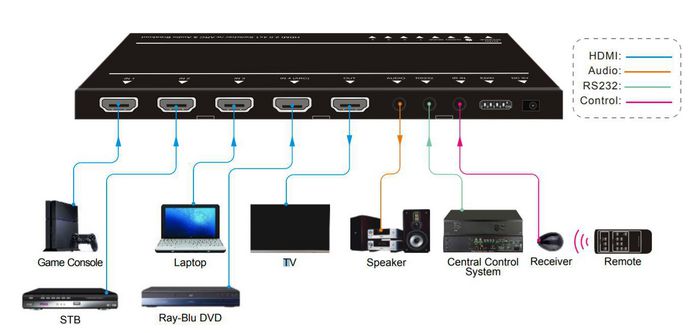

    Typical installations:
    Meeting rooms with four cables at the desk and one monitor
    Fully compliant with HDMI 2.0

    Upgrade FW Version: V1.0.2 New features:
    RS232 feedback on source input
    Autoswitch based on active videosignal
    Improovement of HDCP compatability

    Advanced EDID management: multiple preset and user defined allowed..

    Controllable via RS232 and IR.

    Supports CEC.

    Seven LEDs to indicate the current operating status and to assist troubleshooting an installation.

    RS232 control and audio line out to active speakers.

    Firmware upgrade by Micro-USB port.

  • Category Specification
    Features
    Audio formats supported PCM
    Audio output channels 2.0 channels
    Bandwidth 18 Gbit/s
    Consumer Electronics Control (CEC) support Yes
    Extended display identification data (EDID) Yes
    HD type 4K Ultra HD
    HDCP Yes
    HDCP version 2.2
    LED indicators Yes
    Maximum frame rate 60 fps
    Maximum resolution 3840 x 2160 Pixels
    Plug and Play Yes
    Product colour Black
    Remote control type IR + RS232
    Legal Information
    EU ECCN Code N/A
    UNSPSC Code 52161540
    US ECCN Code EAR99
    Operational conditions
    Operating temperature (T-T) -10 - 55 °C
    Package dimensions (verified)
    Depth Verified 13.4 cm
    Gross Weight Verified 0.564 kg
    Height Verified 12.4 cm
    Width Verified 23.9 cm
    Packaging content
    AC adapter included Yes
    Mounting brackets included Yes
    Remote control included Yes
    Ports & interfaces
    3.5 mm (1/8-inch) out Yes
    Audio (L/R) out 1
    HDMI in 4
    HDMI ports quantity 5
    HDMI version 2.0
    Number of HDMI outputs 1
    RS-232 ports 1
    S/PDIF out port No
    Video port type HDMI
    Power
    AC input voltage 100 - 240 V
    Product dimensions
    Net Weight (Product, kg) 0.18 kg
    Product Depth 8.1 cm
    Product Height 1.2 cm
    Product Width 19.4 cm
    Technical details
    Audio support Yes
    Vendor information
    Brand Name Vivolink
    Warranty 3 Year(s)
    Weight & dimensions
    Dimensions (WxDxH) 194mm x 81mm x 12mm
  • VLSW141H : Product Datasheet
