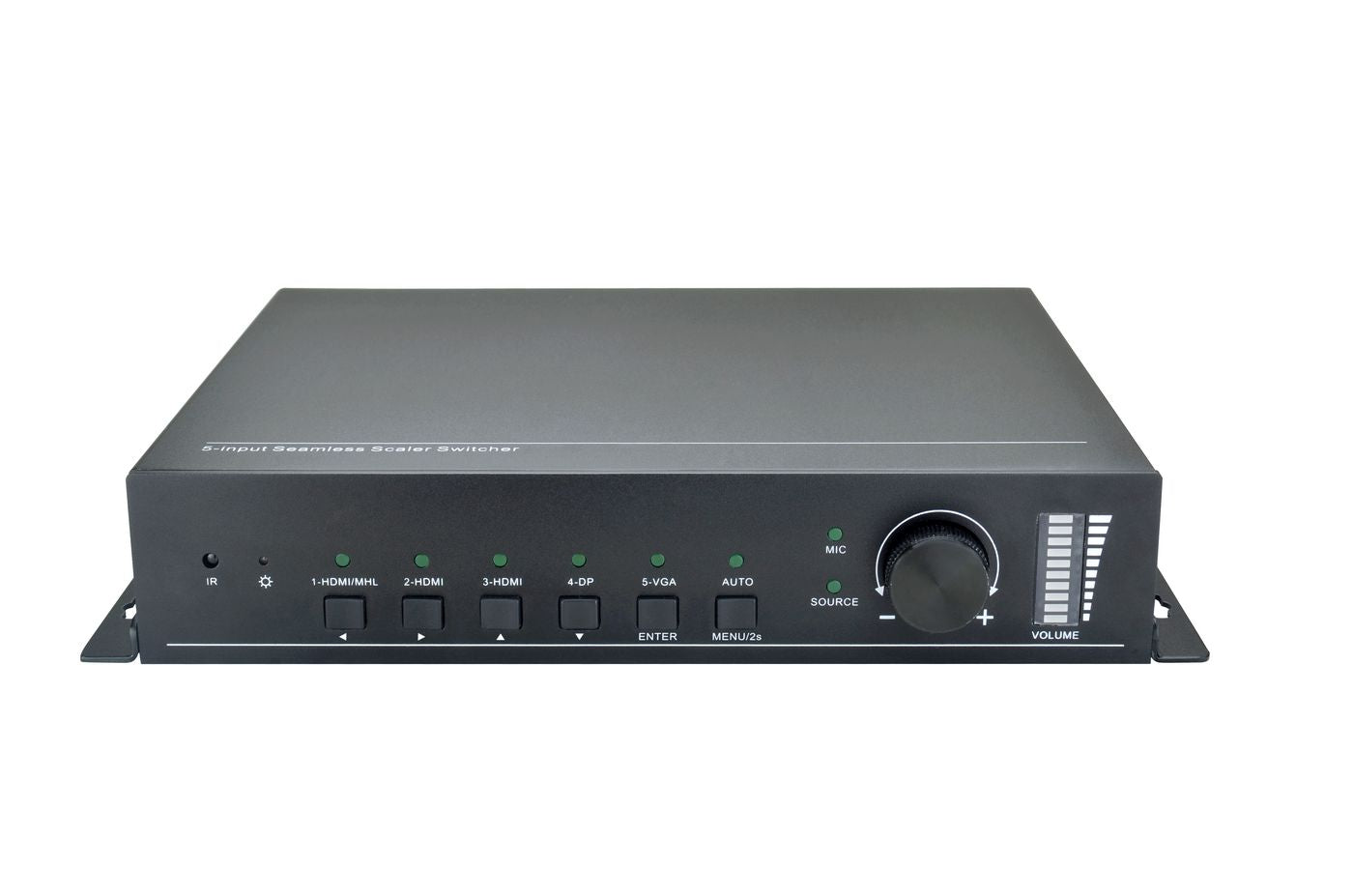

Scaler switcher 5x1 seamless
Scaler switcher 5x1 seamless 3-level MIC, HDMI output
Typical installations:
Meeting room or test room with many different signal sources
3-level MIC inputs, supports condenser microphone, dynamic microphone and wireless microphone
Compliant with HDCP, supports CEC
Supports online software upgrading
48V phantom power to support condenser microphone
MIC port supports balance/unbalance signal, suppress the external noise effectively
Controllable via button, IR & RS232
Powerful OSD
Seamless switching
Compliant with HDMI1.4& HDCP2.2
Supports video source auto-switching function
Output resolutions selectable to assure preferred output,
Supports output resolutions: 1920x1200, 1920x1080, 1600x1200, 1600x900,1360x768, 1280x800, 1280x720, 1024x768
VGA video supports C-video, YPbPr and VGA
Compliant with HDCP, supports CEC
Supports online software upgrading
48V phantom power to support condenser microphone
MIC port supports balance/unbalance signal, suppress the external noise effectively

| Category | Detail |
|---|---|
| Features | |
| Control type | Buttons/Rotary |
| Housing material | Metal |
| LED indicators | Power/Status/Switch |
| Product colour | Black |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | EAR99 |
| Package dimensions (verified) | |
| Depth Verified | 22.5 cm |
| Gross Weight Verified | 1.742 kg |
| Height Verified | 14.5 cm |
| Width Verified | 26.9 cm |

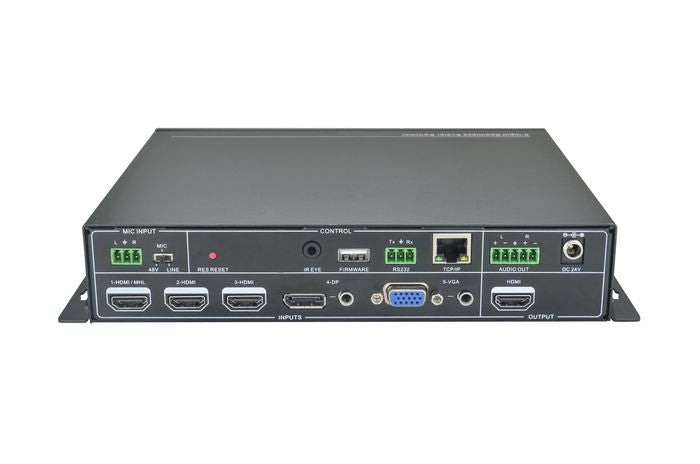

| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| Remote control interface | Yes |
| RJ-45 ports quantity | 2 |
| RS-232 input ports | 1 |
| VGA (D-Sub) input ports | 1 |
| Power | |
| AC adapter input voltage | 110 - 230v V |
| Product dimensions | |
| Net Weight (Product, kg) | 0.5 kg |
| Product Depth | 14.8 cm |
| Product Height | 4.4 cm |
| Product Width | 22 cm |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Year(s) |
| Video | |
| HDCP version | 1.4/2.2 |
