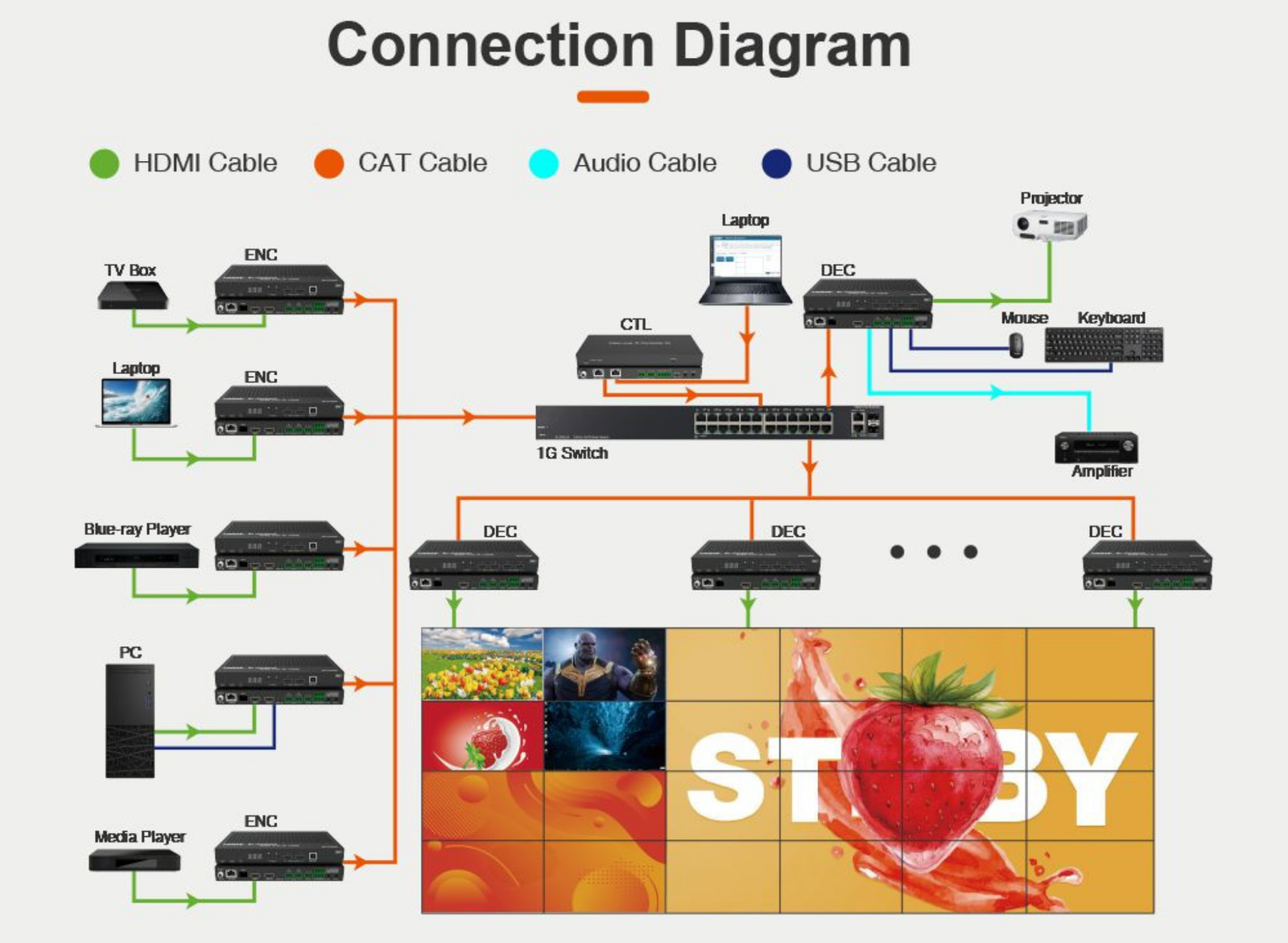

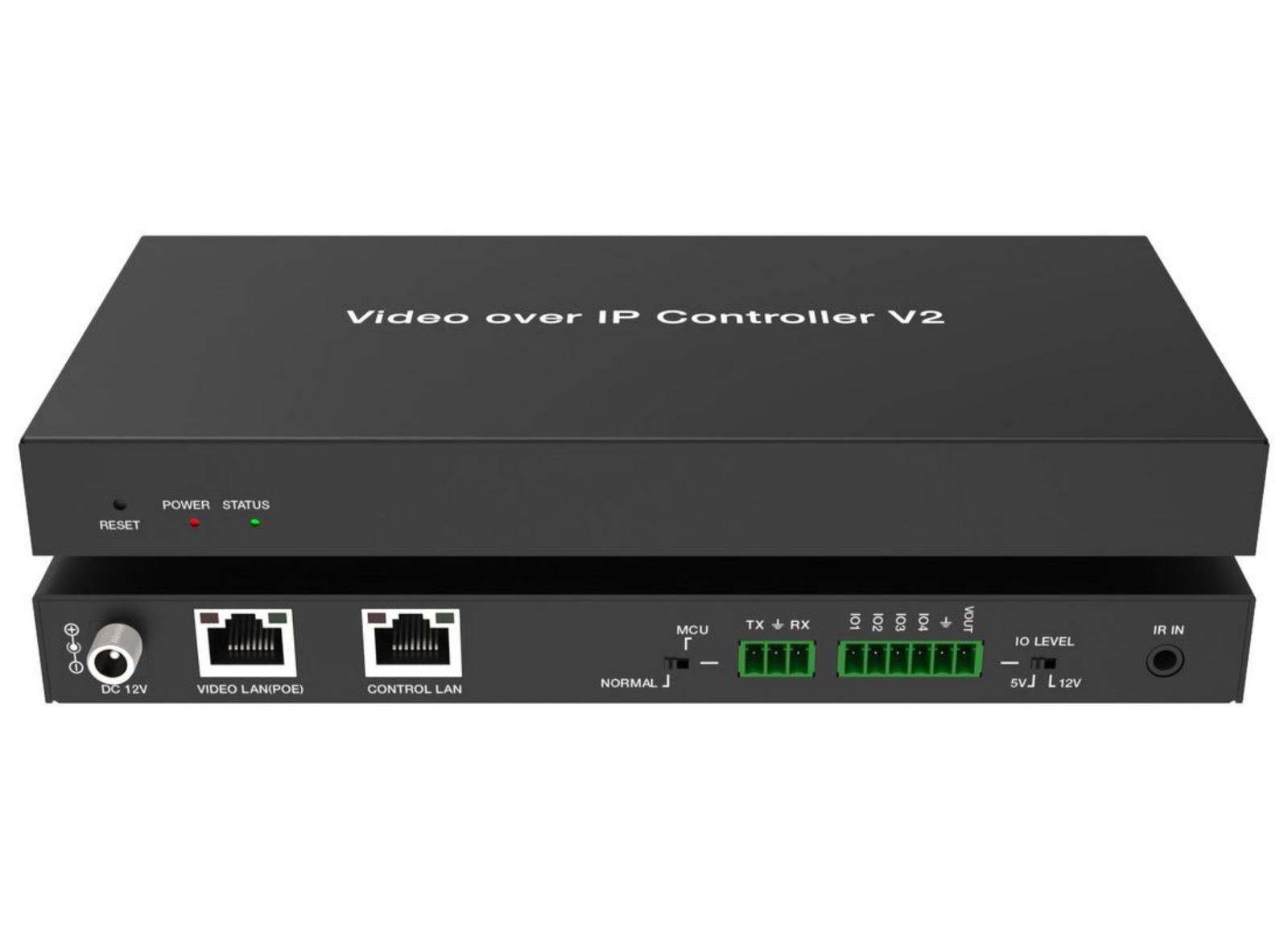

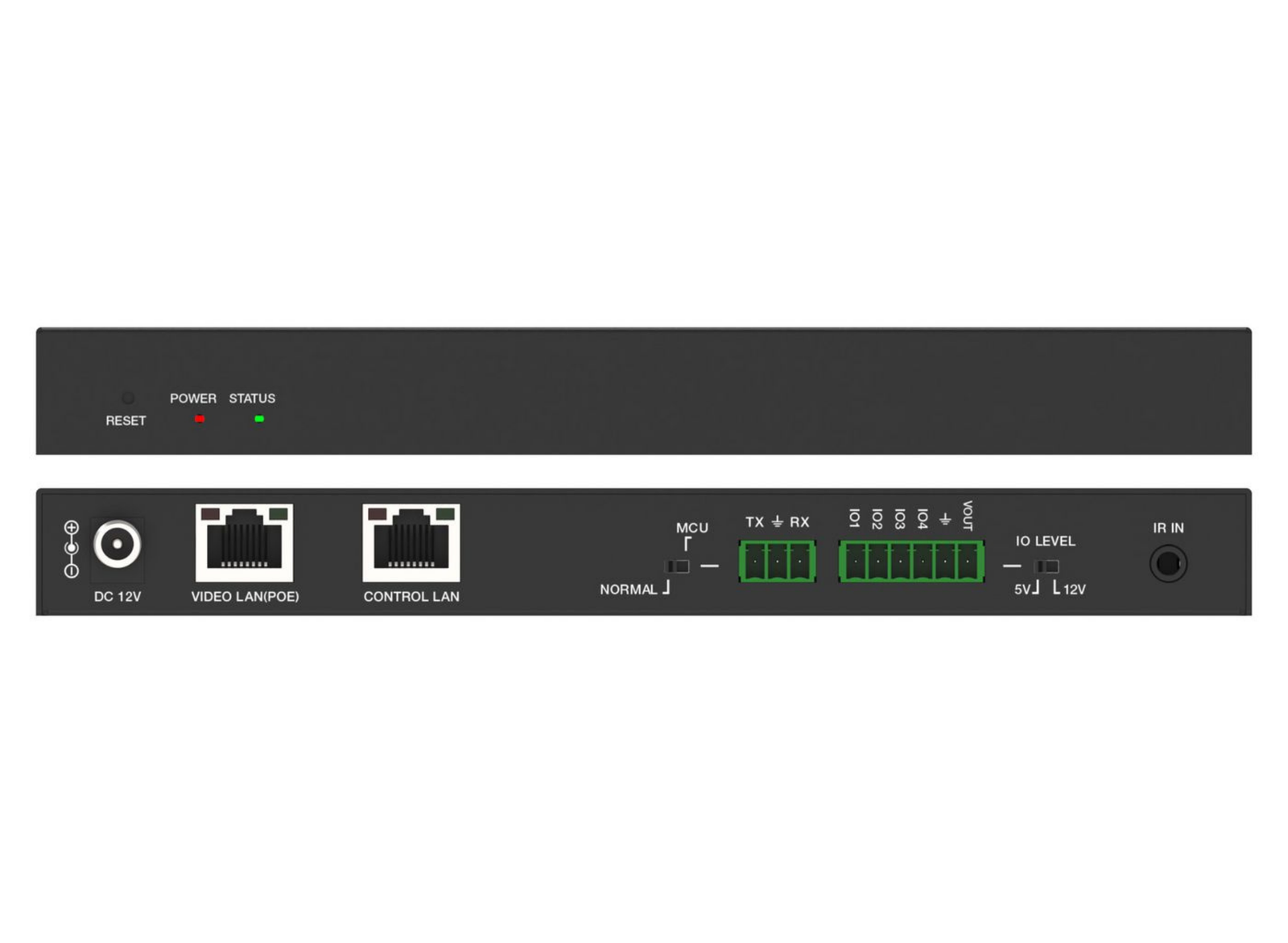

Vivolink VLVWIP2000-CTL is used to control and manage JPEG2000 IP products. It supports dual 100M network ports, which can realize dual network isolation of Control network and Multicast video distribution network.
Built-in Web GUI, TCP and RS-232 control are supported. It supports POE function and wide-band 12V IR signal receiving. Since the demand of IP products is daily increased in the current market, the IP Controller will be widely applied in more and more different scenarios.
The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.
| Audio support | Yes | Cable types supported | Cat6a |
| Connectivity technology | Wired | Easy to install | Yes |
| LED indicators | Link/Power | Plug and Play | Yes |
| Product colour | Black | Country of Origin | China |
| EU ECCN Code | N/A | Tariff No. | 8543709099 |
| UNSPSC Code | 43211601 | US ECCN Code | 5A992 |
| Operating temperature | -5 - 55 °C | Storage temperature | -25 - 70 °C |
| Depth (package, cm) | 28 cm | Gross Weight (Package, kg) | 0.82 kg |
| Height (package, cm) | 8 cm | Width (package, cm) | 18 cm |
| AC adapter included | No | Manual | Yes |
| Mounting bracket included | Yes | Quick installation guide | Yes |
| HDMI version | 1.4b/2.0b | Remote (IR) input | 1 |
| RJ-45 ports quantity | 2 | RS-232 ports | 1 |
| AC input voltage | 100 - 240 V | DC voltage | 12 V |
| DC-in jack | Yes | Input current | 2.5 A |
| Power consumption | 30 W | Net Weight (Product, kg) | 0.5 kg |
| Product Depth | 13.5 cm | Product Height | 2.5 cm |
| Product Width | 20.3 cm | Receiver video port | HDMI |
| Receiver video ports qty | 1 | Receiver USB Type-A ports qty | 4 |
| RJ-45 ports (receiver) | 1 | Dimensions (WxDxH) | 205 x 140 x 26 mm |
| Maximum resolution | 4096x2160 pixels | Video in | HDMI |
| Weight | 265 g | Transmitter keyboard/mouse | USB |
| Brand Name | Vivolink | Warranty | 3 Year(s) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
