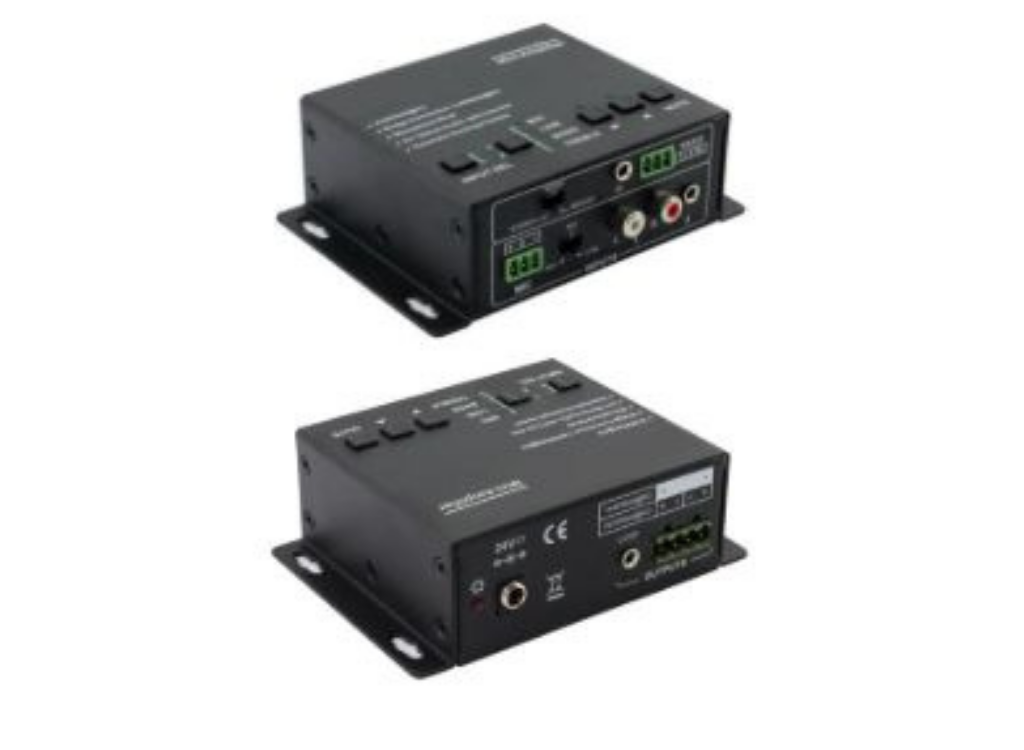

Vivolink VL120004 2x 20W Audio Amplifier
SKU: VL120004
£146.93 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Vivolink VL120004 2x 20W Audio Amplifier
VL120004 is a digital amplifier (Class-D) with 2 line & 1 MIC inputs, which supports EQ control and MIC mixing. With 2x20W@4 Ohm as default output, it can be switched to 1x40W@8 Ohm by bridge connection.
Controlable via button, RS232 (optional IR via IR-VL120004). -
Category Feature Details Audio Amplifier Class D Audio Output Channels 2.0 channels Bridge-mode Power Output per Channel (4 Ohm) 40 Watt Bridge-mode Power Output per Channel (8 Ohm) 40 Watt Frequency Range 20 - 20000 Hz RMS Power Output per Channel (4 Ohm) 20 Watt RMS Power Output per Channel (8 Ohm) 20 Watt Signal-to-Noise Ratio (SNR) 80 dB Total Harmonic Distortion (THD) 1 % Display Built-in Display No Indication LED Indicators Yes Legal Information EU ECCN Code N/A UNSPSC Code 52161547 US ECCN Code EAR99 Package Dimensions Depth Verified 20.4 cm Gross Weight Verified 0.894 kg Height Verified 7.7 cm Width Verified 26.7 cm Packaging Content Manual Yes Ports & Interfaces Audio (L/R) In 1 Audio (L/R) Out 1 DC-in Jack Yes Headphone Connectivity 3.5 mm Headphone Outputs 1 Phono Audio In (L,R) Yes Speakers Connectivity Type 3.5mm Power AC Input Voltage 110 - 220 V Product Dimensions Net Weight (Product, kg) 0.79 kg Product Depth 8.7 cm Product Height 3.8 cm Product Width 9.6 cm Technical Details Bass Adjustment Yes Bridge Function Yes Connectivity Technology Wired Frequency Band 20Hz - 20 kHz GHz Material Metal Product Colour Black Purpose Home Remote Control Type RS-232 Treble Adjustment Yes Turntable Connectivity No Volume Control Buttons Vendor Information Brand Name Vivolink Warranty 3 Year(s) -
Description Downloads Datasheet Downloads
