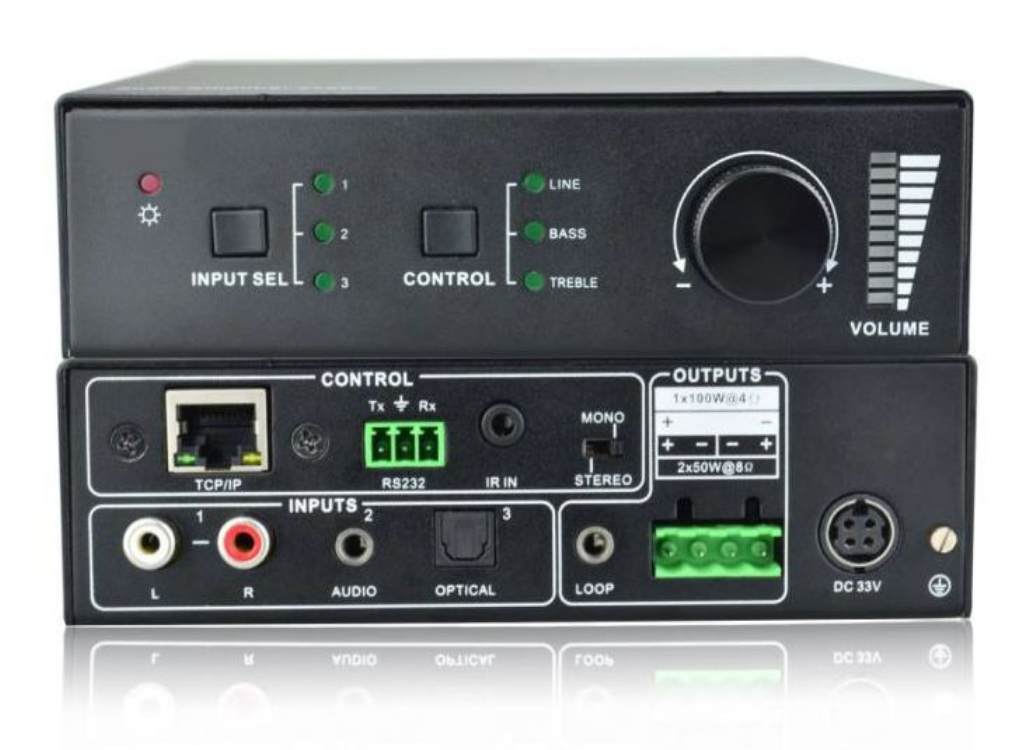

VL120005 is a digital amplifier with 3 inputs. With 2x50W@8 Ohm as default output, it can also be switched to 1x100W@4 Ohm by bridge connection.
Controlable via button, RS232, IR and TCP/IP.
| Category | Feature | Details |
|---|---|---|
| Audio | Amplifier Class | D |
| Audio Output Channels | 2.0 channels | |
| Bridge-mode Power Output per Channel (4 Ohm) | 100 Watt | |
| Bridge-mode Power Output per Channel (8 Ohm) | 100 Watt | |
| Frequency Range | 20 - 20000 Hz | |
| RMS Power Output per Channel (8 Ohm) | 50 Watt | |
| Signal-to-Noise Ratio (SNR) | 85 dB | |
| Total Harmonic Distortion (THD) | 0.01 % | |
| Indication | LED Indicators | Yes |
| Legal Information | EU ECCN Code | N/A |
| UNSPSC Code | 52161547 | |
| US ECCN Code | EAR99 | |
| Package Dimensions | Depth Verified | 24.8 cm |
| Gross Weight Verified | 1.666 kg | |
| Height Verified | 12.6 cm | |
| Width Verified | 31.7 cm | |
| Packaging Content | Manual | Yes |
| Ports & Interfaces | Audio (L/R) In | 1 |
| Audio (L/R) Out | 1 | |
| DC-in Jack | Yes | |
| Digital Audio Optical In | 1 | |
| Headphone Connectivity | 3.5 mm | |
| Headphone Outputs | 1 | |
| Phono Audio In (L,R) | Yes | |
| Speakers Connectivity Type | RCA | |
| Power | AC Input Voltage | 110 - 220 V |
| DC Input Voltage | 3 V | |
| Maximum Current | 4 A | |
| Product Dimensions | Net Weight (Product, kg) | 0.6 kg |
| Product Depth | 16 cm | |
| Product Height | 4.4 cm | |
| Product Width | 14.8 cm | |
| Technical Details | Bass Adjustment | Yes |
| Bridge Function | Yes | |
| Connectivity Technology | Wired | |
| Frequency Band | 20Hz - 20 kHz GHz | |
| Material | Metal | |
| Product Colour | Black | |
| Purpose | Home | |
| Remote Control Type | RS-232 | |
| Treble Adjustment | Yes | |
| Turntable Connectivity | No | |
| Volume Control | Buttons | |
| Vendor Information | Brand Name | Vivolink |
| Warranty | 3 Year(s) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
