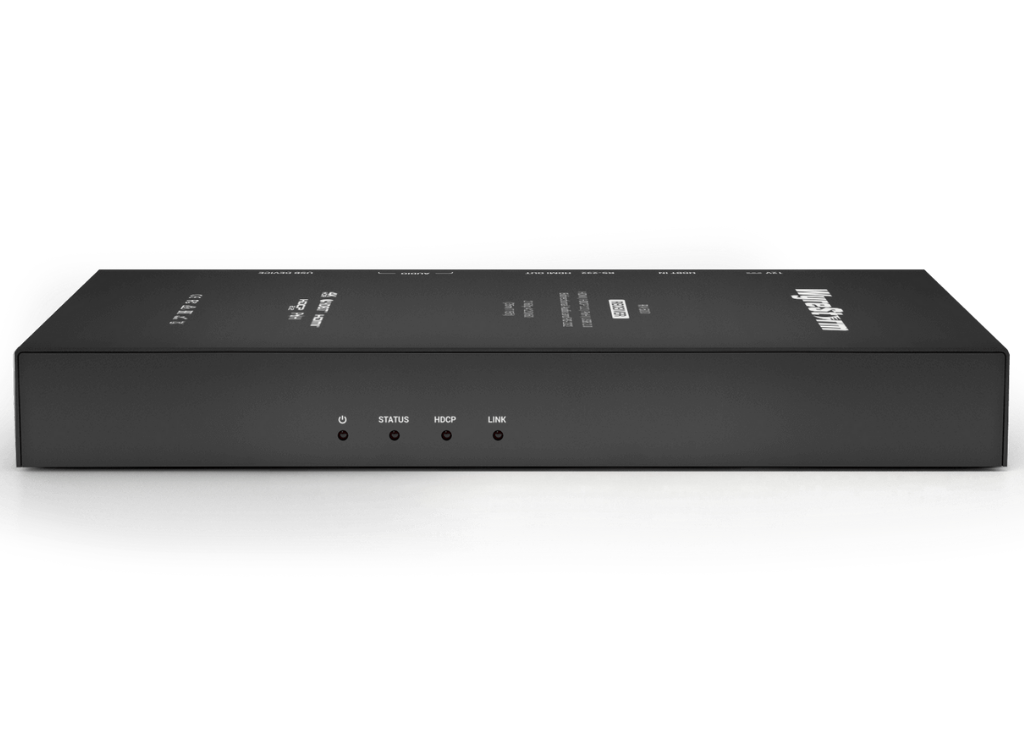

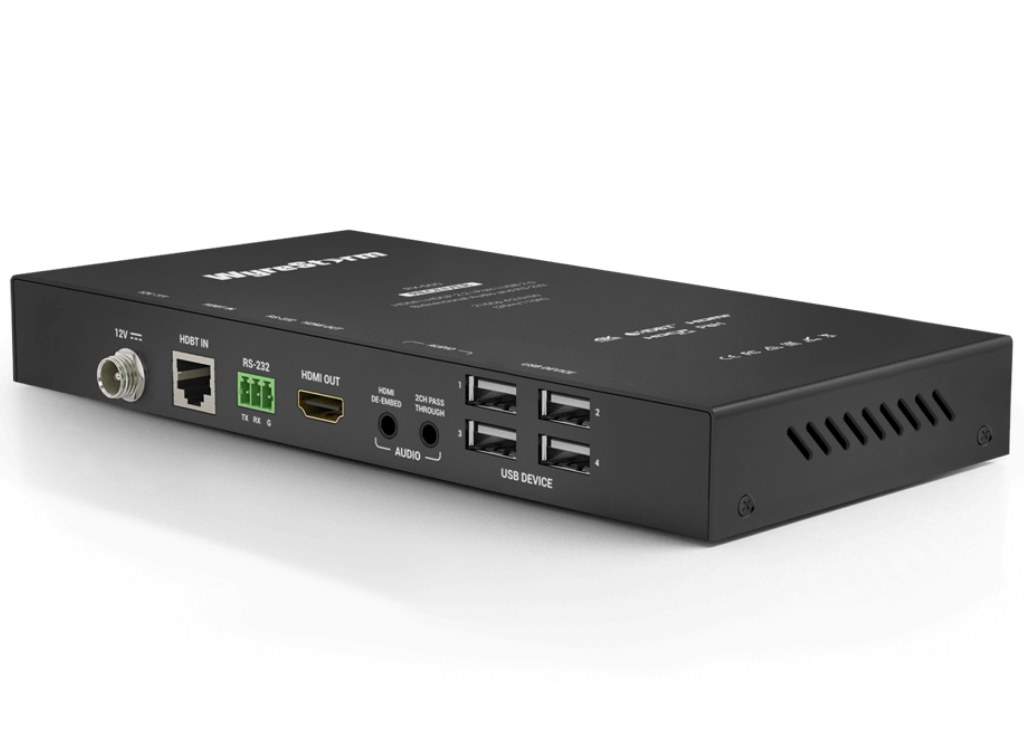

The little sibling to the RX-700, the RX-500 also utilizes HDBaseT 2.0 technology extending 4K video, USB 2.0, audio and control point to point up to 35m/115ft. The RX-500 still maintains the ability send HID’s and data back to the transmitter with USB 2.0 compatible devices such as HD webcams, smart white boards and data drives alike. Ideally suited for small meeting spaces and conference rooms, the RX-500 pairs perfectly with WyreStorm’s popular line of Presentation Solutions, such as the SW-130-TX or SW-510-TX to meet all of your presentation needs.
CLASS C HDBASET
Like the RX-700, the RX-500 encompasses the HDBaseT 2.0 specification, UHD video & audio, control, USB 2.0 and PoH, which are sent to distances of up to 35m/115ft.
USB 2.0 PASS-THROUGH
The main feature of the RX-500 is the 4 device ports, which are capable of USB 2.0 pass-through, which offers not only KVM functionality for extension of a keyboard/mouse or touchscreen, but also transfers the highest data rate that HDBaseT has to offer of 190Mbps, for webcams, white boards and USB data drives.
AUDIO DE-EMBED AND PASSTHROUGH
The RX-500 offers both audio de-embed from the source HDMI and audio pass-through from line-in audio from the TX simultaneously, giving you more audio options that you may not find from the RX-700.
CONTROL & POH
The RX-500 adds value by incorporating PoH, which can power transmitters such as the SW-130-TX, while also passing bi-directional RS232 control to either the display or back to the head-end.
In the Box
1x RX-500 Receiver
1x 12V DC 2A PSU with (US/UK/EU/AU)
2x Mounting Brackets with Screws
1x 3-pin Terminal Block
1x QuickStart Guide
| Category | Specification/Feature |
|---|---|
| AUDIO & VIDEO | |

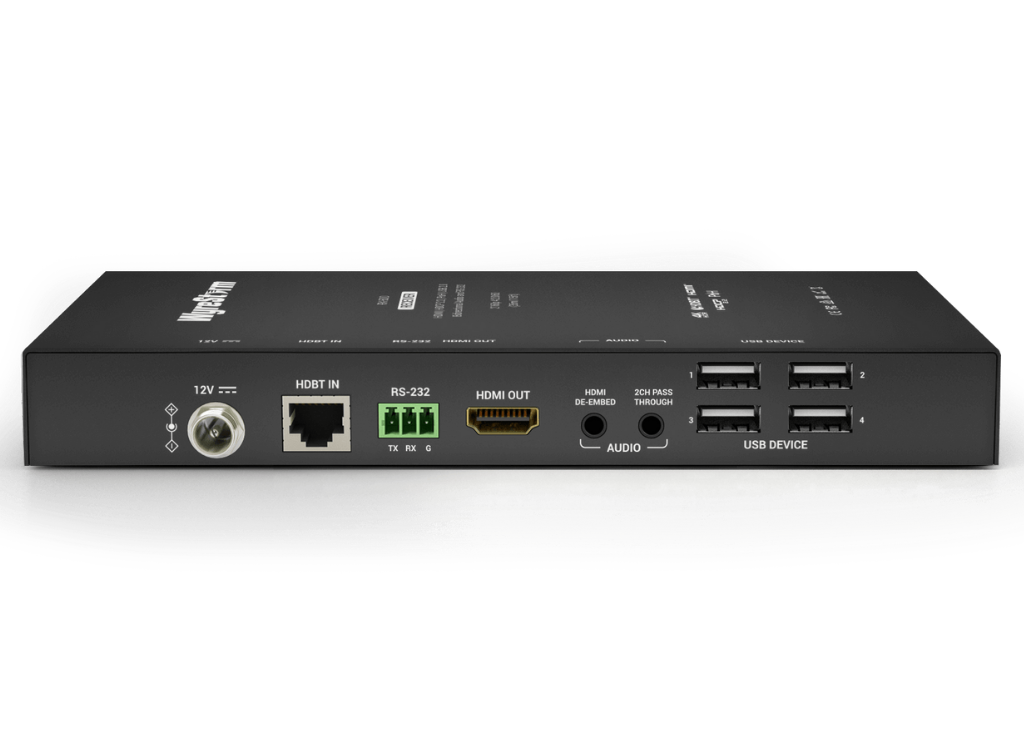

| Inputs | 1x HDBT In (8-pin RJ45), 4x Type A (Device), 1x RS-232 (3-pin Phoenix) |
| Outputs | 1x HDMI Out (19-pin Type A Female), 2x Audio Out/De-embed (3.5mm TRS Stereo) |
| Output Video Encoding | HDBaseT Class C |
| Encoding Data Rate | 10.2Gbps |
| End to End Latency | 10μs (microseconds) |
| Audio Formats | HDMI Out: 2ch Analog/PCM |
| Video Resolution (Max) | 1920x1080p @60Hz 12bit, 3840x2160p @60Hz 8bit 4:2:0, 3840x2160p @30Hz 10bit HDR |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | 297MHz |
| COMMUNICATION & CONTROL | |
| HDMI | HDMI, HDCP 2.2, EDID, CEC Pass-through, DVI/D supported with adapter (not incl.) |
| HDBaseT | HDMI, USB, HDCP 2.2, EDID, 1-way PoH (RX powers TX), Bidirectional RS-232, CEC |
| RS-232 | 1x RS-232: 3-pin Phoenix |
| USB | 4x Type A (Device), USB hub compatible, Max 7 devices, 23 endpoints, Max uplink |
| POWER | |
| Power Supply | 12V DC 2A |
| Max Power Consumption | 8W |
| Additional Features | |
| Compatibility | Supports content up to 4K/60 4:2:0 & RGB 8-bit, latest HDR standards, HDCP 2.2 |
| USB Passthrough | Offers 190Mbps transfer and HID extension |
| Audio Pass-through | Analog audio pass-through and de-embed from HDMI output |
| RS-232 and CEC | Bidirectional RS-232 and CEC pass-through communication |
| Backward Compatibility | Backwards compatible with HDBaseT 1.0 transmission and receiving devices |
| PoH Support | PoH from RX > TX |
| Description | Downloads |
|---|---|
| Spec Sheet | Downloads |
