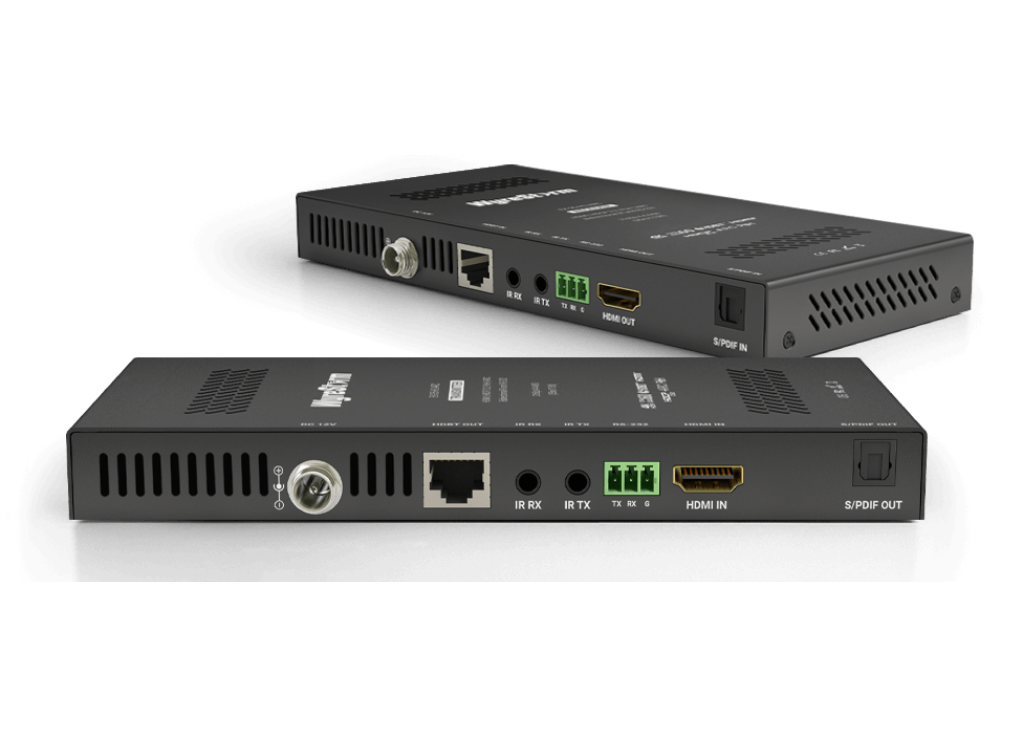

Part of the latest generation of WyreStorm 4K extenders for the latest generation of 4K HDR content, the EX-35-ARC features dynamic compression for delivery of 4K/60 4:4:4 and HDR content up to 17.8Gbps over standard HDBaseT, both visually losslessly and without latency.
With support for HDR-10 and HLG up to 60Hz, and Dolby Vision™ at 30Hz, the EX-35-H2-ARC offers True Audio Return Channel (ARC), enabling an ARC signal from a Smart TV HDMI input to be passed to an AVR HDMI output.
HDMI 2.0 MAXED-OUT
Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve included our VLC chipset (Visually Lossless Compression) in this extender meaning not only ARC is supported but also the next shift in content technology: 60Hz HDR and 4:4:4 60Hz.
ON-DEMAND AUDIO

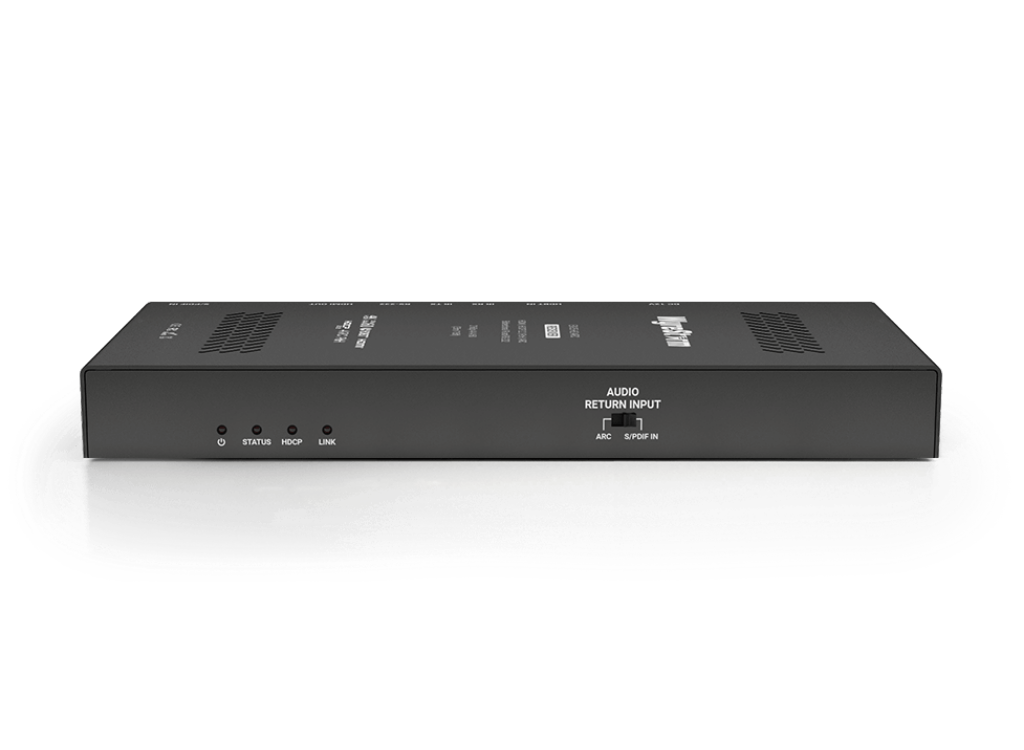

With on-demand content forming the new way of watching TV, free the audio from within a SmartTV with the WyreStorm EX-35-H2-ARC HDBaseT™ extender, supporting both True ARC (via HDMI) or optical audio return.
HIGH FRAME RATE HDR
HDR Content has recently enjoyed an up-shift in refresh rates after starting its life at 24Hz on UHD Blu-Ray discs. High frame-rate HDR is now available at 60Hz on certain discs and via games consoles like the Xbox One X; the EX-35-H2-ARC is ready for this, supporting both HDR-10, HLG and Dolby Vision* (*Dolby Vision at up to 30Hz).
AUDIO DE-EMBED

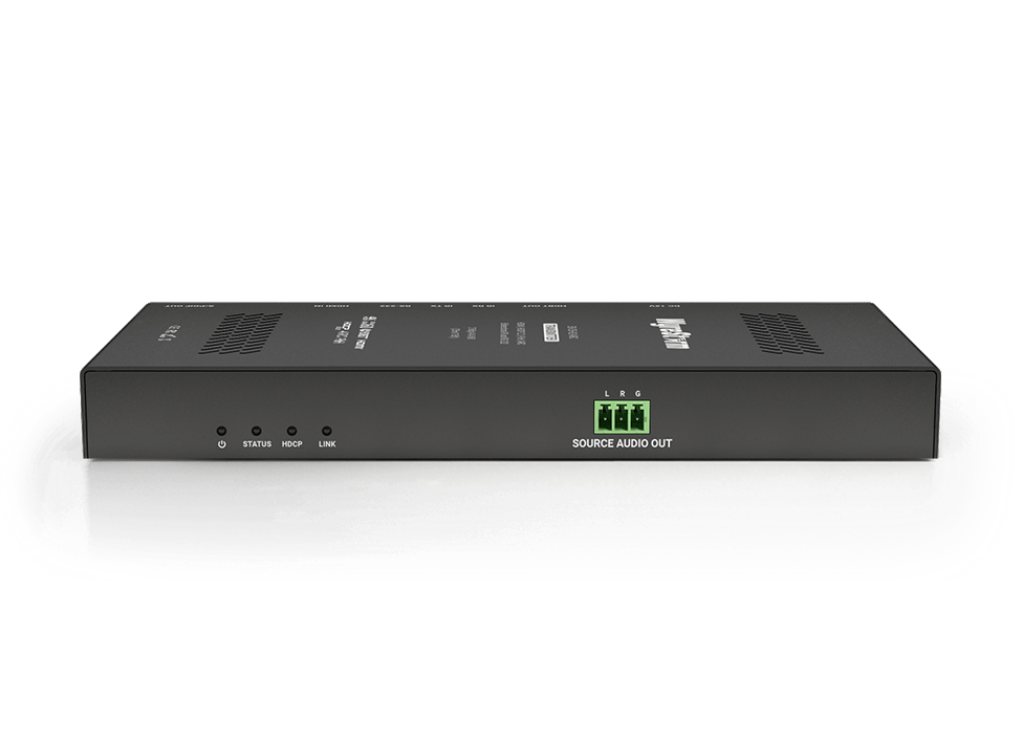

Fully-featured audio performance doesn’t stop at the ability to handle ARC, the transmitter of the EX-35-H2-ARC offers the ability to extract 2ch PCM audio from the source via the 3-pin phoenix port for connection to an audio system.
In the Box

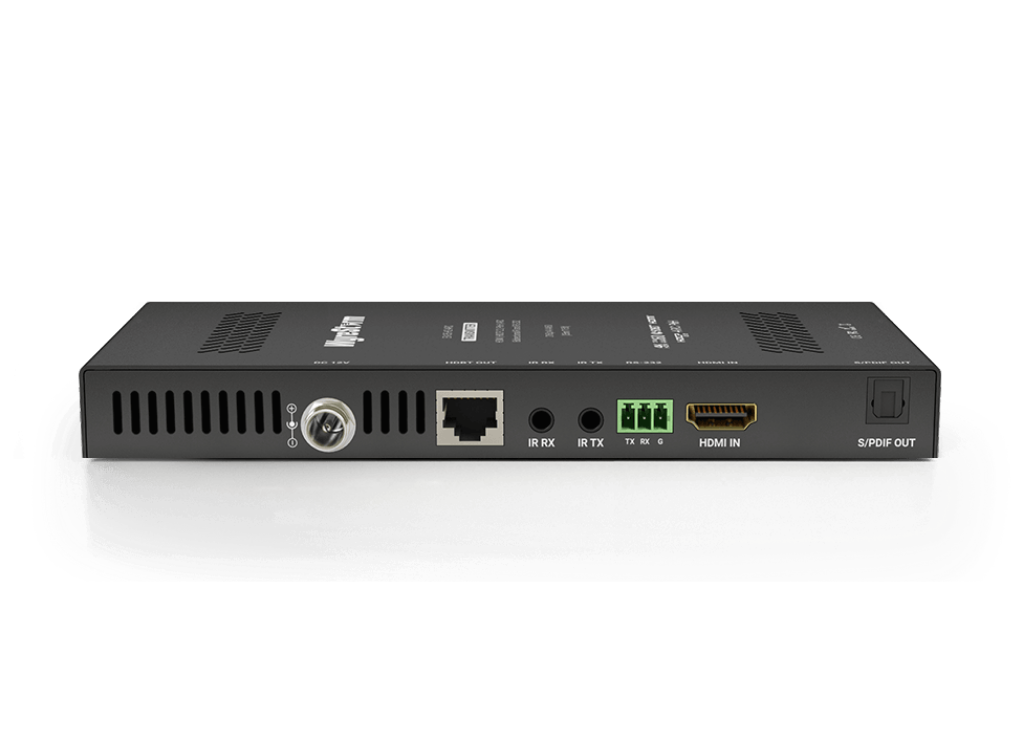

1x EX-35-H2-ARC Transmitter

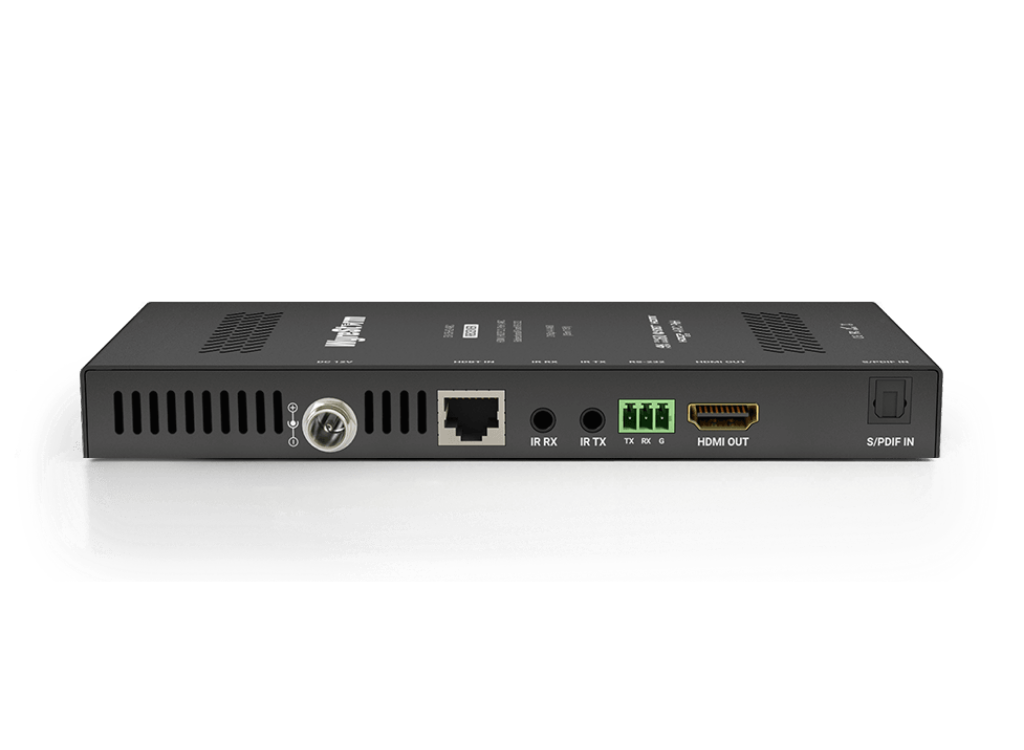

1x EX-35-H2-ARC Receiver
1x 12V DC 3A Power Supply (US/EU/UK)
3x 3-pin Screw Down Male Phoenix Connectors
1x IR Emitter
1x IR Receiver
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide
| Category | Specification |
|---|---|
| Inputs (Transmitter) | 1x HDMI: 19-pin Type A |
| Inputs (Receiver) | 1x HDBaseT: 8-pin RJ-45 Female 1x S/PDIF: TOSLINK (Digital Optical) |
| Outputs | 1x HDBT: 8-pin RJ-45 Female 1x S/PDIF: TOSLINK (Digital Optical) 1x Source Audio: 3-pin Phoenix 1x HDMI 19-pin Type A |
| Output Video Encoding | HDBaseT™ Class B |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs (microseconds) |
| Audio Formats | 2ch Analog/PCM |
| Video Resolutions (max) | 1920x1080p @60Hz 16bit 3840x2160p @24Hz 10bit 4:2:0 HDR 3840x2160p @30Hz 8bit 4:4:4 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards | DCI |
| Maximum Pixel Clock | HDMI: 600MHz |
| HDMI | HDMI |
| HDBaseT | HDMI |
| CEC | CEC Pass-through – Requires CEC compatibility between source and display |
| IR | 1x IR RX: 3.5mm (1/8in) TRS Stereo |
| RS-232 | 1x RS-232: 3-pin Phoenix (Transmitter and Receiver) |
| Audio Return Channel (ARC) | Supports true ARC from display to the transmitter over HDBaseT |
| Power Supply | 12V DC 3A |
| PoH | 48V 15.4W |
| Max Power Consumption | 8.88W |
| Additional Features | HDCP 2.2 compliant with automatic variable compression Class B HDBaseT extends 4K UHD 4:4:4 content to 35m/115ft with IR & RS-232 pass-through Toslink input & output for non-ARC audio |
| Analog stereo audio breakout on transmitter 2-way PoH enables either transmitter or receiver to be remotely powered by the other Slimline 21mm chassis for easy installation |
|
| Switchable RS-232 function mode on transmitter and receiver Visual LED indication for power supply and signal status |
