When the next generation of HDBaseT transmission meets WyreStorm’s presentation switcher platform, the result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic switching inputs with USB host extension and CEC triggering mean an autonomous experience with no user input required.
4-INPUT SWITCHING EXTENDER

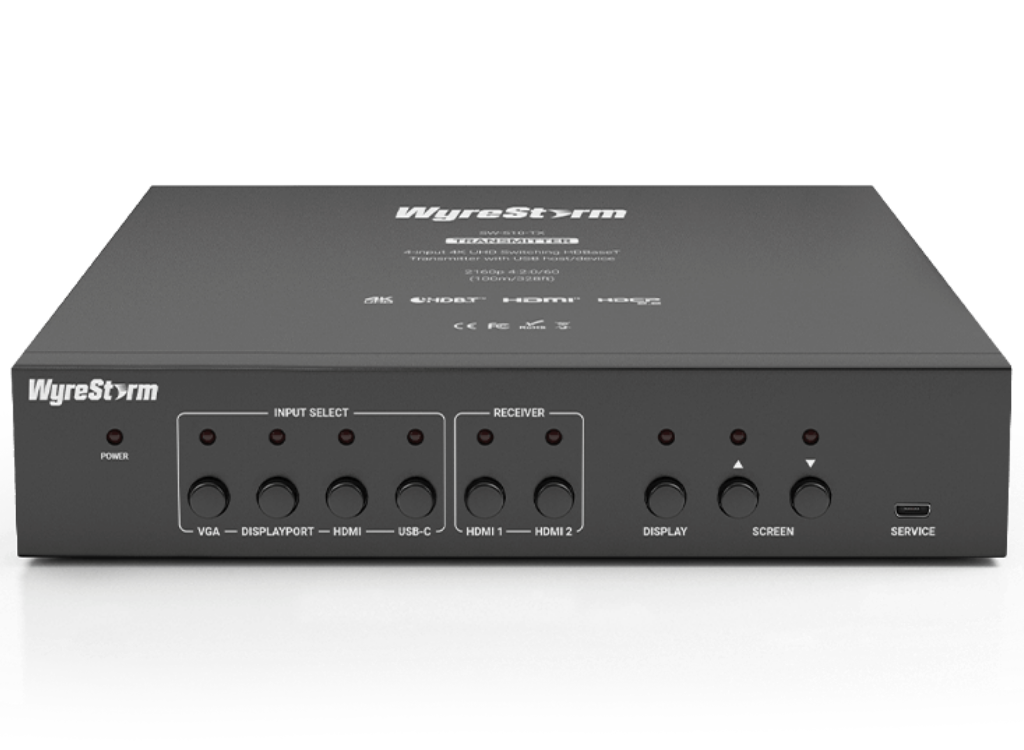

A flagship in our PRO range and a first for our switching extenders, the SW-510-TX brings a wide range of premium features into one powerful meeting space solution. Supporting USB routing to both HDMI and DP inputs, this extender accepts HDMI, DisplayPort and USB3.1c sources with a VGA +audio input for legacy devices. Additionally, the SW-510-TX adds support for 4K content and HDCP 2.2 protected content.
ADDITIONAL RECEIVER INPUTS
When the meeting room is in an idle state, the receiver can switch to either of its HDMI inputs which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. These inputs can also be triggered manually at any time should a Chromecast or AppleTV be fitted for screen mirroring.
CONDITION-BASED RELAYS BUILT INTO RX
With autonomy in mind, this “meeting-room-in-a-box” can be configured to automatically trigger motorized devices within the room. The relays will open or close depending on the status of the transmitter, meaning that upon a source connection being made, the meeting room will come to life with projector screens appearing and window blinds closing.
USB 2.0 PASS-THROUGH
HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. Furthermore, allowing 2 host devices to be connected, the extender can route USB traffic depending on the currently selected source at the receiver.
In the Box
1x SW-510-TX Transmitter
1x 12V DC Power Supply (US/UK/EU)
1x IR Receiver
2x Mounting Brackets
1x 3-pin Screw Down Phoenix Connector
1x 4-pin Screw Down Phoenix Connector
1x Quickstart Guide
| Category | Details |
|---|---|
| AUDIO & VIDEO | |

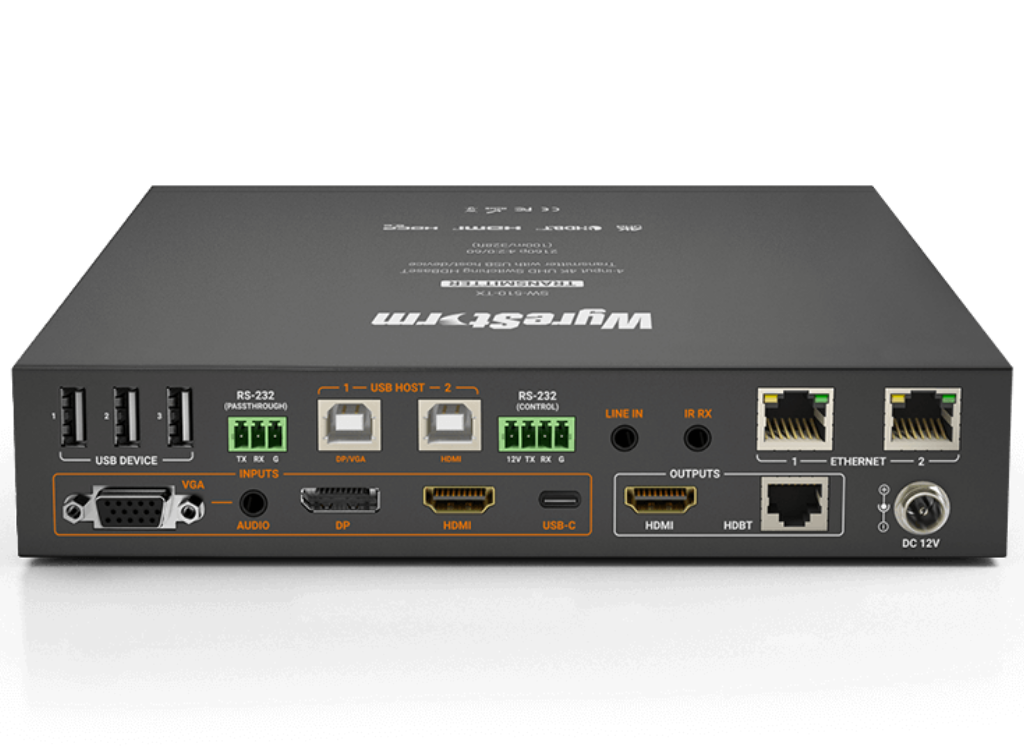

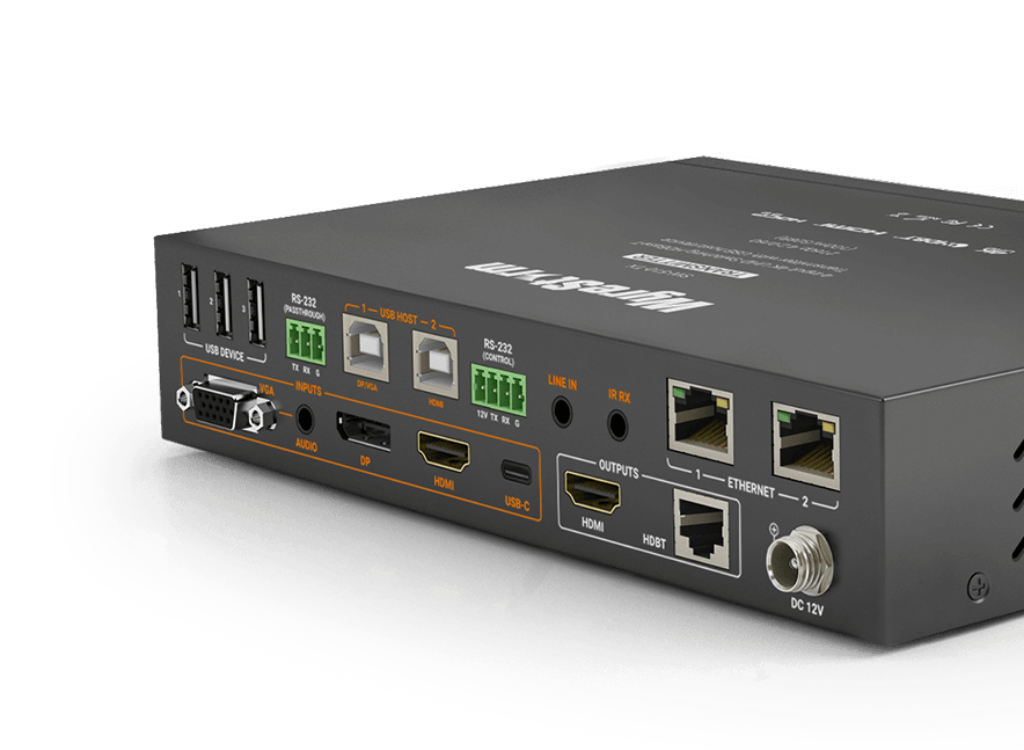

| Inputs | 1x VGA In (15-pin VGA), 1x Display Port In (DisplayPort 1.3), 1x HDMI In (19-pin type A), 1x Audio In (3.5mm TRS Stereo), 1x Line In (3.5mm TRS Stereo) |
| Outputs | 1x HDMI Out (19-pin type A), 1x HDBT Out (8-pin RJ-45 Female) |
| Video Encoding | HDBaseT™ Class C |
| Audio Formats | 2ch Analog/PCM, Multichannel: LPCM |
| Video Resolution (Max) | 1920x1080p @60Hz 8bit, 1920x1200p @60Hz 8bit, 3840x2160p @60Hz 8bit 4:4:4, 4096x2160p @60Hz 8bit 4:2:0 |
| Supported Standards | DCI, RGB |
| Maximum Pixel Clock | 297MHz |
| COMMUNICATION & CONTROL | |
| HDMI | HDMI, HDCP 2.2, EDID, DVI/D supported with adapter (not included) |
| HDBaseT | HDMI, HDCP 2.2, EDID, CEC, 2ch audio, USB |
| RS-232 | 1x RS-232 (Control): 3-pin Phoenix, 1x RS-232 (Passthrough): 3-pin Phoenix |
| Ethernet | 2x 8-pin RJ-45 female, Bidirectional over HDBaseT™ |
| IR | 1x IR RX (3.5mm TS Mono) |
| USB | 1x USB-C (USB 3.1 Audio/Video), 2x USB Host (USB-B), 3x USB Device (USB-A) |
| POWER | |
| Power Supply | 12V DC 2A |
| Max Power Consumption | 14.02W |
| Professional Features | |
| Switching | Automatic or manual switching between HDMI, VGA, DisplayPort, and USB-C inputs |
| Bidirectional USB | USB2.0 for connection of webcams, smart touchscreens, and microphones |
| USB-C Alt-mode | Supports AV and USB device connection through a single cable |
| CEC Triggering | Automatic or manual CEC triggering for compatible screens or projectors |
| Source Content Support | Supports up to 4K/60 4:2:0 with HDCP 2.2 |
