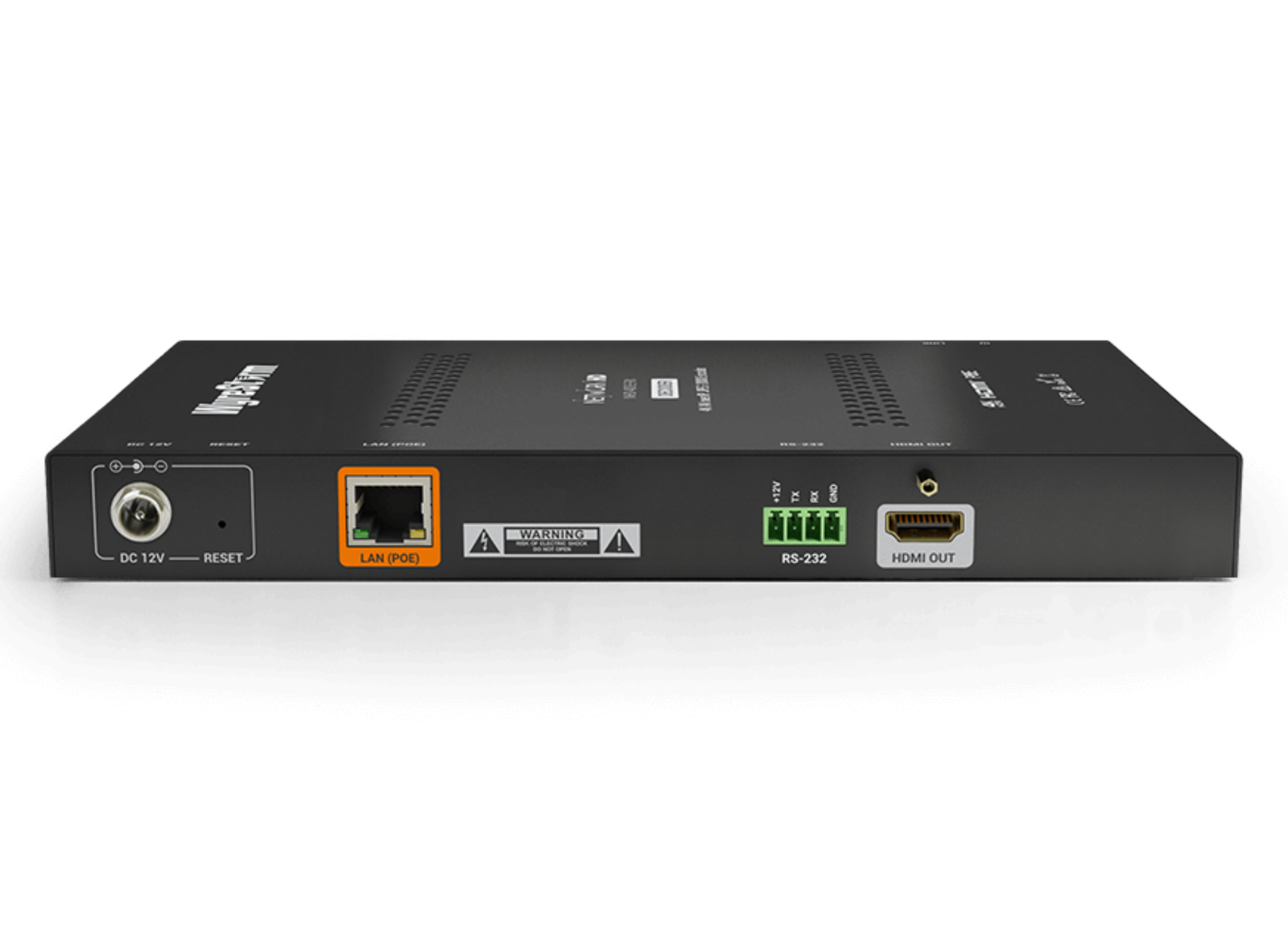

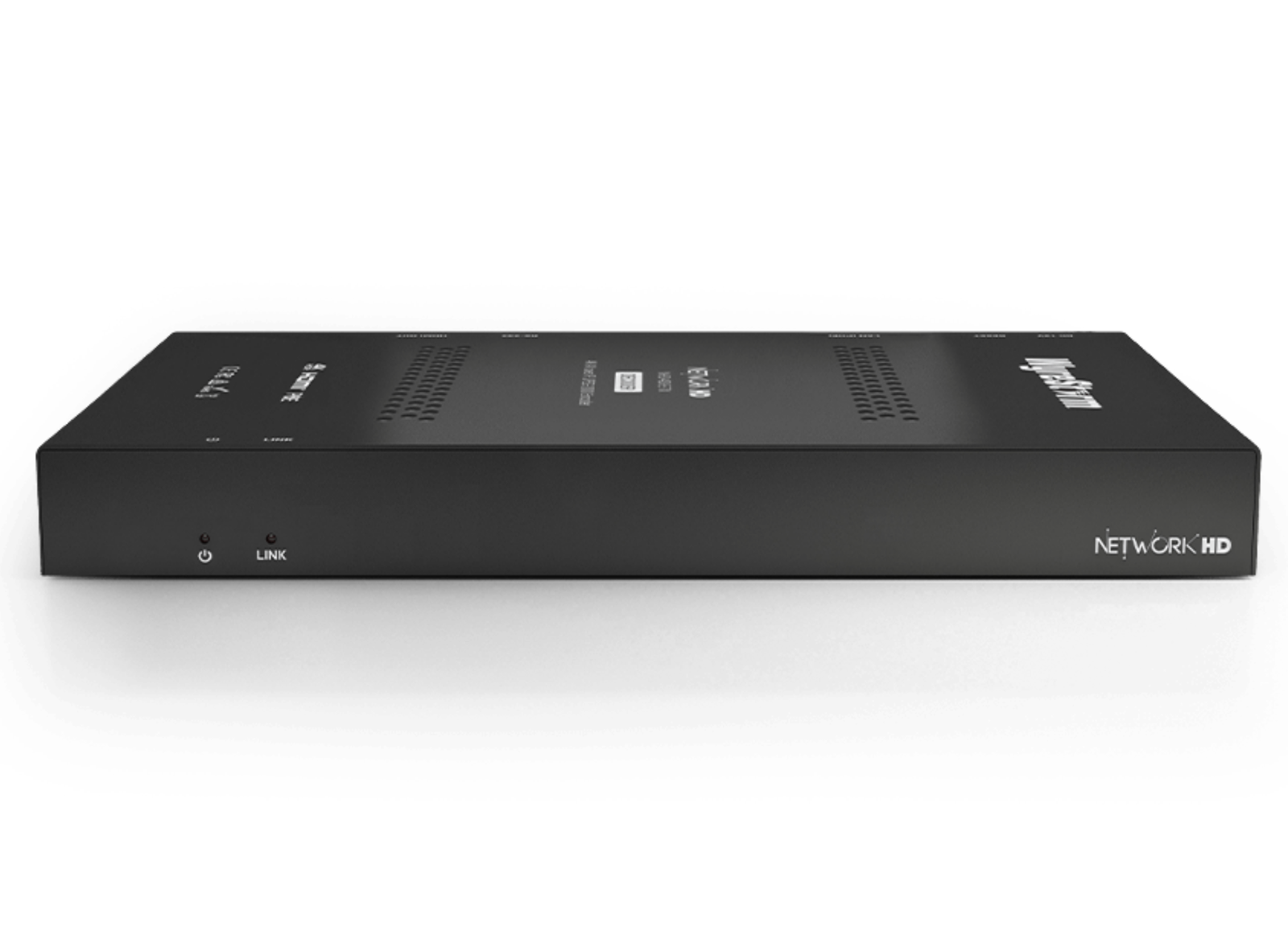

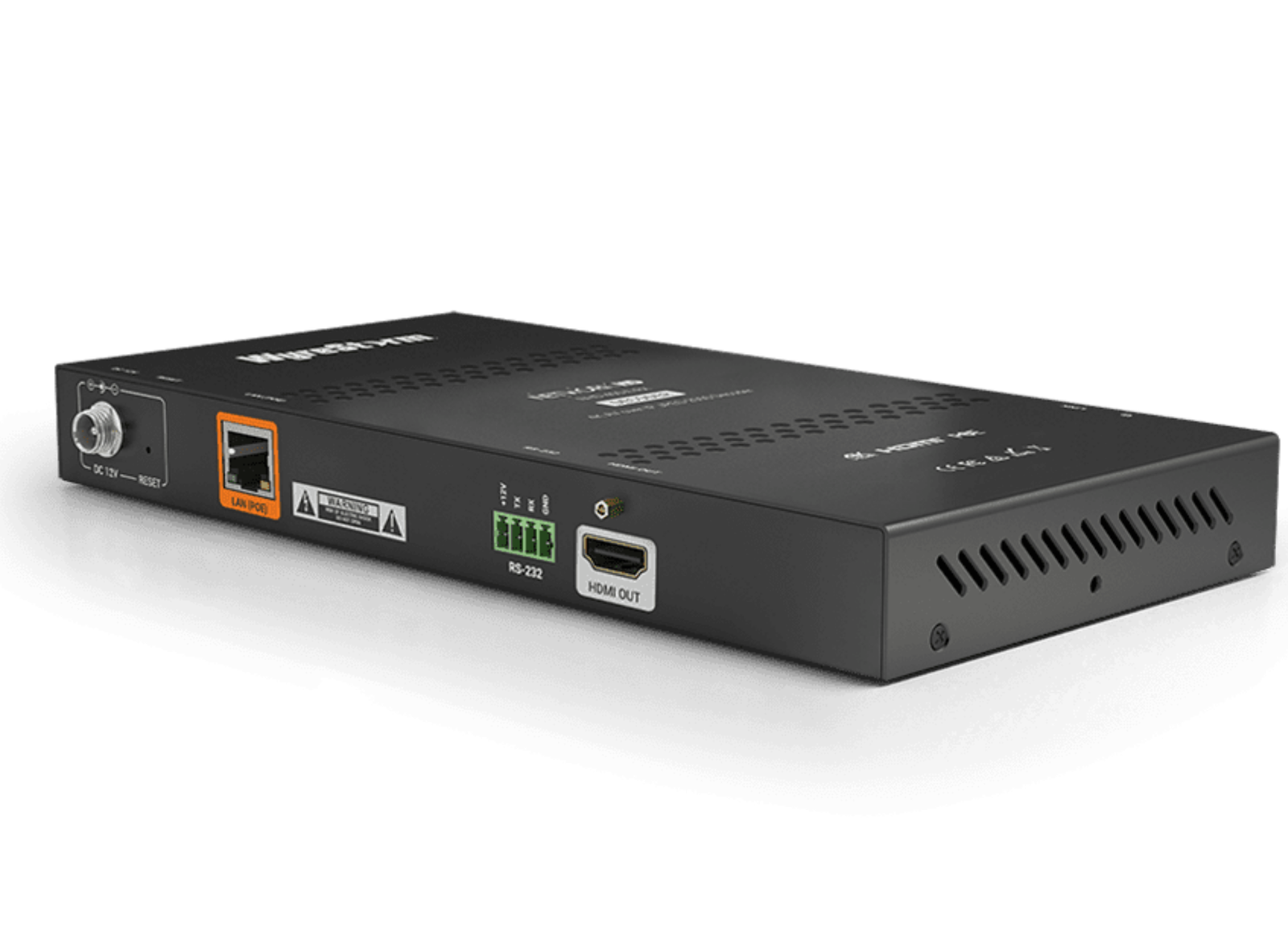

WyreStorm 400 Series 4K AV over IP JPEG 2000 Decoder | NHD-400-E-RX
SKU: NHD-400-E-RX
£368.48 (Excl. VAT)
- Description
- Specifications
-
4K HDR AV over IP Decoding with Ultra-Low Latency Performance
WyreStorm brings stunning 4K HDR video, video resolution scaling, multi-channel audio and audio matrixing to IP with the NetworkHD 400 Series’ NHD-400-E-RX AVoIP decoder. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Used in conjunction with any 400 Series encoder, the NHD-400-E-RX seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16×16 with image rotation and bezel compensation.
Featuring incredibly low latency, the 400 Series is the ideal AV over IP solution for systems where high quality and low latency are key requirements, making it perfect for both residential and commercial applications.
4K UHD AND HDR SUPPORT
Delivering visually lossless 4K UHD content with HDR and HDCP 2.2 support ensures compatibility with the latest UHD video sources, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.
CUSTOM VIDEO WALL STYLES
Supporting traditional video walls, as well as customizable mosaic styles, perfect for building captivating & creative digital signage. JPEG2000 encoding ensuring distribution integrity and video latency of less than a single frame makes the 400 Series ideal for live environments.
POWERFUL VIDEO PROCESSING
Dynamic video processing seamlessly converts and matches source video content from each decoder to connected displays, removing video resolution and timing incompatibilities that might otherwise exist for reliable and easily manageable multi-display systems.POWERFUL ROUTING ENGINE
The 400 Series boasts discrete audio stream routing, ensuring true signal breakaway can maximize system flexibility. CEC and RS-232 display control signals can also be generated at the 400 Series decoder, removing the requirement for external equipment.
In the Box
1x NHD-400-E-RX
4x Wall Mounting Brackets
2x Rack Mounting Brackets
1x 4-pin Terminal Block
1x Quickstart Guide -
Input 1x 8-pin RJ-45 Output 1x HDMI Out 19-pin Type A Audio Formats 2ch LPCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos Output Video Encoding JPEG 2000 Encoding Data Rate Max: 850Mbps End to End Latency 1 video frame latency (pass-through mode) 16ms @60fps; 2 video frames latency (scaler/VW mode) 33ms @60fps Video Resolutions 3840x2160p @60Hz 8bit 4:2:0 Supported Standards HDR10 | HLG | BT.2020 Maximum Pixel Clock 300MHz HDMI HDCP 2.2 | CEC Ethernet 1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af) RS-232 1x RS-232: 4-pin Phoenix | 2 Way (RX only) | Routed | API Programmable Power Supply 12V DC 1A PoE IEEE 802.3af (15.4W at PSE) Max Power Consumption 8W (with PSU)
