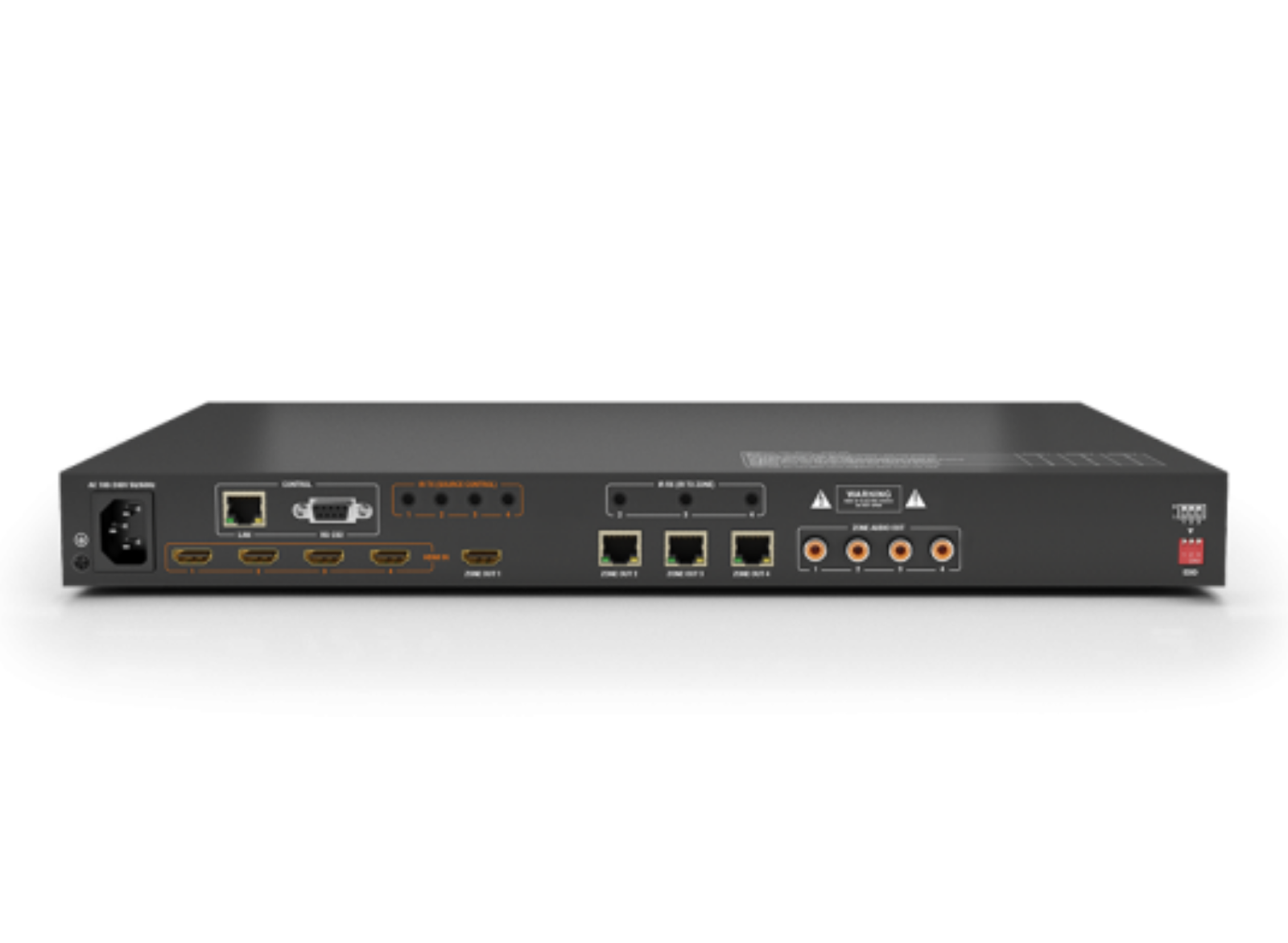

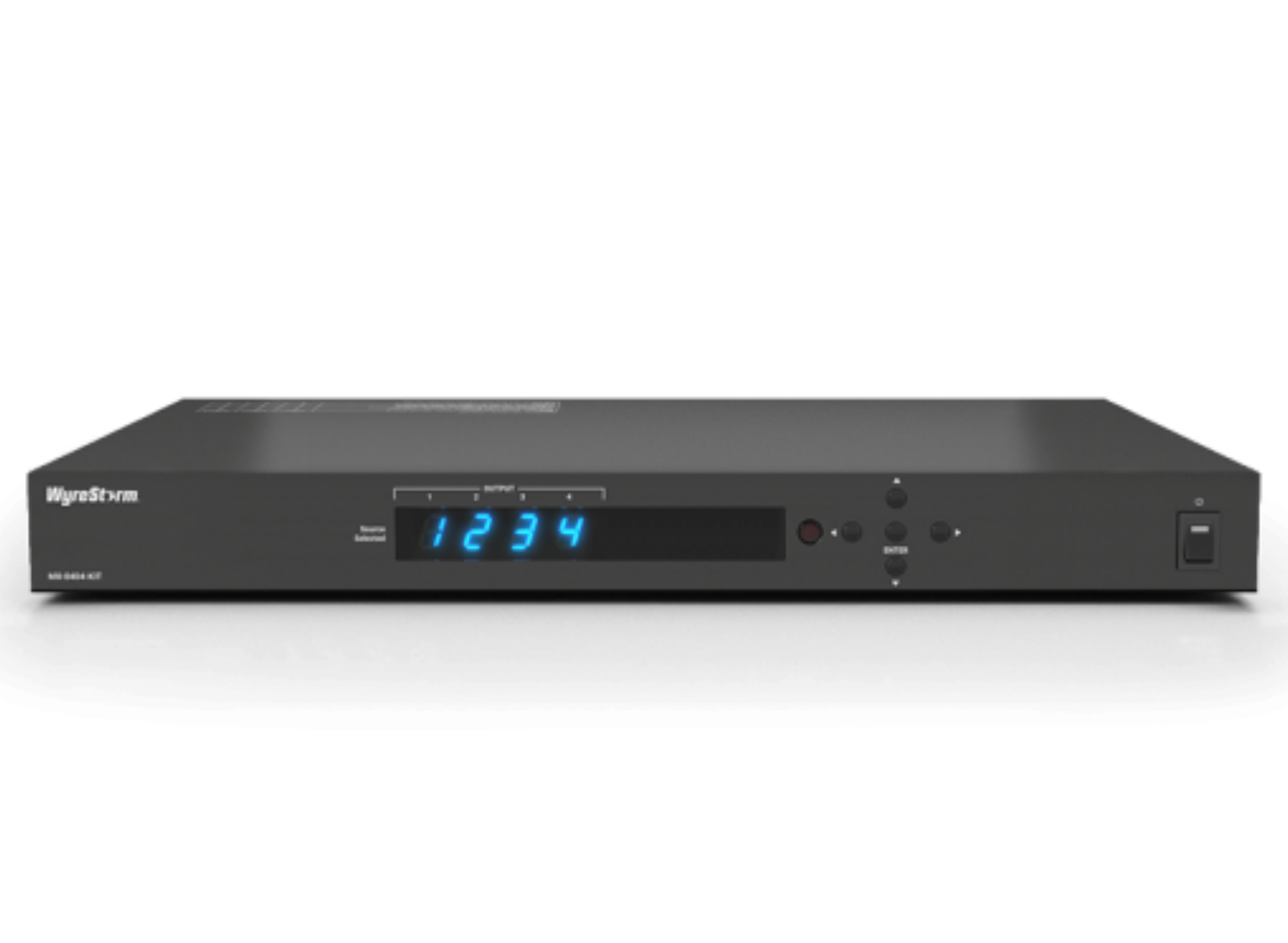

An established leader in AV matrix solutions, WyreStorm packs a wealth of experience into this powerful yet compact 1U chassis. Offering transmission of HDMI content up to 4K UHD & HDR content to 35m/115ft, pairing HDBaseT with WyreStorm’s powerful crosspoint HDMI switching chipset. The MX-0404-KIT has 3 HDBaseT zone outputs with PoH and a single switched HDMI output which can be paired with WyreStorm’s HAOC hybrid optical HDMI cables or any extender for transmission via HDBaseT or OM3 fiber. The MX-0404-KIT doesn’t stop there, offering zone audio breakout via S/PDIF, CEC triggering for all connected screens and the A/V mute function enhances the offering for the modern home or commercial installation.
4K UHD AND HDR SUPPORT
Small in price yet big on specification, the 4×4 kit can handle current video content up to 4K/60 4:2:0 covering a majority of current source devices, even supporting 10-bit HDR content at up to 30Hz and multi-channel audio. Powerful HDBaseT technology sends this, IR control and PoH for the included recievers up to 35m/115ft.
DE-EMBEDDED AUDIO
With audio functionality to match its video capability, the 4×4 kit has the ability to extract audio signals from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR’s or downmix to stereo using the EXP-CON-DAC-D.
CEC TRIGGERING
Working automatically on signal presence or triggered via the API, this 4×4 kit can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.
A/V MUTE FUNCTION
Certain applications in the residential, education and commercial markets don’t always require a source to be routed through to an output. The 4×4 kit makes it possible to “mute” the video output as well as the audio, meaning that the HDMI signals to the zones can be independently switched off via the API.
In the Box
1x MX-0404-KIT Matrix

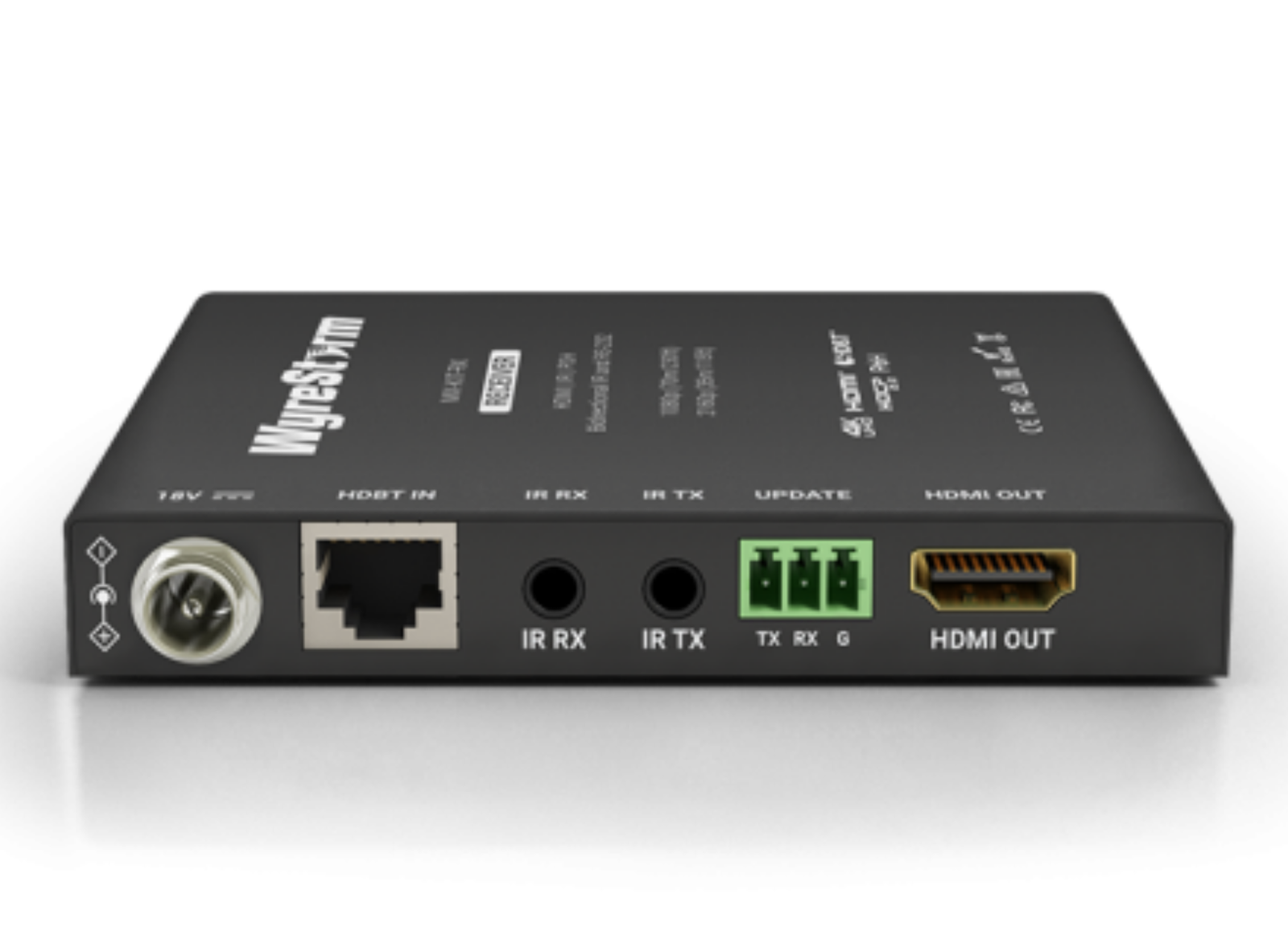

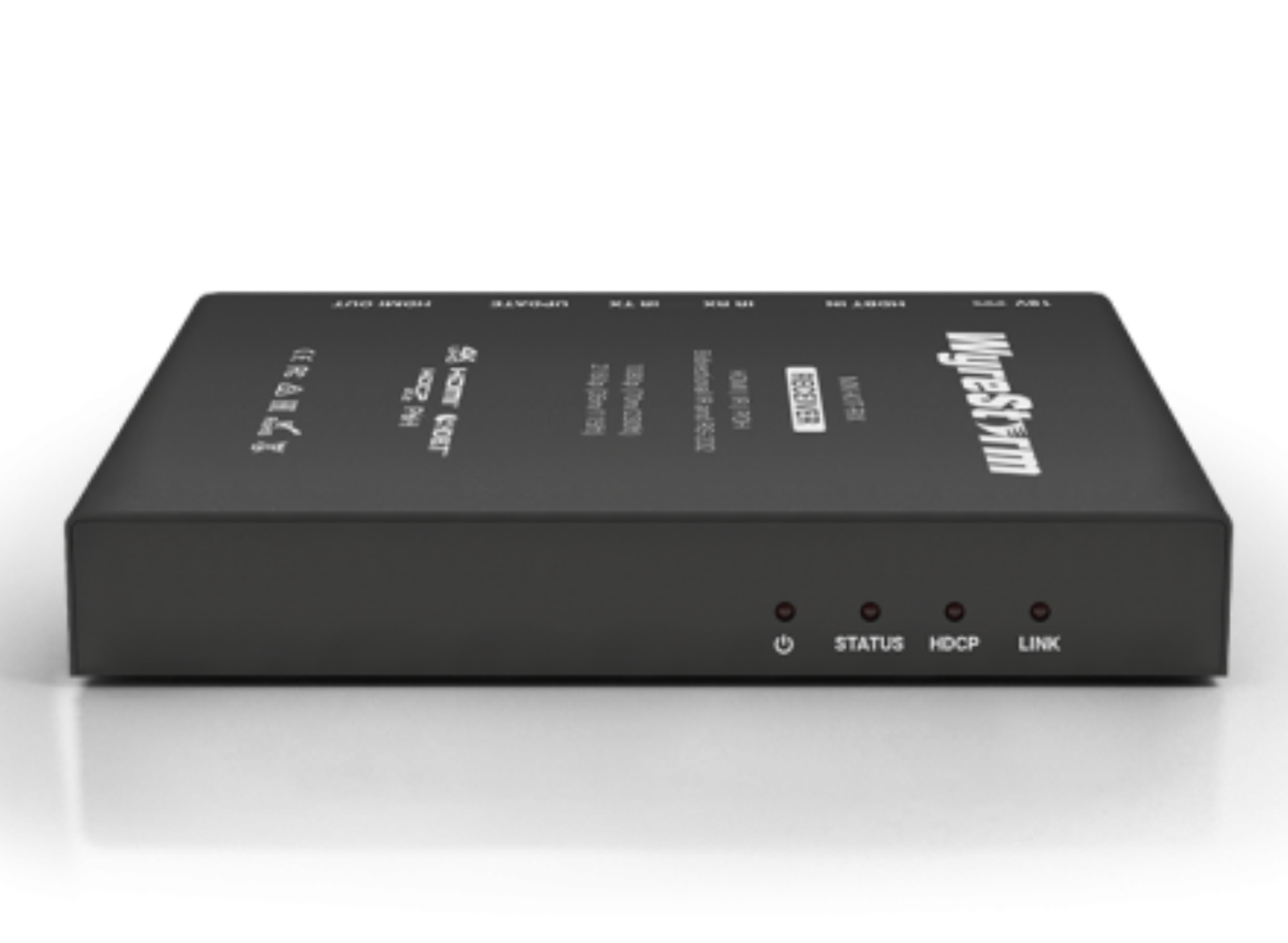

3x MX-KIT-RX Receivers
1x AC Power Cord (US/UK/EU/AU)
1x IR Remote (Battery not Included)
4x IR Emitters
3x IR Receivers
2x Matrix Mounting Brackets
6x Receiver Mounting Brackets (2 per RX)
1x Quickstart Guide
| AUDIO & VIDEO | |||
| Inputs | 4x HDMI In: 19-pin type A | Outputs | 4x S/PDIF Out: RCA Female 3x HDBT Out: 8-pin RJ-45 Female 1x HDMI Out: 19-pin type A |
| Video Encoding | HDBaseT™ Class B | Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs (micro seconds) | Audio Formats | HDMI/HDBaseT: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @60Hz 8bit 4:2:0 |
Supported Standards | DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100 |
| Maximum Pixel Clock | HDBaseT: 340MHz | ||
| COMMUNICATION & CONTROL | |||
| HDMI | HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included) | HDBaseT | HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR |
| CEC | CEC power triggering for connected screens – Requires CEC compatibility | IR | 3x IR RX: 3.5mm (1/8in) TRS Stereo 4x IR TX: 3.5mm (1/8in) TS Mono Bidirectional over HDBaseT |
| RS-232 | 1x RS-232: 9-pin DB9 Female | Ethernet | 1x LAN: 8-pin RJ-45 Female |
| POWER | |||
| Power Supply | 100~240V AC 50/60Hz | Max Power Consumption | 48.2W |
