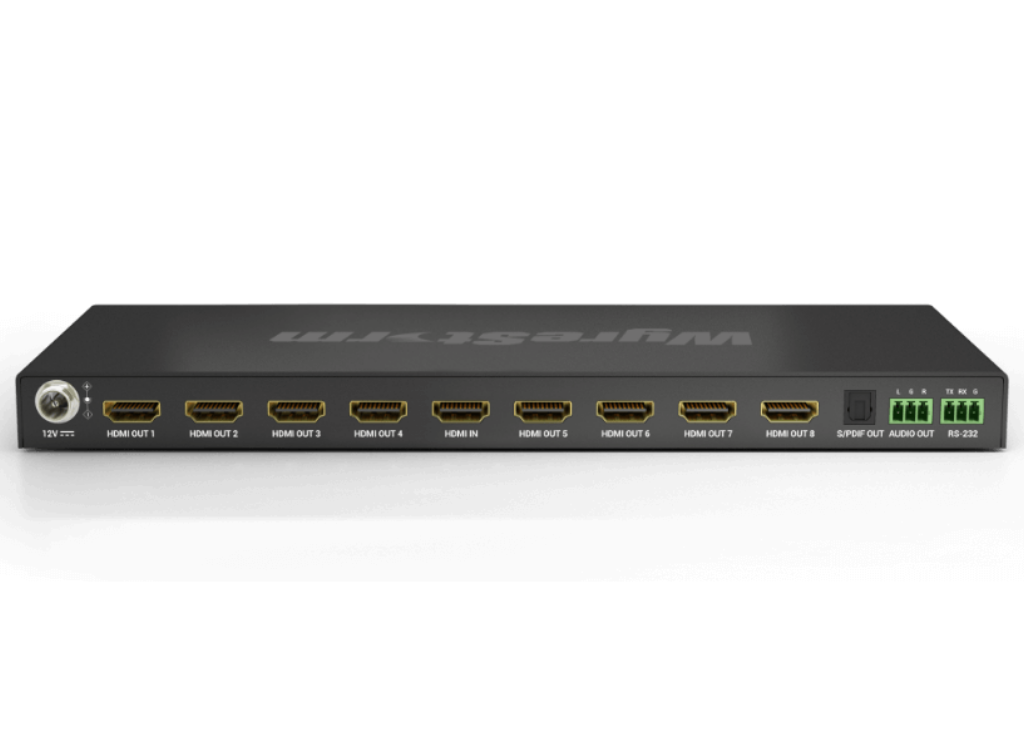

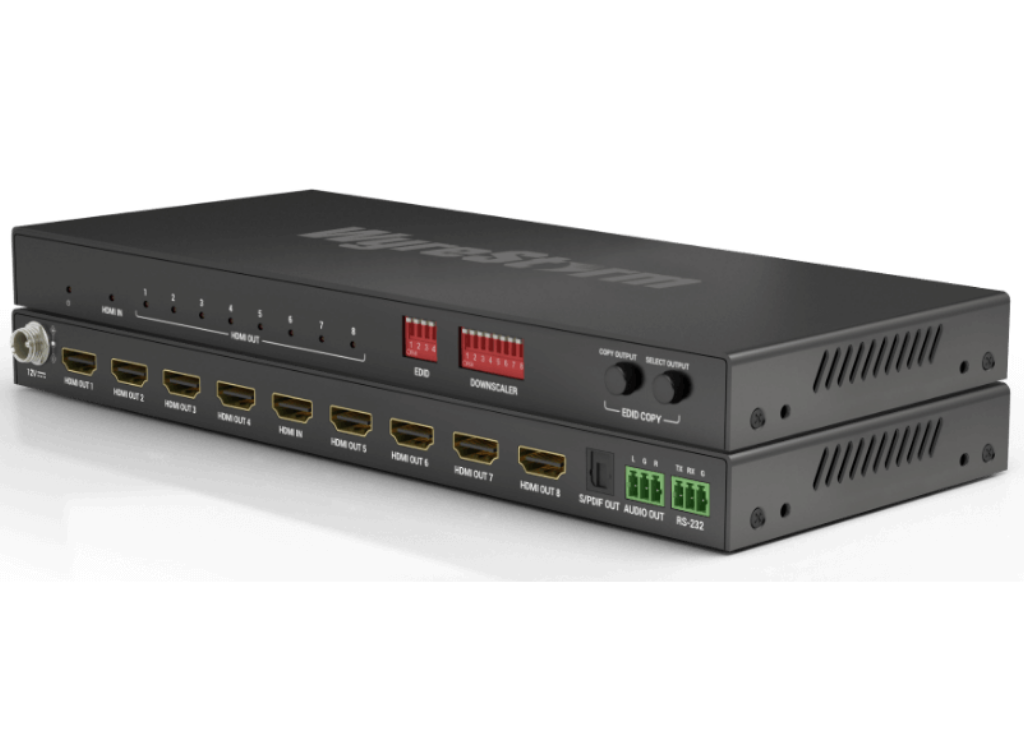

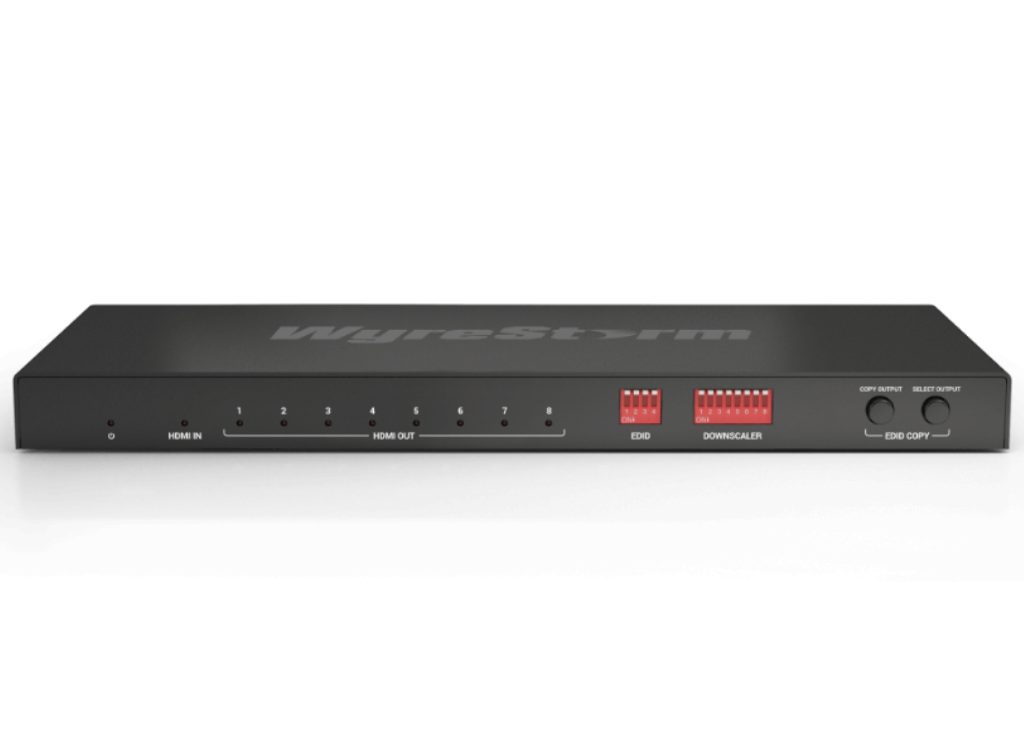

The SP-0108-SCL is a small and compact, yet powerful HDMI splitter that can be used in many applications, from digital signage, education, to retail or hospitality. Each HDMI output of the SP-0108-SCL features a 4K to 1080p down scaler, allowing for mixed resolution displays to be used simultaneously without suffering from compatibility limitations. An analog and digital S/PDIF audio de-embed allows easy connection for external amplifiers or DSPs.
TAILORED FOR RETAIL
The SP-0108-SCL is perfectly tailored for small to medium retail environments such as electronic stores where multiple different brands of TVs are on a wall showing the same content for comparison. The audio for these screens can also be de-embedded for in-store audio zones for potential customers to enjoy.
OUTPUT SCALERS
Each of the 8 outputs on the SP-0108-SCL feature down scalers, which can be set via dipswitch or API, allowing support for mixed resolution distribution of HDMI content to 4K and 1080p display simultaneously.
AUDIO DE-EMBED
Featuring both an analog and digital S/PDIF, easily de-embed HDMI input audio to a secondary audio distribution system without the need for external adapters or converters.
EDID MANAGEMENT
Previous professional splitters offered basic EDID management with up to 8 different EDID settings, but the SP-0108-SCL provides more flexibility with its advance EDID management, boasting up to 16 pre-loaded EDIDs to choose from, ensuring reliable and consistent video distribution. We’ve further included a custom EDID setting, allowing you to upload your own unique EDID to use, making the SP-0108-SCL’s EDID library virtually unlimited. To make life even easier, manage EDID information through the API, dipswitches or copy and EDID from a display with the front panel buttons.
CEC TRIGGERING
Working automatically on signal presence or triggered via the API, this 1×8 splitter can send power trigger commands to all compatible connected screens or projectors, meaning an integrated autonomous control solution.
In the Box
1x SP-0108-SCL Splitter
1x DC 12V Power Supply (US/UK/EU/AU)
2x 3-Pin Terminal Blocks
2x Wall Mounting Brackets
1x Quickstart Guide
| Category | Specification |
|---|---|
| Inputs | 1x HDMI: 19-Pin Type A |
| Outputs | 8x HDMI Out: 19-pin type A, 1x 3-pin Phoenix, S/PDIF |
| Video Encoding | Uncompressed 18Gbps |
| End to End Latency | None |
| Audio Formats | 2ch PCM, LPCM, Up to DTS-X and Dolby Atmos |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit, 3840x2160p @60Hz 10bit 4:2:2 HDR10/10+, 3840x2160p @60Hz 12bit 4:2:0 Dolby Vision, 3840x2160p @50Hz 10bit 4:2:0 HLG, 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards | DCI, RGB, HDR10, HDR 10+, Dolby Vision, HLG, BT.2020 |
| Maximum Pixel Clock | 600MHz |
| HDMI | HDCP 2.2, EDID |
| RS-232 | 1x 3-pin Phoenix connection |
| Power Supply | 12V DC 1A |
| Max Power Consumption | 6.73W |
| Additional Features | Small compact design, RS232 control, API support, CEC power off delay (30 min) |
| Description | Downloads |
|---|---|
| Spec Sheet | Downloads |
