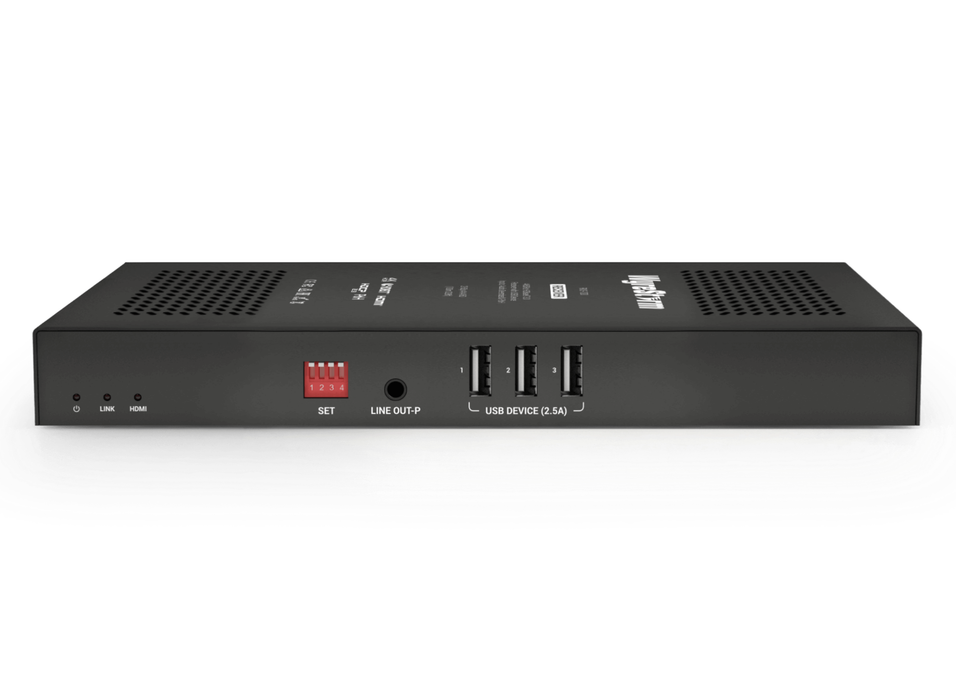

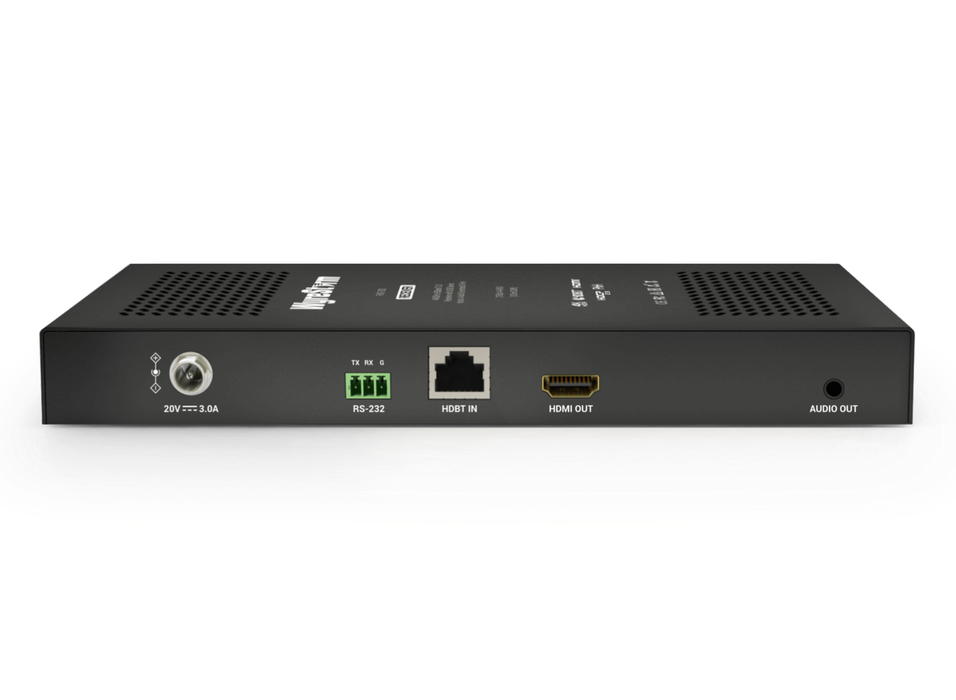

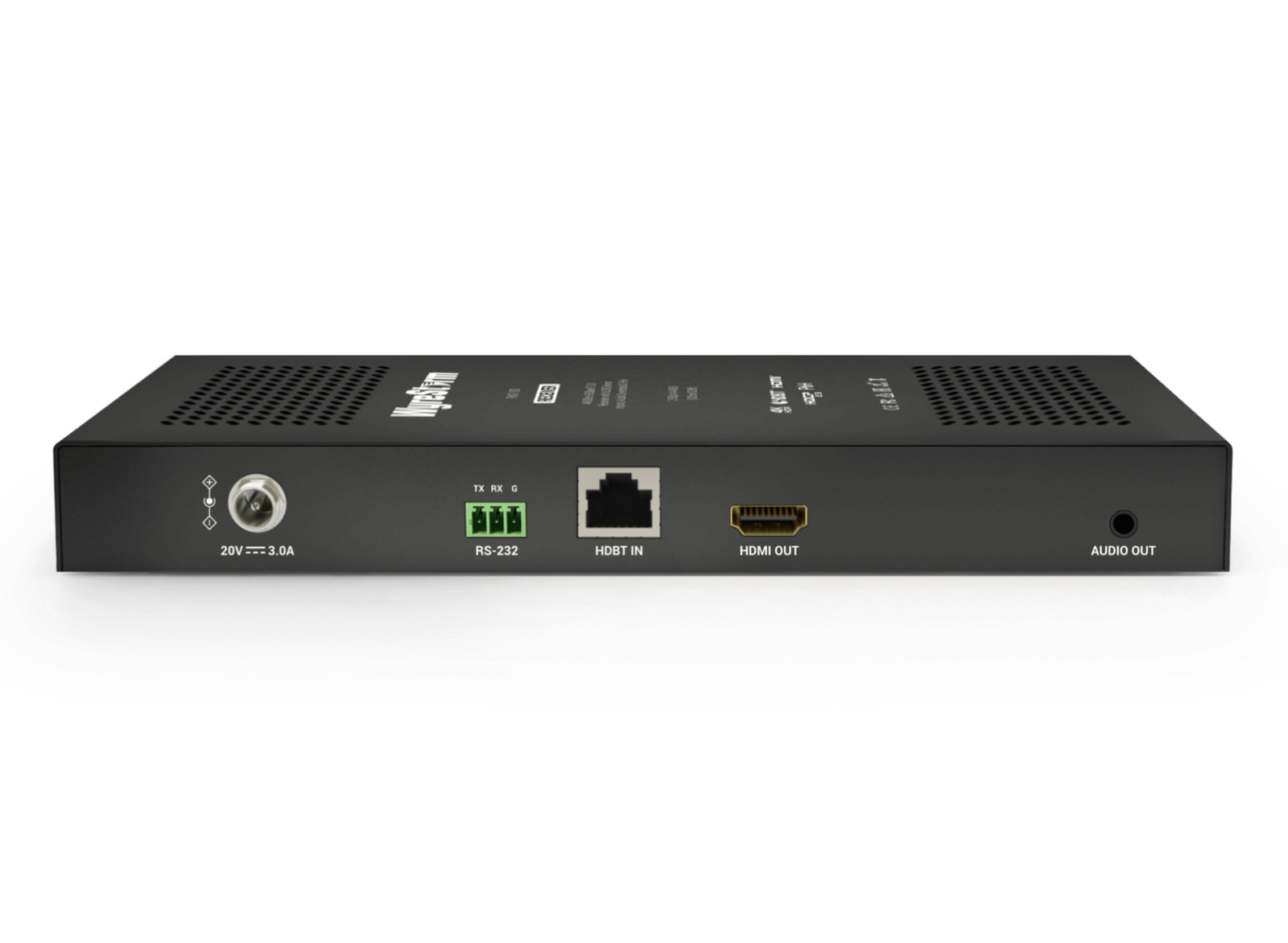

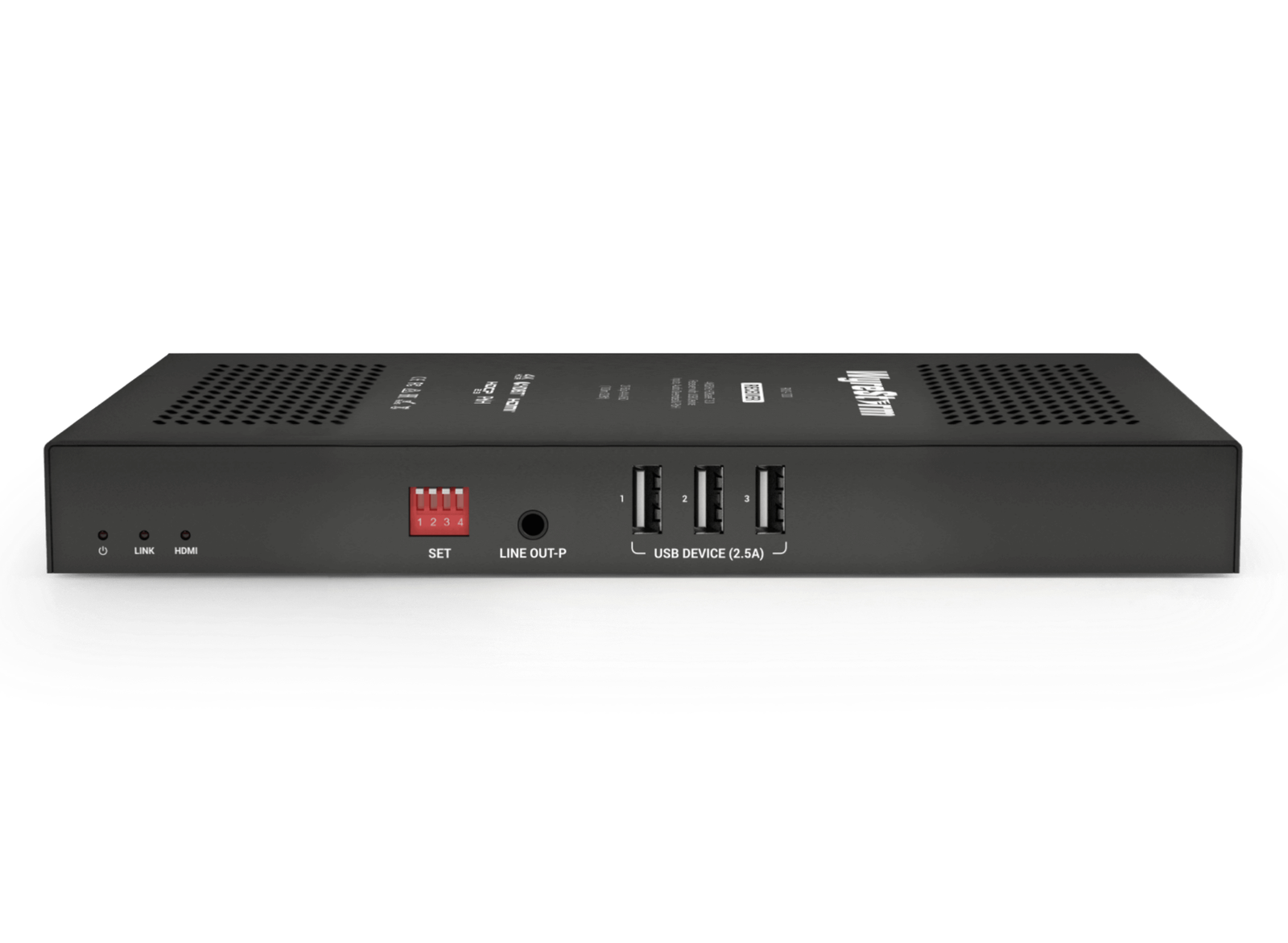

Introducing the RX3-100, an uncompressed 18G HDBaseT 3.0 receiver that achieves signal transmission up to 100m/328ft at 4K@60Hz via Cat.6A cable. With HDBaseT 3.0, experience USB data transfers of up to 300Mbps, nearly doubling HDBaseT 2.0’s capability of 190Mbps. This heightened capacity supports high-speed connections to 4K webcams, whiteboards, and data drives. The RX3-100 seamlessly pairs with any of WyreStorm’s HDBaseT 3.0 transmitter options, such as the SW-120-TX3 and SW-120-TX3-Ux for a powerful switching extender solution!
UNCOMPRESSED SIGNAL TRANSMISSION
HDBaseT 3.0 technology is here, sporting the very latest in high-speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable.
USB 2.0 PASSTHROUGH
The main feature of the RX3-100 is the 3 device ports, which are capable of USB 2.0 pass-through, which offers not only KVM functionality for extension of a keyboard/mouse or touchscreen, but also full data transfer capabilities of 300Mbps for 4K UHD webcams and high-speed data drives.
AUDIO DE-EMBED AND PASSTHROUGH
The RX3-100 offers both audio de-embed from the source HDMI and independent audio pass-through lane from line-in audio from the TX simultaneously.
BIDRECTIONAL CONTROL & POH
The RX-100 boasts bidirectional PoH, which can power or be powered by a transmitters such as the SW-120-TX3-Ux or SW-120-TX3, while also passing bidirectional RS-232 control to either the display or back to the head-end. If RS-232 isn’t an option, it also supports CEC signals from the transmitter
In the Box
1x RX3-100 HDBaseT 3.0 Receiver
1x 3-pin Terminal Block
4x Wall Mounting Brackets
4x Mounting Screws
1x 20V 3A PSU*
1x Quickstart Guide
| HDBT Input | 1x HDBT In: 8-pin RJ45 | USB Device Inputs | 3x Type A (Device) |
| RS-232 Input | 1x RS-232: 3-pin Phoenix | HDMI Output | 1x HDMI Out: 19-pin Type A Female |
| Audio Output | 1x Audio Out 3.5mm (1/8in) TRS Stereo | 1x Line Out 2ch audio over HDBaseT | 1-way from TX | Max Pixel Clock | 600MHz |
| 1080p Resolution | 1920x1080p @60Hz 12bit | 4K Resolution | 3840×2160 @60Hz 4:4:4 8bit |
| 5K Resolution | 5120×2160 @30Hz | 5K 4:2:0 Resolution | 5120×2160 @60Hz 4:2:0 |
| Supported Standards | DCI | RGB | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100 | HDMI Audio Formats | 2ch Analog/PCM | Multichannel: LPCM up to DTS-X and Dolby Atmos |
| Audio De-Embed | 2ch Analog/PCM | HDMI | HDMI | HDCP 2.3 | EDID | CEC Pass-through |
| HDBaseT | HDMI | USB | HDCP 2.3 | EDID | 2-way PoH | Bidirectional RS-232 | CEC | USB | 3x Type A (Device) | Maximum uplink speed: 300Mbps |
| RS-232 | 1x RS-232: 3-pin Phoenix | Power Supply | 20V DC 3A |
| Max Power Consumption | 10.92W |
| Description | Downloads |
|---|---|
| Datasheet | Download |
