The perfect complement to a WyreStorm HDBaseT™ matrix system, presentation switch or in-wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m/230ft and 1080p to 100m/328ft.
CLASS A HDBASET™
Receives HDMI transmissions of 4K up to 70m/230ft and 1080p up to 100m/328ft with multi-channel audio, control, ethernet and PoH.
CONTROL OPTIONS
Supports 3 methods of control pass-through. Being a pure-HDBaseT™ device, the RX-70-4K can handle bi-directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system.
DISCREET INSTALLATION
Low Profile chassis height of just 18mm / 0.7” for greater installation convenience behind the even slimmest wall mounts.
2-WAY POH
The RX-70-4K can either be powered by a PoH-compatible matrix or presentation switcher or it can itself deliver power to a transmission device such as the WyreStorm In-wall HDBaseT™ Transmitters.
In the Box
1x RX-70-4K Receiver
1x Wide-band IR Emitter
1x Wide-band IR Receiver (30-50KHz)
2x Mounting Brackets
1x 3-pin Phoenix Connector
1x 2-pin Phoenix Connector
1x Quickstart Guide

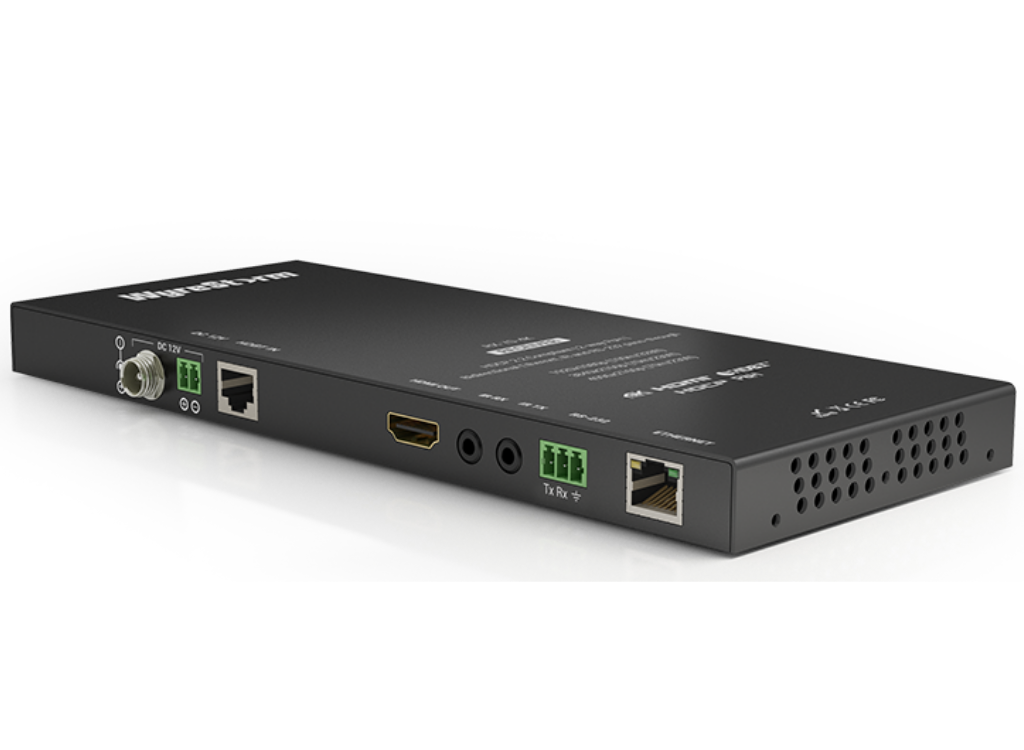

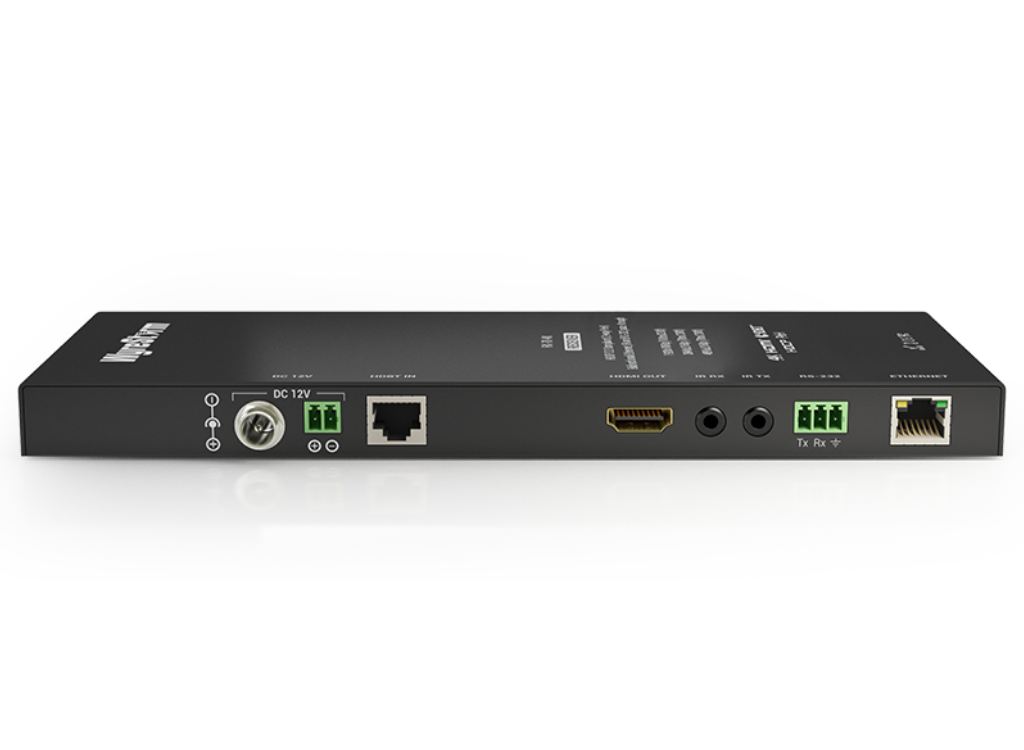

| Category | Specification |
|---|---|
| Inputs | 1x HDBaseT 8-pin RJ-45 female |
| Outputs | 1x HDMI 19-pin type A female |
| Audio Formats | 2ch PCM, Up to DTS-X, Dolby Atmos |
| End to End Latency | 1920x1080p @60Hz 48bit, 3840x2160p @30Hz 4:4:4 24bit, 3840x2160p @24Hz HDR 10bit |
| Color Depth | 1080p: 48bit, 4K UHD: 24bit, HDR @24p: 10bit per channel BT.2020 |
| Maximum Pixel Clock | 297MHz |
| HDMI | HDCP 2.2, EDID, DVI/D supported with adapter (not included) |
| HDBaseT | HDCP 2.2, EDID, 2-way PoH, Bidirectional IR, RS-232, Ethernet |
| Ethernet | 1x 8-pin RJ-45 female, 10/100 Mbps auto-negotiating, Bidirectional over HDBaseT |
| IR | 1x IR TX 3.5mm (1/8in) TS Mono, 1x IR RX 3.5mm (1/8in) TRS Stereo (Bidirectional) |
| RS-232 | 1x 3-pin Phoenix Connector (Bidirectional over HDBaseT) |
| Power Supply | 12V DC 2A |
| Max Power Consumption | 7.2W |
| PoH | 48V 15.4W |
| Additional Features | - Transmits video, audio, IR, RS-232, Ethernet over Cat5e/6 |
| - Supports 7.1 DTS Master HD and Dolby True HD audio | |
| - Switchable RS-232 for firmware update | |
| - Power options include additional phoenix port and locking DC plugs | |

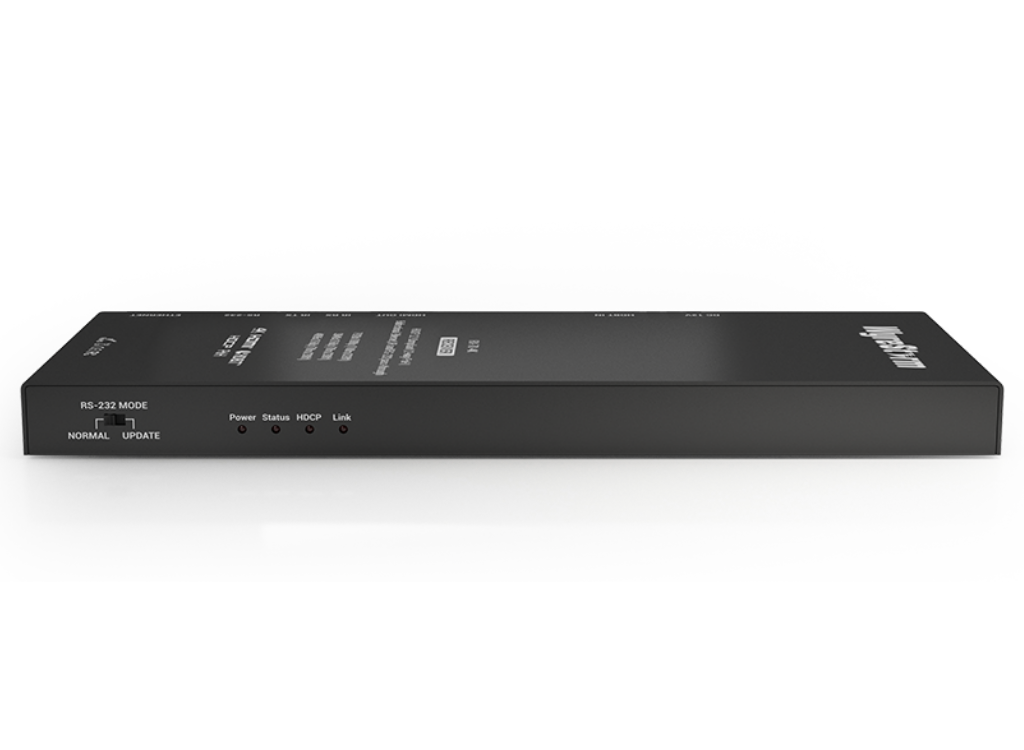

| - Visual LED indication for power, signal status, HDCP, and link | |
| - Energy-efficient universal power supplies included | |
| - Mounting brackets and IR connections included |
| Description | Downloads |
|---|---|
| Spec Sheet | Downloads |
