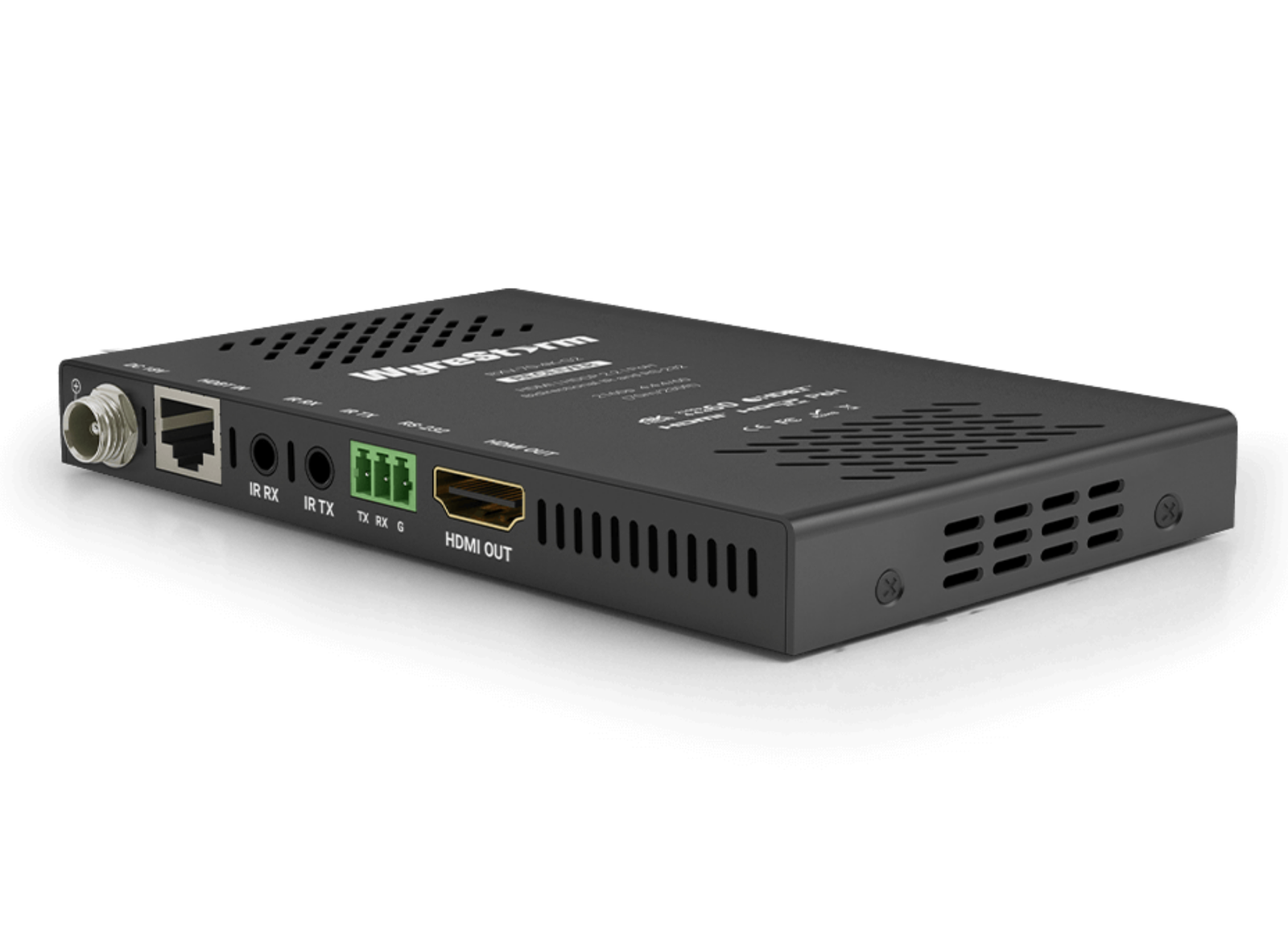

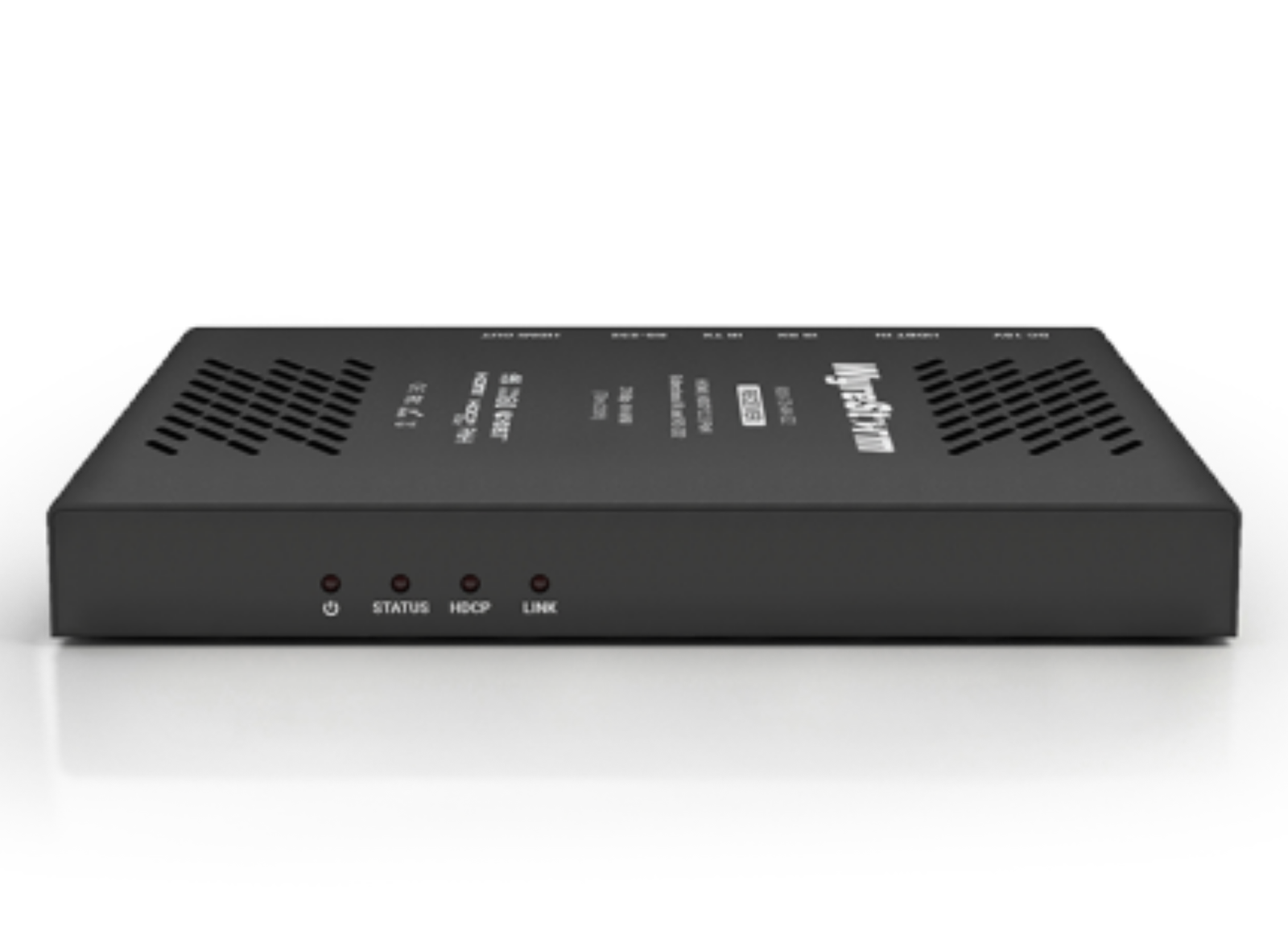

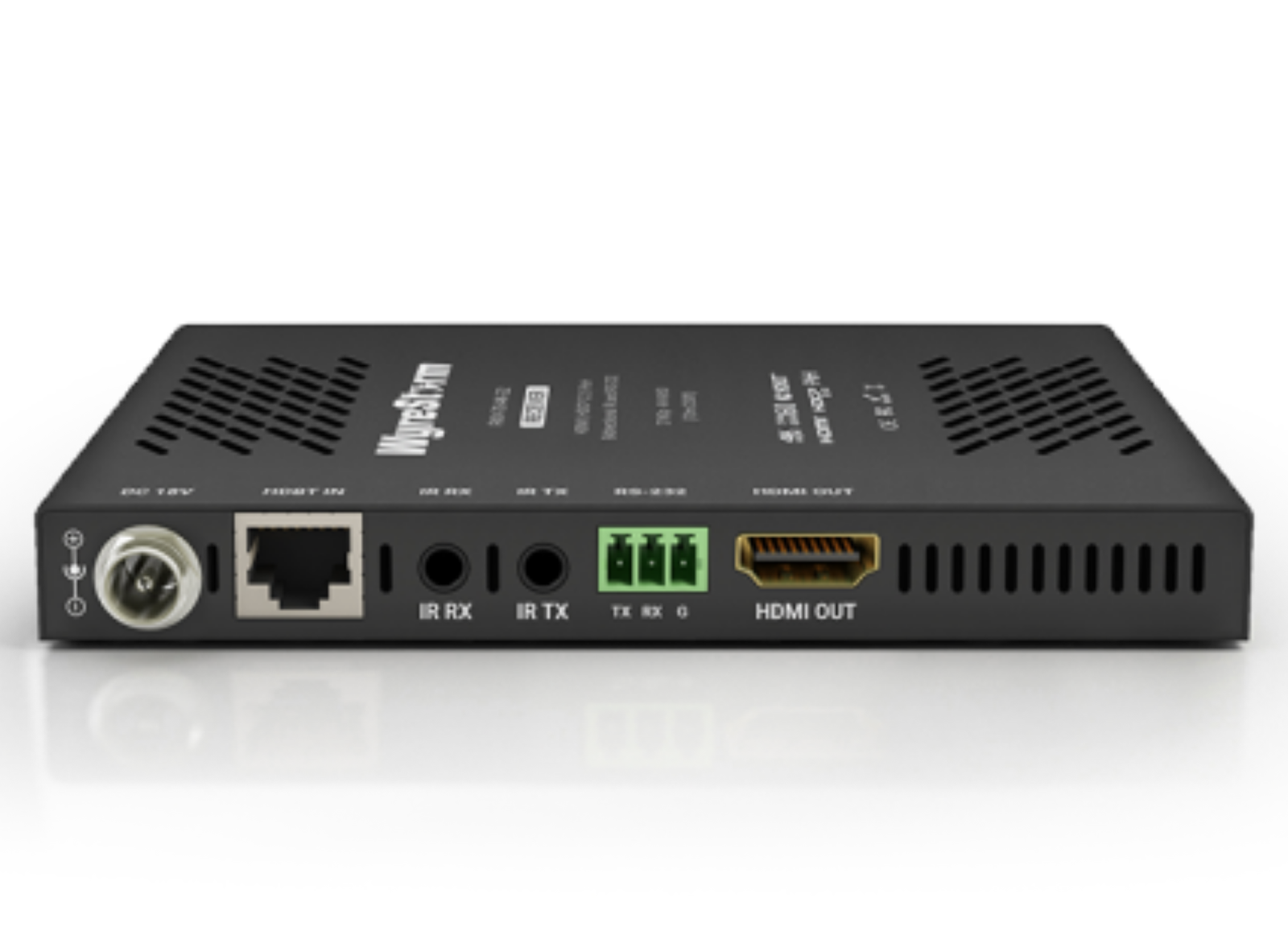

WyreStorm 70m 4K60 HDBaseT Receiver for MXV | RXV-70-4K-G2
SKU: RXV-70-4K-G2
£190.38 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Reliable 4K60 HDBaseT Signal Extension Up to 70 Metres
Consumer HDMI content is now breaking through the once comfortable HDBaseT ‘ceiling’ of 10Gbps, with HFR (High Frame Rate). HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. The RXV-70-4K-G2 is the perfect companion for WyreStorm’s MXV line-up of matrices also when distances of under 70 meters are required. This receiver is exclusively used for MXV-0606-H2A-70 & MXV-0808-H2A-70 Matrix solutions.
HDMI 2.0 VIDEO: MAXED OUT!
Always looking ahead, WyreStorm can handle both current & future video content technologies. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent using HDBaseT and the latest in lossless compression technology from the matrix to the RXV receiver.
POWER-OVER-HDBASET
With PoH available across all HDBaseT matrix outputs, the headache of hiding power supplies is one less thing to worry about. Power to drive the receiver is sent over the category cable along with the video, audio, control and Ethernet, making installations neat, quick and easy as possible.
SLIM BY DESIGN
As space between displays and the wall they’re mounted to reduces, finding a receiver to fit in this gap can be hard to find. But just because this receiver packs a punch doesn’t mean it can’t deliver the small footprint that you’ve come to expect. It also ships complete with all the accessories needed to help the integrator complete the install discreetly and efficiently.
HDBASET
The very core of WyreStorm transmission, we’ve embraced HDBaseT technology since 2010. We’re now taking the capabilities of HDBaseT to the next level and supporting video bandwidths in excess of 10Gbps with our lossless compression technology built in to out H2X matrix platform. The RXV-70-4K-G2 will output HDMI content at up to 2160p 4:4:4/60.In the Box
1x RXV-70-4K-G2 Receiver
1x Wide-band IR Emitter
1x Wide-band IR Receiver (30-50KHz) 2x Mounting Brackets
2x Mounting Brackets
1x 3-pin Terminal Block
1x Quickstart Guide -
AUDIO & VIDEO Inputs 1x HDBaseT In: 8-pin RJ-45 Female Outputs 1x HDMI Out: 19-pin type A Output Video Encoding HDBaseT Class A Encoding Data Rate 9.2Gbps End to End Latency 10μs (micro seconds) Audio Formats Analog: 2ch analog
S/PDIF: 2ch LPCM | Dolby Digital/CTS up to 5.1ch
HDMI: 2ch LPCM | Multichannel up to DTS-X and Dolby AtmosVideo Resolution (Max) 1920x1080p @60Hz 16bit
3840x2160p @24Hz 10bit 4:2:0 HDR
3840x2160p @30Hz 8bit 4:4:4
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4Supported Standards DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100 Maximum Pixel Clock HDMI: 600MHz | HDBaseT: 297MHz COMMUNICATION & CONTROL HDMI HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI-D supported with adapter (not included) HDBaseT HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR RS-232 1x RS-232: 3-pin Terminal Block – 3.5mm IR 1x IR TX: 3.5mm (1/8in) TS Mono | 1x IR RX: 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT CEC CEC Power Triggering for connected screens – Requires CEC compatibility POWER Power Supply 18V DC (Optional) PoH 1-way Matrix to Receiver Max Power Consumption 12.42W -
Description Downloads Datasheet Download
