WyreStorm APO-210-UC Apollo Series Conference Speakerphone & Switcher with HDBaseT Out
The APO-210-UC is the premium solution in the Apollo series of unified communication products. The APO-210 is a conference speakerphone and presentation switcher wrapped into one package. With a broad range of connectivity options, transmit video via local USB-C or HDMI, wirelessly with Miracast or AirPlay. Multiview capability allows up to two devices to share content simultaneously, promoting improved collaboration. An integrated USB 3.0 device port allows easy connection of peripheral equipment such as PTZ cameras. The APO-210 adds a HDBaseT output in addition to the HDMI out to support dual-screen meeting spaces.
SPEAKERPHONE
All Apollo series products feature a premium 360° omni-directional microphone array with echo cancellation, ensuring you can be heard loud and clear in every meeting. The powerful 10-watt speaker provides crystal clear audio delivery, even in the largest rooms.
MULTIVIEW
Two separate video devices can be transmitted at the same time in a split screen view using a combination of wired or wirelessly connected laptops, tablets, or smart phones.
WIRED & WIRELESS
Loaded with connectivity, the APO-200 & 210 support local connection via USB-C and HDMI, wireless casting via Miracast and AirPlay or casting from our APO-DG1 wireless dongle.

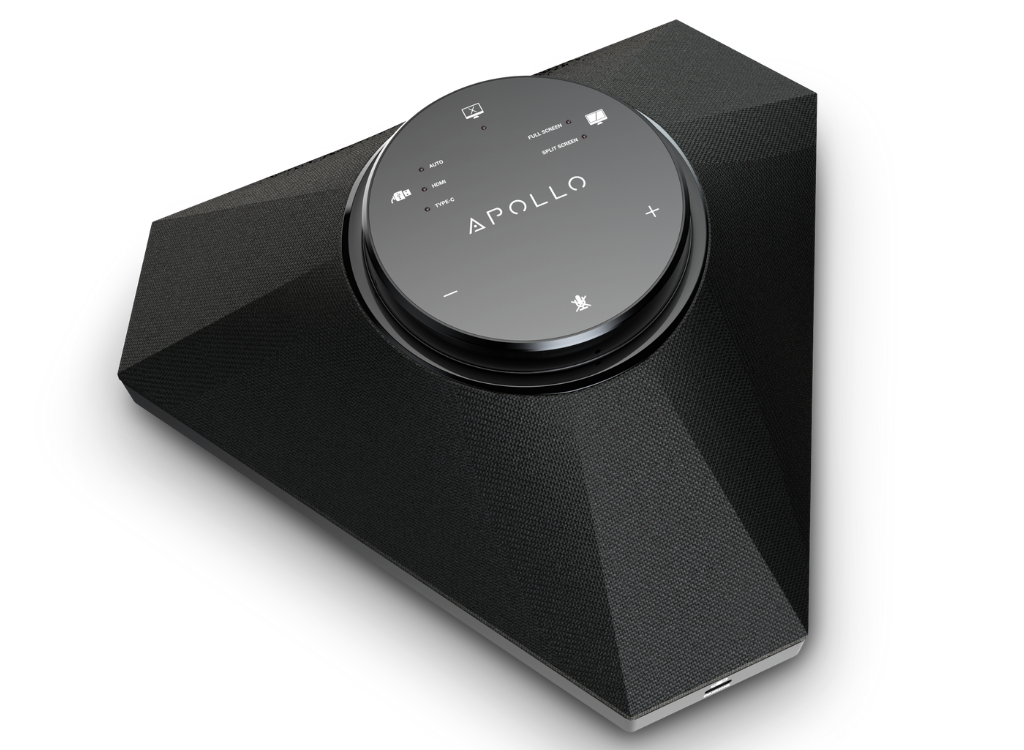

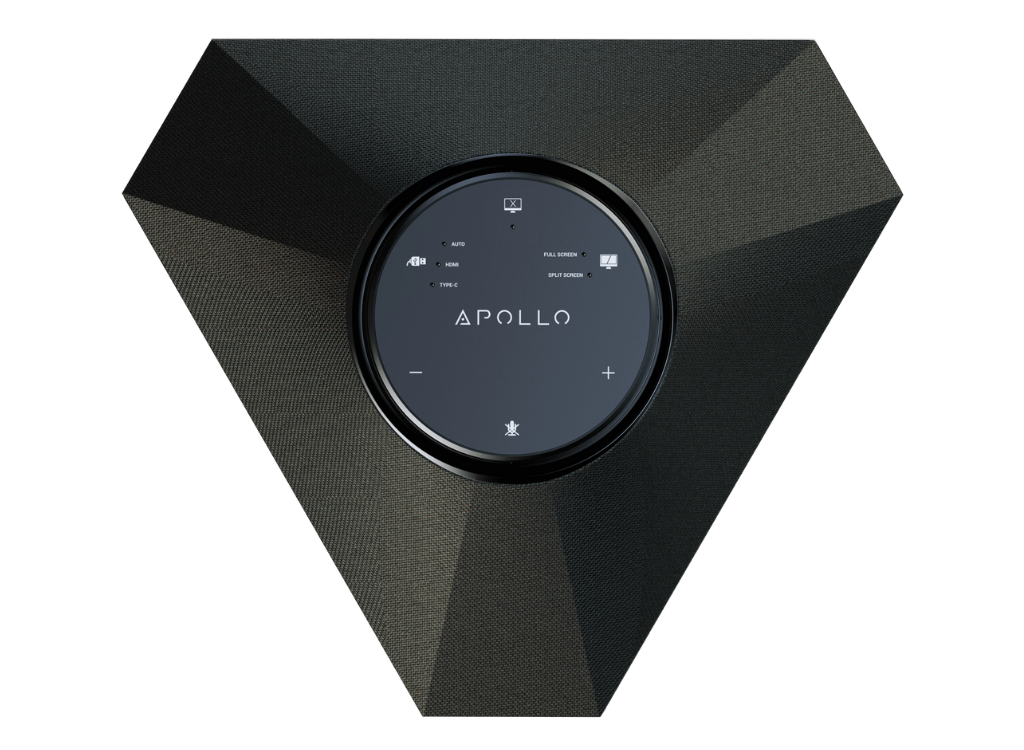

CAPACITIVE TOUCH
Intuitive capacitive touch buttons provide volume control, mic mute, and video mute for your meeting. An LED ring on the top of the speakerphone provides real-time feedback of volume level and mute status.
In the Box
1x Apollo Speakerphone
1x 24V DC 5A PSU (US/UK/EU/AU)
1x 1.5m USB-C cable (with USB-A adapter)
1x 2m Mini USB-B 2.0 cable
1x Quickstart Guide
-
| Category |
Specification |
| AUDIO & VIDEO |
|
| Inputs |
1x USB-C, 1x HDMI |
| Outputs |
1x HDMI, 1x HDBaseT |
| Video Resolution (Max) |
Display Link: 1920x1080p @30Hz, USB-C: 3840x2160p @30hz 8bit 4:4:4, 1920x1080p @60hz |
| Maximum Pixel Clock |
300 MHz |
| SPEAKERPHONE |
|
| Microphone |
360° 4 x Mic Array |
| Speaker |
10 watts, 78 dB @ 1.5m/4.9ft, Sample Rate: 24bit 48KHz |
| Control |
Capacitive touch volume +/- and microphone mute buttons, Telnet API |
| COMMUNICATION & CONTROL |
|
| HDMI |
HDMI 1.4 |
| HDBaseT |
EDID |
| USB |
1x USB-C: USB 3.2 Gen 2×1 |
| LAN |
1 x 8-pin RJ45 |
| RS-232 |
Passthrough over HDBaseT (requires compatible HDBaseT receiver) |
| POWER |
|
| Power Supply |
24V DC 5A |
| Max Power Consumption |
Max with USB-C charging (60w): 80W |
| Features |
|
| Microphone Array |
360° omni-directional with echo cancellation, AGC, and noise suppression |
| Speaker Power |
10-watt powerful speaker with clear audio delivery |
| Control Buttons |
Capacitive touch volume and mic control, including mute and USB host switching |
| LED Feedback Ring |
For volume level and mute status |
| Mic Direction Indication |
Real-time LED indication of mic pick-up direction |
| Plug and Play |
Simple plug-and-play design with a single USB connection |
| USB-C Charging |
Native USB-C for up to 60w device charging |
| Content Support |
Supports up to 4K 30 4:4:4 8bit content over HDMI and USB-C |
| Wireless Casting |
Supports Miracast (Windows/Android) and Apple AirPlay up to 1080p |
| USB 3.0 Port |
For additional USB device connection (e.g., CAM-200-PTZ, FOCUS Webcams) |
| Multiview |
Two laptops/tablets can share content simultaneously |
| Conference Compatibility |
Compatible with Microsoft Teams, Zoom, Skype, WebEx, etc. |
| Output Flexibility |
HDMI and HDBaseT output support long-distance transmissions and dual-screen setups |
-
