WyreStorm CON-H2-DD-EARC 4K HDMI Scaler | DSP Audio Breakout & eARC Support

WyreStorm 4K/60 In-line HDMI Scaler with DSP-Controlled Audio Breakout, Dolby TrueHD™ & DTS-HD™ Downmixing and eARC Output | CON-H2-DD-EARC

Bringing the latest technology currently only seen on the latest HDMI 2.1 devices the CON-H2-DD-EARC tackles the demands of today’s technology head-on and provides a multi-pronged approach to the challenges of the modern residential AV system. It combines a powerful set of features that can both down-mix Dolby TrueHD or DTS-HD audio to stereo and scale incoming 4K UHD content to 1080p. The DSP-controlled stereo audio output allows adjustment of both volume and EQ via a control system and the unit can be customized further by manually controlling the down-mixing to the S/PDIF and HDMI outputs. ARC/eARC breakout of audio from a connected smart TV completes the formidable line-up of this trail-blazing device.

4K HDR & DOLBY VISION
With an 18Gbps HDMI input the CON-H2-DD-EARC supports video content up to 4K/60 4:4:4. Compatibility with the latest 4K specifications such as HDR10 and Dolby Vision ensures maximum video fidelity no matter the source you connect.

DOWNMIXING & DSP
Powerful audio capabilities allow up to 7.1 Dolby True HD and DTS-HD signals to be downmixed to stereo RCA for multi-zone amplifiers. A built-in DSP allows for the audio level and EQ to be adjusted for the stereo RCA output.

ARC & EARC
Easily send audio from apps on your Smart TV with support for Audio Return Channel. Take it a step further with eARC. With support for Enhanced Audio Return Channel, you can now send 7.1 audio directly from your TV and downmix or de-embed into an external audio system.

VIDEO SCALING
With maximizing compatibility in mind, the CON-H2-DD-EARC’s HDMI output features a powerful scaler. Seamlessly connect a 4K HDR source and scale to 1080p if connecting to an older display.

5 YEAR WARRANTY
This WyreStorm Pro AV product comes with a 5 Year Warranty

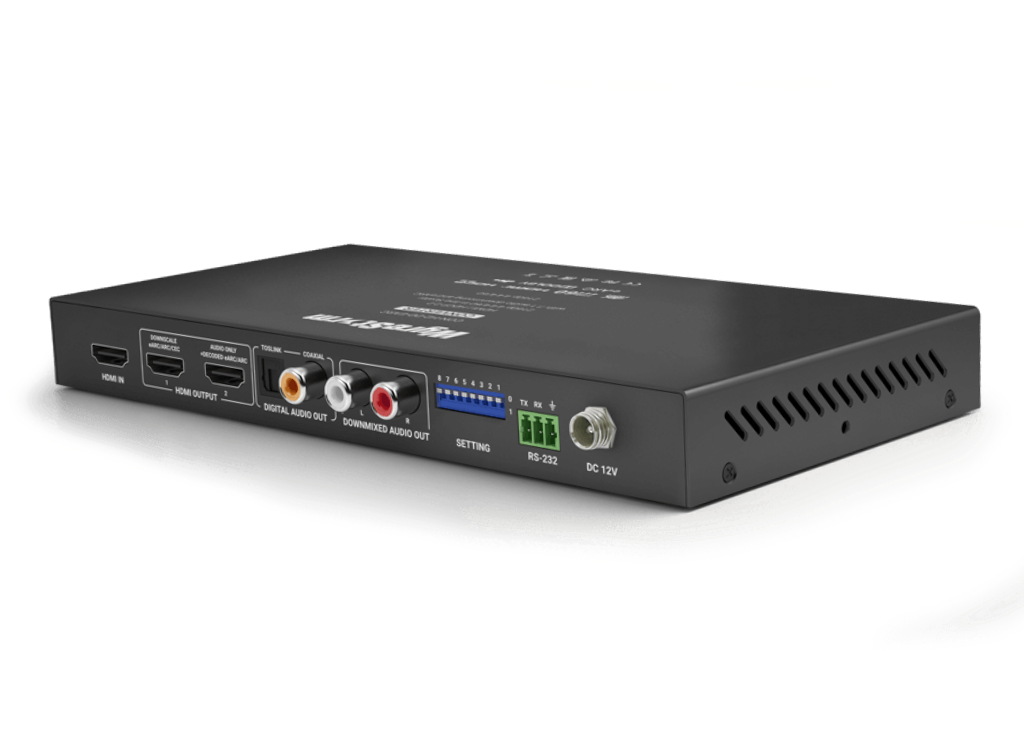

Product Features
Downmixes up to Dolby True HD and DTS-HD 7.1 signals to 2 channel analog
Supports audio sampling rates up to 192 KHz
Simultaneous downmixing and audio de-embedding via digital audio outs and stereo RCA
18Gbps HDMI passthrough for maximum video compatibility with latest 4K HDR and Dolby Vision sources
HDMI Output 1 supports 4K to 2K video scaling with HDR conversion

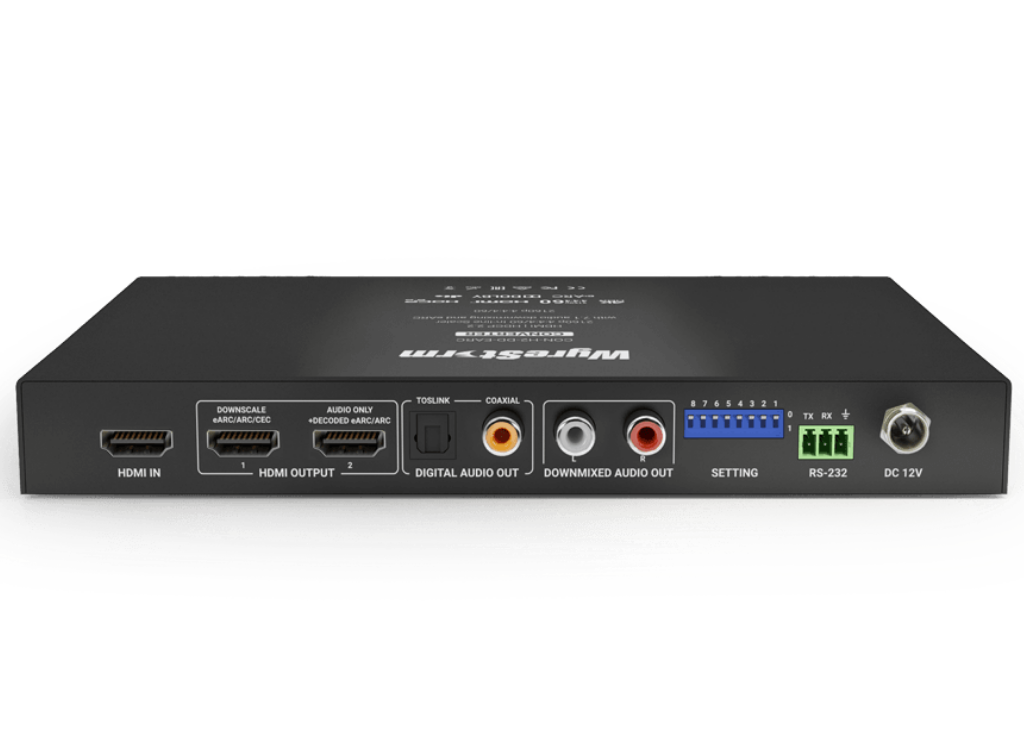

Dedicated second audio-only HDMI output for connecting a multi-channel AVR
Support for ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel) through HDMI to de-embed or downmix audio from smart displays
Manual EDID dipswitches for easy manipulation of audio and video settings
RS-232 control port for integration with 3rd-party control systems
Supports rack mounting with the NHD-000-RACK4 or NHD-140-RACK-1U.

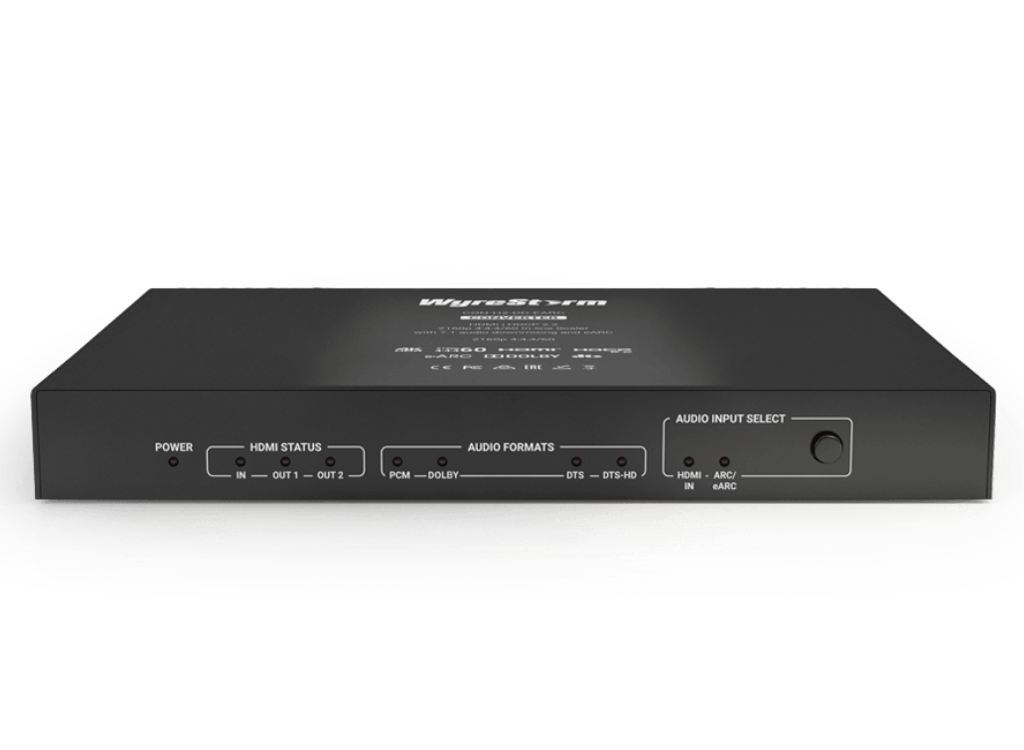

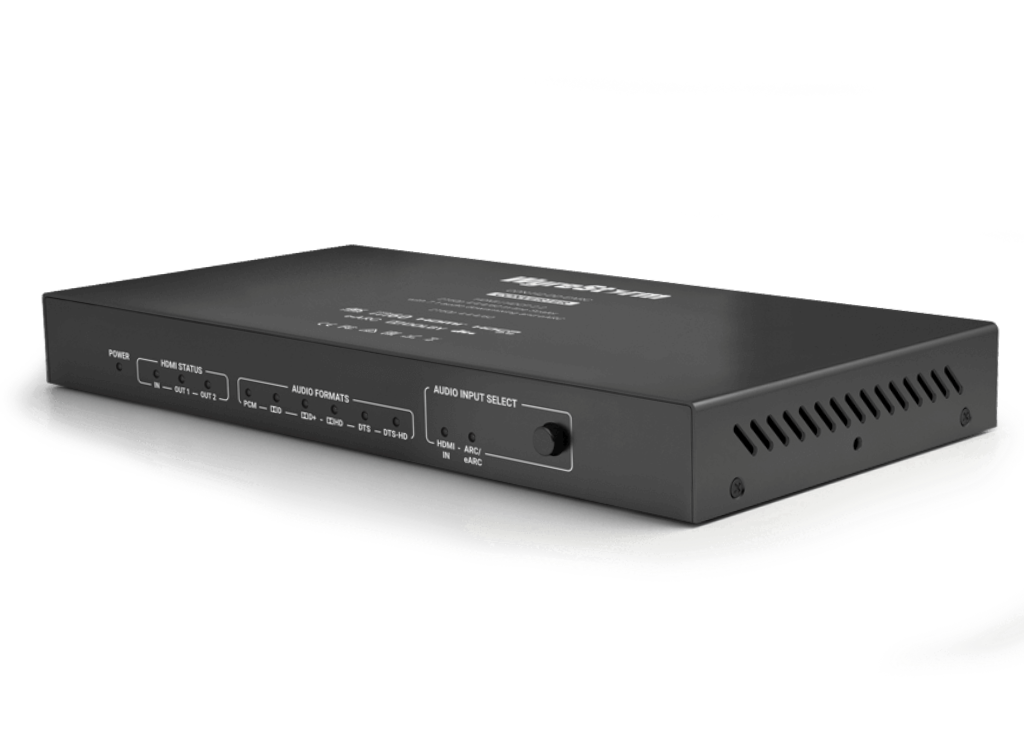

Front panel audio decoding LEDs for easy signal identification
Manufactured under license from Dolby Laboratories

In The Box
1x CON-H2-DD-EARC Downmixer/scaler
1x 3-pin Phoenix connector
2x Rack mounting brackets (for NHD-000-RACK4)
1x 12V DC 1A Power Supply with wall adaptors (US/UK/EU/AU)
1x Quickstart guide
