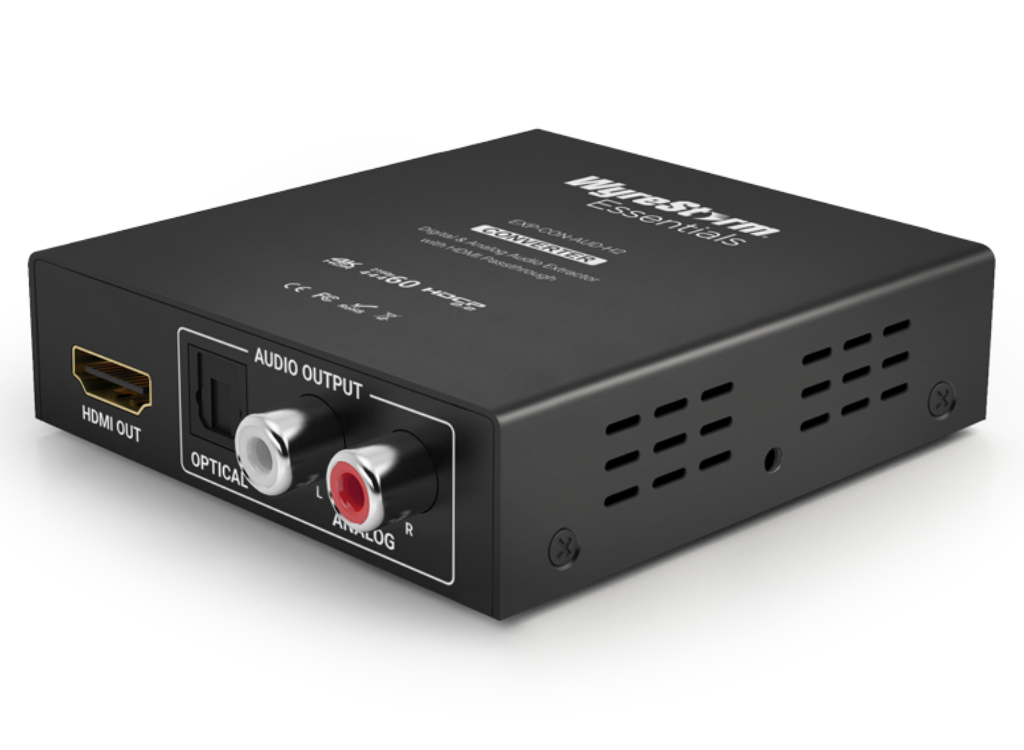

The WyreStorm EXP-CON-AUD-H2 is a powerful plug and play 4K audio de-embed solution with full 18Gbps HDMI and HDCP 2.2 support. The EXP-CON-AUD-H2 allows digital or analog audio to be de-embedded from the source to be sent to an audio distribution system, such as an AVR or amplifier. Perfect for when the source de-embed isn’t available, all while passing video up to 4k@60Hz 4:4:4 to a display projection screens or video matrix.
Additionally, the EXP-CON-AUD-H2 has a 3 audio EDID settings, which aids in video distribution, bypassing the need for the source to be connected directly to the AVR/AMP over HDMI.
AUDIO DE-EMBED
This is the bread and butter feature of the EXP-CON-AUD-H2. Perfect for de-embedding digital 5.1 surround or 2 channel analog from anywhere inline or from sources that aren’t equipped with a native audio breakout, such as Apple TV 4K, all-while passing video content to a matrix switch or display.
AUDIO EDID SELECTION
When multiple audio formats are needed in a system, the EXP-CON-AUD-H2 gives the user 3 audio EDID options to choose from; 5.1 surround, 2 channel analog or passthrough. This is perfect if multiple audio amplifiers or AVRs are in the system, allowing each audio system to receive a discrete EDID without affecting the source.
Wyrestorm Converter & Adapter EXP-CON-AUD-H2 (8)
HDMI 2.0 MAXED OUT
Sporting an 18Gbps HDMI input, the EXP-CON-AUD-H2 can support all UHD video signals up to and including 2160p 4:4:4/60, and high frame-rate HDR 12bit 4:2:2 up to 60Hz.
COMPLIANT WITH HDCP 2.2
All of our 4K UHD extenders are compliant with the strict anti-piracy algorithms that prevent the unauthorized distribution of content, meaning a trouble-free installation.
Product Features
Supports resolutions of up to 2160p 4:4:4/60
Fully HDCP 2.2 compliant pass-through

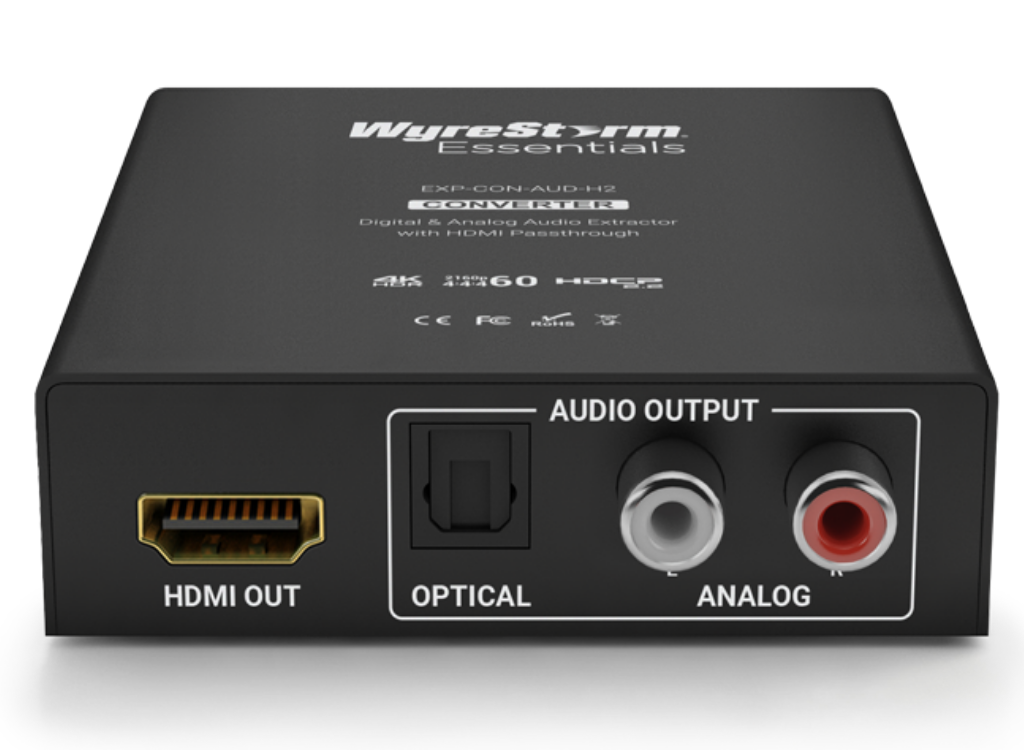

HDMI audio de-embed featuring digital S/PDIF and left/right analog audio
Compact, low profile design; easy to install
Integrate multiple to create custom audio ecosystem

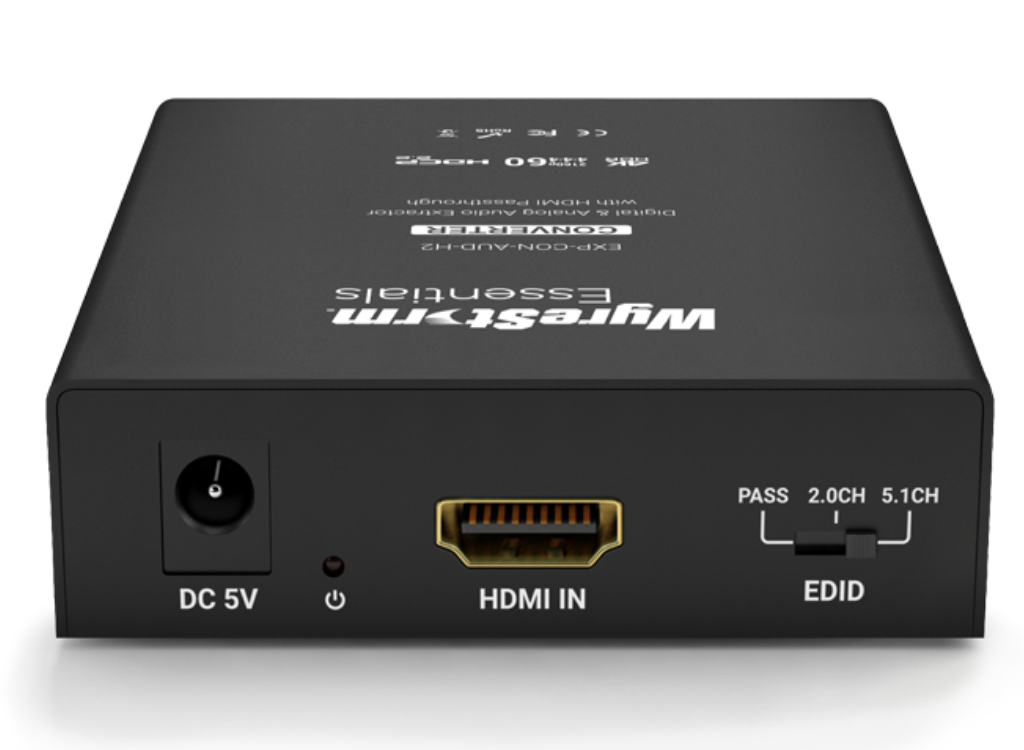

3 gear sliding switch for easy audio EDID setting; Pass-through, 2ch and 5.1
Automatic cable equalization and signal regeneration/compensation for optimal audio/video compatibility
*This product does not downmix Dolby or DTS audio formats.
In The Box
1x EXP-CON-AUD-H2 Audio Converter
1x 5V DC 1A Power Supply with Wall Adapters
2x Mounting Brackets
| Category | Specification |
|---|---|
| Audio and Video | |
| Inputs | 1x HDMI in: 19-pin type A |
| Outputs | 1x HDMI Out: 19-pin type A, 1x RCA Female Stereo (L/R), 1x S/PDIF TOSLINK |
| Audio Formats | HDMI: 2ch PCM, Multichannel: LPCM, DTS-X, Dolby Atmos, Analog: 2ch LPCM, Toslink: 5.1ch Surround Sound |
| Video Resolutions (Max) | 1920x1080p @60Hz 12bit, 1920x1080p @60Hz 16bit, 3840x2160p @24Hz 10bit 4:2:0 HDR, 3840x2160p @30Hz 8bit 4:4:4, 3840x2160p @60Hz 10bit 4:2:0 HDR, 4096x2160p @60Hz 8bit 4:2:0, 4096x2160p @60Hz 8bit 4:4:4 |
| HDMI Cable Length | 15m/49ft, 7m/23ft, 7m/23ft, 5m/16ft, 5m/16ft, 5m/16ft, 3m/10ft |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision (Pass-Through EDID only), HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | 600MHz |
| Communication and Control | |
| HDMI | HDCP 2.2, DVI-D supported with adaptor (not included) |
| Power | |
| Power Supply | 5V DC 1A |
| Max Power Consumption | 2.88W |
| Environmental | |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F to ~ 158°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing |
| Maximum BTU | 9.83 BTU/hr |
| Dimensions & Weight | |
| Rack Units/Wall Box | <1U |
| Height | 22mm/0.87in |
| Width | 80mm/3.15in |
| Depth | 90mm/3.54in |
| Weight | 0.23kg/0.51lbs |
| Regulatory | |
| Safety and Emission | CE, FCC, RoHS |
| Description | Downloads |
|---|---|
| Spec Sheet | Downloads |
