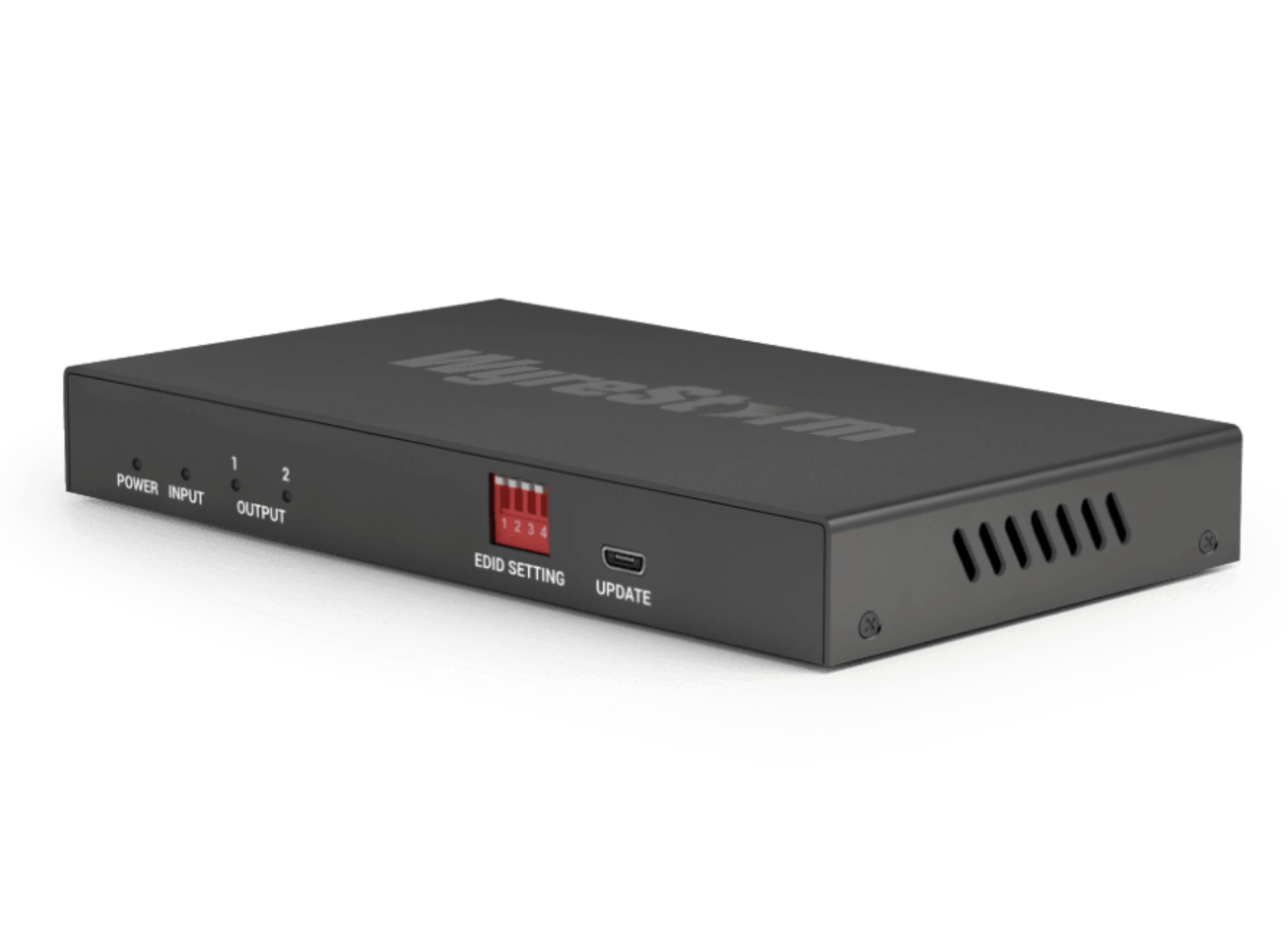

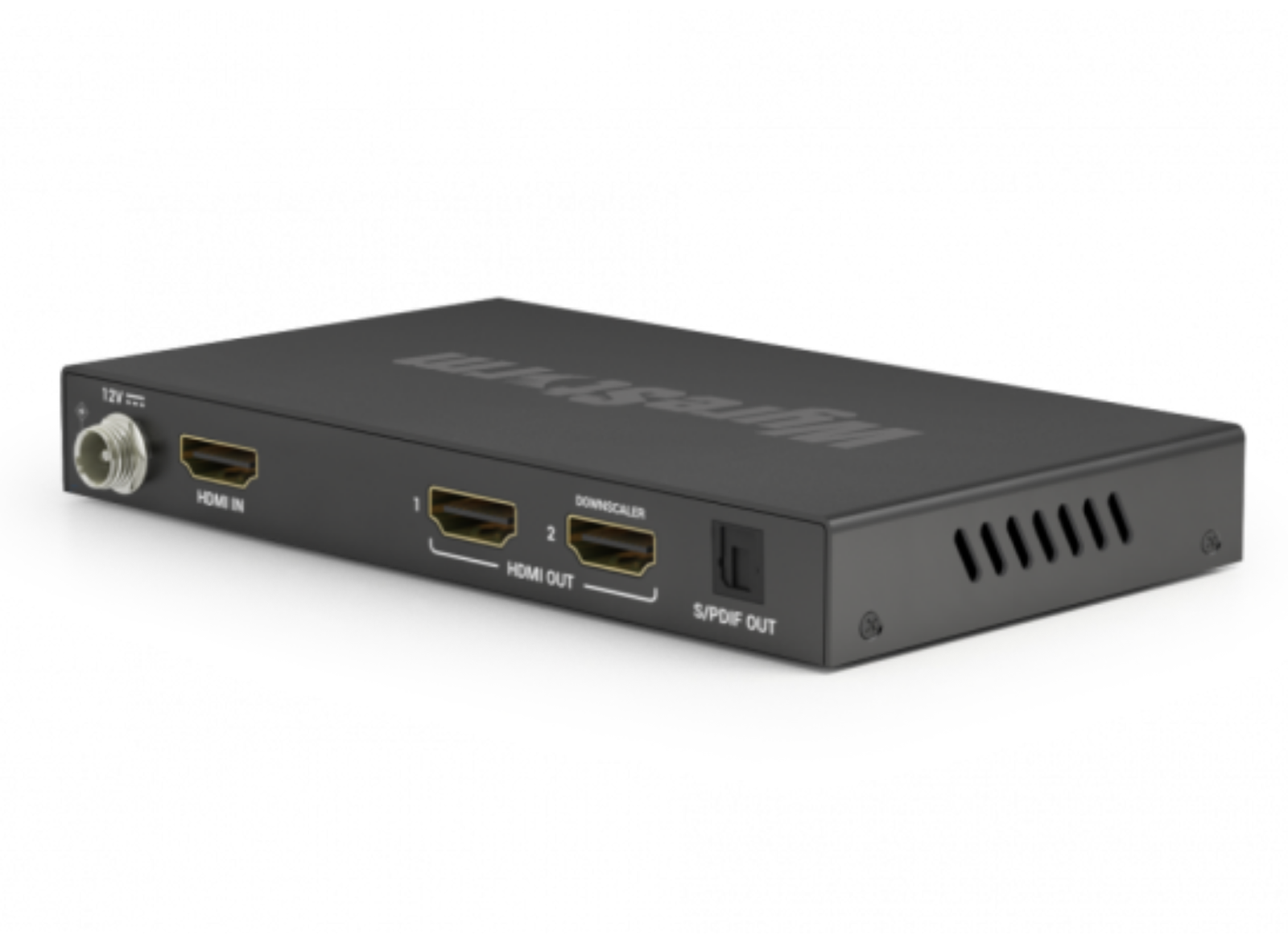

Our EXP-SP-0102-8K packs a punch as it is a powerful plug-and-play 8K HDMI splitter that has the ability to send uncompressed up to 8K@60Hz or 4K@120Hz up to two displays, but the most useful feature of this splitter is that the second output can scale content down from either 8K>4K or 4K>1080p! Furthermore, its compatible with DSC (Display Stream Compression) version 1.2a pass-through, an approved method of compression in accordance to the HDMI 2.1 specification, allowing up to a lossless 10K@120Hz signal to be transmitted.
Don’t forget to pair this splitter with our passive or active HDMI 2.1 cables!
SCALING SOLUTIONS
As early adopters of 4K and 8K signal distribution, we know that retrofitting is important in the dawn of new resolution standards. With our splitter, you can rest assured that you won’t be forced to upgrade all displays or AVRs to 8K to reap its benefits. Just set the splitter to downscale to 4K and enjoy 8K content while supporting 4K at the same time!
EDID MANAGEMENT
Display compatibility is the last thing you need to worry about. Our splitter gives you 5 EDIDs that can be adjusted via dipswitches. The splitter also supports Smart EDID, which will auto-negotiate EDIDs based on the detected displays and adjust accordingly.
8K AND BEYOND
Our Essentials 8K splitter not only meets 8K demands but they’re empowered with DSC passthrough, an approved method found in the HDMI 2.1 specification to transmit super-high bandwidth content (up to 10K@120Hz!) producing mathematically lossless content.
COMPLETE YOUR SETUP
WyreStorm offers HDMI 2.1 cables in a number of different lengths and flavors. Use our passive 2.1 cables for short distances up to 3m (9ft). If you need to go a long distance take advantage of our Active Optical 2.1 cables that can reach 15m (50ft).
In the Box
1x EXP-SP-0102-8K
1x DC 12V PSU (UK/US/EU/AU)
2x Mounting Brackets (with screws)
| TRANSMISSION | |||
| Transmission Encoding | Uncompressed (with DSC 1.2a Pass-through between Source-Display when required) | End to End Latency | Zero |
| Maximum Transmission Bit Rate | 40Gbps (4-core, 10Gbps per lane) | ||
| VIDEO | |||
| HDMI | TMDS (600MHz Maximum) | FRL (16b/18b encoding) | DSC 1.2a Supported | Input | 1x HDMI: 19-pin type A Male |
| Output | 2x HDMI: 19-pin type A Male | Maximum Data Rate | 40 Gbps (FRL) | 18 Gbps (TMDS) |
| Video Resolution (Max) | 1920 x 1080p @240Hz 4096 x 2160p @120Hz 4:4:4 10bit 5120×2160 @30Hz 5120×2160 @60Hz 4:2:0 5120 x 2880p @60Hz 4:4:4 10bit 7680 x 4320p @60Hz 4:2:0 10bit 10240x4320p @120Hz w/DSC |
Supported Standards | DCI | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100 |
| AUDIO | |||
| Audio Return Channel (ARC) | Supported | Audio Formats | 2ch PCM | Multichannel LPCM | DTS-X | Dolby Atmos |
| Maximum Sampling Rate | 192KHz | Maximum Audio Channels | 32 |
| COMMUNICATION & CONTROL | |||
| HDMI | HDMI 2.1 | HDCP 2.3 | EDID | CEC (Pass-through) | VRR (Variable Refresh Rate) | ALLM (Auto Low Latency Mode) | FVA (Fast Vactive) | ||
| POWER | |||
| Power Consumption | 12V DC 1A | Max Power Consumption | 3.5W |
| ENVIRONMENTAL | |||
| Maximum BTU | 12BTU/hr | ESD Protection | Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
