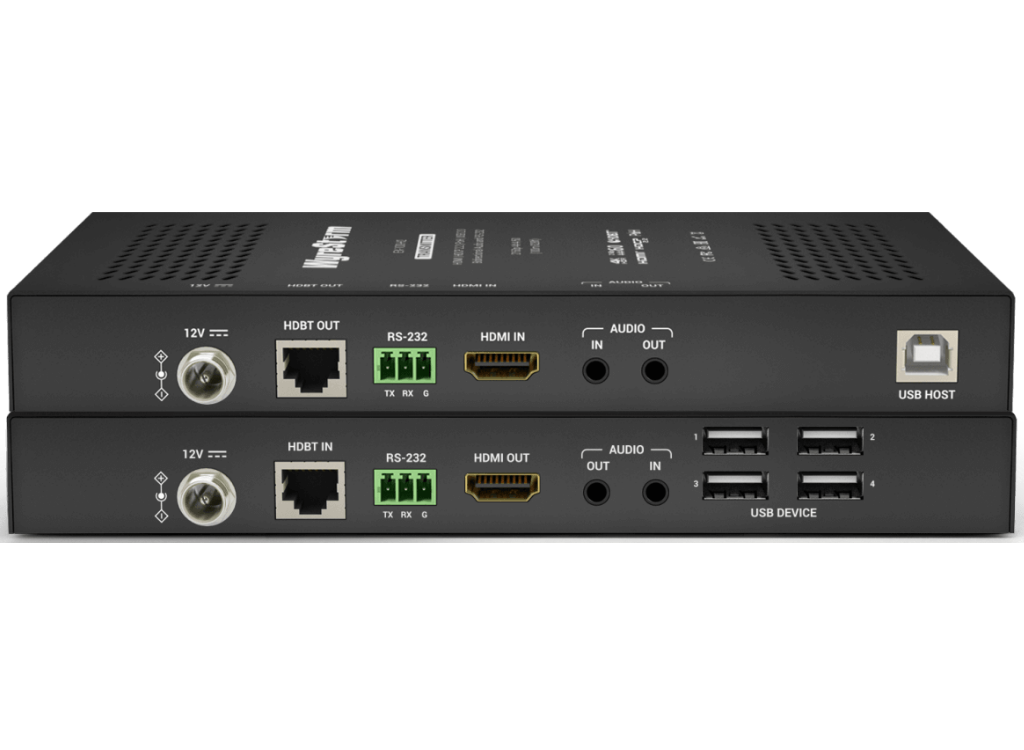

WyreStorm EX-100-H2 100m 4K HDBaseT Extender with USB
The EX-100-H2 uses the powerful HDBaseT 2.0 chipset to send along 4K, USB, PoH and HD audio up to 100m/328ft with a single Cat 6 cable. This extender hosts the perfect combination of features to give you the tools you need to set up your next conference or presentation. With separate audio lanes, you’re free to send audio independently to overlay your presentation.
With data transfers in mind, the EX-100-H2 is equipped with the fastest USB hardware HDBaseT is currently capable of; USB 2.0 and up to 190Mbps, which is everything you need to set up HD webcams, smart whiteboards, transfer data and so much more!
HDBASET SPEC 2.0
Featuring the powerful Class C HDBaseT chipset, UHD video & audio, USB, RS-232 and PoH are sent and distributed losslessly over distances of 100m/328ft.
USB 2.0 PASSTHROUGH
Equipped with the HDMI USB extender 2.0 spec, the EX-100-H2 not only provides KVM functionality for extension of keyboard/mouse or touchscreen, but also transfers the highest data rate that HDBaseT has to offer of 190Mbps, for webcams, white boards and USB data drives.
BIDIRECTIONAL AUDIO LANE
Two separate audio feeds can also be sent bidirectionally, thanks to a dedicated audio pass-through that allows 2ch analog to be sent and received at either end completely independent of the HDMI signal.
POWER OVER HDBASET
A standard feature in most WyreStorm extenders, simply power the transmitter side of the extender and the receiver will power over the category cable. Reducing points of failure and making installation easier.
In the Box
1x EX-100-H2 Transmitter
1x EX-100-H2 Receiver
1x 12V DC 2A Power Supply (US/UK/EU/AU)
4x Mounting Brackets with screws
2x 3-pin Terminal Blocks
1x QuickStart Guide
-
| Category |
Specification |
| AUDIO & VIDEO |
|
| Inputs |
|

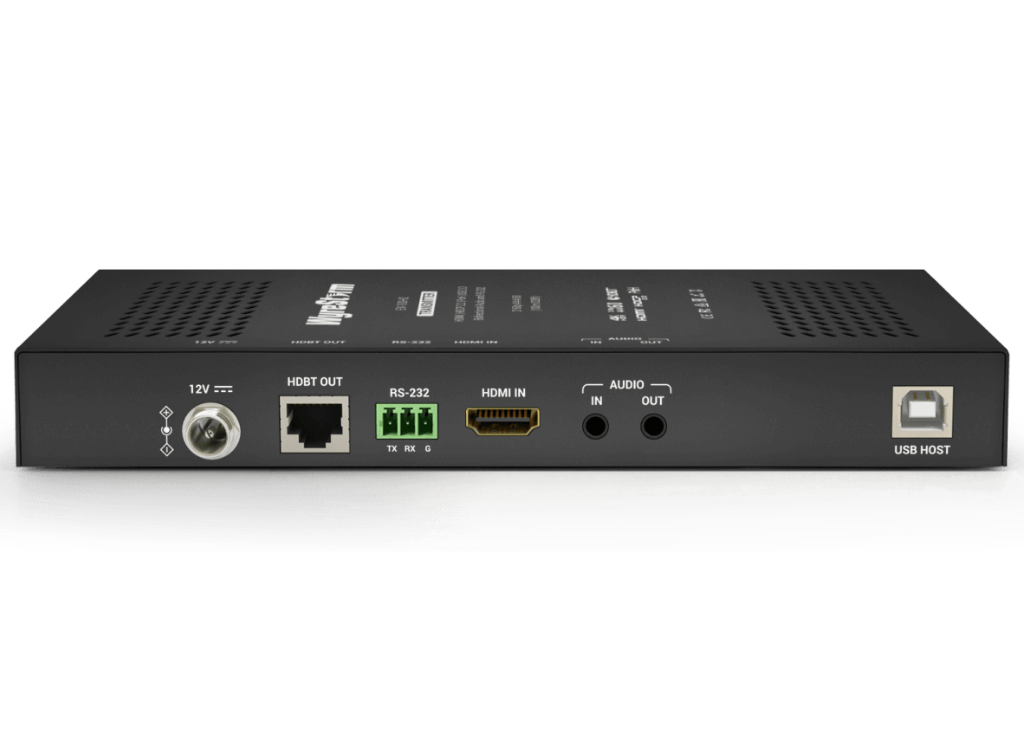

| TRANSMITTER |
1x HDMI: 19-pin type A |
|
1x Audio: 3.5mm (1/8in) TRS Stereo |

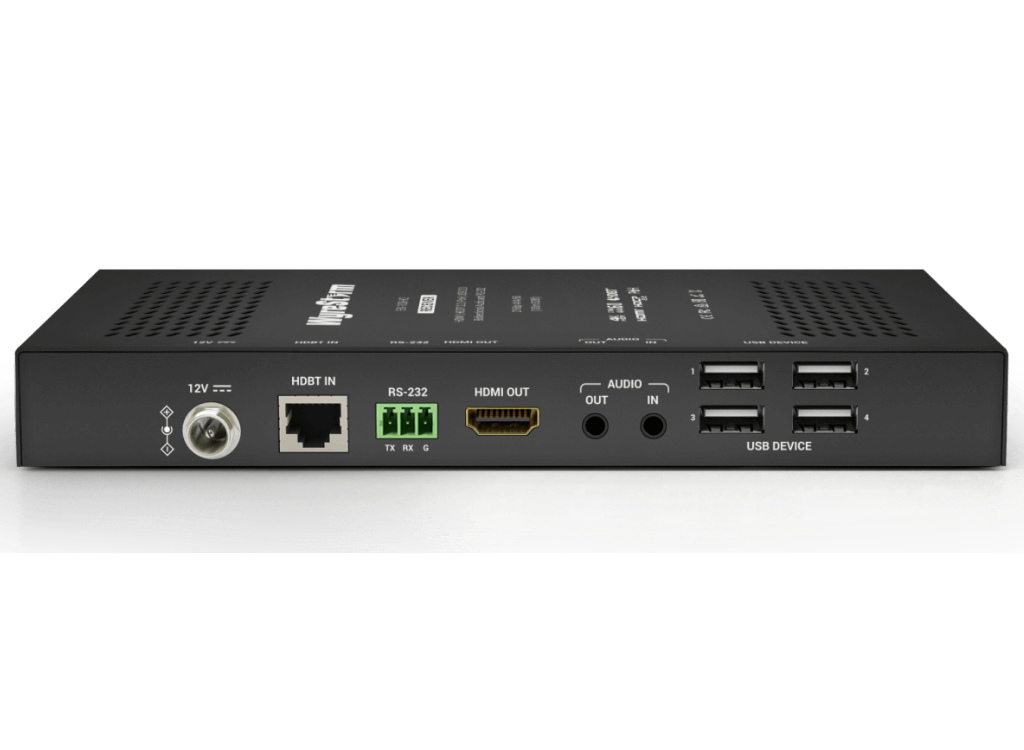

| RECEIVER |
1x HDBT: 8-pin RJ45 Female |
|
1x Audio: 3.5mm (1/8in) TRS Stereo |
| Outputs |
|
|
1x HDBT: 8-pin RJ-45 Female |
|
1x Audio: 3.5mm (1/8in) TRS Stereo |
|
1x HDMI: 19-pin type A |
|
1x Audio: 3.5mm (1/8in) TRS Stereo |
| Output Video Encoding |
HDBaseT Class C |
| Encoding Data Rate |
10.2Gbps |
| End to End Latency |
10μs (microseconds) |
| Audio Formats |
2ch Analog/PCM |
| Video Resolutions (max) |
1920x1080p @60Hz 12bit |
|
3840x2160p @30Hz 8bit 4:4:4 |
|
3840x2160p @30Hz 12bit 4:2:2 HDR |
|
3840x2160p @30Hz 8bit 4:4:4 HDR |
| Supported Standards |
DCI |
| Maximum Pixel Clock |
340MHz |
| COMMUNICATION & CONTROL |
|
| HDMI |
HDMI |
| HDBaseT |
HDMI |
| RS-232 |
1x RS-232: 3-pin Phoenix (Transmitter and Receiver) |
| USB |
1x Type B (host) |
| POWER |
|
| Power Supply |
12V DC 2A |
| Max Power Consumption |
12W |
| Additional Features |
|
|
Supports UHD resolutions including HDR10, HDR10+, HLG, Dolby Vision formats |
|
Extend 4K@60Hz (4:2:0) content up to 100/328ft meters using Cat6a cabling or higher |
|
USB data transfer up to 190Mbps for webcams and peripherals |
|
High-speed USB 2.0 pass-through up to 100 meters/328ft |
|
Supports full CEC passthrough for control via TV remote |
|
PoH powers receiver over category cable |
|
Backwards compatible with HDBaseT 1.0 transmission devices |
|

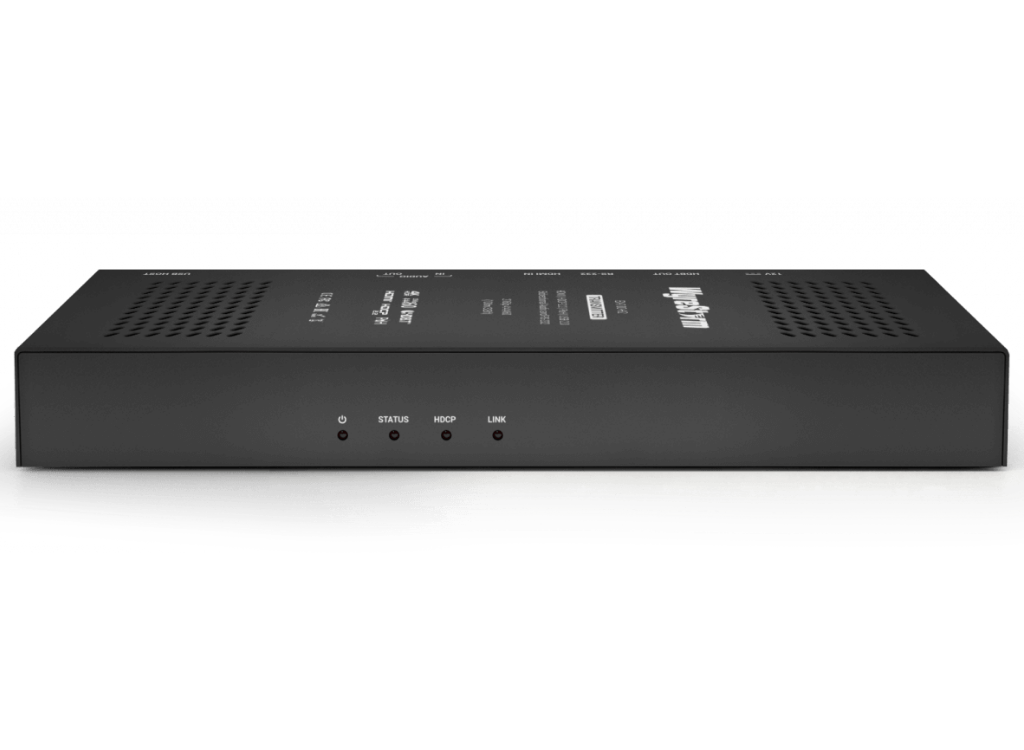

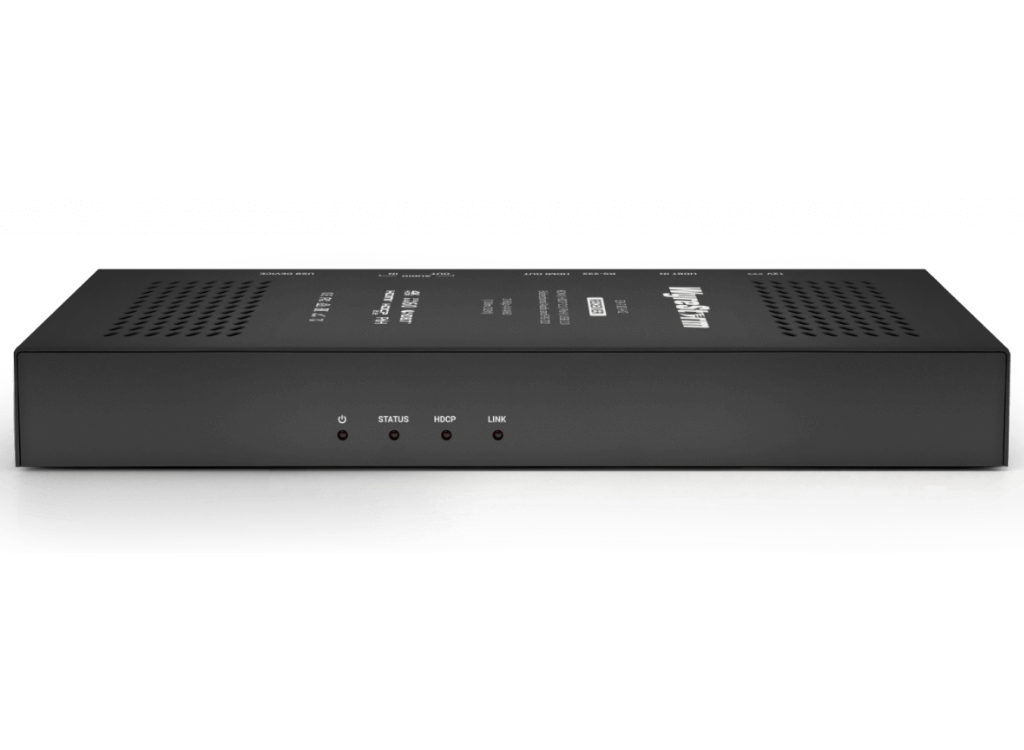

LED indication for power supply, signal status, HDCP, and transmission link status |
|
Locking DC power jacks |
|
Includes 12V DC PSU with US, UK, EU & AU Power cables |
|
Mounting brackets included |
-
