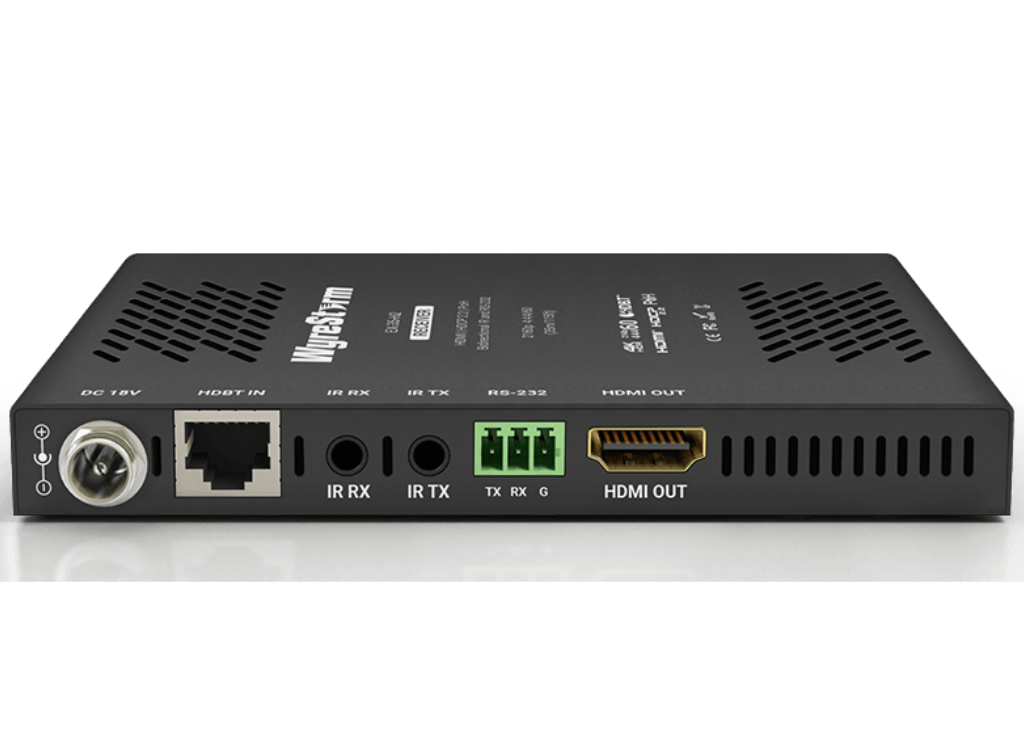

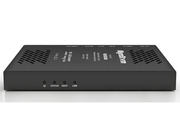

WyreStorm EX-35-H2 35m 4K60 HDBaseT Extender
Part of the latest generation of WyreStorm 4K extenders for the latest generation of 4K HDR content, the EX-35-H2 features dynamic compression technology to enable high frame rate HDR-10 and HLG content to be transmitted over standard 10Gbps HDBaseT, both visually losslessly and without latency.
HDMI 2.0 MAXED-OUT
Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve implemented our VLC chipset (Visualy Lossless Compression) into this model meaning it’s ready for the next shift in content technology: 60Hz HDR and 4:4:4 60Hz.
HDCP 2.2 COMPLIANT
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted. Being part of the H2 product family, the EX-35-H2 supports the multi-point distribution of this content over HDBaseT.
SIGNAL RE-CLOCKING
Installers shouldn’t experience problems because of source equipment they have no control over. That’s why all extenders in the WyreStorm H2 family automatically “re-clock” the source signal, overcoming clock-stretching issues found in certain source devices.
FLEXIBLE INSTALLS WITH 2-WAY POH
No 2 installs are the same; that’s why we’ve enabled all of the H2 extender line up to be powered from either the TX or RX, meaning maximum flexibility on-site without hunting for a mains outlet.

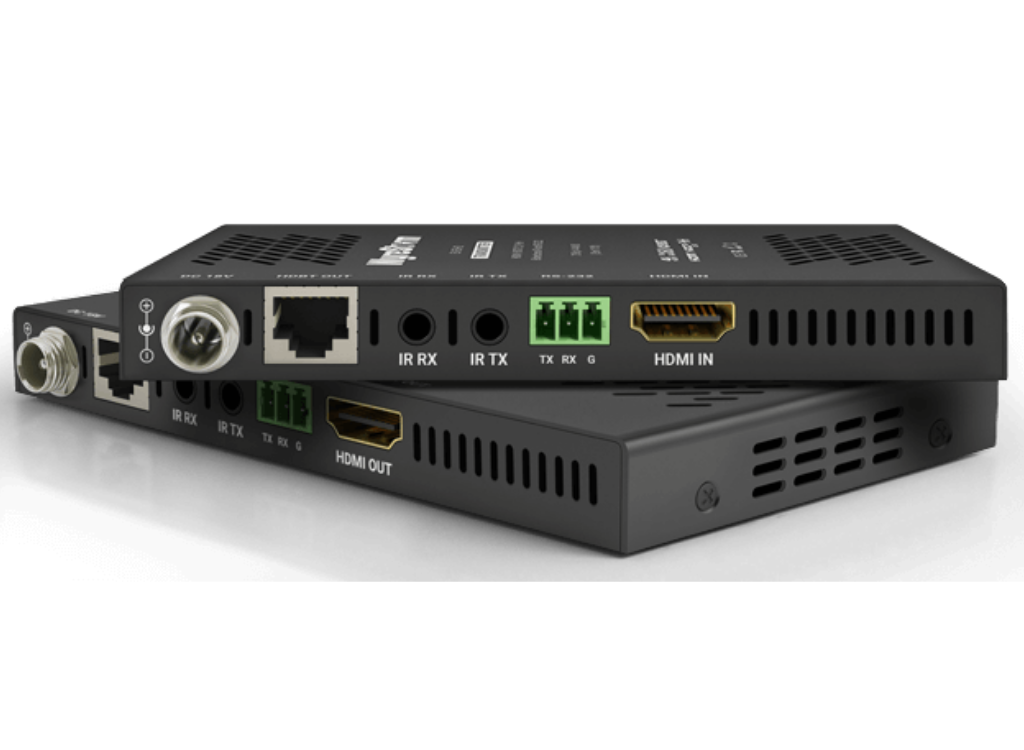

In the Box
1x EX-35-H2 Transmitter
1x EX-35-H2 Receiver
1x 18V DC 1A Power Supply (US/UK/EU)
2x 3-pin Screw Down Phoenix Connectors
1x IR Emitter
1x IR Receiver
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide
-
| Category |
Specification |
| AUDIO & VIDEO |
|
| Inputs |
|
| TRANSMITTER |
1x HDMI: 19-pin type A |
| RECEIVER |
1x HDBaseT: 8-pin RJ-45 Female |
| Outputs |
|
| TRANSMITTER |
1x HDBT: 8-pin RJ-45 Female |
| RECEIVER |
1x HDMI: 19-pin type A |
| Output Video Encoding |
HDBaseT™ Class A |
| Encoding Data Rate |
18Gbps |
| End to End Latency |
10μs (microseconds) |
| Audio Formats |
2ch Analog/PCM |
| Video Resolutions (max) |
1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards |
DCI |
| Maximum Pixel Clock |
HDMI: 600MHz |
| COMMUNICATION & CONTROL |
|
| HDMI |
HDMI 2.0 |
| HDBaseT |
HDMI 2.0 |
| IR |
1x IR TX 3.5mm (1/8in) Mono |
| RS-232 |
1x 3-pin Screw Down Phoenix Connector |
| POWER |
|
| Power Supply |
18V DC 1A |
| PoH |
48V 15.4W |
| Max Power Consumption |
8.88W |
| Additional Features |
|
| Extender Capability |
4K UltraHD extender set transmitting AV content over Cat6 cable |
| Resolution Support |
Supports 4K UHD @30Hz 4:4:4 24bit |
| Chipset |
Revised chipset increases compatibility with new 4K UHD source devices |
| Control Signals |
Transmits bidirectional IR/RS-232 control signals over a single Cat5e/6 cable |
| Chassis Size |
Low profile 15mm for easier installation behind screens |
| Audio Support |
2ch PCM and 7.1 multichannel audio up to DTS-X and Dolby Atmos |
| RS-232 Function Mode |
Switchable mode for firmware updates |
| Power Supply |
Threaded bushings for standard and locking DC power plugs |

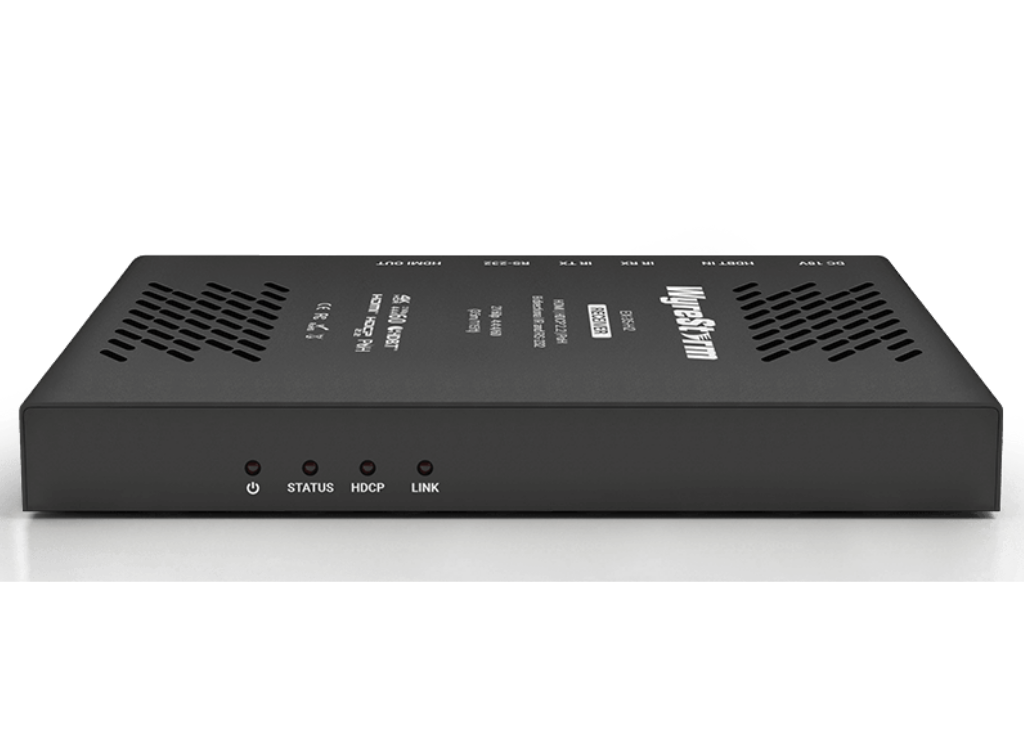

| LED Indication |
Visual indication for power, display connection, signal status, HDBaseT™ link, HDCP |
| Cable Termination |
Follows IEEE-568B standards |
| Signal Adjustment |
Automatically adjusts feedback, equalization, and amplification for easy installation |
| Power Supply |
Energy-efficient universal power supply included |
-
