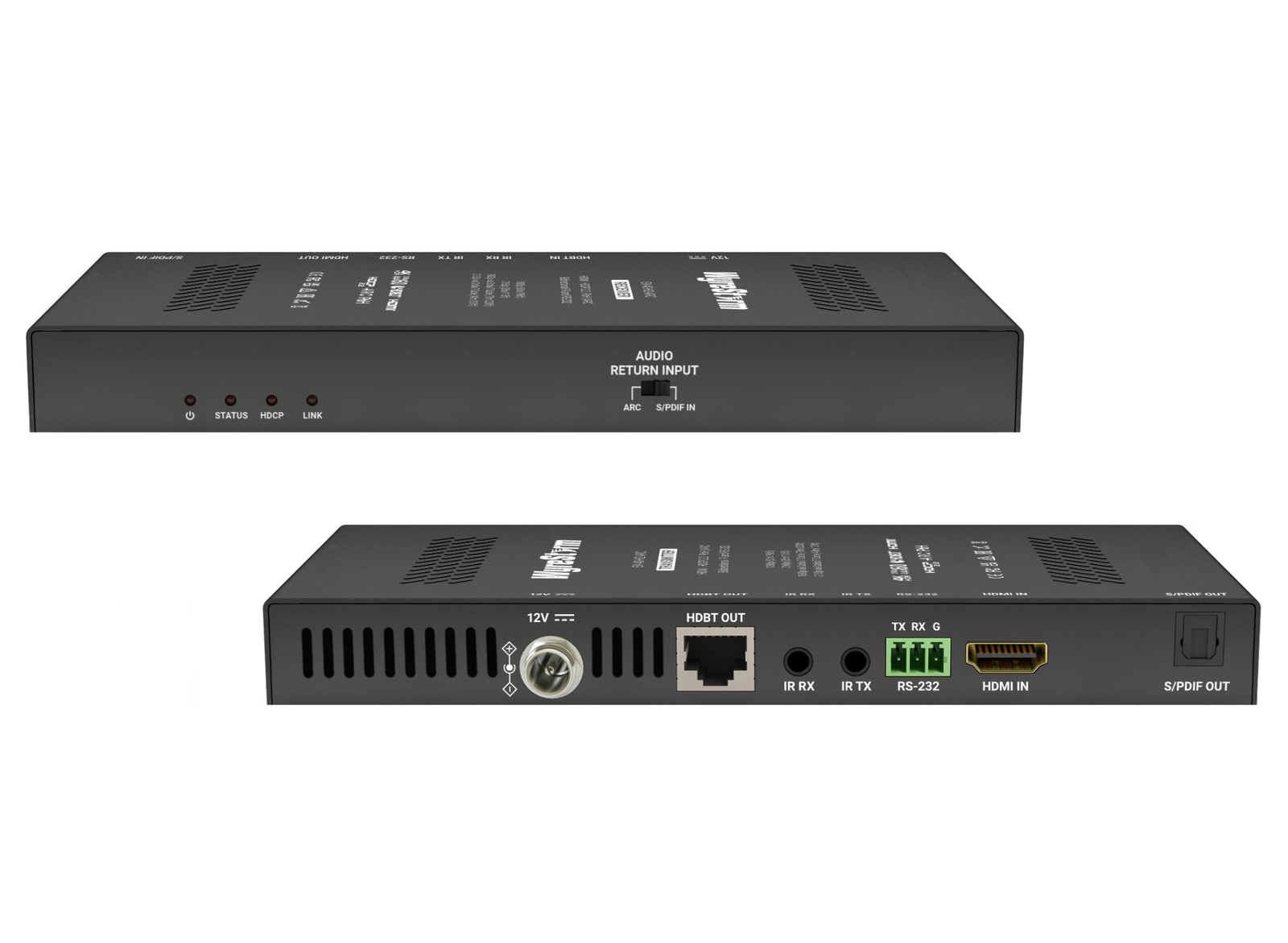

The EX-40-H2-ARC is a 4K60 4:4:4 HDBaseT 2.0 extender designed for residential applications that demand audio return flexibility. Featuring ARC and S/PDIF pathways from RX to TX and analog audio breakout from the HDMI input, this unit is the perfect fit for installations involving modern TVs and legacy audio systems.
4K HDR
Supports 4K@60Hz 4:4:4 over 40m with full HDR compatibility
AUDIO RETURN CHANNEL

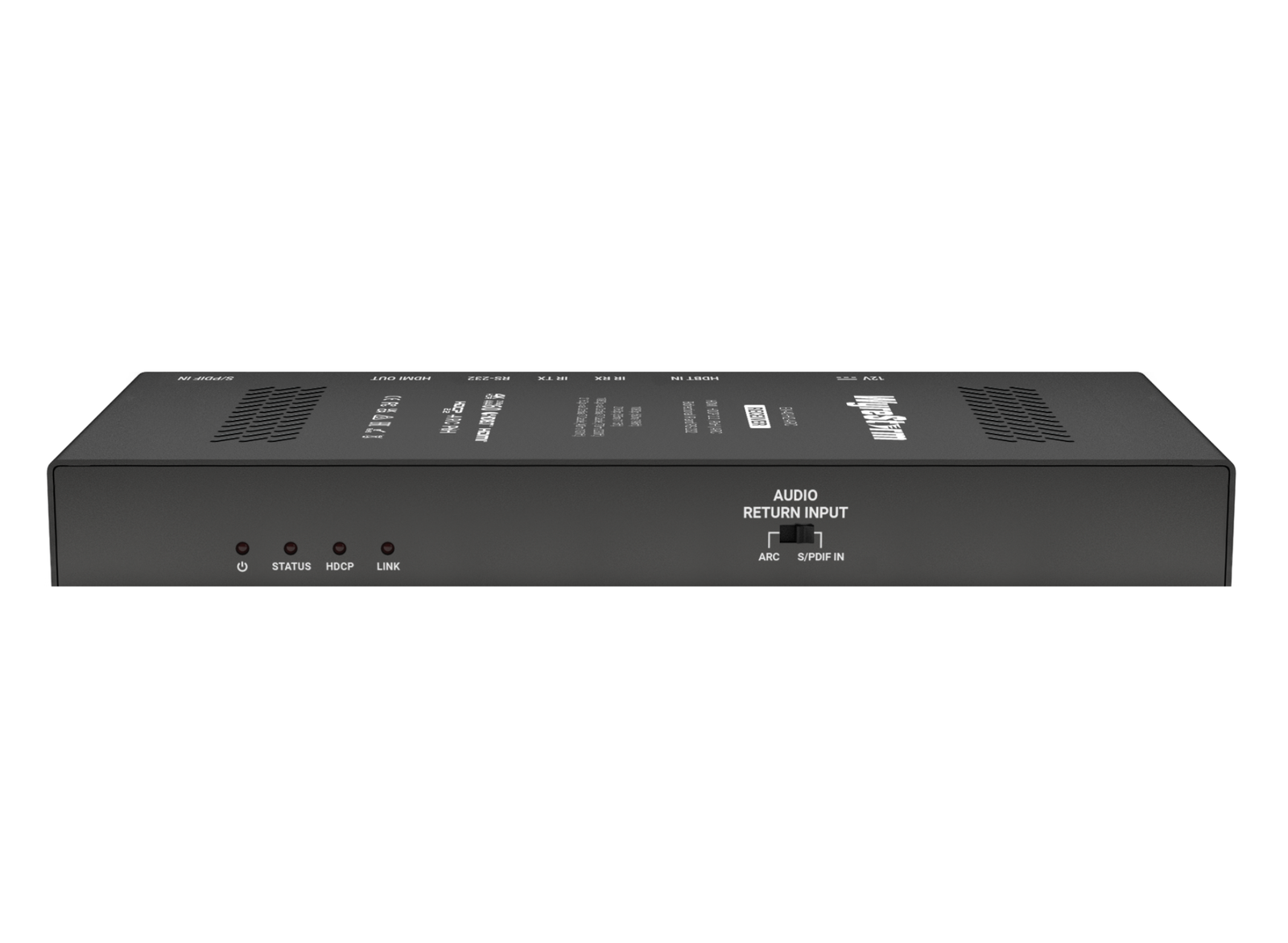

Audio Return Channel (ARC) or S/PDIF return from RX to TX
AUDIO BREAKOUT

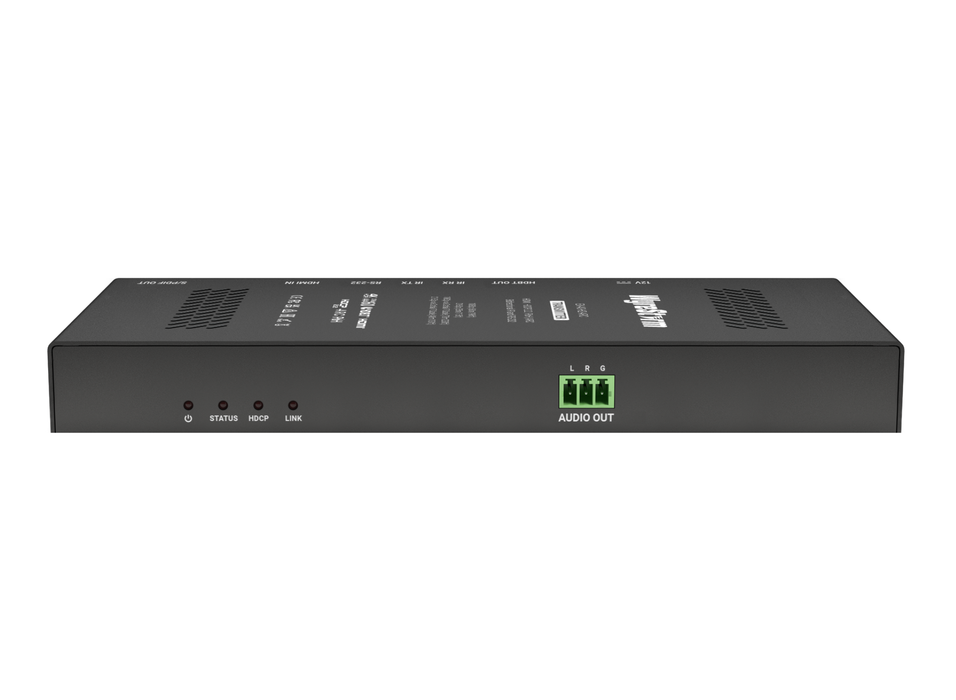

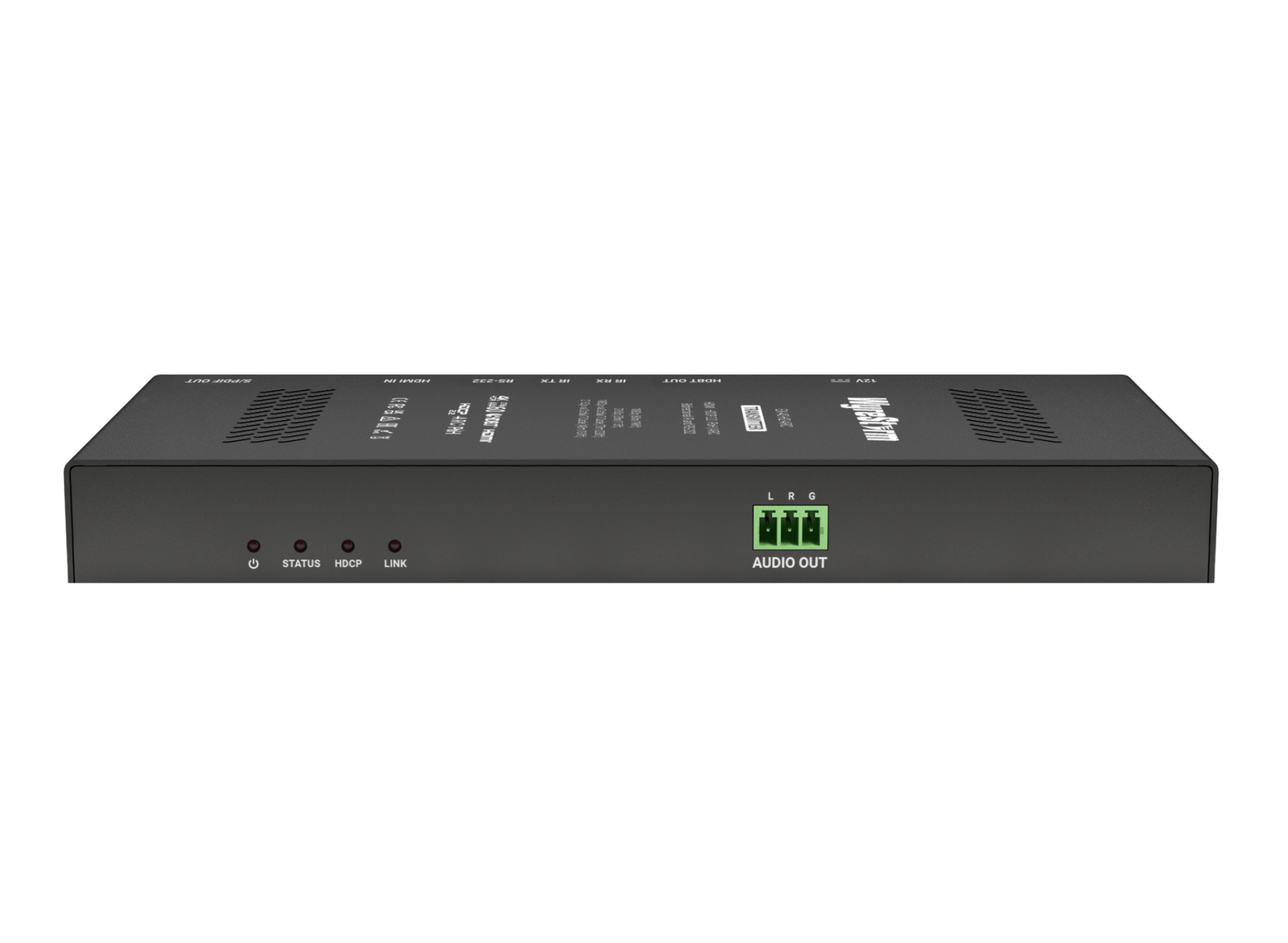

Analog 2ch audio breakout for legacy amplifier integration
SIMPLE SETUPS
Bi-directional PoC, IR, and RS-232 for simplified wiring and control.
In the Box
1x EX-40-H2-ARC Transmitter
1x EX-40-H2-ARC Receiver
1x 12V DC 3A Power Supply (US/EU/UK/AU)
3x 3-pin Screw Down Male Phoenix Connectors
1x IR Receiver
1x IR Transmitter
4x Mounting Brackets (2x TX | 2x RX)
1x Quickstart Guide

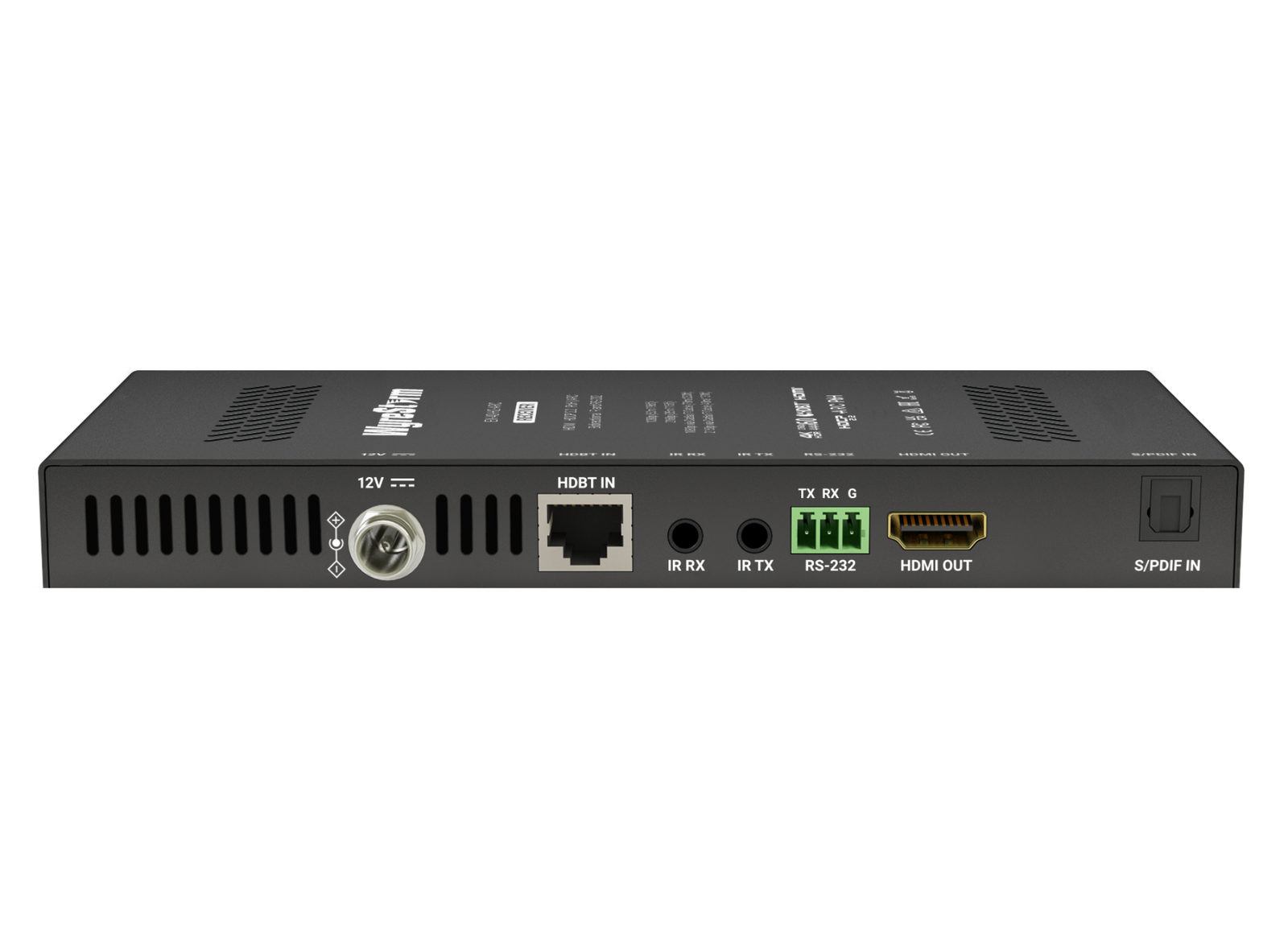

| Inputs | 1x HDMI (TX), 1x HDBaseT (RX) | Outputs | 1x HDMI (RX), 1x HDBaseT (TX), 1x Toslink, 1x Analog 3-pin Phoenix |
| End to End Latency | <1ms | Resolutions Supported | 800×600, 1024×768, 1280×768, 1280×800, 1280×960, 1280×1024, 1360×768, 1366×768, 1440×900, 1600×900, 1600×1200, 1680×1050, 1920×1080, 1920×1200, 3840×2160, 4096×2160 |
| Input Signal Type | HDMI with HDCP 2.2 | Maximum Pixel Clock | 600 MHz |
| Maximum Data Rate | 18Gbps | Video Resolutions (Max) | Up to 4096×2160 @ 60Hz 4:4:4 |
| Audio Formats Supported | HDMI: PCM 2.0/5.1/7.1, Dolby TrueHD, Atmos, DTS:X S/PDIF and ARC: PCM 2.0, Dolby Digital, DTS 5.1 |
Transmission Distance | Cat 5e/6: 35m/115ft 4K@60Hz 4:4:4 60m/197ft 1080P@60Hz Cat 6a/7: 40m/131ft 4K@60Hz 4:4:4 70m/197ft 1080P@60Hz HDMI: Input/Output: 15m/49ft 1080p@60Hz Input/Output: 10m/33ft 4K@30Hz 4:4:4 Input/Output: 5m/16ft 4K@60Hz 4:4:4 |
| HDMI | HDCP 2.2 | EDID | CEC (transparent on ARC) | RS-232 | Bi-directional, 3-pin Phoenix |
| IR | Bi-directional, 3.5mm TRS | Power Supply | DC 12V/3A |
| Max Power Consumption | Receiver is powered by transmitter: 18.72W Transmitter is powered by receiver: 18.96W Transmitter and receiver are powered separately: Transmitter: 8.4W Receiver: 6.6W |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) | Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge) | Height x Width x Depth | 21mm / 0.83in x 195mm / 7.68in x 94.8mm / 3.73in |
| Weight | Transmitter: 0.4kg/0.88lb Receiver: 0.4kg/0.88lb |
Safety and Emission | CE | FCC | RoHS | RCM | EAC | UKCA |
| Description | Downloads |
|---|---|
| Datasheet | Download |
