WyreStorm EX-70-G2 70m 4K HDBaseT Extender
Super-compact HDBaseT extender set capable of transmitting 4K UHD video and HD audio formats up to 35m/115ft of Cat5e cable. Also compatible with HDCP2.2 protected content, the EX-70-G2 has powerful bi-directional pass-through of CEC, IR and RS-232. 2-way PoH means device can be powered from either end for flexible installation options.
UHD & HD BEST OF BOTH WORLDS
We might live in a 4K world, but not every application needs it. Compatible with the latest 4K/60 and 1080p sources alike, the EX-70-G2 delivers whatever content you have, wherever its needed.
2-WAY POH FOR FLEXIBLE INSTALL
No two installs are the same, which is why the EX-70-G2 and all H2 Series extenders can be powered from either TX or RX side for the most convenient and flexible installation imaginable.
SMALL BUT POWERFUL
Weighing in for the featherweight title at just 15mm thick, the EX-70-G2 can be installed just about anywhere, but still packs the punch to deliver video, audio, control and power like a champ.
BIDIRECTIONAL CONTROL WHATEVER THE PROTOCOL
Need to send control signals both up and downstream? The EX-70-G2 has you covered with IR, RS-232 and even CEC signals able to be passed-through, end-to-end bidirectionally for simultaneous source & display control.
In the Box
1x EX-70-G2 Transmitter
1x EX-70-G2 Receiver
1x 18V DC 1A Power Supply (US/UK/EU/AU)
1x IR Emitters
1x IR Receivers
2x 3-pin Screw Down Male Phoenix Connectors
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide
-
| Category |
Specification |
| AUDIO & VIDEO |
|

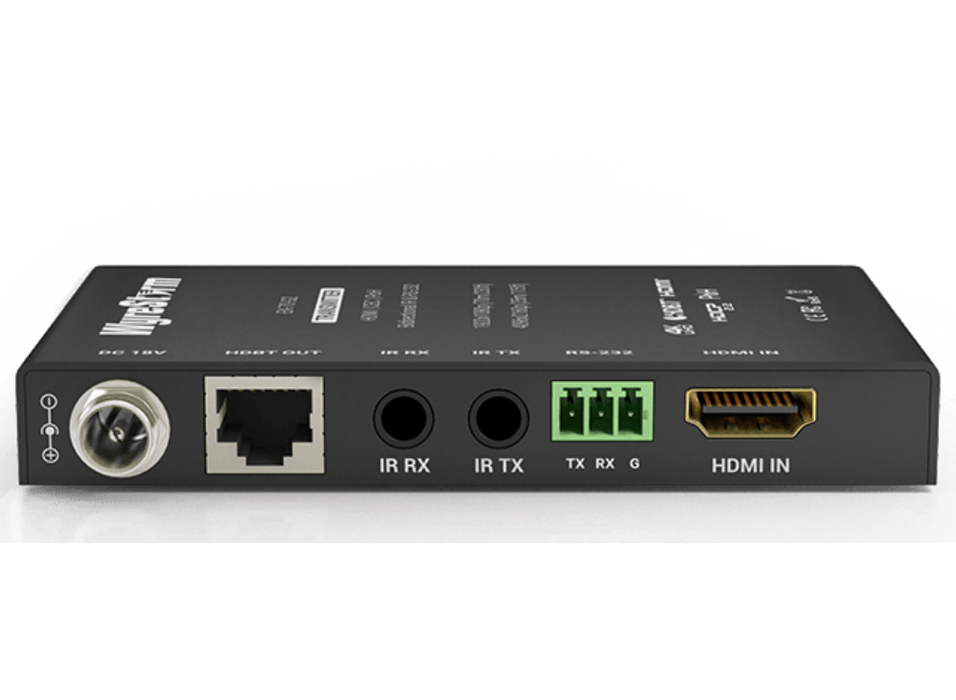

| Inputs (Transmitter) |
1x HDMI 19-pin type A |

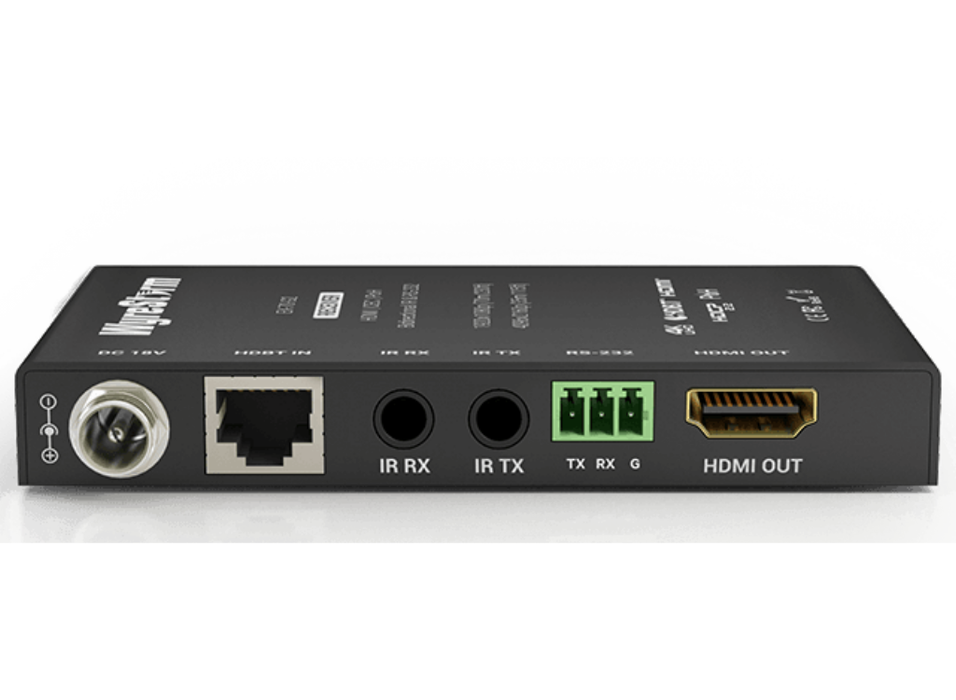

| Inputs (Receiver) |
1x HDBaseT 8-pin RJ-45 Female |
| Outputs (Transmitter) |
1x HDBaseT 8-pin RJ-45 Female |
| Outputs (Receiver) |
1x HDMI 19-pin type A |
| Output Video Encoding |
HDBaseT Class B |
| Encoding Data Rate |
9.2Gbps |
| End to End Latency |
10μs (microseconds) |
| Audio Formats |
2ch PCM, Multi Channel (up to Dolby Atmos® and DTS-X™) |
| Video Resolutions (Max) |
1920x1080p @60Hz 16bit, 3840x2160p @30Hz 8bit 4:4:4, 3840x2160p @60Hz 8bit 4:2:0, 4096x2160p @60Hz 8bit 4:2:0 |
| Supported Standards |
DCI, RGB |
| Maximum Pixel Clock |
HDMI: 300MHz, HDBaseT: 297MHz |
| COMMUNICATION & CONTROL |
|
| HDMI |
HDMI |
| HDBaseT |
HDMI |
| IR |
1x IR TX: 3.5mm (1/8in) TS Mono, 1x IR RX: 3.5mm (1/8in) TRS Stereo |
| RS-232 |
1x RS-232: 3-pin Phoenix (v2 chassis only) |
| POWER |
|
| Power Supply |
18V DC 1A |
| PoH |
IEEE 802.3af 15.4W Max |
| Max Power Consumption |
Transmitter: 7W |
| Additional Features |
|
| Extension Range |
Extends 4K UHD video content to 35m/115ft |
| 4K UHD Compatibility |
Compatible with 2160p 4:2:0 60Hz or 4:4:4 & RGB 30Hz Content |
| HDCP Compliance |
HDCP 2.2 encryption compliant |
| 1080p HDMI Extension |
Extends 1080p HDMI signal to 70m/230ft |
| Audio Support |
2ch PCM and multichannel audio supported up to DTS:X and Dolby Atmos |
| EDID Management |
Automatic EDID Management (copy from sink device) |
| CEC Support |
Supports CEC communication between devices |
| Power Connection |
Threaded DC socket for secure power connection |

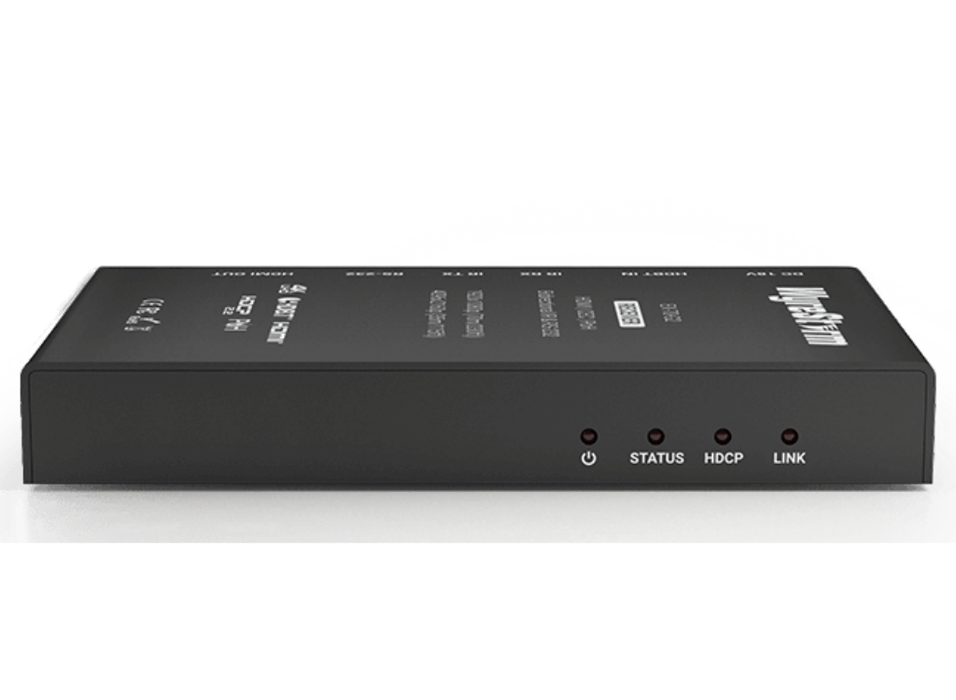

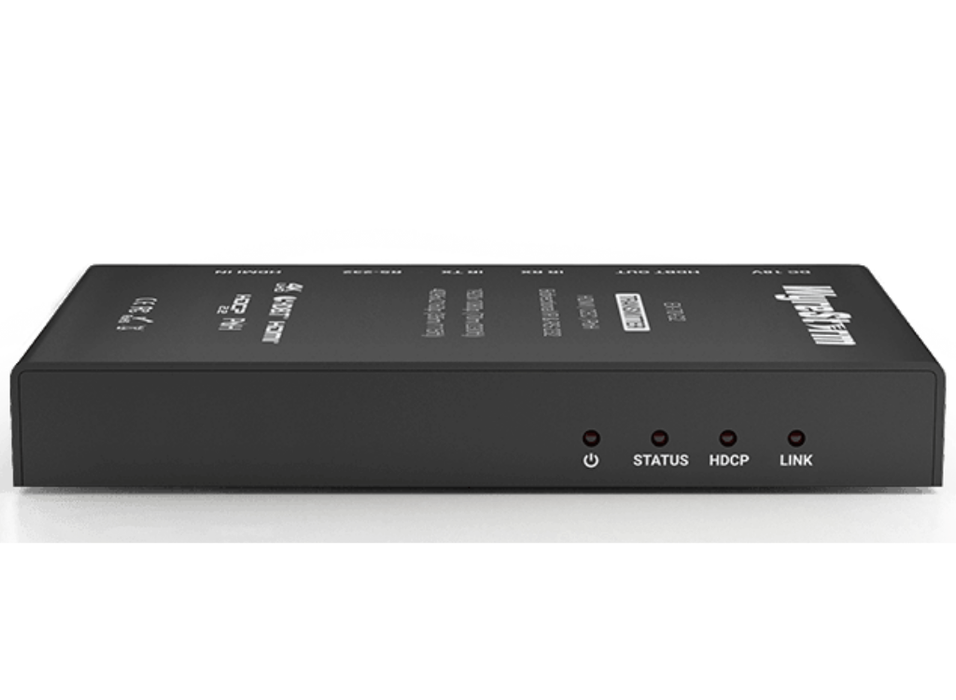

| Visual LED Indication |
Indicates power supply, signal status, HDCP presence, and HDBaseT™ link |
-
