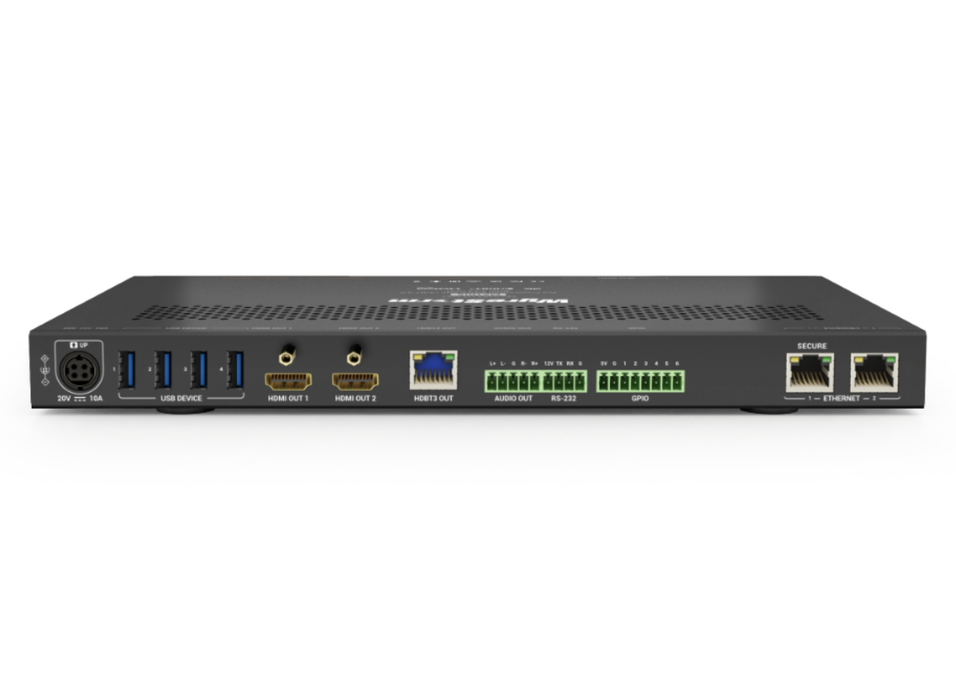

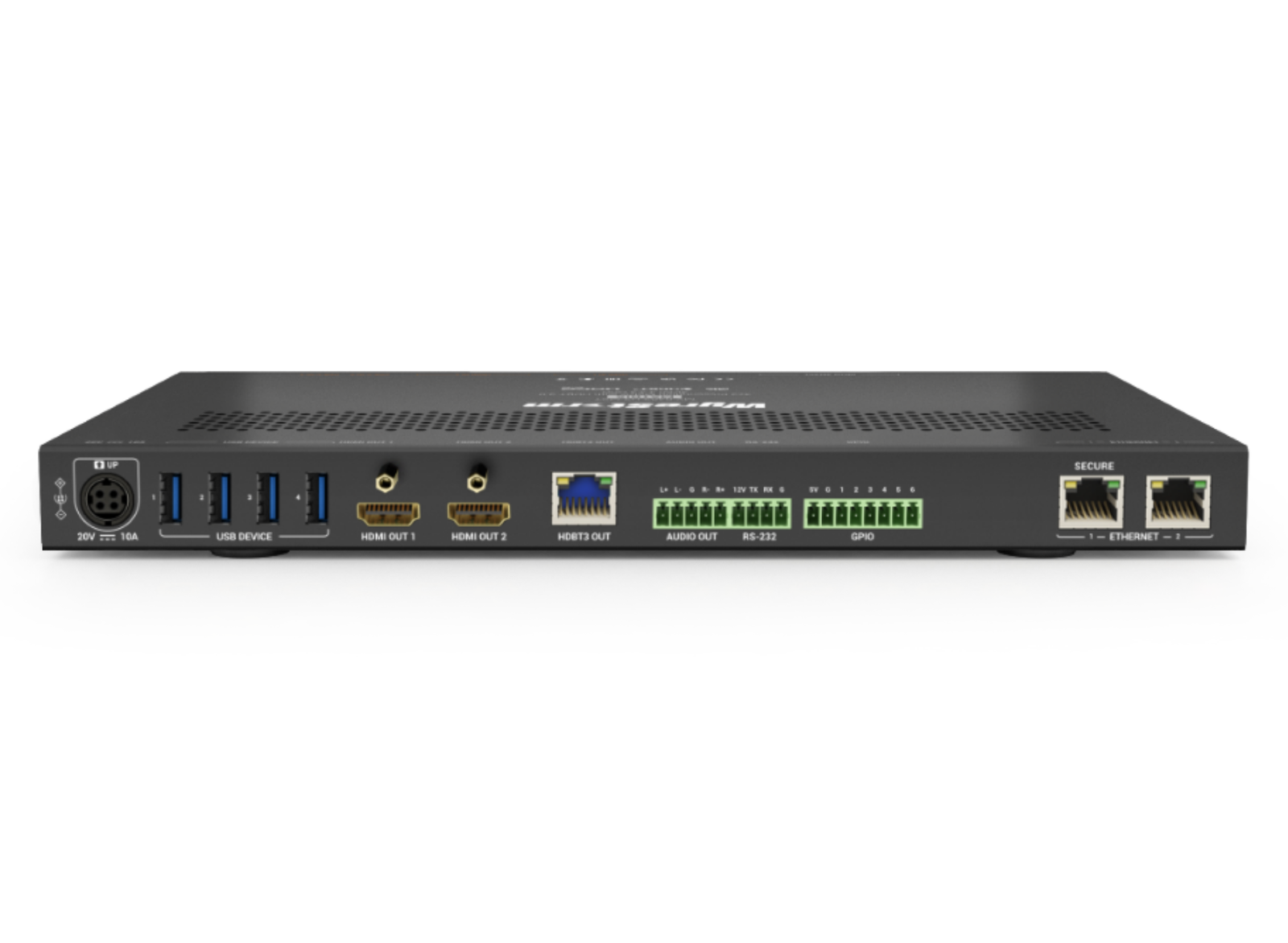

The MX-0403-H3-MST Conference Presentation Switcher builds on the success of the MX-0402-MST by adding an HDBaseT 3.0 output for signal extension of up to 100m. Designed to simplify and enhance your presentation experience, this 4×3 switcher integrates video, audio, USB, control, and Ethernet functionalities. With dual USB-C and dual HDMI inputs, automatic switching capabilities, and advanced USB 3.2 ports, the MX-0403-H3-MST ensures seamless connectivity and control for all your conference needs. Experience crystal-clear 4K video, high-speed data transfer, and efficient power delivery with this state-of-the-art presentation switcher.
COMPREHENSIVE INPUT OPTIONS

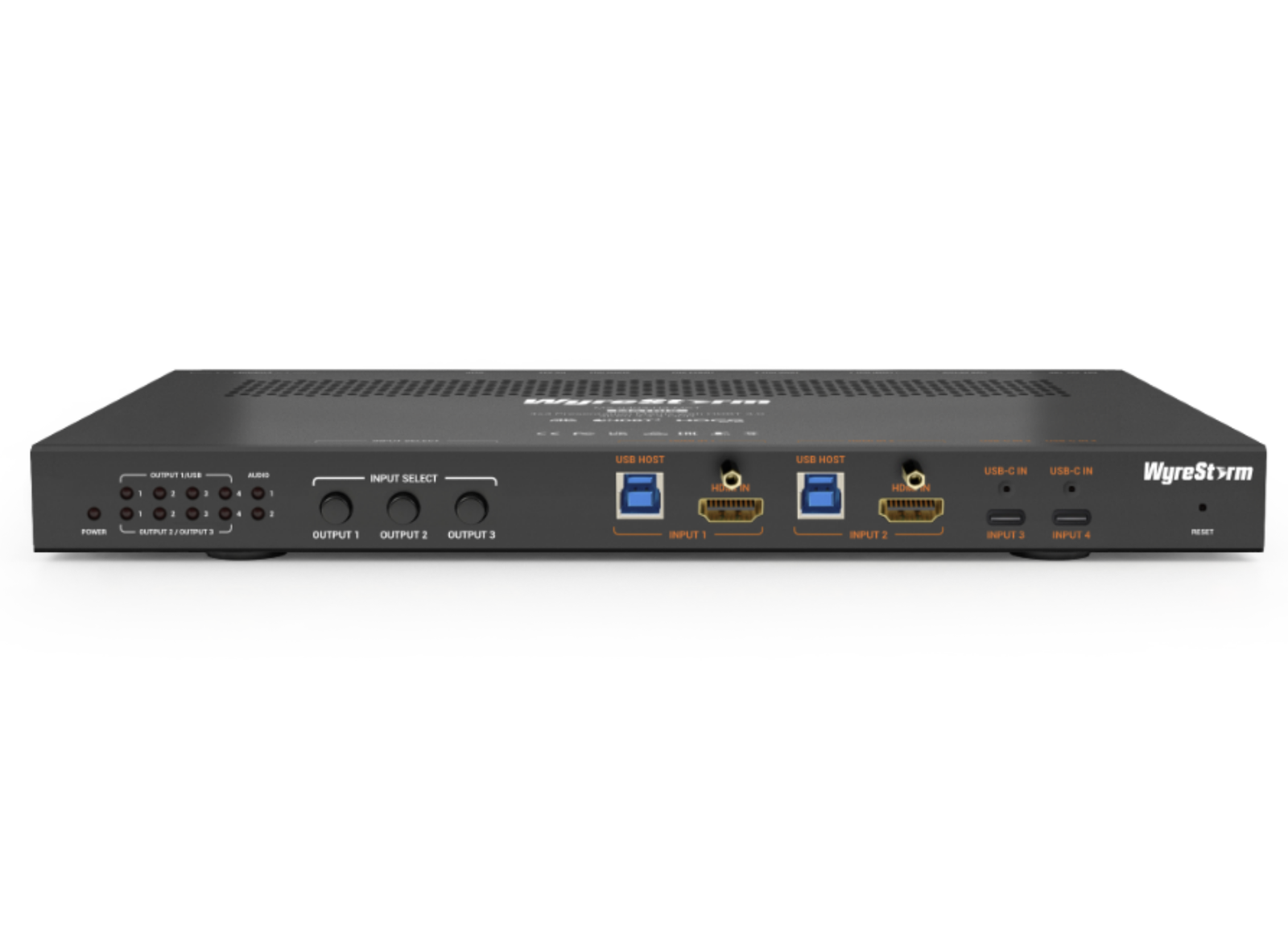

The MX-0403-H3-MST Conference Presentation Switcher features dual USB-C and dual HDMI inputs, allowing for versatile connectivity. Each input port supports cable lock connections, ensuring secure and stable connections for your presentation devices.
ADVANCED USB-C INTEGRATION
Experience the full potential of USB-C with support for 4K video, USB 3.2 data transfer, and 60W charging. The MX-0403-H3-MST also supports dual video output via a single USB-C cable, providing exceptional flexibility for multi-screen presentations.
FLEXIBLE AND AUTOMATIC SWITCHING
The switcher offers multiple switching methods, including automatic switching, priority switching, and independent USB and video switching. This ensures that your presentation flows smoothly, with minimal manual intervention required.
HDBASET OUTPUT
The Switcher also features an HDBT 3.0 output for extension to remote zones (Up to 100m), enabling IP to RS-232 command routing at the display zone for controlling displays and other devices.
In the Box
1x MX-0403-H3-MST
1x 20V 10A Power Supply (US/UK/EU/AU)
2x USB-C 2m cables
2x USB 3.0 A to B 1.8m Cables
4x Mounting Brackets
4x Bracket Screws
1x 5-pin Phoenix Connector
1x 3-pin Phoenix Connector
1x 8-pin Phoenix Connector
1x Quickstart Guide
| Inputs | 2x HDMI In: 19-pin Type A 2x USB-C |
Outputs | 2x HDMI Out: 19-pin Type A 1x Analog Audio Out (5-pin Phoenix Male Connector) 1x HDBaseT3 Out: RJ45 |
| Output Video Encoding | 18Gbps | Audio Formats | USB-C IN/HDMI IN/HDMI OUT: Up to 7.1ch, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X. Analog Audio de-embedding: 2ch Analog/PCM |
| Video Resolution (Max) | 3840x2160p @60Hz 4:4:4 8bit 5120×2160 @30Hz 5120×2160 @60Hz 4:2:0 |
Data Rate | USB-C IN: 10Gbit/s (per lane). HDMI: 18Gbps. USB 3.2: 5Gbit/s. |
| HDR | All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision | Supported Standards | DCI | RGB |
| Maximum Pixel Clock | 600MHz | Power Supply | 20V |
| Max Power Consumption | Up to 200W |
