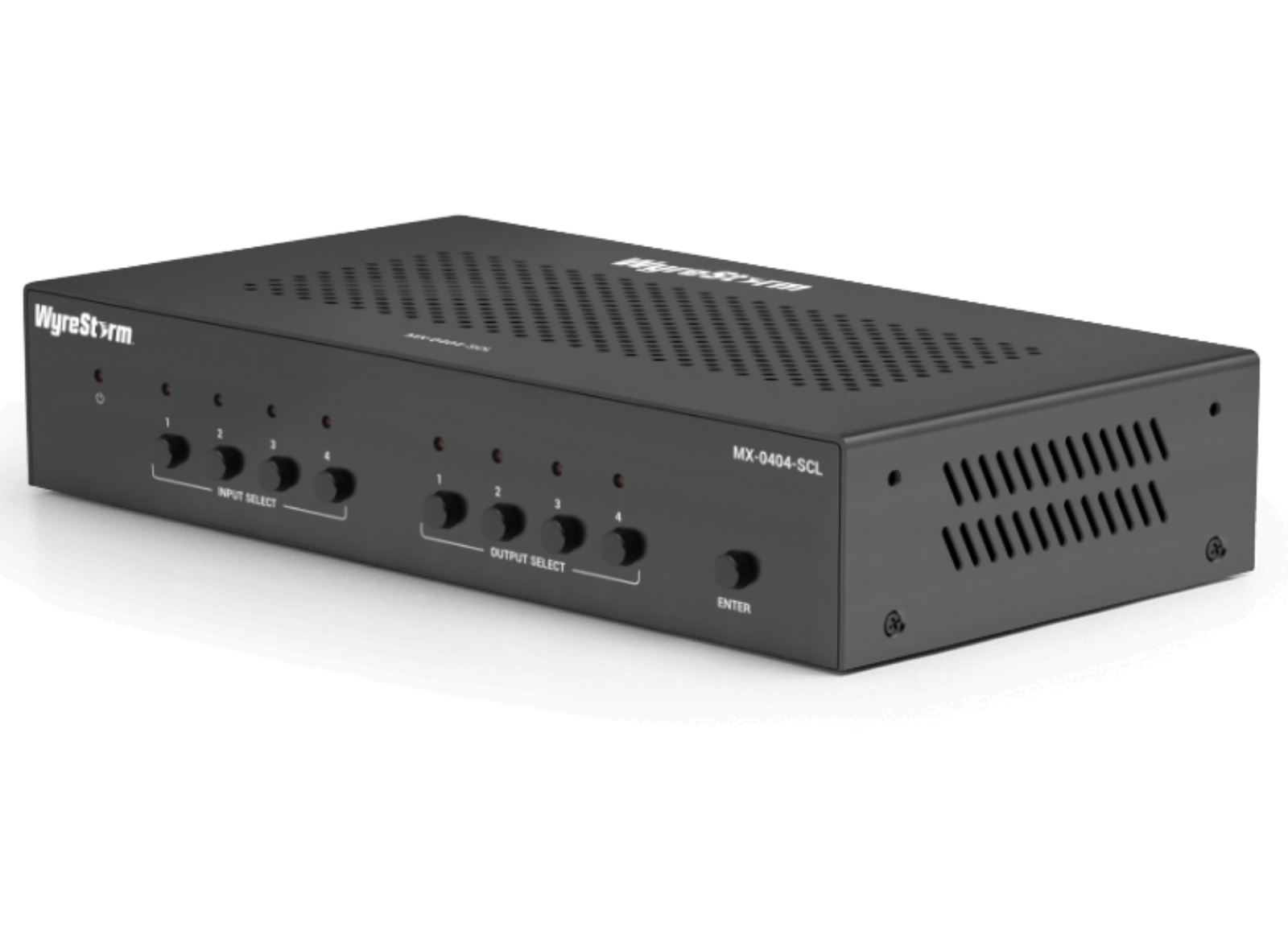

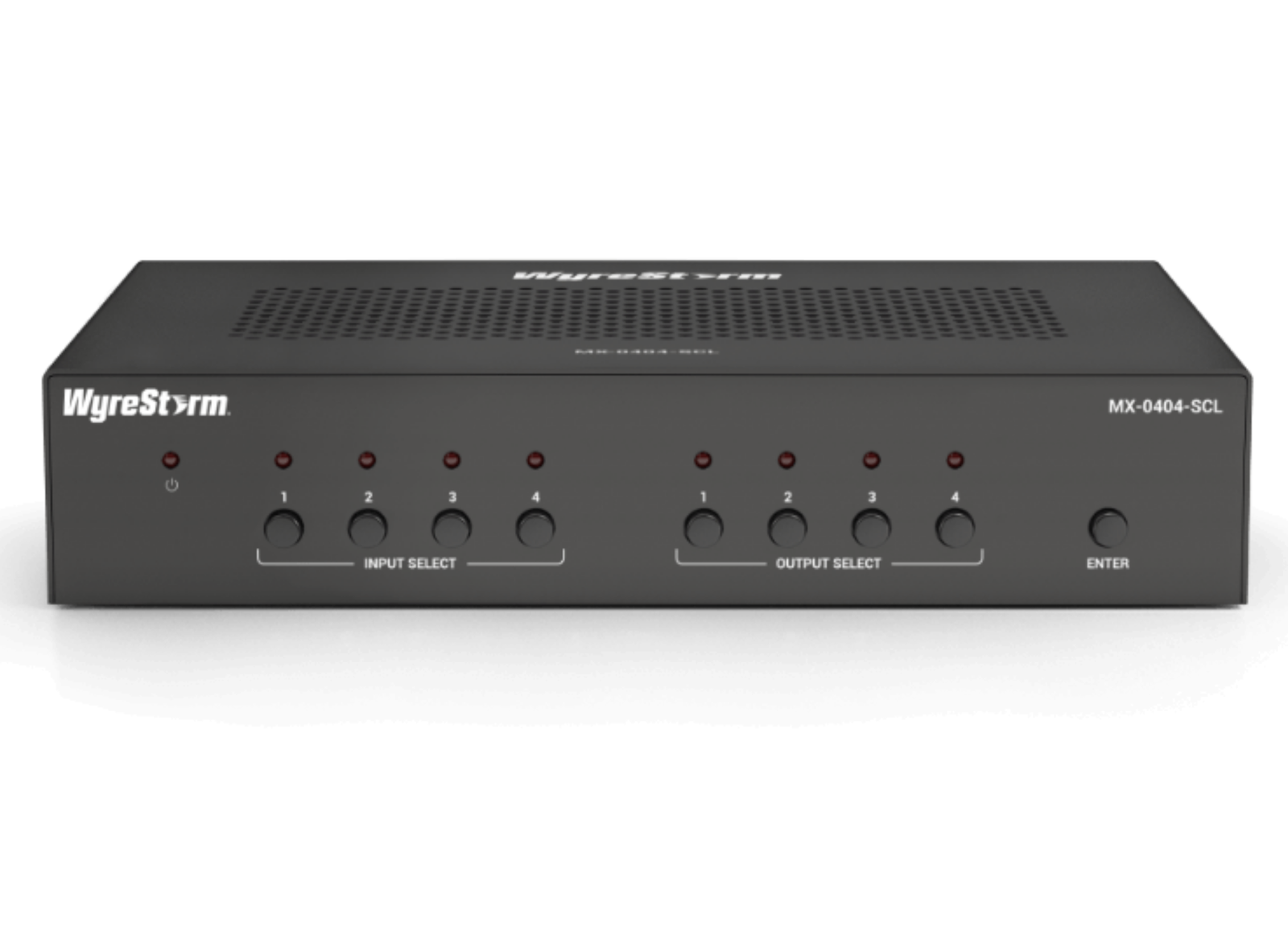

The MX-0404-SCL is a new 4K HDMI matrix switcher that supports seamless switching across all HDMI inputs and outputs. The matrix switcher outputs can be configured to work in different modes to meet different application requirements. In matrix mode, all four HDMI inputs and outputs are active and matrix switching.
AUTOMATIC SCALING OUTPUTS
Each of the 4 outputs on the SCL feature downscalers, allowing support for mixed resolution distribution of HDMI content to 4K and 1080p display simultaneously
AUDIO DE-EMBED
Featuring balanced analog and a digital S/PDIF, easily de-embed audio from either the HDMI outputs to a secondary audio distribution system without the need for external adapters or converters.
SEAMLESS SWITCHING
The Matrix featuring seamless switching, so you will not see a black screen between switching sources to the output display.
HDMI MAXED OUT!
As a standard requirement with the latest WyreStorm products, the SCL supports the latest video formats including 4K HDR and Dolby Vision content all in uncompressed HDMI glory.
In the Box
1x MX-0404-HDMI Matrix Switcher
1x IR Remote Handset
1x IR Receiver
2x Wall Mounting Brackets
2x 5-pin Terminal Block
1x Power Supply 12V 3A (US/UK/EU/AU)

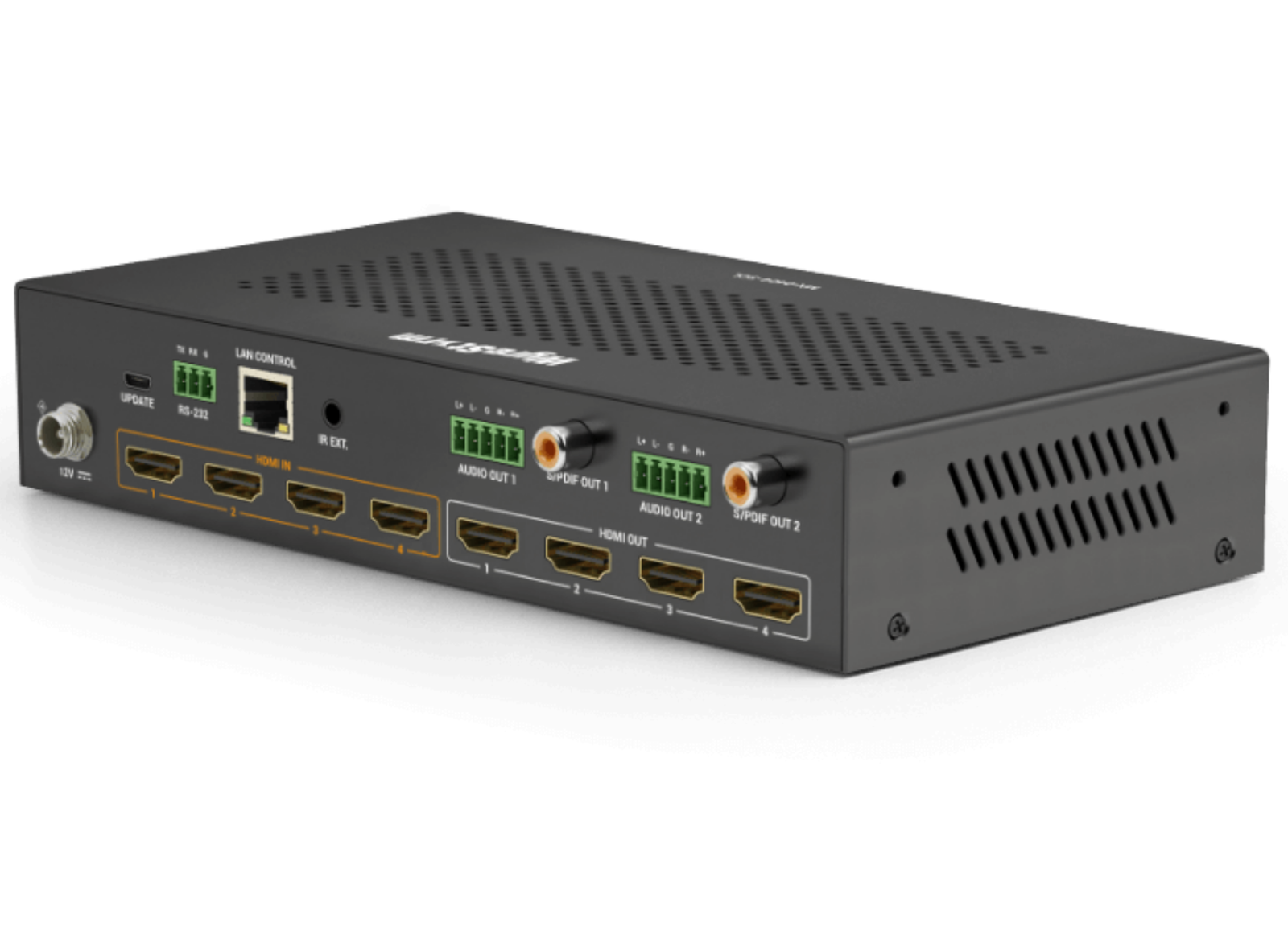

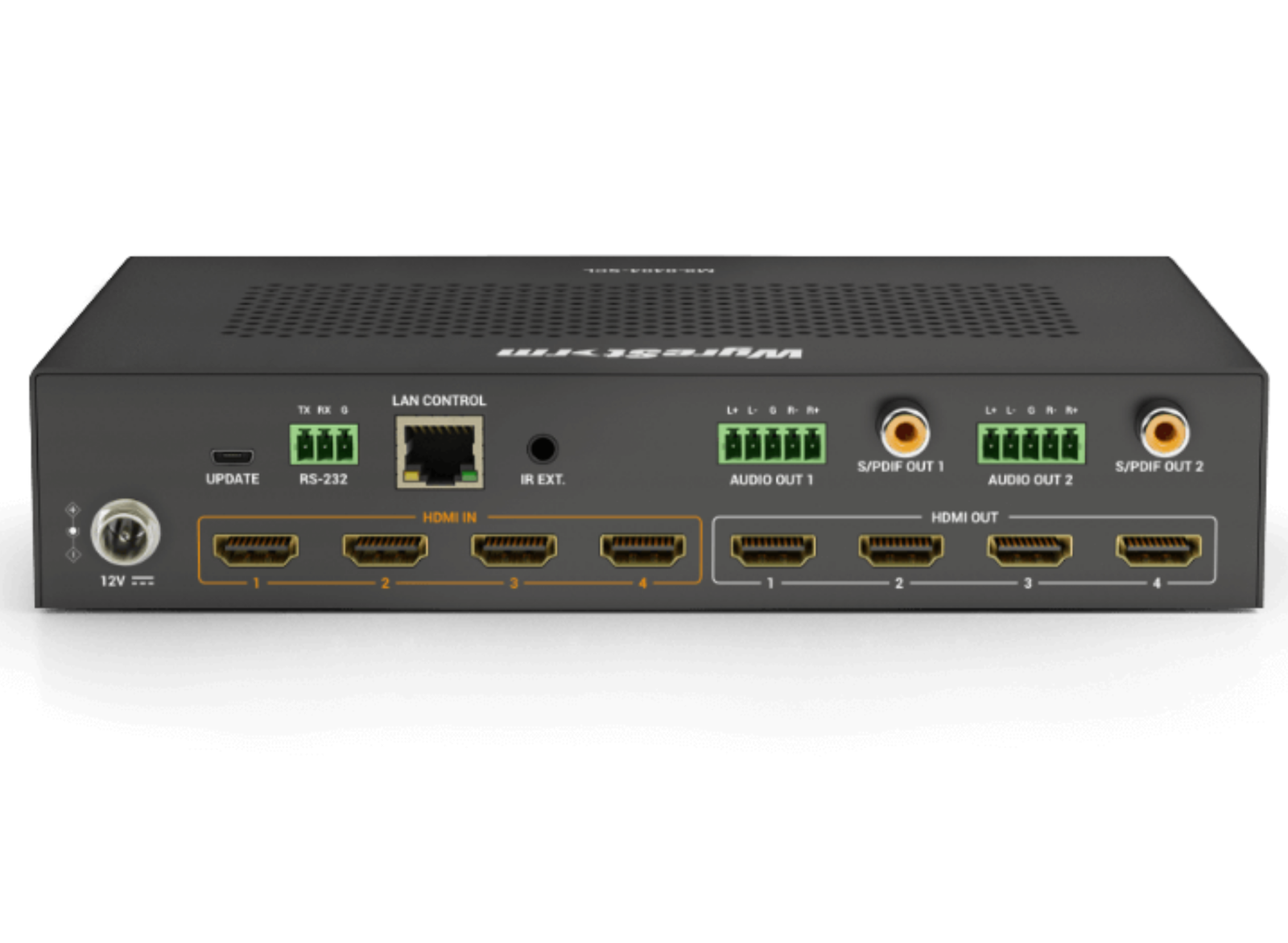

| Inputs | 4x HDMI In: 19-pin type A | Outputs | 4 x HDMI Out 19-pin HDMI type A 2 x 5-pin balanced Analog Audio out 2 x Toslink Digital Audio |
| Audio Formats | 2ch PCM | Multichannel: LPCM and Up to DTS 5.1 | Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @60Hz 10bit 4:2:2 HDR10/10+ 3840x2160p @60Hz 12bit 4:2:0 Dolby Vision 3840x2160p @50Hz 10bit 4:2:2 HLG 4096x2160p @60Hz 8bit 4:4:4 5120×2160 @30Hz |
| Supported Standards | DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100 | Maximum Pixel Clock | 600MHz |
| HDMI | HDMI 2.0 | HDCP 2.2 | EDID | CEC (display power trigger) | RS-232 | 1x 3-Pin Terminal Block | Matrix Control (Telnet commands supported) |
| Ethernet | 1x LAN: 8-pin RJ-45 Female | 10/100 Mbps auto-negotiating | IP Control | Web UI | Power Supply | 12V DC |
| Max Power Consumption | 16W |
| Description | Downloads |
|---|---|
| Datasheet | Download |
