The NHD-500-DNT-TX is part of the powerful NetworkHD 500 series family of products. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. Unique to this encoder is an integrated 2 channel Dante & AES67 audio output.
DANTE & AES67
The integrated 2 channel Dante & AES67 output allows audio to be sent over the network to compatible Dante & AES67 enabled DSPs, amplifiers, mixers and more. Audio can be transmitted via Dante from either the encoder’s HDMI input or a separate analog input.
AUDIO ISOLATION
Dante audio and NetworkHD A/V can be integrated into the same network or separated via a dedicated Dante-only port. If 3rd-party Dante equipment exists on a dedicated network, simply connect the Dante-only port to keep things separate and avoid complicated network configurations.
HDMI 2.0 ENCODING
Capable of encoding full HDMI 2.0 content. This includes 4K60 4:4:4 8bit and high dynamic range video including Dolby Vision, HDR10 & HLG up to 12bit 4:2:2 at 60Hz over a 1GbE network.
ETHERNET OR FIBER
Equipped with both Ethernet and Fiber outputs, the 500 series offers flexibility for any installation. Ethernet can support transmissions up to 100m (328ft) and fiber is capable of a stunning 550m (1800ft) using OM3 MMF.
SECURITY
Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 500 series in encrypted end-to-end.
ULTRA-LOW LATENCY
Less than a single frame a latency (16ms) when in passthrough mode allows content to be distributed without any perceivable delay.
NETWORKHD TOUCH
The 500s are fully compatible with the NetworkHD Touch control app. Effortlessly control matrix and video wall switching with preview streams of each encoder.
In the Box
1x NHD-500-DNT-TX Transmitter
1x IR Emitter
1x IR Receiver
4x Wall Mounting Brackets
2x Rack Mounting Brackets
1x 3-pin Terminal Block
1x 5-pin Terminal Block
| Category | Specification |
|---|---|

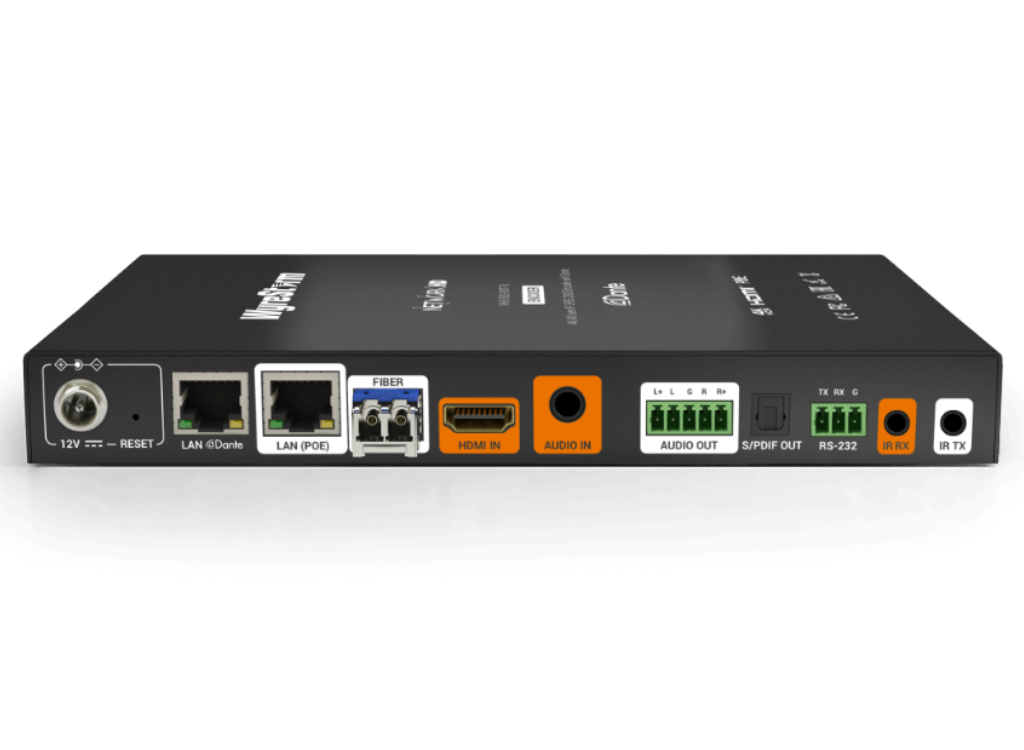

| Audio and Video Inputs | 1x HDMI In, 1x 3.5mm TRS Analog In, 1x 5-pin Balanced Analog Out, 1x Toslink Digital Out |
| Maximum Pixel Clock | 600MHz |
| Max Video Resolutions | 4096x2160p @ 60Hz 8bit 4:4:4 or RGB, 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision, 3840x2160p @ 60Hz 10bit 4:2:2 HDR10/HLG, 1920x1080p @60Hz 12bit |
| Supported Standards | RGB, BT.2020, BT.709, DCI, HDR10, HDR10+, HLG, Dolby Vision |
| Audio Formats | Passthrough: 2CH PCM up to DTS:X & Dolby Atmos, ARC: 2CH PCM up to Dolby Digital Plus & DTS 5.1, Dante/AES67: 2CH PCM |
| Output Video Encoding | JPEG 2000 |
| Encoding Data Rate | Max: 850Mbps (configurable) |
| End to End Latency | 4ms video latency @4K60 (pass-through mode), 4ms @ 4K60 (2 video frames latency in scaler/VW mode) |
| HDMI | HDMI 2.0b, HDCP 2.2, CEC, ARC, EDID |
| Network | 2x 1GbE RJ45 (Dante & main AV out), 1 x 1Gbps SFP (1000Base-SX: 550m using OM3 MMF, 1000Base-LX: 5km using SMF, 1000Base-LX10: 10km using SMF) |
| RS-232 | 1x 3-Pin Phoenix Connector, 2-way, API Programmable |
| IR | 1x IR TX 3.5mm TS Mono Jack, API Programmable, 1x IR RX 3.5mm TRS Stereo Jack, API Programmable |
| USB | 1x USB 2.0 Type Host (Up to 200Mbps upstream) |
| Security Protocols | AES 256, SSH, HTTPS |
| Power Supply | 12V DC 1A, 802.3af PoE Compliant |
| Power Consumption | Max 15.4W, Average: 8W |
| Additional Features | Supports multi-channel audio passthrough (DTS:X & Dolby Atmos), Scalable I/O, CEC One-Touch Play & Standby, Analog audio de-embed output with volume control |
| Custom “No Source” idle image upload for branded downtime, Batch firmware update, Custom EDID management |
