The NHD-600-TRX is a SDVoE transceiver capable of lossless & latency-free 4K60 over a 10GbE network. The TRX allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. 3 x USB HID ports allow extension for keyboard and mouse applications such as a corporate meeting room or an operating center. A cutting-edge architecture provides an efficient, small footprint and support for PoE+.
PREMIUM AV OVER IP PERFORMANCE
With all the bells & whistles of a flagship AV over IP solution, the NetworkHD 600 Series provides clarity and performance for those environments requiring detail and responsiveness. Whether monitoring mission critical AV feeds from a control room, immersed in the competitive E-Sports environment, or requiring crystal clear visuals in the medical field, this AV over IP distribution solution exceeds with no limitations.
Best in Market ’22 Award Winner
Our award-winning NetworkHD line keeps on winning! Our NHD-600-TRX manages to scoop up Best in Market at Integrated Systems Europe 2022. Brought to the market by six leading brands within the industry, the award celebrates outstanding products and solutions within the AV landscape.
ONE DEVICE, A MULTITUDE OF POSSIBILITIES
Unlike similar products in the market, the NetworkHD 600 Transceiver gives you the option to be a transmitter or receiver, without locking it into being one or the other. This means you can have remote sources connected to a “receiver” and loop it back into the system, allowing it to be viewed anywhere in a building.
HDMI 2.0
All 600 series components support encoding full HDMI 2.0 content. This includes 4K60 4:4:4 8bit and high dynamic range formats such as Dolby Vision, HDR10 and HLG. Most HDMI content is transmitted completely uncompressed and delivered over the network latency free using genlock synchronization.
VIDEO WALL & MULTIVIEW
The NHD-600-TRX integrates powerful video wall and multiview processing via one device. Create captivating videos up to 8×8 in size with the ability to adjust for bezels. Or create compelling picture in picture layouts that support up to 16 windows with full control over window placement and size.
In the Box
1x NHD-600-TRX Transceiver
1x 12V DC PSU (US/UK/EU/AU)
1x IR Emitter
1x IR Receiver
2x Wall Mounting Brackets
2x Rack Mounting Brackets
1x 3-pin Terminal Block
1x 5-pin Terminal Block
| Category | Specification |
|---|---|
| AUDIO & VIDEO | |

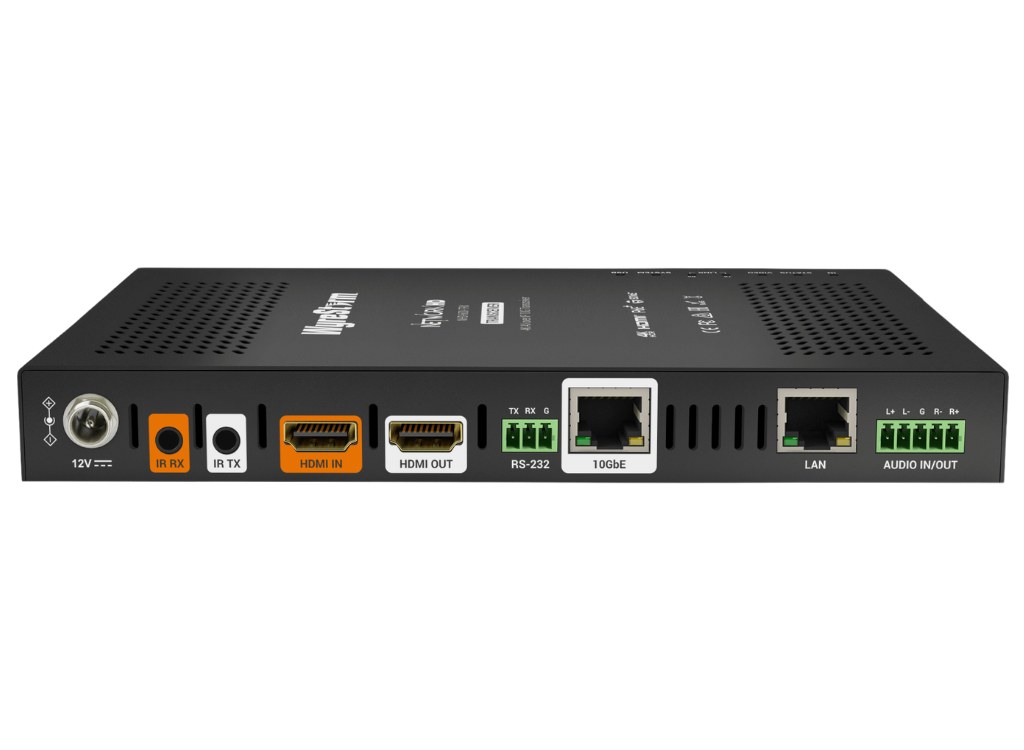

| Inputs/Outputs | 1x HDMI 2.0b Input, 1x HDMI 2.0b Output, 1x 5-pin Balanced Analog Audio, 1x 10GbE 8-pin RJ45 |
| Video Encoding/Decoding | SDVoE Pixel Pipeline |
| Encoding/Decoding Data Rate | 1080p@60Hz 8bit – 3.4Gbps, 4K @30Hz 4:4:4 8bit – 6.4Gbps, 4K @60Hz 4:4:4 8bit – 8.7Gbps (with light compression) |
| End to End Latency | Genlock Mode: Uncompressed = 30us, Compressed <120us; Fast Switch Mode: 1~2 video frames = 16.7–33.4ms @ 60fps |
| Video Resolution (Max) | 4096x2160p @ 60Hz 8bit 4:4:4 or RGB, 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision, 3840x2160p @ 60Hz 10bit HDR10 |
| Supported Standards | RGB, DCI, Rec. 709, BT.2020 |
| COMMUNICATION & CONTROL | |
| HDMI | HDCP 2.2, CEC |
| Ethernet | 1 x 1GbE LAN 8-pin RJ45 |
| RS-232 | 1x 3-pin Phoenix Connector |
| IR | 1 x IR TX 3.5mm TS Mono Jack |

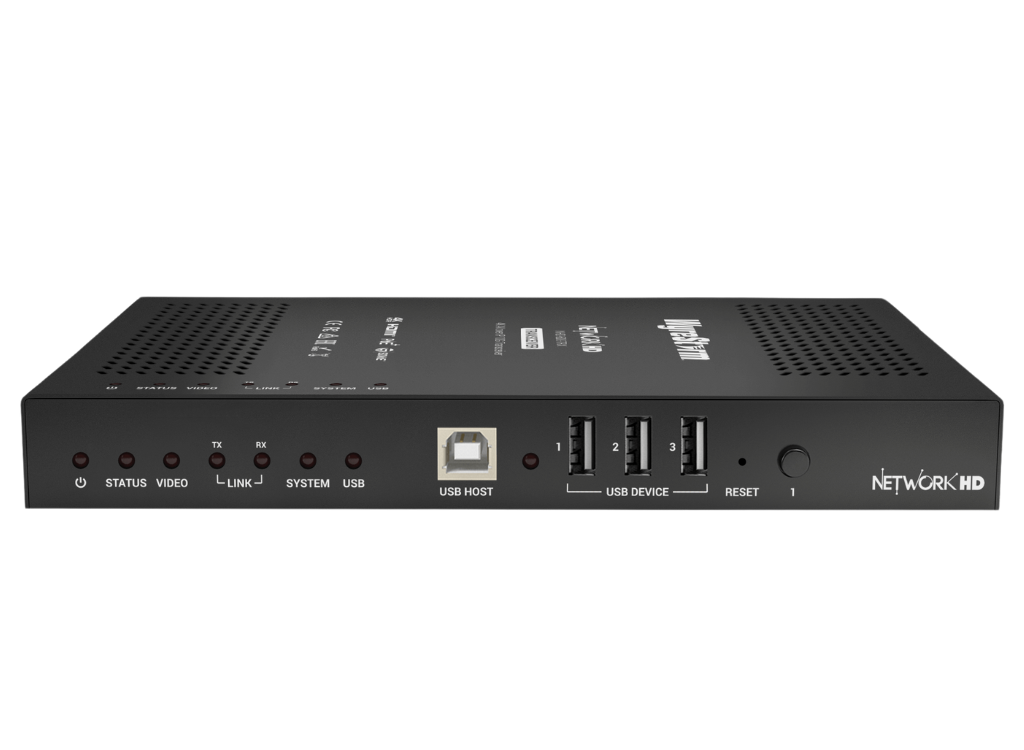

| USB | 3 x USB 1.1 Type A, 1 x USB 1.1 Type B Host |
| POWER | |
| Power Supply | 12V 2A DC PSU |
| Max Power Consumption | Max: 24w |
| ADDITIONAL FEATURES | |
| Audio Passthrough | High-bitrate multichannel audio passthrough, including Dolby Atmos™ and DTS:X |
| USB Ports | 3x USB 1.1 HID ports for keyboard & mouse extension |
| Video Scaling | Matches connected display to video source, leaving original source content unaltered |
| Resolution Conversion | Video resolution, framerate, and color space conversion using SMPTE/ITU methods |
| Genlock Scaler Mode | Zero end-to-end latency |
| AV Source Switching | Seamless AV source switching via Fast Switch mode |
| Analog Audio Port | Configurable as input/output for discrete audio stream or HDMI de-embedding |
| Bidirectional Functionality | IP to Infrared / RS-232 via API or 3rd-party drivers |
| Auxiliary Channel | 1GbE channel for network connectivity of attached source devices |
| Matrix Functionality | Routing control of all audio, video, RS-232, and IR signals |
| Rack Mounting | Compatible with NHD-000-RACK4 for easy rack mounting |
| Secure A/V Transmission | AES encryption methods for secure audio/video transmission |
| Preview Streams | Preview streams not supported |
