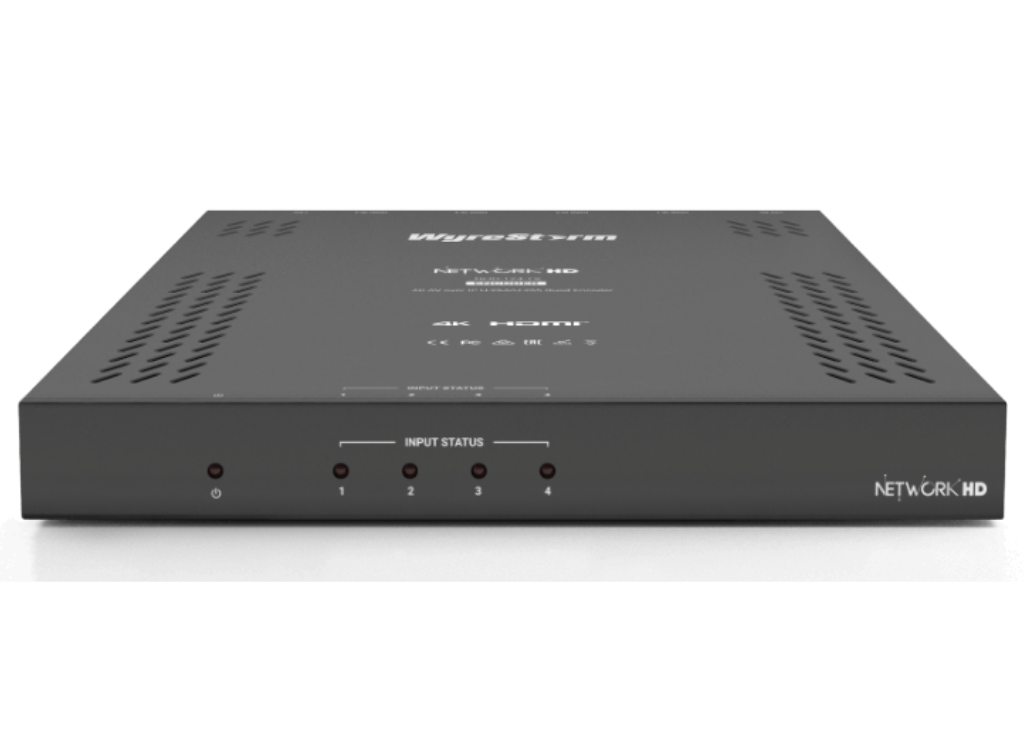

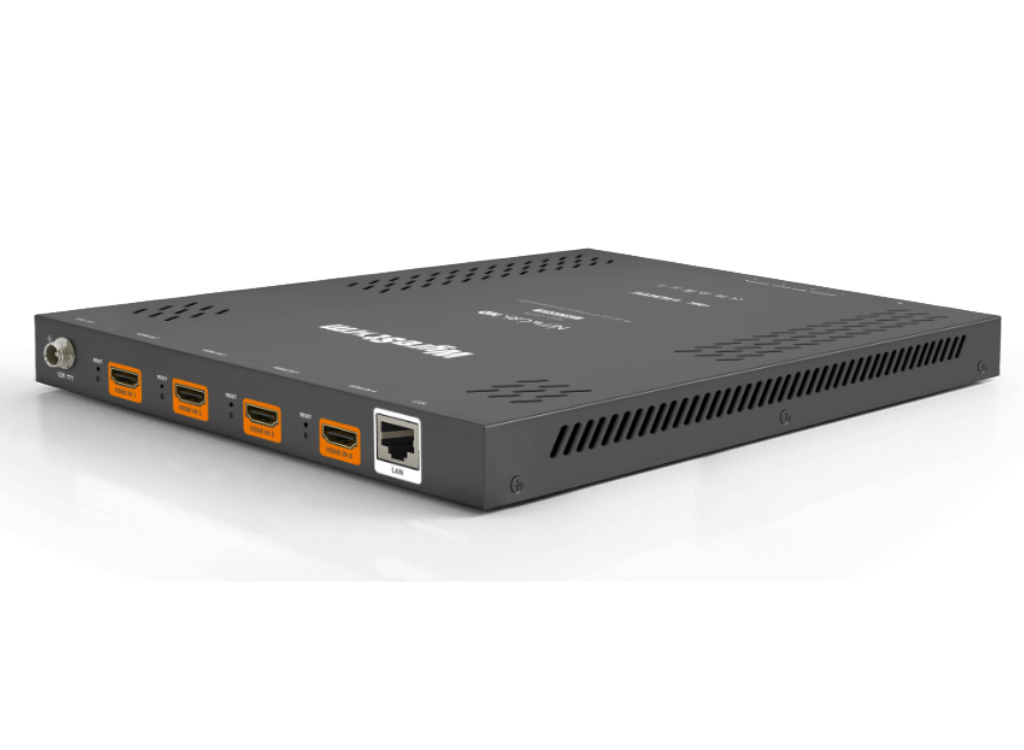

The NHD-124-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution.
The NHD-124-TX encoder is intended for use with 120 series decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.
TAILORED FOR MULTIPLE MARKETS
The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.
LOW BANDWIDTH ENCODING
The NHD-124-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.
SPACE SAVING DEVICE
Space is always a factor when building an AV over IP system, and lack of it can cause headaches for any installer. Our NHD-124-TX solves this by combining four transmitters into one solution, allowing you to have the same functionality on a 1U footprint.
4K RESOLUTION
The NHD-124-TX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source.
AES ENCRYPTION
Security is key in today’s world. The NHD-124-TX support AES 128-bit AV encryption over the network. Data sent from an NHD-124-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.
SECURITY
Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 100 series in encrypted end-to-end.
NHD CONTROL APP COMPATIBLE
Compatible with the NetworkHD Touch Control app. Control source, matrix and video wall switching with preview streams of each Encoder.
In the Box
1x NHD-124-TX Encoder
4x Wall Brackets
1x 12V DC Power Supply (EU/US/UK/AU)
2x Rack Mounting Brackets
| Category | Details |
|---|---|
| Audio & Video | |

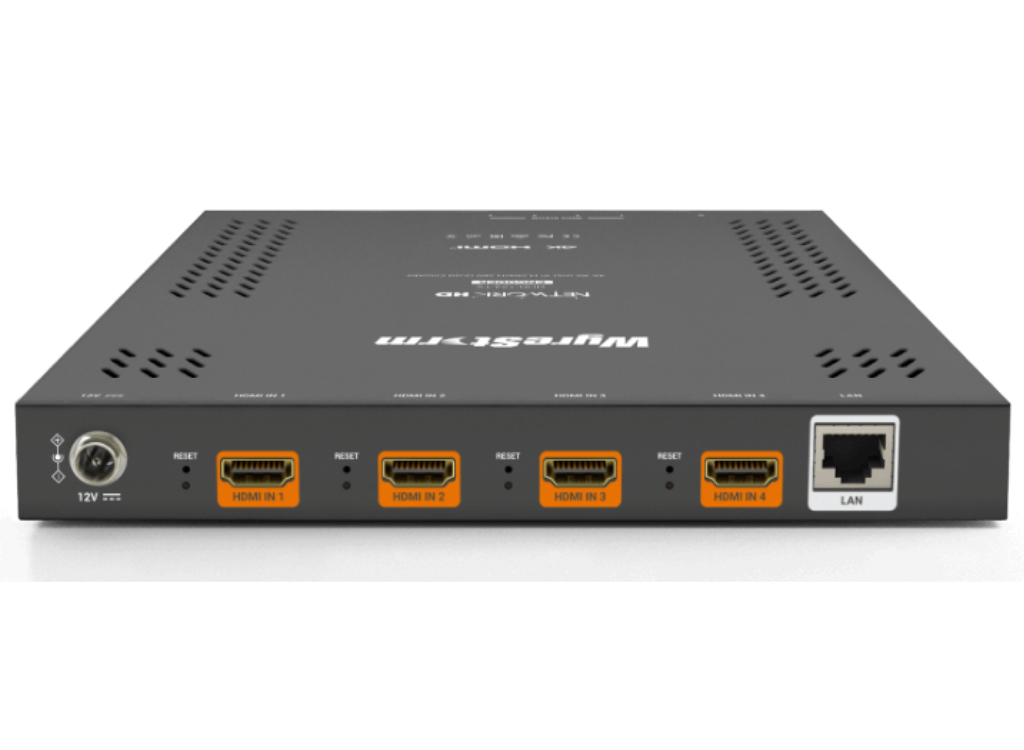

| Inputs | 4x HDMI Type A |
| Outputs | 1x 8-pin RJ-45 female |
| End to End Latency | 1080p: High Quality Mode: ~250ms, Low Latency Mode: ~80ms |
| 4K: High Quality Mode: ~300ms, Low Latency Mode: ~150ms | |
| Audio Formats | LPCM/MPEG4 AAC stereo, 48KHz |
| Video Resolution (Max) | 3840x2160p @ 30Hz, 1920x1080p @ 60Hz |
| Maximum Pixel Clock | 297MHz |
| Communication & Control | |
| HDMI | HDMI 1.4 |
| LAN | 1x 8-pin RJ-45 female |
| Security Protocols | AES 128 |
| Power | |
| Power Supply | 12V DC 3A |
| Additional Features | |
| Video Content | Supports up to 4K @ 30Hz video content |
| Flexible Encoding | Encoding configurable between constant bitrate or variable bitrate |
| Seamless Switching | Seamless video switching – no black screens or freeze frames |
| Format Support | Supports all SD and HD formats, including interlaced content |
| Compatibility | Compatible with NHD-150-RX Multiview receiver |
| Live Preview | Live video preview streams for use with NetworkHD Touch or custom UI |
| IP Address Settings | Flexible IP address settings: AutoIP/Static/DHCP |
| Firmware & Settings | Batch firmware update and settings functions for reduced installation time |
| EDID Management | Custom EDID management |
| HDCP Compliance | HDCP 2.2 compliant |
| Decryption Support | Supports AES-128 for audio/video decryption |
| Security Features | Supports HTTPS/SSH/802.1X |
| PoE Compliance | IEEE 802.3af PoE compliant PD |
| Description | Downloads |
|---|---|
| Spec Sheet | Downloads |
