WyreStorm NetworkHD™ 4-Input 4K60 Multiview Switcher | NHD-0401-MV
SKU: NHD-0401-MV
£600.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
WyreStorm NetworkHD™ 4-Input 4K60 Multiview Switcher | NHD-0401-MV

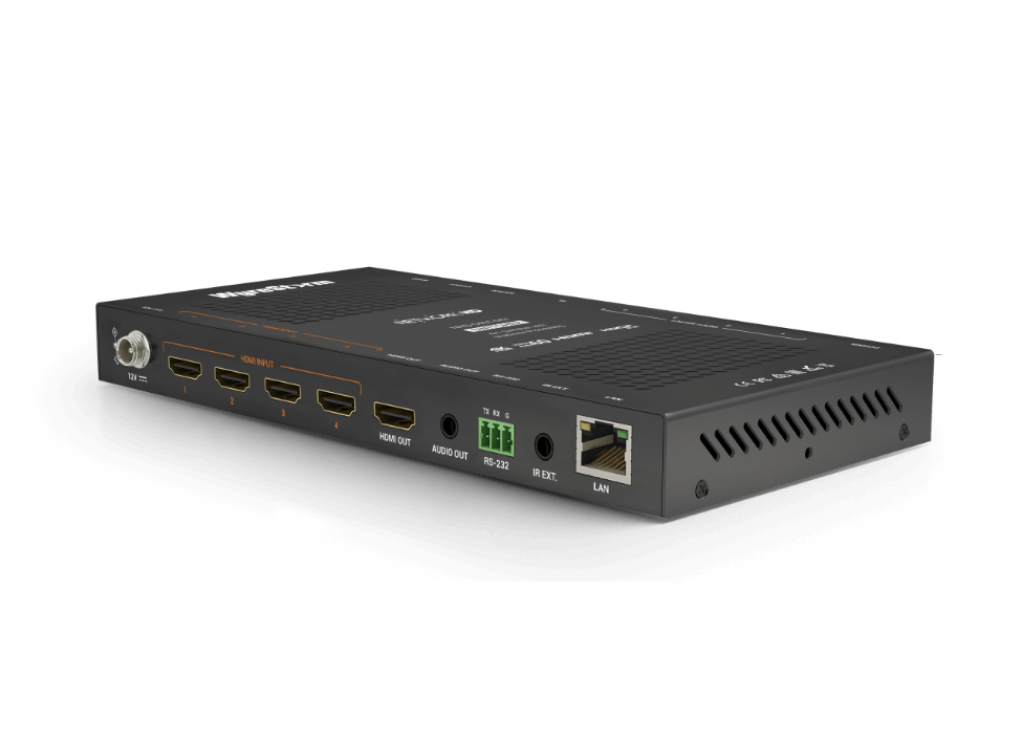

The NHD-0401-MV is a powerful multiview switcher that can be used as a standalone solution or with a NetworkHD 400 or 500 series system. The switcher comes pre-loaded with six different multiview layouts offering unique viewing experiences. 4K60 HDMI 2.0 inputs allow the switcher to support all the latest 4K HDR content with zero compression. Direct integration with the NHD-CTL-PRO provides a seamless solution for pairing this switcher with NetworkHD encoders & decoders to add multiview capability to an AV over IP project.
VERSATILE

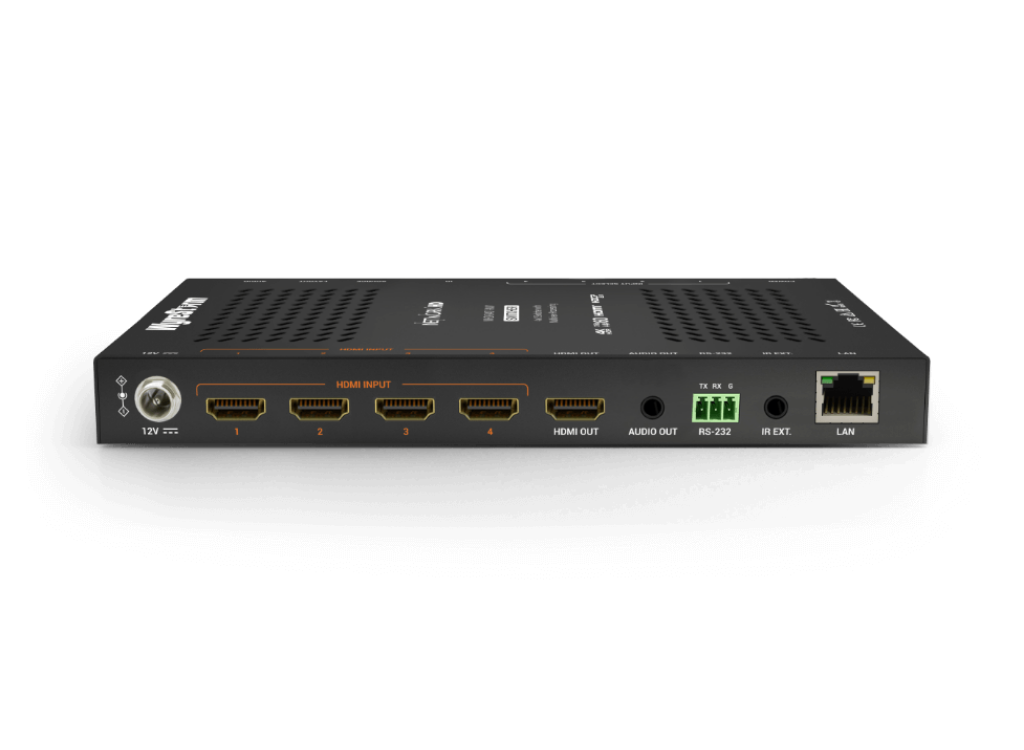

Choose to use this switcher as a standalone multiview processor or pair it with a NetworkHD system. For a standalone solution, connect source devices directly to the four HDMI inputs and a display to the HDMI output. Or connect the switcher to a network switch with a NHD-CTL-PRO and link it to NetworkHD 400 or 500 series encoders & decoders.
READY, SET, GO

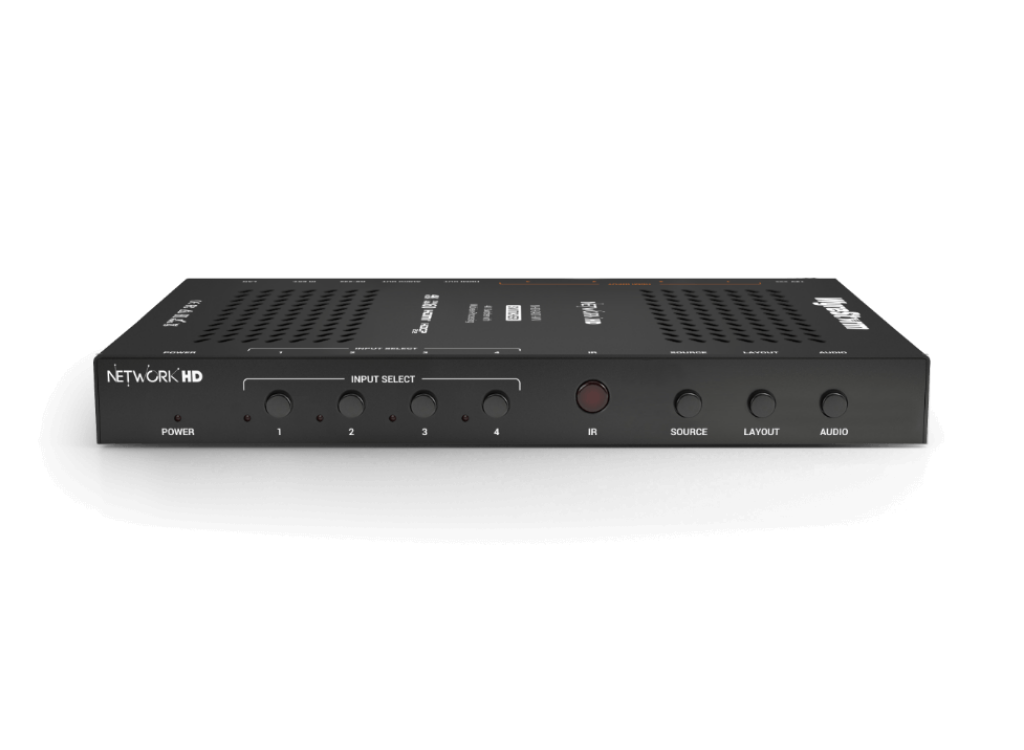

No need to spend time configuring complicated multiview layouts. Six pre-loaded layouts are available that accommodate many different uses. Seamlessly switch between each layout and easily control what source is in each multiview window. You can even discretely choose which audio is playing from the four inputs.
HDMI 2.0
Each input supports the latest HDMI 2.0 content, including 4K60 4:4:4 and high dynamic range such as HDR10, HLG and Dolby Vision. A built-in HDMI downscaler will automatically adjust the resolution to match the maximum capability of the connected display.
RACK MOUNTABLE
The NHD-0401-MV is specifically designed to fit perfectly inside the NHD-000-RACK4, making it easy to be part of a NetworkHD system. Slot the switcher next other encoders and decoders for a tidy and convenient installation.In the Box
1x NHD-0401-MV Multiview Processor
1x 12V Power Supply (US/EU/AU/UK)
1x IR Remote
1x IR Receiver Cable
1x 3-pin Terminal Block
4x Wall Mounting Brackets
2x Mounting Brackets
1x QuickStart Guide -
Category Specification Audio and Video Inputs/Outputs 4x HDMI In, 1x HDMI Out, 1x 3.5mm TRS Analog Out Maximum Pixel Clock 600 MHz Max Video Resolutions 4096x2160p @ 60Hz 8bit 4:4:4 or RGB, 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision, 3840x2160p @ 60Hz 10bit 4:2:2 HDR10/HLG, 1920x1080p @ 60Hz 12bit Supported Standards RGB, DCI, BT.2020, Rec.709 Output Video Encoding Uncompressed HDMI HDMI HDMI 2.0b, HDCP 2.2, CEC, EDID Network 1x 1GbE RJ45 RS-232 1x 3-Pin Phoenix Connector (API Control) IR 1x IR RX 3.5mm TRS Stereo Jack Power Supply 12V 2A DC Power Consumption 18W Additional Features Built-in web interface, Analog audio de-embed, Front panel control buttons, Compatible with NetworkHD Touch -
Description Downloads Spec Sheet Downloads
